Eurolite 51785915 TMH-X4 DMX LED effect light No. of LEDs (details):19 15 W
EAN:
Part number:
Item no:
Technical specifications
- Product type
DMX LED effect light
285 W
- LEDs
19
- Colour
RGBW
- Dim
(W x H x D) 30.5 x 40.0 x 20.0 cm
- Weight
8.62 kg
n.rel.
- Features
Smooth zoom
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
30.5 cm
- Height
40.0 cm
- Watt per LED
15 W
- Depth
20.0 cm
IP20
- Case colour
Black
- Radiation angle
1°
40°
- Operating voltage
100-240 V/AC, 50/60 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642545 Eurolite 51785915 TMH-X4 DMX LED effect light No. of LEDs (details):19 15 W
Description

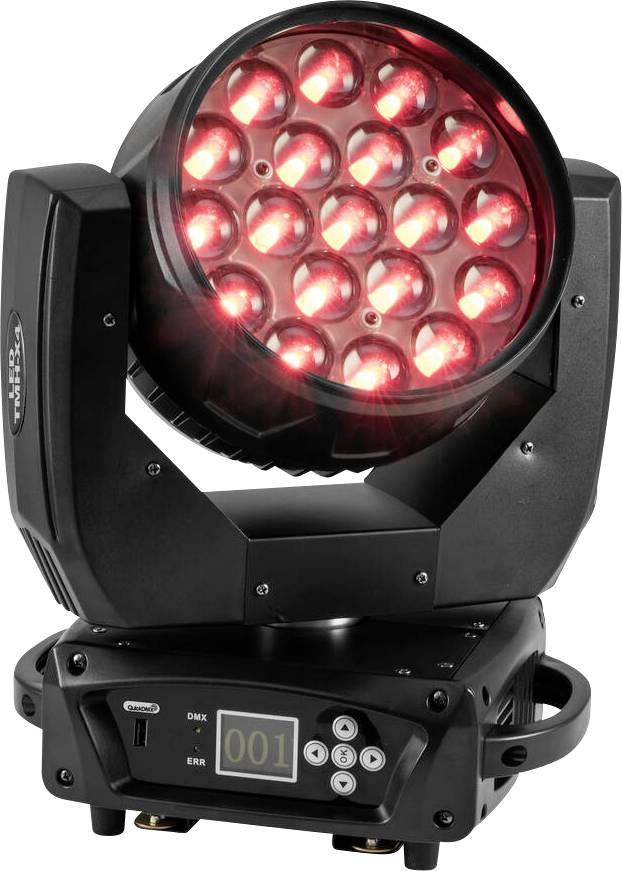

Selector light with 19 x 15 W LEDs, 4-in-1 QCL RGBW color mixture and motor-operated Zoom. 19 powerful LEDs 15 W COB (Chip-on-board) 4in1 QCL RGBW (homogeneous color mixing). 3 segments can be controlled individually. Positioning within 540° pan, 270° tilt. Auto-position correction (feedback) Exact positioning (16-bit resolution). Zoom motor-driven. Colour mixing variable; color change adjustable, electronic dimmer. Stroboscope-effect Integrated show programs. The device is cooled by the fan temperature-controlled in the head; the fan in the base. Can be controlled via stand alone; DMX; music control via microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional). Already pre-programmed at Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain. Flicker-free. With a beam angle of 1° - 40°. Multi-colored LCD display. Power input and power output for simple connection of up to 8 devices. For application areas such as: Stage; clubs/dance schools; wedding/gala/events; mobile DJ's/solo entertainer; restaurants, bars and hotels; distributors. Possible application: Standing; flying
This text is machine translated.
This text is machine translated.
Features
- Power supply: 100-240 V AC, 50/60 Hz; total connection value: 225 W; protection type: IP20; power connection: Power supply via P-Con (blue), installation version power connection cable with safety plug; current output: P-Con (gray), installation version; fuse: 19 x 15 mm, T 2 A fuse replaceable; lamp type: LED lamp; LED-Type: 5 x 20 W COB (chip-on-board) Max 4in1 QCL RGBW (homogeneous color mixing) Tilt movement TILT: 270° exact positioning (16-bit resolution) Auto position correction (feedback); Max. Swivel movement PAN: 540° exact positioning (16-bit resolution) Auto position correction (feedback); flash rate: 1.5 - 25 Hz; equipment: Zoom motorized; DMX channels: 16; 24; DMX input: 3-pin XLR (M) installation version; DMX output: 3-pin XLR (W) installation version; cooling: Fan temperature-controlled in the head; fan in the base; control: Stand-alone; DMX function via microphone; Master/slave QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by Lumen Radio via USB (optional); Pre-programmed with: Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain; Projection: flicker-free; PWM-frequency: 4400 Hz; Radiation angle: 1° - 40°; Radiation angle (1/10 peak): 8 - 40°; Radiation angle (1/2 peak): 1 - 25°; Light intensity in lux (lx): Narrow red (R) 3M: 1841 lx, 6m: 1468 lx; Eng green (G) 3M: 7893 lx, 6m: 2779 lx; Eng blue (B) 3M: 763 lx, 6m: 390 lx; Narrow Cold White (CW) 3M: 9558 lx, 6m: 2468 lx; Narrow All 3M: 19553 lx, 6m: 5001 lx; Wide Red (R) 3M: 272 lx, 6m: 73 lx; Wide Green (G) 3M: 583 lx, 6m: 160 lx; Wide Blue (B) 3M: 117 lx, 6m: 34 lx; Wide Cold White (CW) 3M: 740 lx, 6m: 211 lx; Wide All 3M: 1568 lx, 6m: 439 lx; Housing Colour: Black; Display Type: Multi-Colour LCD Display; Dimensions: Width: 30.5 cm; Depth: 20.0 cm; Height: 40.0 cm; Weight: 8.62 kg; Noise classification: Class 3 (clearly perceived noise); Photobiological Safety: Risk Group 0; Legal Specifications; Special Product: Not intended for room lighting in homes; intended use: lighting for show effects
Scope of delivery
- 1 x Moving light
- 1x user manual
- 1 x Power cable/power cable
- 2 x Omega clip.
