Eurolite 51785925 TMH-H240 Moving head No. of LEDs (details):6 40 W
EAN:
Part number:
Item no:
Highlights & Details

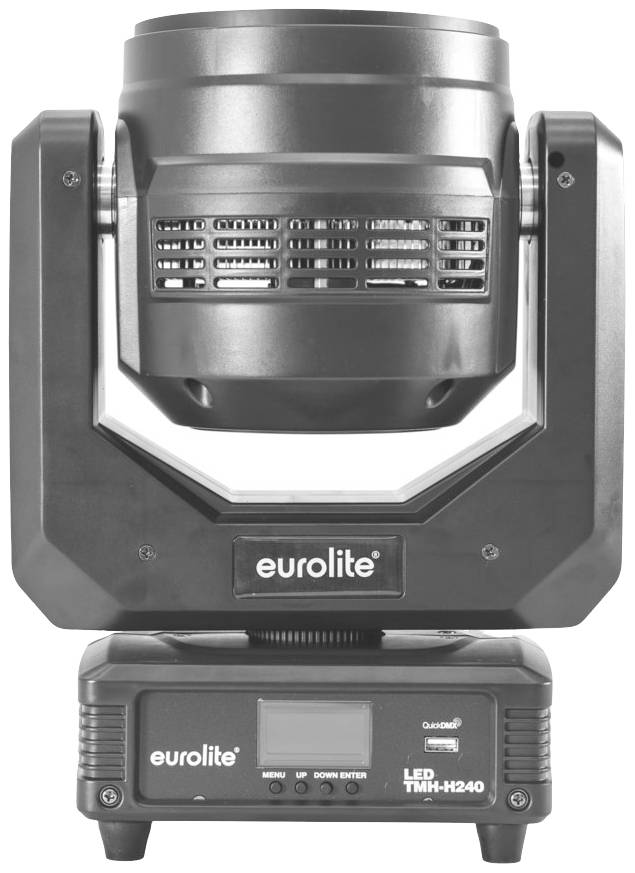

Eurolite LED TMH-H240 beam/wash/flower effect
- 3-in-1 moving head – beam, wash and flower effect in one device

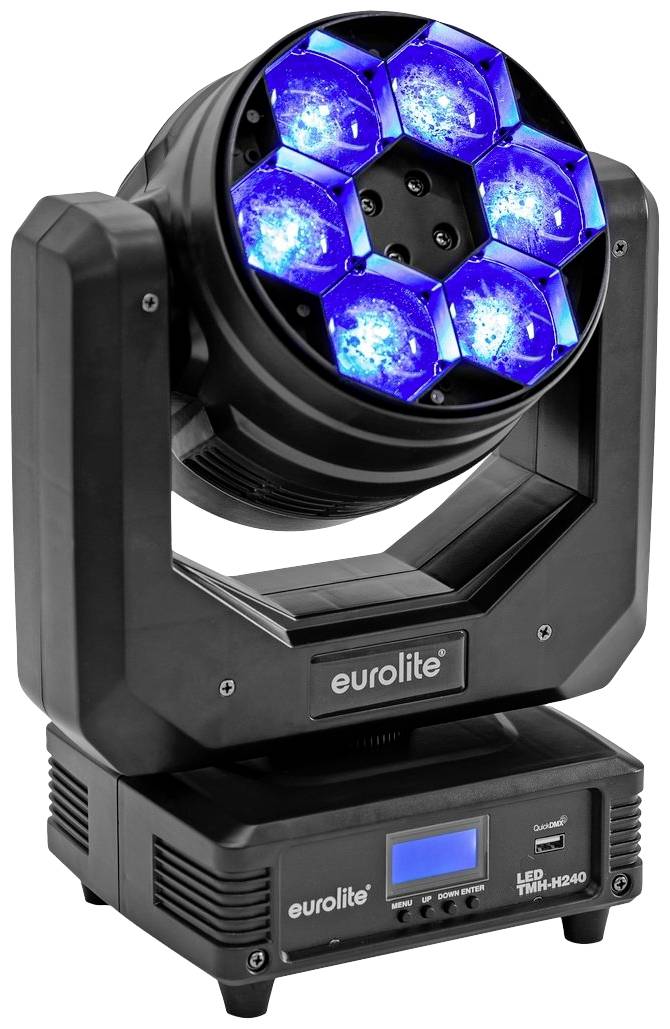

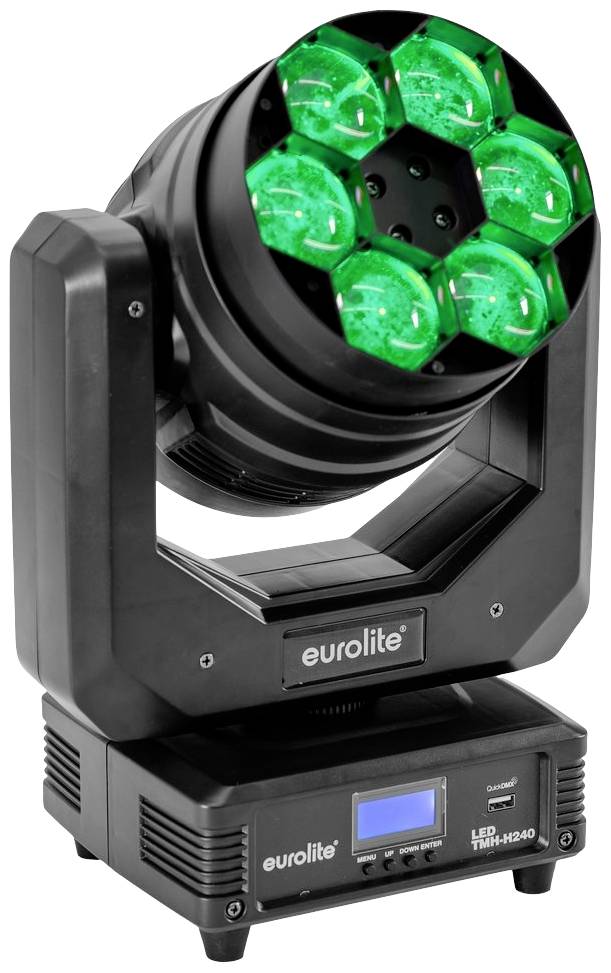

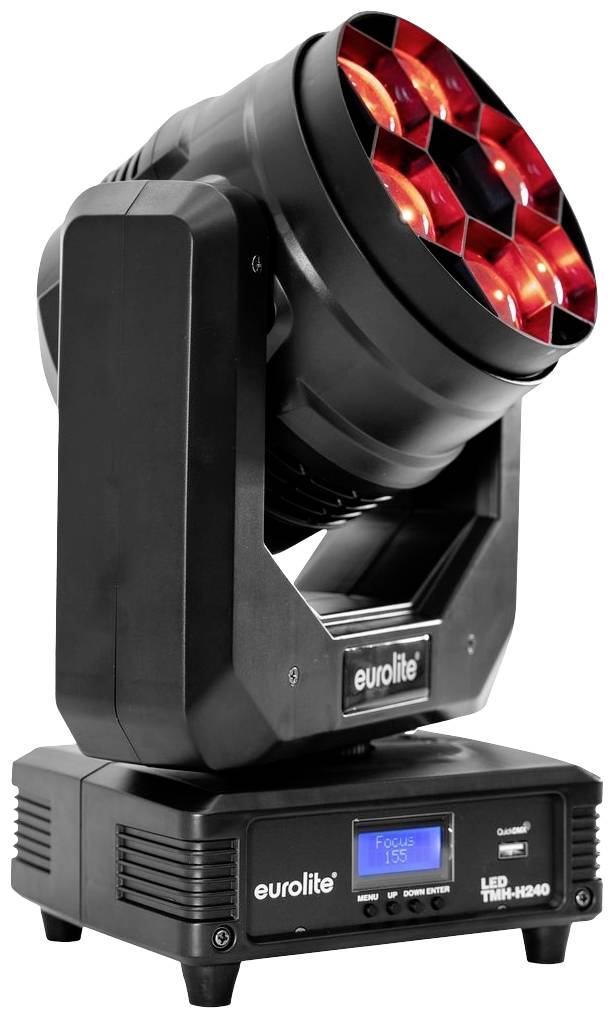

- 6 powerful LEDs 40 W 4in1 QCL RGBW (homogeneous color mixing)
- LEDs can be controlled individually
Technical specifications
- Product type
Moving head
190 W
- LEDs
6
- Colour
RGBW
- Dim
(L x W x H) 260 x 180 x 330 mm
- Weight
6.1 kg
n.rel.
- Features
Audio control via built-in mic
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
180 mm
- Height
330 mm
- Length
260 mm
- Watt per LED
40 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131214 Eurolite 51785925 TMH-H240 Moving head No. of LEDs (details):6 40 W
Description
Hybrid moving head with RGBW LEDs, Zoom, macros, patterns and color temperature presets
Positioning within 540° pan and 240° tilt
PAN angle can be switched between 540° and 360°
Auto position correction (feedback)
Exact positioning (16-bit resolution)
Zoom motor-driven; lens rotation
Colour mixing infinitely variable; color change, colors pre-set; pattern pre-set; background colors can be set; Dimmer speed (step answer) can be set
Strobe effect; division effect; flower effect; radiation effect
Integrated show programs
The device is cooled by a temperature controlled fan
Can be controlled via stand-alone; music control via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional); master/slave function
Flicker-free
With a beam angle of 2° - 40°
With Omega clip
LCD display
Pre-programmed at Light Captain; EASY SHOW 3; Light´J
Power input and power output for simple connection of up to 8 devices
For application areas like: Clubs/dance schools; wedding/gala/events; party cellar; mobile DJs/solo entertainers; stage
Possible application: Standing; flying
This text is machine translated.
Positioning within 540° pan and 240° tilt
PAN angle can be switched between 540° and 360°
Auto position correction (feedback)
Exact positioning (16-bit resolution)
Zoom motor-driven; lens rotation
Colour mixing infinitely variable; color change, colors pre-set; pattern pre-set; background colors can be set; Dimmer speed (step answer) can be set
Strobe effect; division effect; flower effect; radiation effect
Integrated show programs
The device is cooled by a temperature controlled fan
Can be controlled via stand-alone; music control via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional); master/slave function
Flicker-free
With a beam angle of 2° - 40°
With Omega clip
LCD display
Pre-programmed at Light Captain; EASY SHOW 3; Light´J
Power input and power output for simple connection of up to 8 devices
For application areas like: Clubs/dance schools; wedding/gala/events; party cellar; mobile DJs/solo entertainers; stage
Possible application: Standing; flying
This text is machine translated.
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 190 W

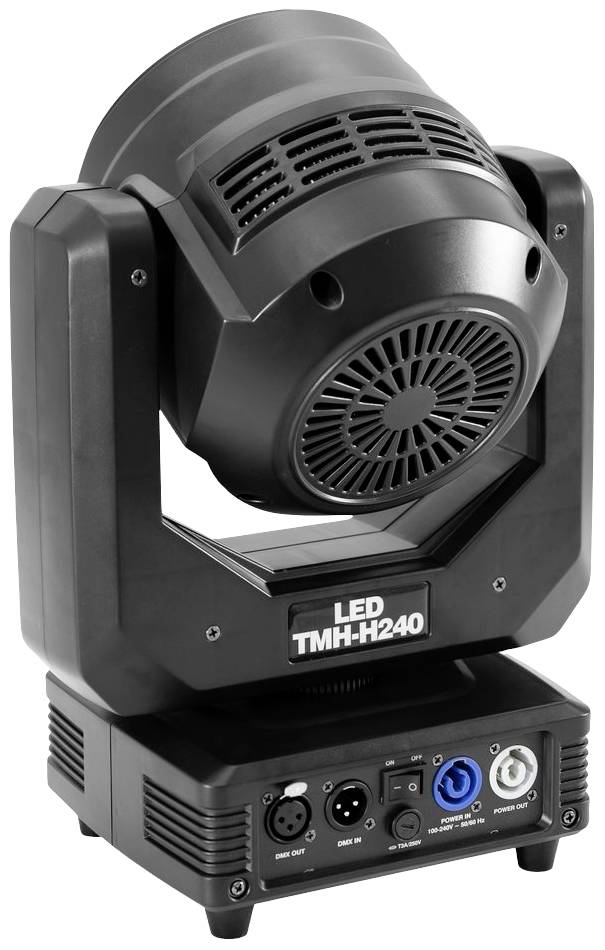

- Power connection: Power feed via P-Con (blue), installation version power connection cable with safety plug (included)
- LCD display type
- Protection class SK I
- Cooling: Fan temperature controlled
- Housing colour black.
- Protection class: IP20
- Recording system 2 x Omega-shaped loops
- Control: Stand-alone
- LED lamp type
- 6 x 40 W 4in1 QCL RGBW (homogeneous color mixing)
- Features: Zoom motorized
- DMX channels: 16
- DMX input 3-pin XLR (M), built in version
- Master/slave function: Master/slave function
- DMX
- Pre-programmed with: Light Captain
- Angle of radiation 2° - 40°
- Max. Beam angle: 1/2 peak, 2 - 25°
- Max. Beam angle: 1/10 peak, 8 - 40°
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- Fuse 5 x 20 mm, T 3 A
- DMX output 3-pin XLR (W) built-in version
- Illuminance (lx): 1423 lx
- P-Con (gray), installation version
- Flash rate 1 - 25 Hz.
- Music control via microphone
- CRMX by Lumen Radio via USB (optional)
- W-DMX by Wireless Solution via USB (optional
- QuickDMX via USB (optional)
- Light J
- Eng green (G) 1m: 2992 lx
- Narrow, blue (B) 1m: 513 lx
- Narrow every 1m: 7807 lx
- EASY SHOW 3
- Max. Tilt movement TILT: 240° Exact positioning (16-bit resolution) Auto position correction (feedback)
- Max. Swivel movement PAN: 540°, 360° Exact positioning (16-bit resolution) Auto position correction (feedback)
- Narrow cold white (CW) 3899 lx, 1m
- Lens rotation
Scope of delivery
- Moving light
- User manual
- Network cable/power cable
- 2 x Omega brackets
- XLR cable
