1/5
Eurolite 51786075 51786075 LED moving head spot No. of LEDs (details):1 90 W
EAN:
Part number:
Item no:
Highlights & Details

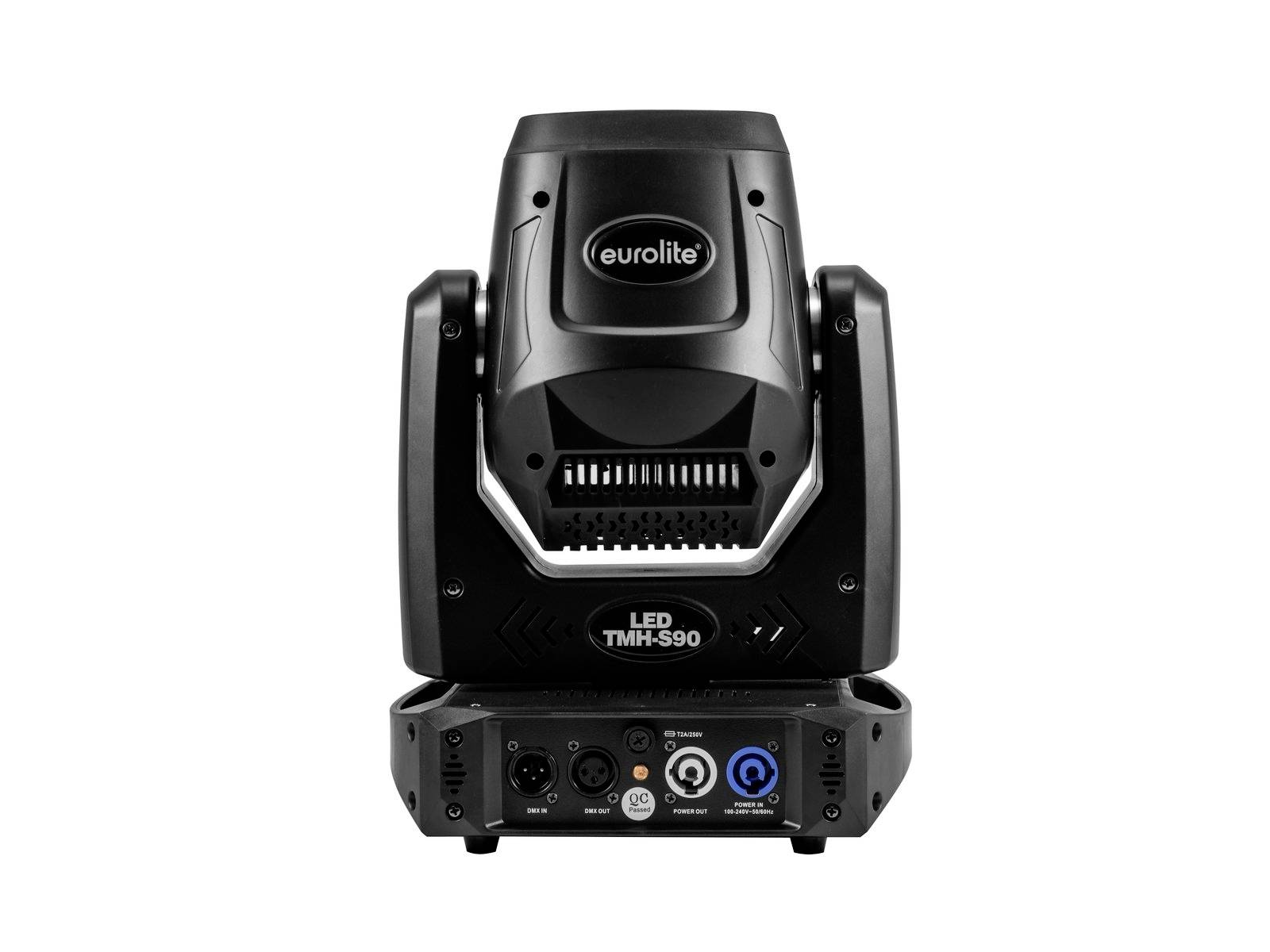

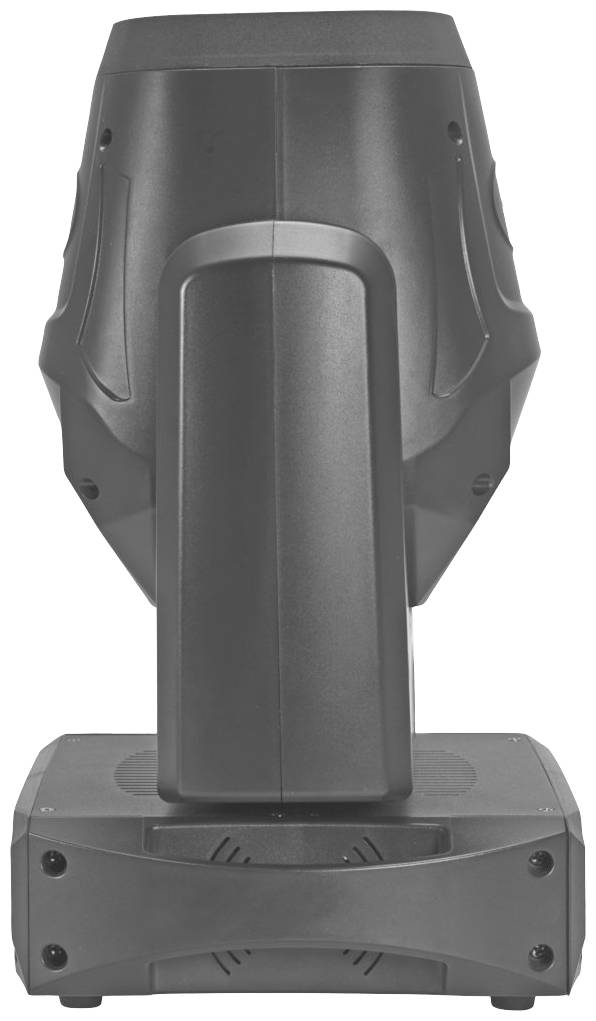

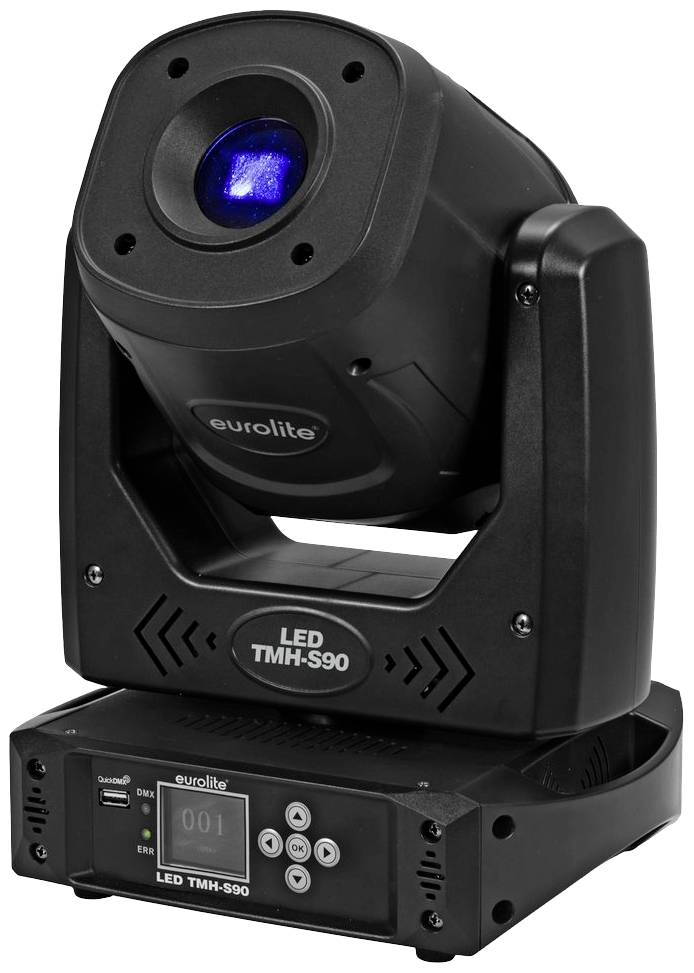

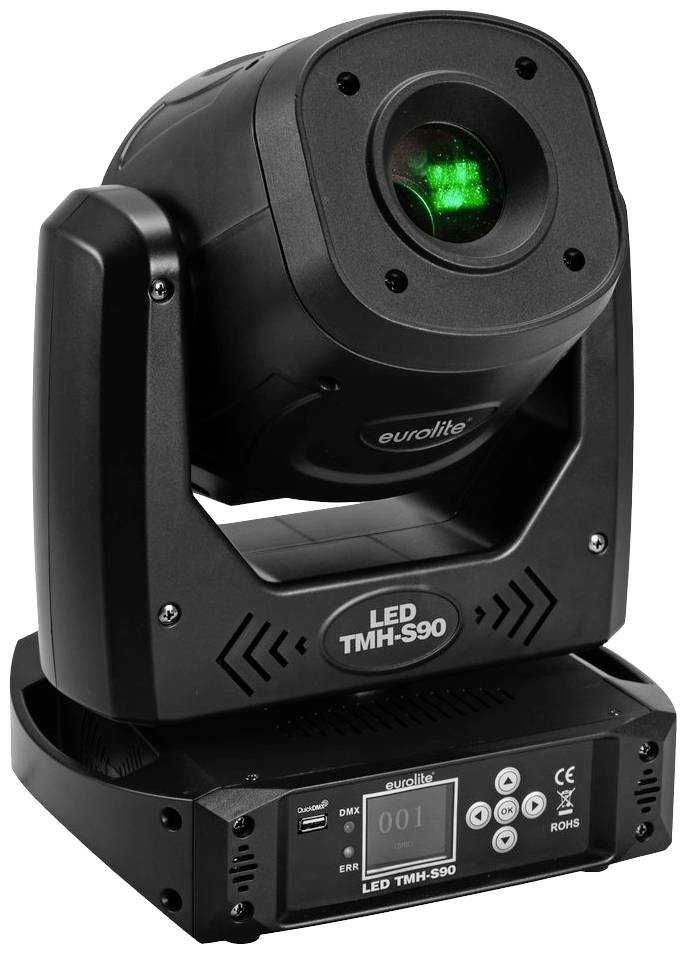

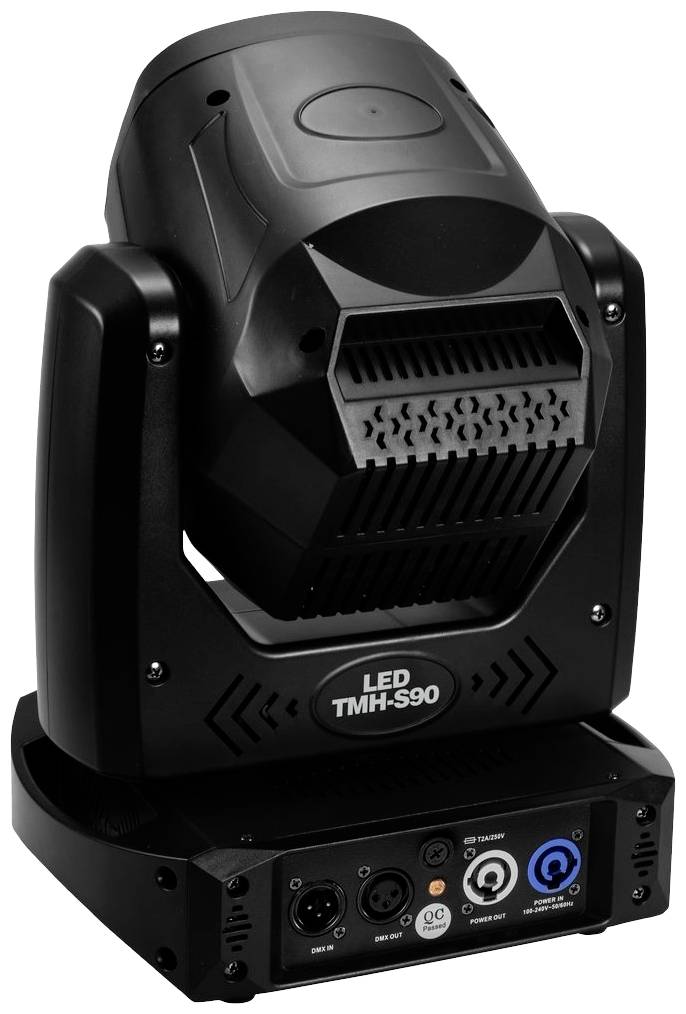

Eurolite LED TMH-S90 moving head Spot
- LED moving head Spot with color wheel, static and rotating gobo wheel, prism and focus
- Rotating 3-facet prism with variable speed
- 1 powerful LED 90 W COB (chip-on-board) cold-white (CW)
- Positioning within 540° pan and 200° tilt
Technical specifications
- Product type
LED moving head spot
140 W
- LEDs
1
- Colour
Cool white
- Dim
(L x W x H) 250 x 250 x 350 mm
- Weight
6.2 kg
n.rel.
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
250 mm
- Height
350 mm
- Length
250 mm
- Watt per LED
90 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131243 Eurolite 51786075 51786075 LED moving head spot No. of LEDs (details):1 90 W
Description
Auto position correction (feedback)
Exact positioning (16-bit resolution)
Prism 3-way; gobo wheel with rotating gobos; gobo wheel with static gobos; focus motorized; color wheel
Colour wheel with 7 dichroic colors and open
Half colors can be selected, Rainbow effect with variable speed in both the directions
Gobo wheel with static gobos, 6 gobos, 1 multi color gobo and open
Shake Effect
Gobo wheel with rotating gobos, 6 gobos and open
Shake Effect
Exchangeable gobos
Slot-In-Gobo-System for easy gobo change
Integrated show programs
The device is cooled by a fan
Can be controlled via DMX, music control via microphone, stand-alone, master/slave function, QuickDMX via USB (optional); CRMX by Lumen Radio via USB (optional); W-DMX by wireless solution via USB (optional)
Flicker-free
With an angle of radiation of 12°
Electronic dimmer
Already pre-programmed at EASY SHOW 1; Light Captain; EASY SHOW 3
For applications such as: Clubs/dance schools; wedding/gala/events; stage; mobile DJ's/solo entertainer
Possible application: Standing; flying
This text is machine translated.
Exact positioning (16-bit resolution)
Prism 3-way; gobo wheel with rotating gobos; gobo wheel with static gobos; focus motorized; color wheel
Colour wheel with 7 dichroic colors and open
Half colors can be selected, Rainbow effect with variable speed in both the directions
Gobo wheel with static gobos, 6 gobos, 1 multi color gobo and open
Shake Effect
Gobo wheel with rotating gobos, 6 gobos and open
Shake Effect
Exchangeable gobos
Slot-In-Gobo-System for easy gobo change
Integrated show programs
The device is cooled by a fan
Can be controlled via DMX, music control via microphone, stand-alone, master/slave function, QuickDMX via USB (optional); CRMX by Lumen Radio via USB (optional); W-DMX by wireless solution via USB (optional)
Flicker-free
With an angle of radiation of 12°
Electronic dimmer
Already pre-programmed at EASY SHOW 1; Light Captain; EASY SHOW 3
For applications such as: Clubs/dance schools; wedding/gala/events; stage; mobile DJ's/solo entertainer
Possible application: Standing; flying
This text is machine translated.
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 140 W
- Power supply: Power feed via P-Con (blue), installation version power supply cable with safety plug
- Protection class SK I
- Cooling: Fans
- Housing colour black.
- Protection class: IP20
- DMX control
- LED lamp type
- LED:1 x 90 W COB (chip-on-board) cold-white (CW)
- Features: 3-way prism
- DMX channels: 15
- DMX input 3-pin XLR (M), built in version
- Master/slave function: Master/slave function
- Pre-programmed at: EASY SHOW 1
- Light captain: Light captain
- Angle of radiation: 12°
- Beam angle (1/2 peak) 12°
- Noise classification: Class 3 (clearly audible noise)
- Gobo: Gobo wheel with static gobos, 6 gobos, 1 multi-color gobo and open
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- Fuse 5 x 20 mm, T 2 A
- DMX output 3-pin XLR (W) built-in version
- Illuminance (lx): 1543 lx
- P-Con (gray), installation version
- Flash rate 2 - 30 Hz
- Music control via microphone: Music control via microphone
- CRMX by Lumen Radio via USB (optional): CRMX by LumenRadio via USB (optional)
- W-DMX by Wireless Solution via USB (optional): W-DMX by Wireless Solution via USB (optional)
- QuickDMX via USB (optional): QuickDMX via USB (optional)
- Stand-alone: Stand-alone
- EASY SHOW 3: EASY SHOW 3
- Max. Tilt movement TILT: 200° Exact positioning (16-bit resolution) Auto position correction (feedback)
- Max. Swivel movement PAN: 540° accurate positioning (16-bit resolution) Auto position correction (feedback)
- Gobo wheel with rotating gobos: Gobo wheel with rotating gobos
- Colour generation: Colour wheel with 7 dichroic colors and open
- Half colors can be selected, Rainbow effect with variable speed in both the directions: Semi-colors can be selected, Rainbow effect with variable speed in both the directions
- Shake Effect: Shake effect
- Exchangeable gobos: Interchangeable
- Slot-In-Gobo-System for easy gobo change: Slot-in-gobo system for easy gobo change
- Gobo wheel with static gobos: Gobo wheel with static gobos
- Motor-driven focus: Motor-driven focus
- Colour wheel: Colour wheel
- Gobo wheel with rotating gobos, 6 gobos and open: Gobo wheel with rotating gobos, 6 gobos and open
- Outer diameter 21.8mm: Outer diameter 21.8mm
- Image diameter 16mm: Image diameter 16mm
Scope of delivery
- Moving light
- User manual
- Network cable/power cable
- Omega clip
- Safety cable solution
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
