Eurolite 51786081 TMH-B120 DMX LED effect light No. of LEDs (details):1 120 W
EAN:
Part number:
Item no:
Technical specifications
- Product type
DMX LED effect light
120 W
- LEDs
1
- Colour
Cool white
- Dim
(W x H x D) 26.0 x 37.5 x 23.5 cm
- Weight
6.95 kg
n.rel.
- Features
Audio control via built-in mic
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
26.0 cm
- Height
37.5 cm
- Watt per LED
120 W
- Cable length
1.1 m
- Depth
23.5 cm
IP20
- Case colour
Black
- Material
Plastic
- Radiation angle
2°
- Protection class
I
- Operating voltage
100-240 V/AC, 50/60 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642548 Eurolite 51786081 TMH-B120 DMX LED effect light No. of LEDs (details):1 120 W
Description

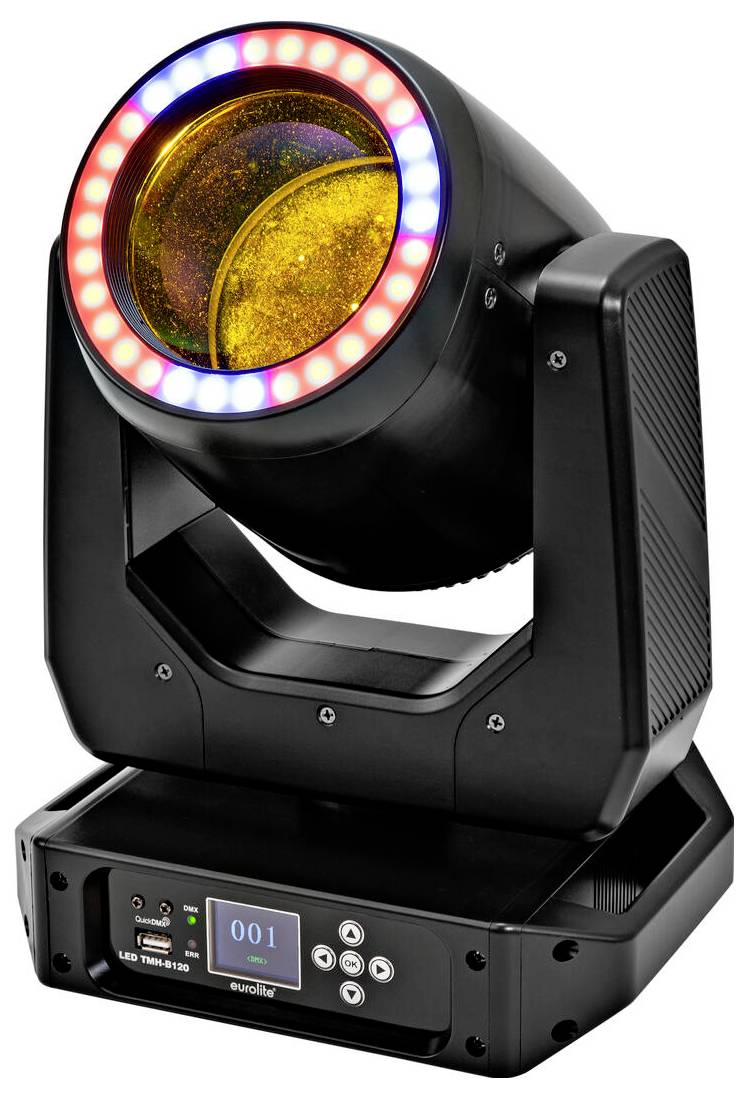

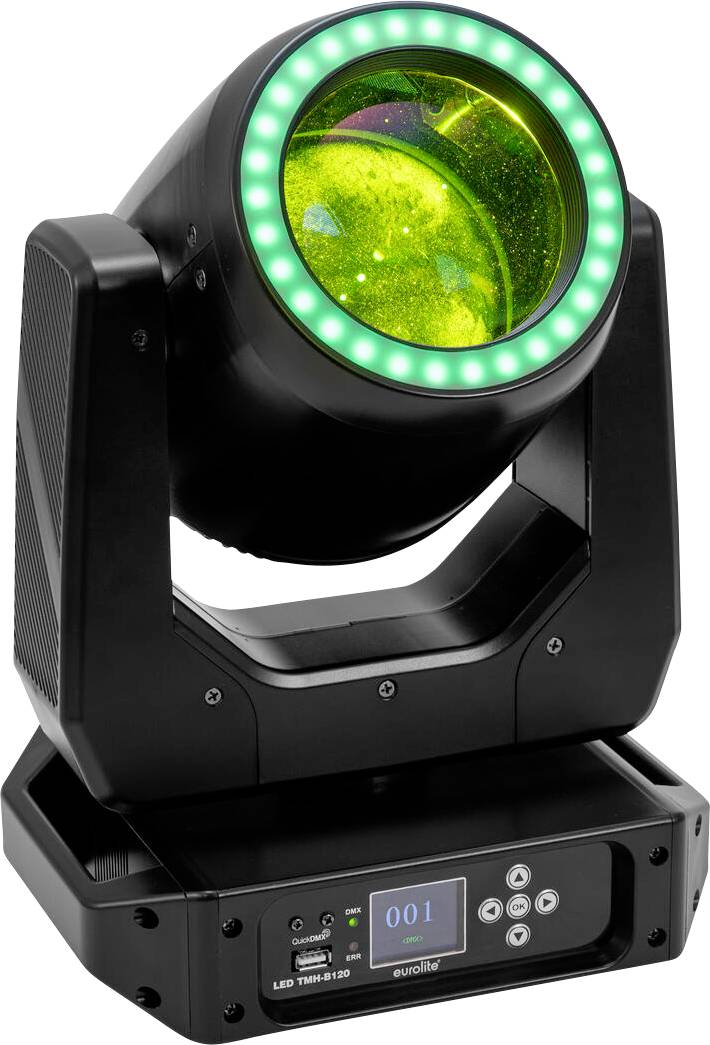

LED moving-head beam with hypno-ring, color wheel, static gobo-wheel, prism and focus. 1 powerful LED 120 W COB (chip-on-board) cold-white (CW). 30 powerful LEDs 0.2 W SMD 5050 3-in-1 TCL RGB (homogeneous color mixing). Positioning within 540° pan, 240° tilt. Auto-position correction (feedback) Exact positioning (16-bit resolution). Colour wheel; gobo wheel with static gobos; focus motorized; frost filter; prism 8-fold rotating. Dimmer; color animations with adjustable color. Beam effect. Colour wheel with 7 dichroic colors and open. Half colors can be selected, Rainbow effect with variable speed in both directions; color change switchable (mode 1: Only full colors, mode 2: Colour change at each position). Gobo wheel with static gobos, 13 gobos and open. Shake Effect. 4 integrated show programs. The device is cooled by the fan in the base; the fan in the head. Can be controlled via stand-alone; music control via microphone; DMX; QuickDMX via USB (optional); CRMX by Lumen Radio via USB (optional); W-DMX by wireless solution via USB (optional); Master/slave function. Pre-programmed by Light Captain. Flicker-free. DMX failure mode (hold; zero value). With an angle of radiation of 2°. With Omega bracket. Multi-colored LCD display. 2 robust carry handles. 4x Rubber foots Power input and power output for simple connection of up to 8 devices. For applications such as: Clubs/dance schools; stage; mobile DJ's/solo entertainer; distributor. Possible application: Standing; flying
This text is machine translated.
This text is machine translated.
Features
- Power supply: 100-240 V AC, 50/60 Hz; total connected wattage: 170 W; protection class: IP20; protection class: SK I; Power connection: Power feed via P-Con (blue), Installation version power connection cable with safety plug (included); Installation cable: 3 x 1.0 mm² H05VV-F; Cable length: 1.1 m; Power output: P-Con (gray), Installation version; Fuse: 1 x 120 mm, T 2 A fuse replaceable; Lamp type: LED lamp; LED Type: 5 x 20 W COB (Chip-on-board) cold white (CW); 30 x 0.2 W SMD 5050 3-in-1 TCL RGB (homogeneous color mixing); max. Tilt movement TILT: 240° exact positioning (16-bit resolution) Auto position correction (feedback); Max. Pivoting movement PAN: 540° exact positioning (16-bit resolution) Auto position correction (feedback); flash rate: 2 - 20 Hz; equipment: Colour wheel; gobo wheel with static gobos; focus motorized; frost filter; prism 8-fold rotating; color generation: Colour wheel with 7 dichroic colors and open; half-colors can be selected, Rainbow effect with variable speed in both directions; color change switchable (mode 1: only full colors, mode 2: color change at every position); Gobos: Gobo wheel with static gobos, 13 gobos and open; shake effect; DMX channels: 21; DMX input: 3-pin XLR (M) installation version; DMX output: 3-pin XLR (W) installation version; cooling: 1 x fans in the base; 1 x fans in the head; control: stand-alone; music control via microphone; DMX; QuickDMX via USB (optional); CRMX by Lumen Radio via USB (optional); W-DMX by wireless solution via USB (optional); Master/slave function; pre-programmed with: light captain; Projection: flicker-free; PWM frequency: 13700 Hz; DMX failure mode: hold; zero value; Beam angle: 2°; beam angle (1/2 peak): beam 2°; ring 120°; beam angle (1/10 peak): beam 2°; ring 120°; color temperature: 8500 K; housing color: black; recording system: Omega bracket; Display type: Multi-colored LCD display; status LED: DMX, Fault; USB-connection: type A; carry handle: 2 pieces; Transport aid: 4 x rubber feet; material: plastic; dimensions: width: 26.0 cm; depth: 23.5 cm; height: 37.5 cm; weight: 6.95 kg; legal specifications; Special product: Not intended for room lighting in homes; intended use: lighting for show effects
Scope of delivery
- 1 x Moving light
- 1 x Power cable/power cable
- 1 x Omega clip
- 1 x safety loop
- 1 x Operating manual
