Eurolite 51786110 TCL-150 Color Changer COB LED effect light No. of LEDs (details):1 30 W
EAN:
Part number:
Item no:
Highlights & Details

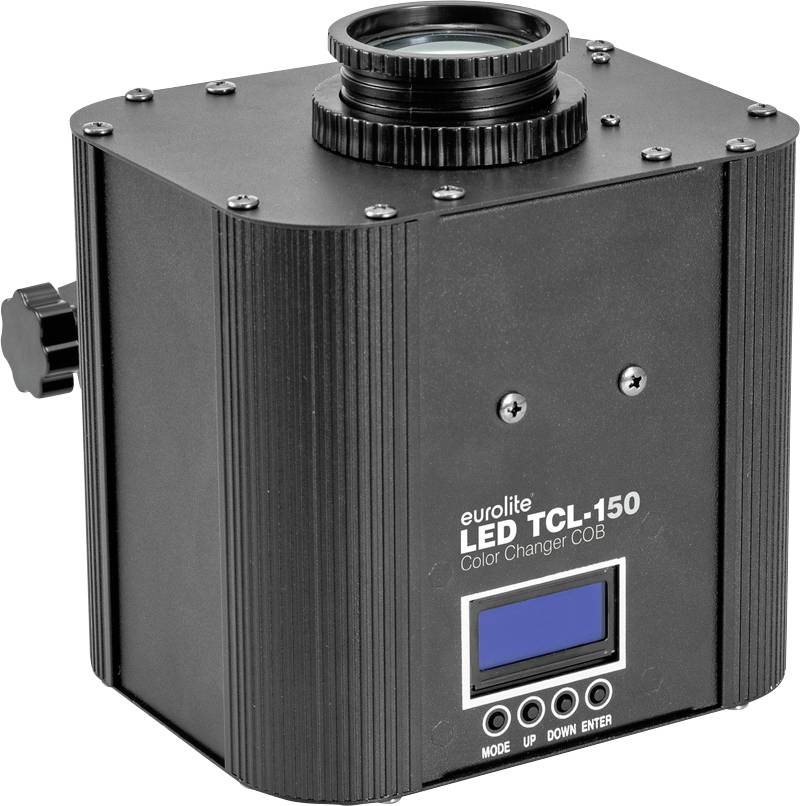

Eurolite LED TCL-150 color changer COB
- Integrated show programs in auto and music mode
- Strobe effect with variable speed
- Strobe effect with 2-18 flashes per second
Technical specifications
- Power supply 100 - 240 V AC, 50/60 Hz
- Total connected wattage 45 W
- Protection class: IP20
- Protection class SK I
- Power connection: Power feed cold devices (M) Built-in version Power connection cable with earthing contact plug (included)
- Fuse: Device fuse 5 x 20 mm, T 1 A fuse replaceable
- Type of lamp: LED lamp
- LED: 1 x COB (chip-on-board) 30 W CW
- Flash rate 2 - 18 Hz
- DMX channels: 6

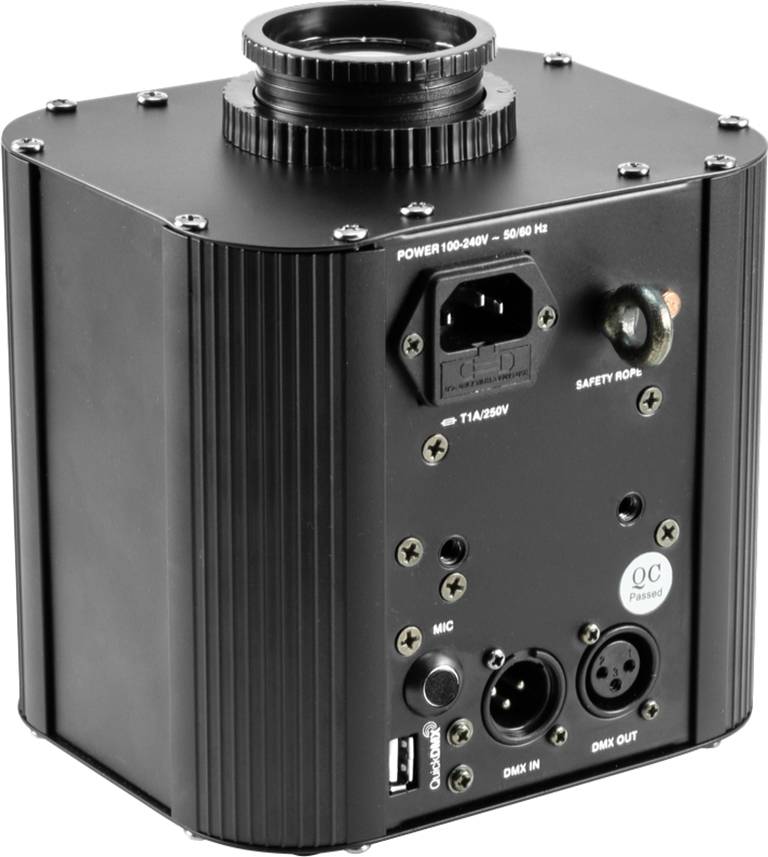

- DMX input: 3-pin XLR (M) mounted version
- DMX output: 3-pin XLR (W) mounted version
- Cooling: Fan
- Control: DMX; music control via microphone; master/slave function; stand-alone; QuickDMX via USB (optional)
- Angle of radiation: 12°
- Beam angle (1/2 peak): 12°
- Illuminance in lux (lx): CW 1m 12082 lx, 3M: 1172 lx, 6m: 281 lx
- Housing colour black.
- Display type: LCD display
- Product type
LED effect light
30 W
- LEDs
1
- Colour
Cool white
- Dim
(L x W x H) 175 x 160 x 215 mm
- Weight
2.12 kg
n.rel.
- Features
Audio control via built-in mic
Dimmable
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
160 mm
- Height
215 mm
- Length
175 mm
- Watt per LED
30 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2375224 Eurolite 51786110 TCL-150 Color Changer COB LED effect light No. of LEDs (details):1 30 W
Description
Bright LED color changer with 30 W COB LED, gobo and color wheel.
This text is machine translated.
This text is machine translated.
Features
- Music control via in-built microphone with adjustable microphone sensitivity
- Manual focus
- Electronic dimmer
- Compact and handy

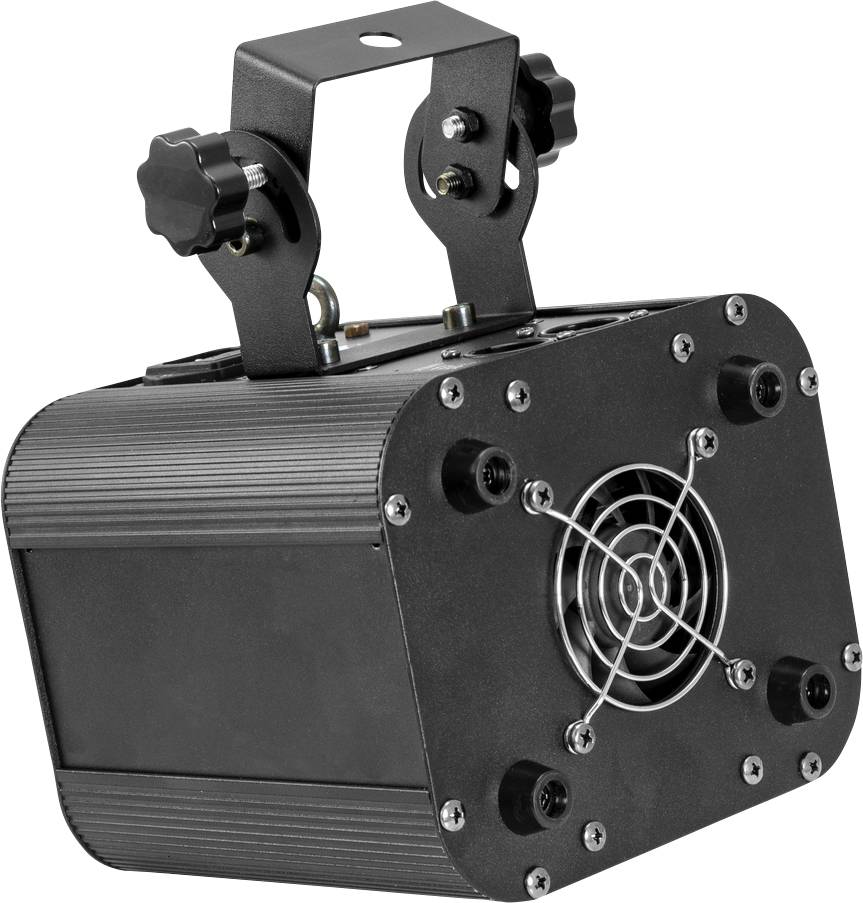

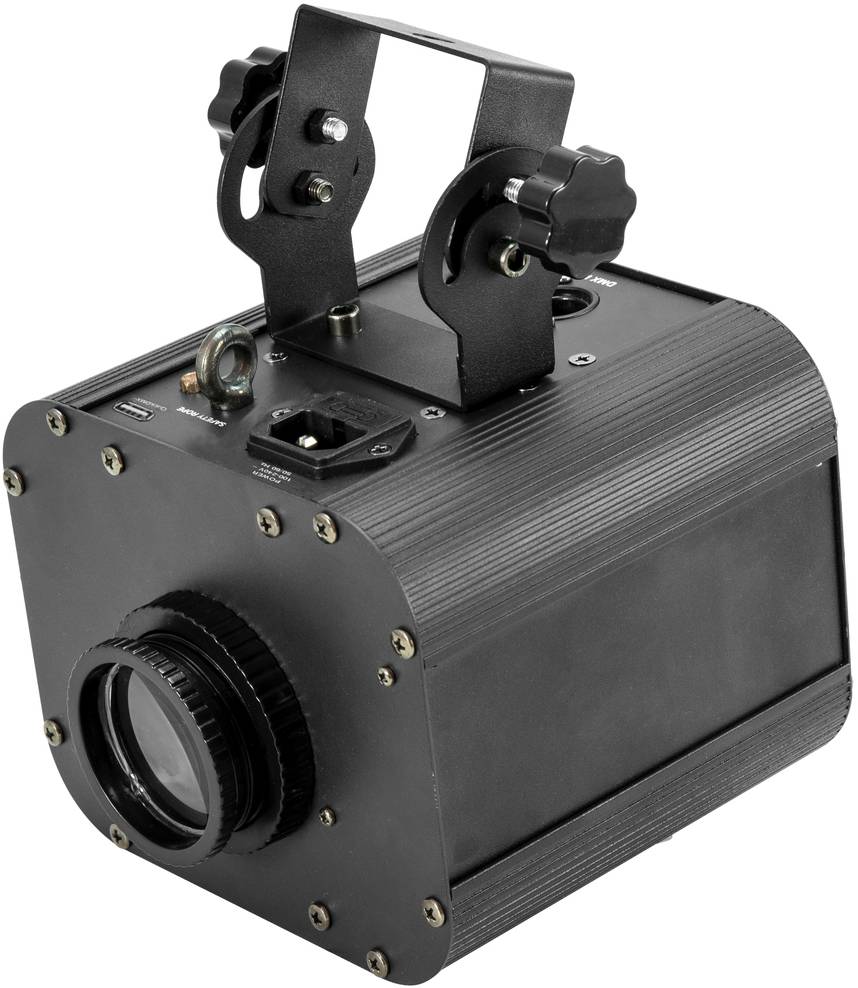

- Swivelling Mounting Bracket
- Light beam with 12° angle of radiation
- The Color Changer is perfect through the "Beam Reducer Gobos" To illuminate mirror balls
- Addressing and settings via blue LCD control unit with four control buttons
- Compatible with QuickDMX - the radio DMX system from Eurolite
- Phantom-powered USB socket for QuickDMX receiver (accessories)
- Switched-mode power supply technology for mains voltage between 100 and 240 volts
- Additional rubber feet protect the device when it is placed on the floor
- LED: 1 x COB (chip-on-board) 30 W CW
- Color wheel 7 dichroic colors and open
- Gobo wheel with static gobos, 4 gobos, 3 color dichroos and open
- Shake effect
- Can be operated in the 6 CH DMX mode
- The device is cooled by fans
- Can be controlled via DMX; music control via microphone; master/slave function; stand-alone; QuickDMX via USB (optional)
- Flicker-free projection
- Effect: Gobo effect
- Legal Specifications:
- Subject to eco-design: Yes
- Special product: Not intended for domestic lighting
- Intended use: Lighting for show effects.
