Eurolite 51786151 TSL-350 Scan LED effect light No. of LEDs (details):1 pc(s) 60 W
EAN:
Part number:
Item no:
Technical specifications
- 60 W COB (Chip-on-board) cold-white (CW)
- DMX channels: 10

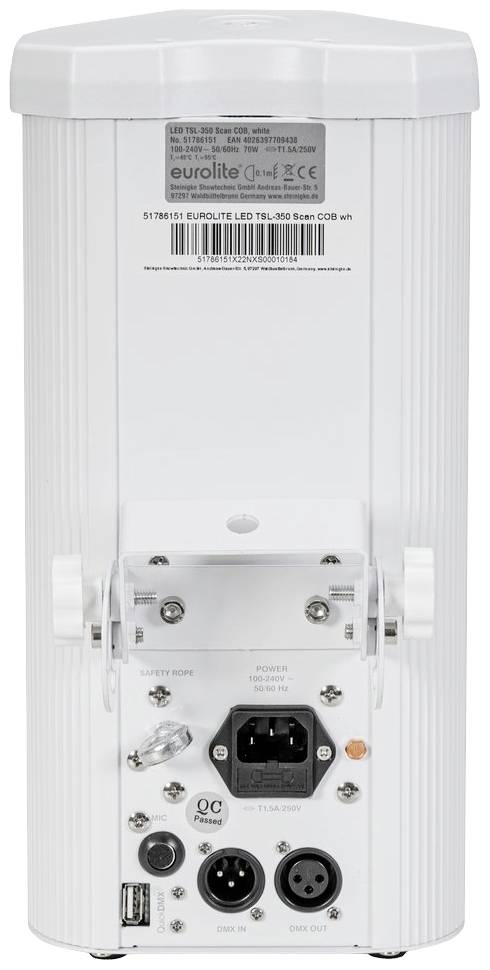

- DMX input 3-pin XLR (M), built in version
- DMX-output 3-pin XLR (W) installation version
- Beam angle: 11°
- Beam angle (1/2 peak) 11°
- Illuminance (lx): Cold white (CW) 1m: 12034 lx, 3M: 1489 lx, 6m: 388 lx
- Protection class: IP20
- Protection class: I
- Product type
LED effect light
60 W
- LEDs
1 pc(s)
- Colour
Cool white
- Dim
(L x W x H) 150 x 160 x 330 mm
- Weight
3220 g
n.rel.
- Features
Dimmable
- Factory colour
White
- Bulb type
LED (monochrome)
- Width
160 mm
- Height
330 mm
- Length
150 mm
- Watt per LED
60 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2898801 Eurolite 51786151 TSL-350 Scan LED effect light No. of LEDs (details):1 pc(s) 60 W
Description

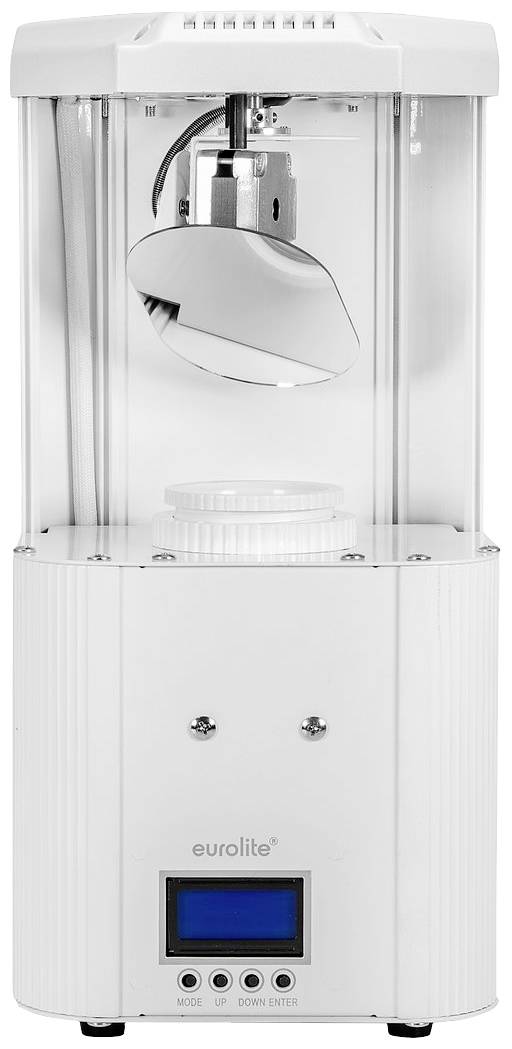

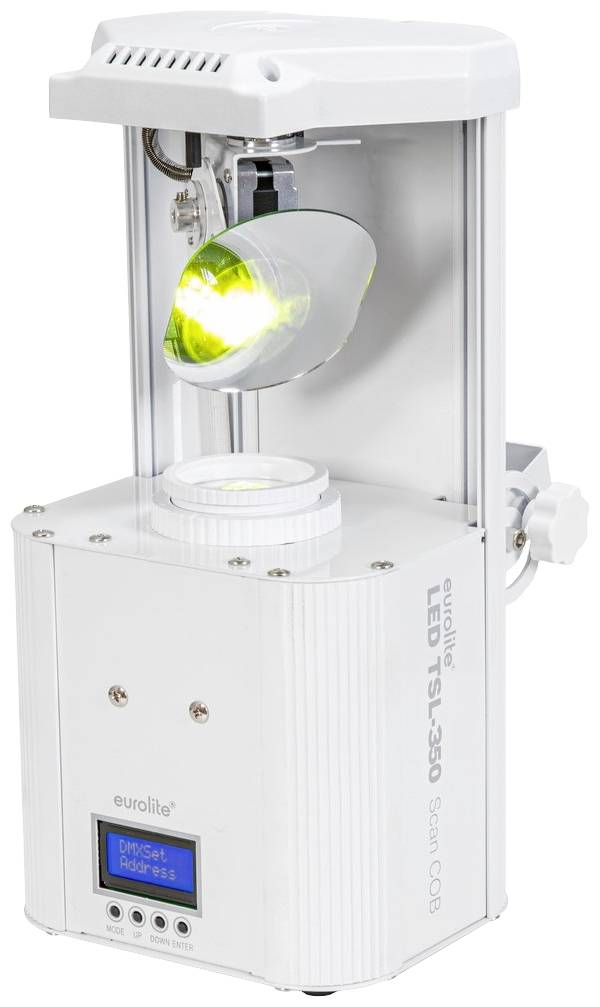

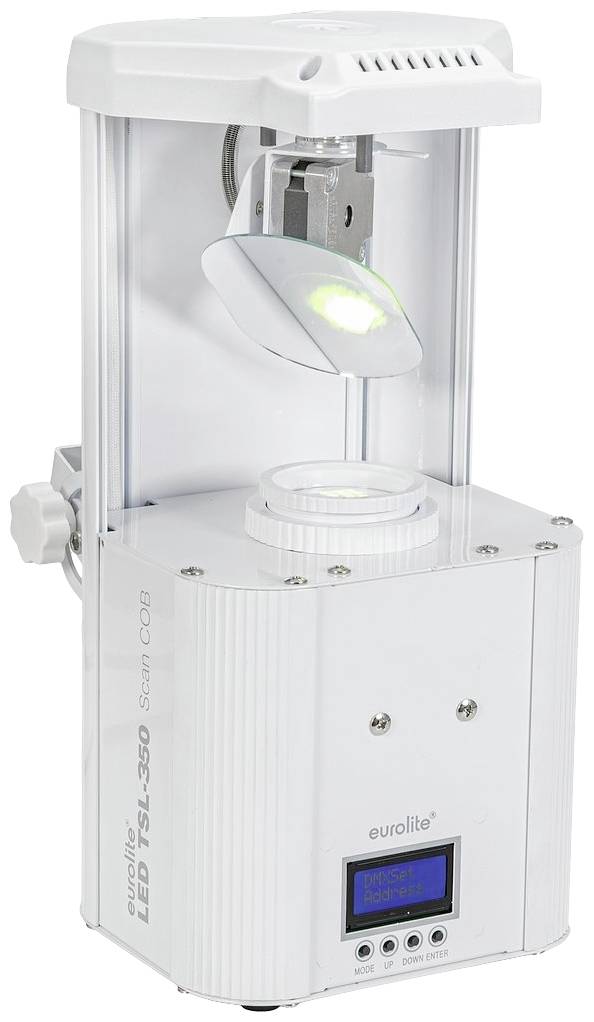

Scanners are and remain a popular lighting effect, especially in confined spaces. With the TSL-350 SCAN, Eurolite presents another model in the TSL series: With either black or white housing, "the new" fits both dark club environments and gala locations Ideal.
The TSL-350 scan is equipped with a 60-watt strong LED. It possesses a color wheel with 8 colors and a rotating gobo-wheel with 7 gobos. The gobos can be easily replaced with a few handles. Since it has the same gobo size as the TSL-250 from the same series, there are also two alternative gobo sets with 3 gobos each for the "new". The TSL-350 including a gobo set with heart themes is delivered. The white version of the scanner, equipped with cardiac gobos, is therefore ideal for weddings.
This text is machine translated.
The TSL-350 scan is equipped with a 60-watt strong LED. It possesses a color wheel with 8 colors and a rotating gobo-wheel with 7 gobos. The gobos can be easily replaced with a few handles. Since it has the same gobo size as the TSL-250 from the same series, there are also two alternative gobo sets with 3 gobos each for the "new". The TSL-350 including a gobo set with heart themes is delivered. The white version of the scanner, equipped with cardiac gobos, is therefore ideal for weddings.
This text is machine translated.
Features
- Handy scanner with 60-W-COB-LED, Gobo- and color wheel Compact design
- Electronic dimmer
- 1 powerful LED 60 W COB (Chip-on-board) cold-white (CW)
- Positioning within PAN and TILT
- Colour wheel; gobo wheel with rotating gobos; focus manually
- Colour wheel with 7 dichroic colors and open
- Strobe effect with variable speed
- Gobo wheel with rotating gobos, 7 gobos and open
- Exchangeable gobos
- Slot-In-Gobo-System for easy gobo change
- Shake Effect
- Integrated show programs
- Usable in 10 CH DMX-mode
- The device is cooled by a fan
- Can be controlled via stand alone; DMX; QuickDMX via USB (optional); Master/Slave function; music control via microphone; W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Pre-programmed at Light Captain; Light´J
- Flicker-free
- With an angle of radiation of 11°
- LCD display
Scope of delivery
- Moving light
- Mounting bracket
- Gobos
- Power cable;
- User manual
