Eurolite 51799326 LED LP-100 DMX LED effect light No. of LEDs (details):1 100 W
EAN:
Part number:
Item no:
Technical specifications
- Product type
DMX LED effect light
100 W
- LEDs
1
- Colour
Cool white
- Dim
(L x W x H) 31 x 31 x 29 cm
- Weight
4.67 kg
n.rel.
- Features
USB connector
- Bulb type
LED (monochrome)
- Width
31 cm
- Height
29 cm
- Length
31 cm
- Watt per LED
100 W
IP20
- Case colour
Black (matt)
- Material
Metal (painted)
- Radiation angle
12°
25°
- Protection class
I
- Operating voltage
100-240 V/AC, 50/60 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642549 Eurolite 51799326 LED LP-100 DMX LED effect light No. of LEDs (details):1 100 W
Description

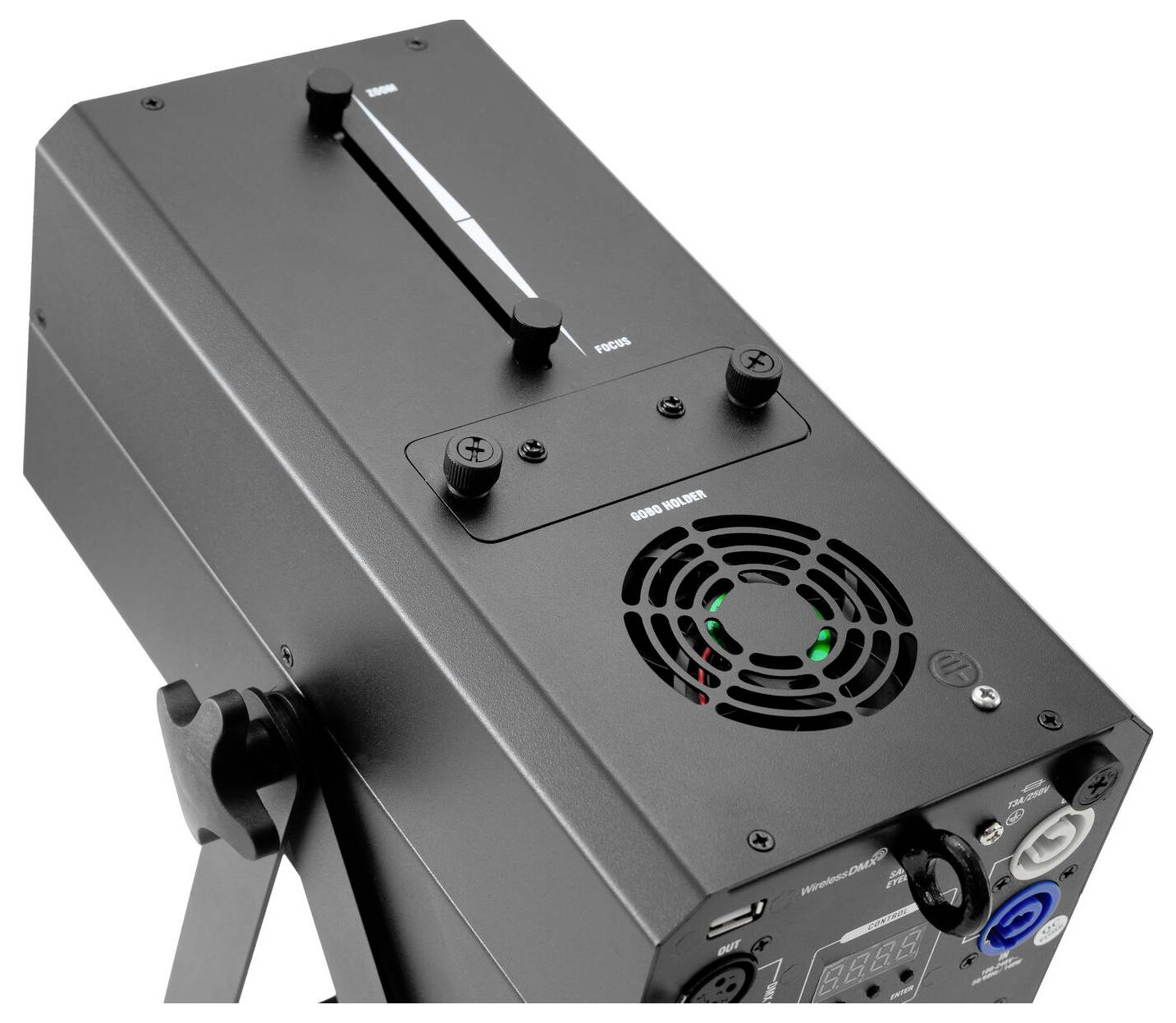

Professional gobo projector with additional color wheel. 1 powerful LED 100 W COB (chip-on-board) cold-white (CW). Gobos rotating; Zoom manual; focus manual. Electronic dimmer; color selection; direct rotation speed adjustable; direction of rotation adjustable; manual program selection. Gobo effect; Spot effect. Colour wheel with 5 dichroic colors and open. Half colors can be selected, Rainbow effect with variable speed in both the directions. Gobo wheel with rotating gobos. Exchangeable gobos. Gobo indexed. 3 integrated show programs. The device is cooled by a temperature controlled fan. Can be controlled via stand alone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional). Pre-programmed by Light Captain. Flicker-free. DMX failure mode (hold; blackout). With a beam angle of 12° - 25°. Single-color 4-digit 7-segment LED display. Power input and power output for simple connection of up to 8 devices. For application areas like: Stage; clubs/dance schools; decoration; wedding/gala/events; trade fair construction and shop building; Mobile DJ's/solo entertainers; restaurants, bars and hotels; theater; distributors; Video and photography; advertising/display windows. Possible application: Standing; flying; on stand; mounting bracket. With double bow
This text is machine translated.
This text is machine translated.
Features

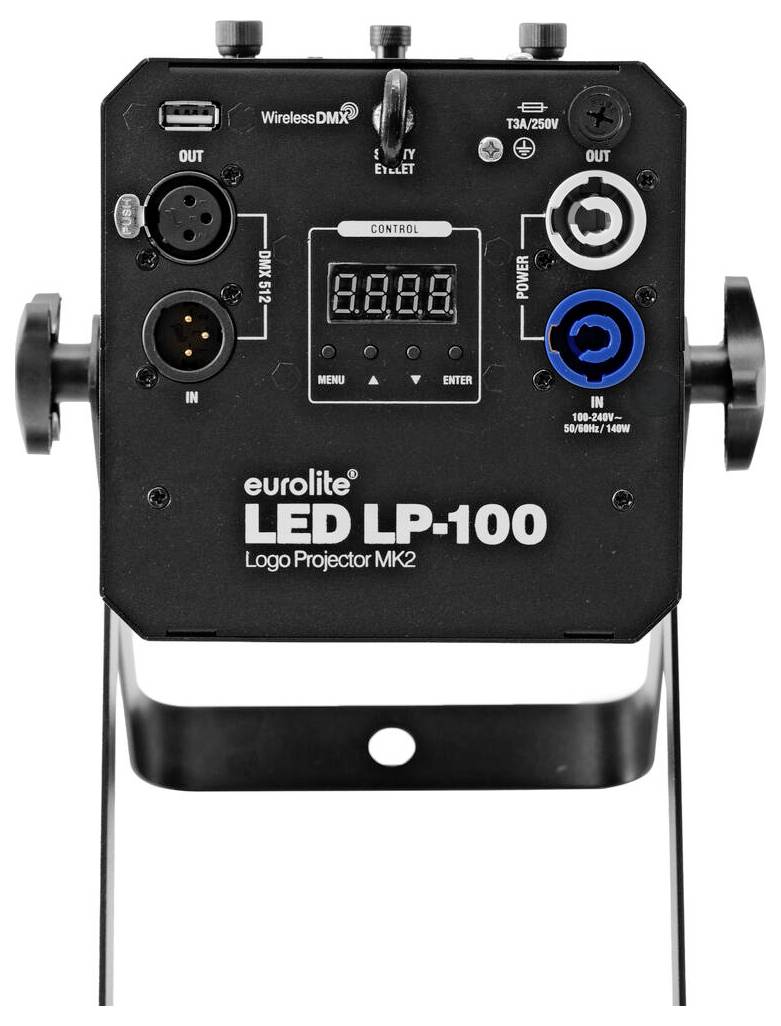

- Power supply: 100-240 V AC, 50/60 Hz; 230 V AC 1000 mA; total connection value: 100 W; protection type: IP20; protection class: SK I; power connection: Power supply via P-Con (blue), installation version power connection cable with safety plug (supplied); current output: 3 x P-Con (gray), installation version by-pass; device fuse: 5 x 20 mm, T 1 A fuse can be replaced; LED-Type: 1 x 100 W COB (chip-on-board) cold-white (CW); flash rate: 0.4 - 24 Hz; equipment: gobos rotating; Zoom manual; focus manual; color generation: color wheel with 5 dichroic colors and open; half colors selectable, Rainbow effect with variable speed in both directions; Gobos: gobo wheel with rotating gobos; external diameter 32.6mm; image diameter 21mm; gobos can be replaced; gobo DMX channels: 5; DMX input: 1 x 3-pin XLR (M) mounting version; DMX output: 1 x 3-pin XLR (W) mounting version bypass; cooling: 2 x fan temperature controlled; control: stand-alone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional); PWM projection; frequency: 24000 Hz; DMX failure mode: hold; blackout; Radiation angle: 12° - 25°; Radiation angle (1/2 peak): Spot 12 - 14°; Radiation angle (1/10 peak): Spot 12 - 25°; Light intensity in lux (lx): Narrow cold white (CW) 1m: 43370 lx, 3M: 4970 lx, 6m: 1328 lx; Wide cold white (CW) 1m: 133020 lx, 3M: 14449 lx, 6m: 3622 lx; Housing color: matt black; Display type: 1 x single color 4 digit 7-segment LED display; USB connection: 1 x type A; Material: metal, painted; dimensions: length: 31 cm; width: 20 cm; height: 29 cm; weight: 4.67 kg; noise classification: class 2 (light noises); power cable/power cable; construction cable: 3 x 1.0 mm² H05VV-F; mounting bracket; recording system: Ø 12mm; double bracket; legal specifications; Special product: Not intended for room lighting in homes; intended use: lighting for show effects
Scope of delivery
- 1 x device
- 1x user manual
- 1 x Power cable/power cable
- 1 x gobo holder
- 3 x gobos
- 2 x mounting bracket
- 2 x Knurled screw
- 4 x washers.
