Eurolite 51799329 LP-30 DMX LED effect light No. of LEDs (details):1 30 W
EAN:
Part number:
Item no:
Technical specifications
- Product type
DMX LED effect light
30 W
- LEDs
1
- Colour
Cool white
- Dim
(L x W x H) 25.2 x 25.2 x 24.8 cm
- Weight
3.34 kg
n.rel.
- Features
incl. strobe
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
25.2 cm
- Height
24.8 cm
- Length
25.2 cm
- Watt per LED
30 W
- Cable length
1.2 m
IP20
- Case colour
Black
- Material
Metal
- Radiation angle
11°
16°
- Operating voltage
100-240 V/AC, 50/60 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642550 Eurolite 51799329 LP-30 DMX LED effect light No. of LEDs (details):1 30 W
Description

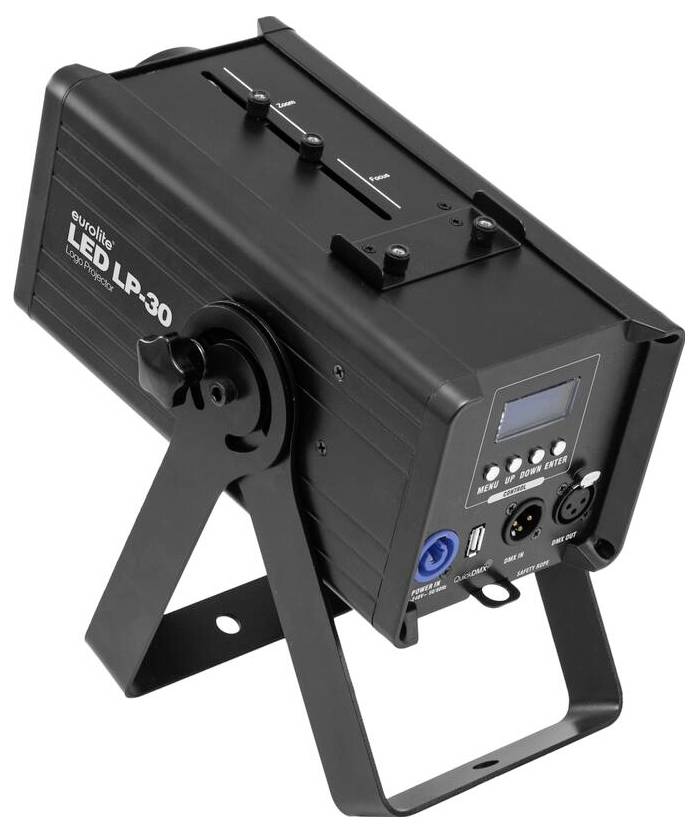

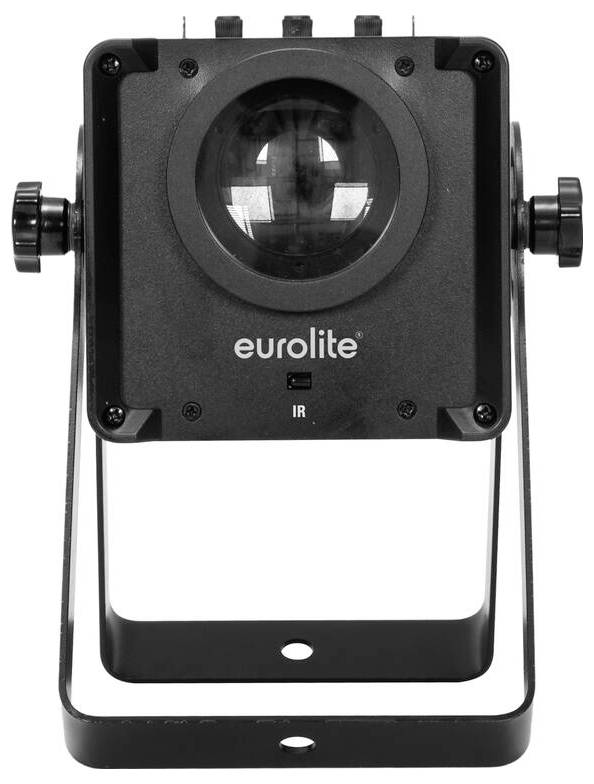

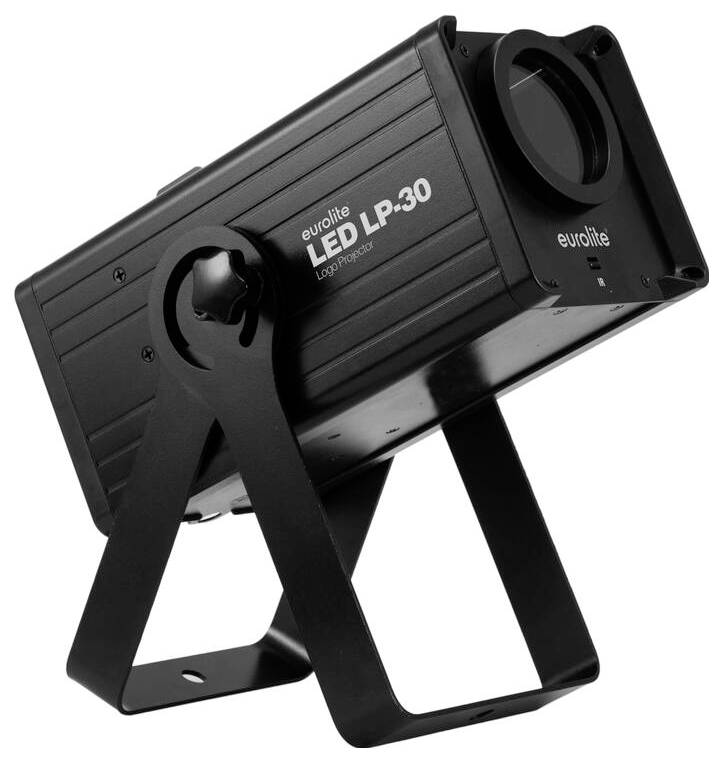

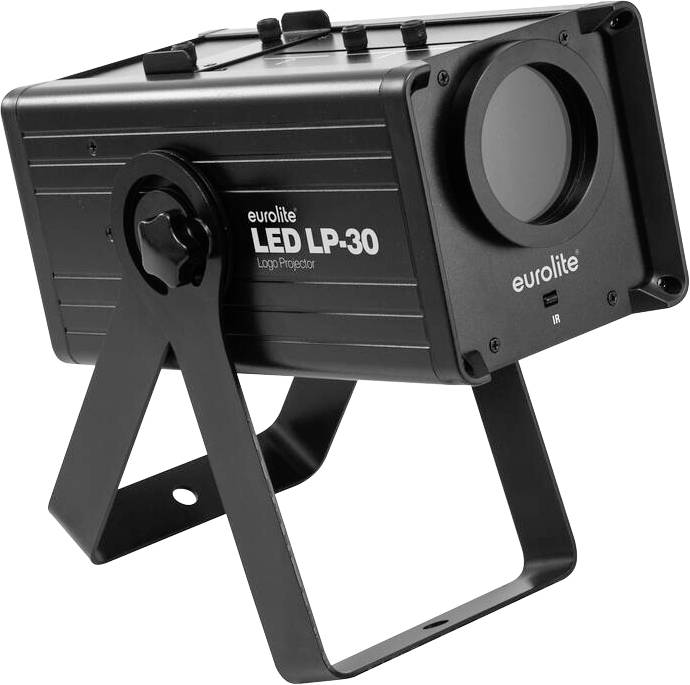

LED logo projector with 30 W LED, strobe, dimmer and gobo rotation, incl. IR remote control. A gobo, motif "Bubbles" is included. Sharp projection. 1 powerful LED 30 W COB (chip-on-board) cold-white (CW). Gobo wheel with rotating gobos; focus manual; Zoom manual; gobo wheel with static gobos. Electronic dimmer; color macros adjustable. Gobo effect; Stroboscope-effect. The device is cooled by passive convection cooling. Can be controlled via DMX; IR remote control; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional). Pre-programmed at Light Captain; Light´J. Flicker-free. With a beam angle of 11° - 16°. With double bow. Power input and power output for simple connection of up to 8 devices. For application areas like: Clubs/dance schools; decoration; mobile DJ's/solo entertainer; restaurants, bars and hotels; advertising/shop window. Possible application: Standing; flying; on a tripod. Silent operation; gobos. Exchangeable gobos
This text is machine translated.
This text is machine translated.
Features

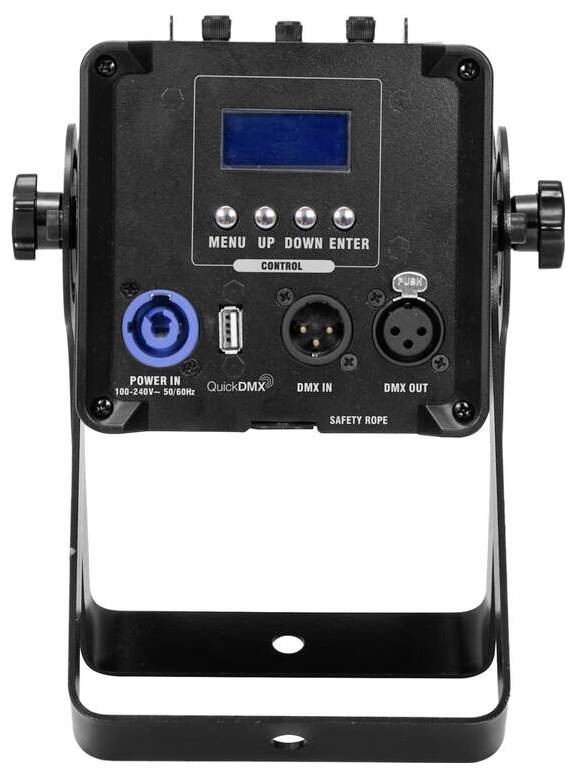

- Power supply: 100-240 V AC, 50/60 4 Hz; total connection value: 35 2 W; protection: IP20; power connection: Power supply via P-con (blue), installation version power connection cable with safety plug (supplied); lamp type: LED lamp; LED type: 1 x 30 W COB (chip-on-board) cold white (CW); equipment: Gobo wheel with rotating gobos; DMX focus manual; Zoom manual; DMX input 3 channels: 3-pin XLR (M) mounting version; DMX output: 3-pin XLR (W) mounting version; Cooling: passive convection cooling; control: DMX, IR remote control; stand-alone; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by Lumen Radio via USB (optional); Pre-programmed by: Light Captain; Light´J; Projection: flicker-free; Radiation angle: 11 11° - 16 16°; Radiation angle (1/10 25.2 Peak): 11 - 16°; Housing color: black; Recording system: Double bracket; Material: Aluminium; Dimensions: 1/2 cm Width: 12 cm; Height: 24.8 cm; Weight: 3.34 kg; Noise classification: Class 0 (no noise); Mounting bracket; Diameter Mounting holes: 2 x Ø10mm; Material: metal, 2.5 mm; Power cable; Cable length: approx. 1.2 m; Remote control; Battery: 1 x button cell 3.0 V CR2032 Lithium manganese installed; Gobos; outer diameter 27mm; Removable image diameter 18mm; Gobos; Legal specifications; special product: Not intended for indoor lighting; intended use: lighting for show effects
Scope of delivery
- 1 x device
- 1 x Power cable/power cable
- 1x remote control
- 1 x battery
- 1 x gobos
- 1 x Operating manual
