Eurolite 51915445 TL-3 RGB+UV Trusslight LED effect light No. of LEDs (details):3 7 W
EAN:
Part number:
Item no:
Highlights & Details

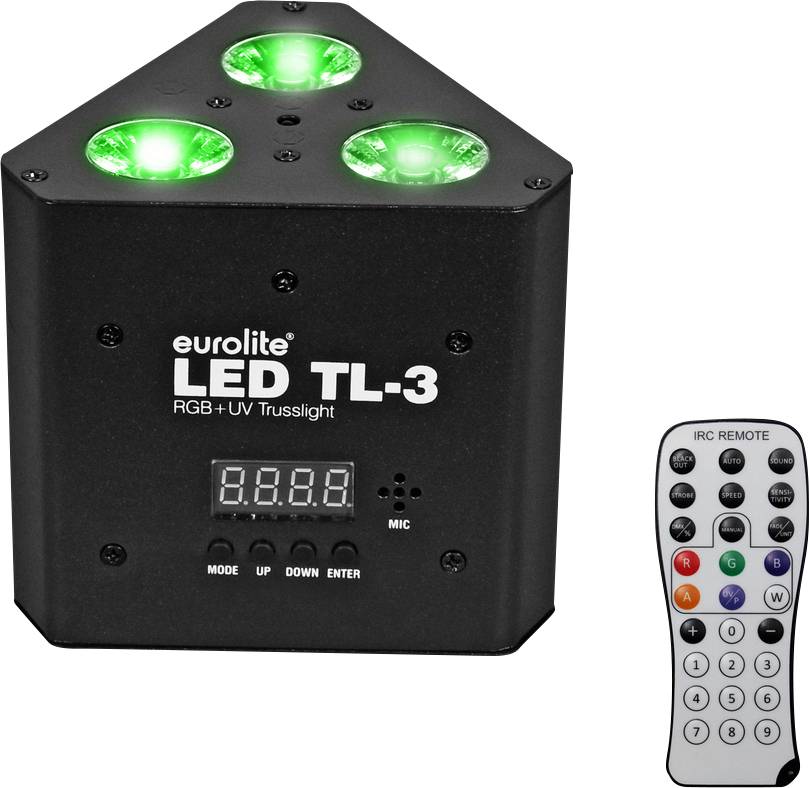

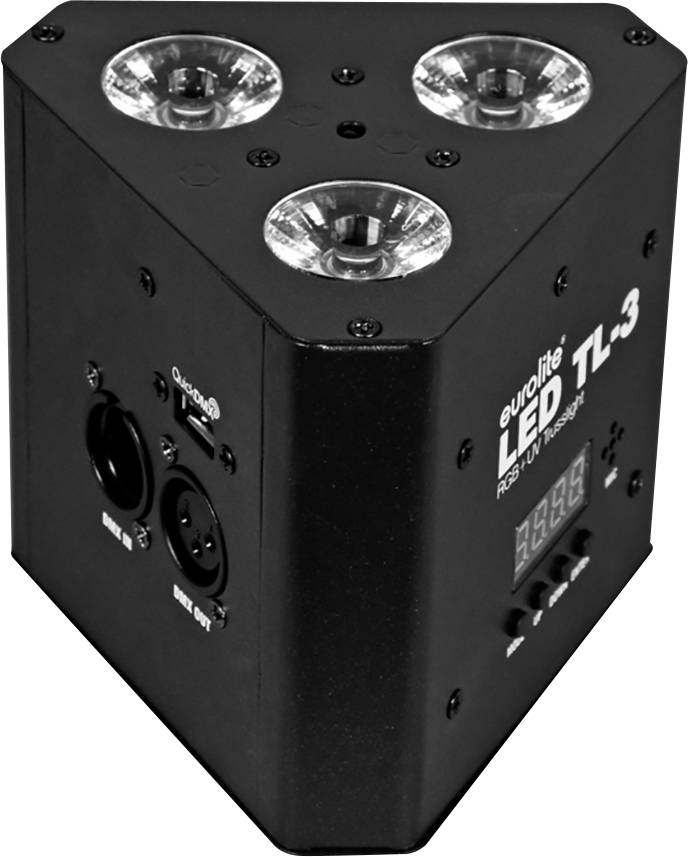

EUROLITE LED TL-3 RGB+UV TRUSLIGHT
- Compact and bright, thus ideal for mounting in trussing
- Equipped with 3 x 7 W 4in1 LED in red, green, blue and UV colors
- Integrated show programs in auto and music mode
Technical specifications
- Power supply 100 - 240 V AC, 50/60 Hz
- Total connected wattage 15 W
- Power connection: Power feed cold devices (M) Built-in version Power connection cable with earthing contact plug (included)
- Current output: 1 x earthing contact (W), built-in version
- Fuse: F 1 A fuse can be replaced
- Type of lamp: LED lamp
- Flash rate 1 - 20 Hz.
- DMX channels: 3; 4; 4; 8

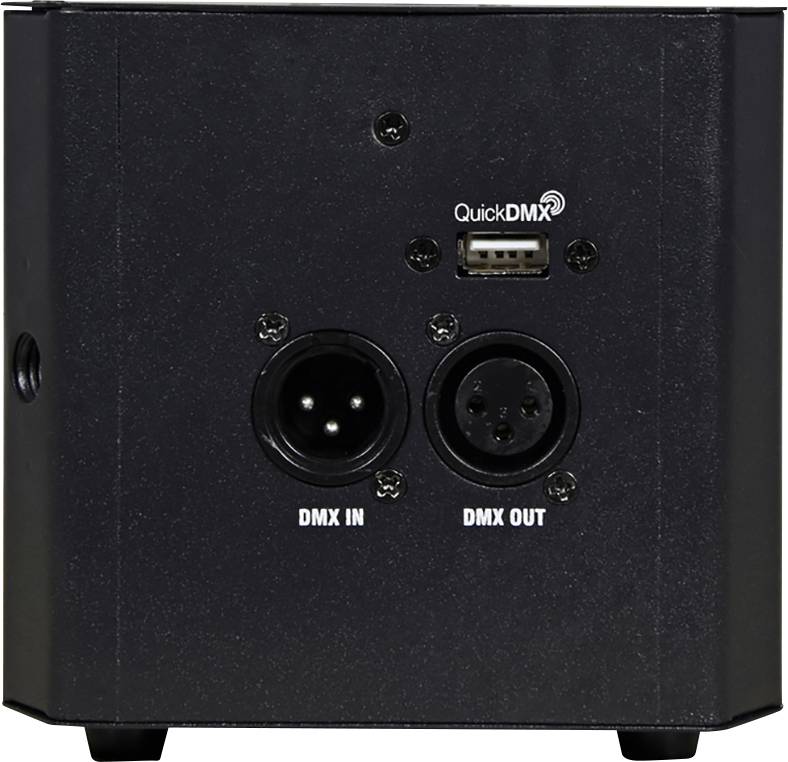

- DMX input: 1 x 3-pin XLR (M) mounted version
- DMX output: 1 x 3-pin XLR (W) mounted version
- Beam angle: 16°
- Beam angle (1/2 peak): 16°
- Beam angle (1/10 peak): 33
- Housing colour black.
- Remote control Battery: 1 x button cell 3.0 V CR2025 Lithium integrated
- Product type
LED effect light
15 W
- LEDs
3
- Colour
RGB
UV/blacklight
- Dim
(L x W x H) 108 x 122 x 117 mm
- Weight
890 g
n.rel.
- Features
Dimmable
Incl. remote control
UV/blacklight
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
122 mm
- Height
117 mm
- Length
108 mm
- Watt per LED
7 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2375268 Eurolite 51915445 TL-3 RGB+UV Trusslight LED effect light No. of LEDs (details):3 7 W
Description
Variable truss light and uplight with bright 3 x 7 W RGB + UV LED.
This text is machine translated.
This text is machine translated.
Features
- DMX-controlled operation or standalone mode with master/slave function is possible
- Direct color selection for 17 colors
- Functions: Static colors, continuous RGB+UV color mixing, internal programs, dimmer, strobe effect with variable speed, master/slave operation
- Compatible with QuickDMX - the radio DMX system from Eurolite
- Phantom-powered USB socket for QuickDMX receiver (accessories)
- DMX-control via every standard DMX-controller is possible

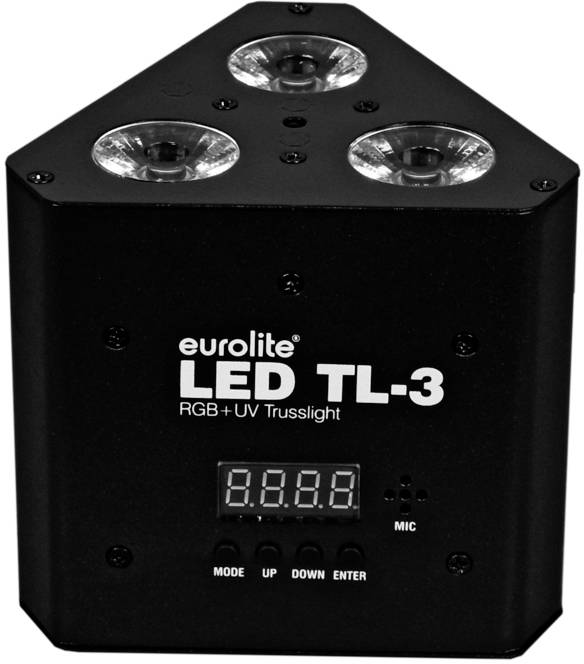

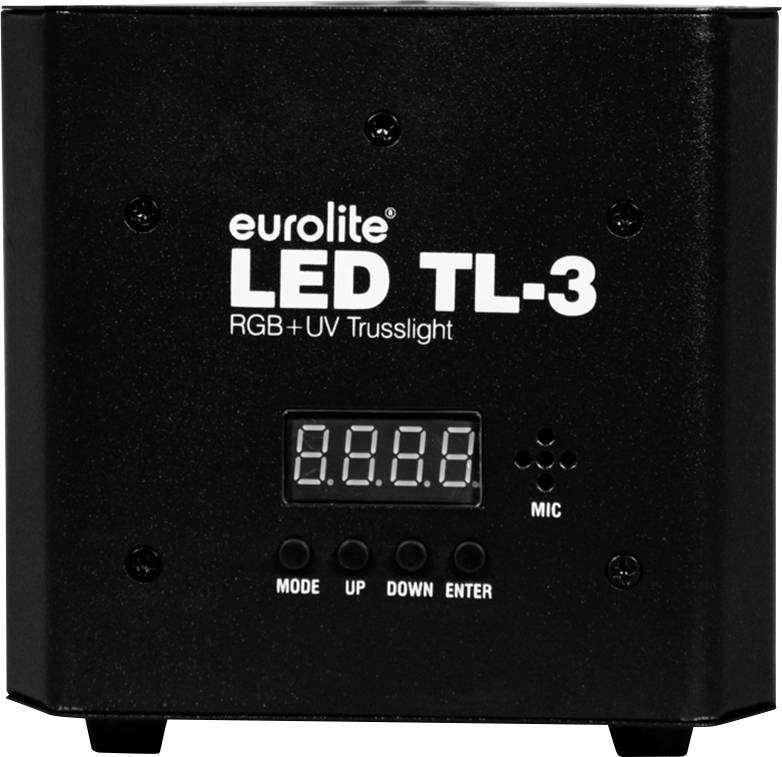

- Addressing and settings via control unit with four-digit LED display
- Convenient remote control via the supplied IR remote control Eurolite IR-7

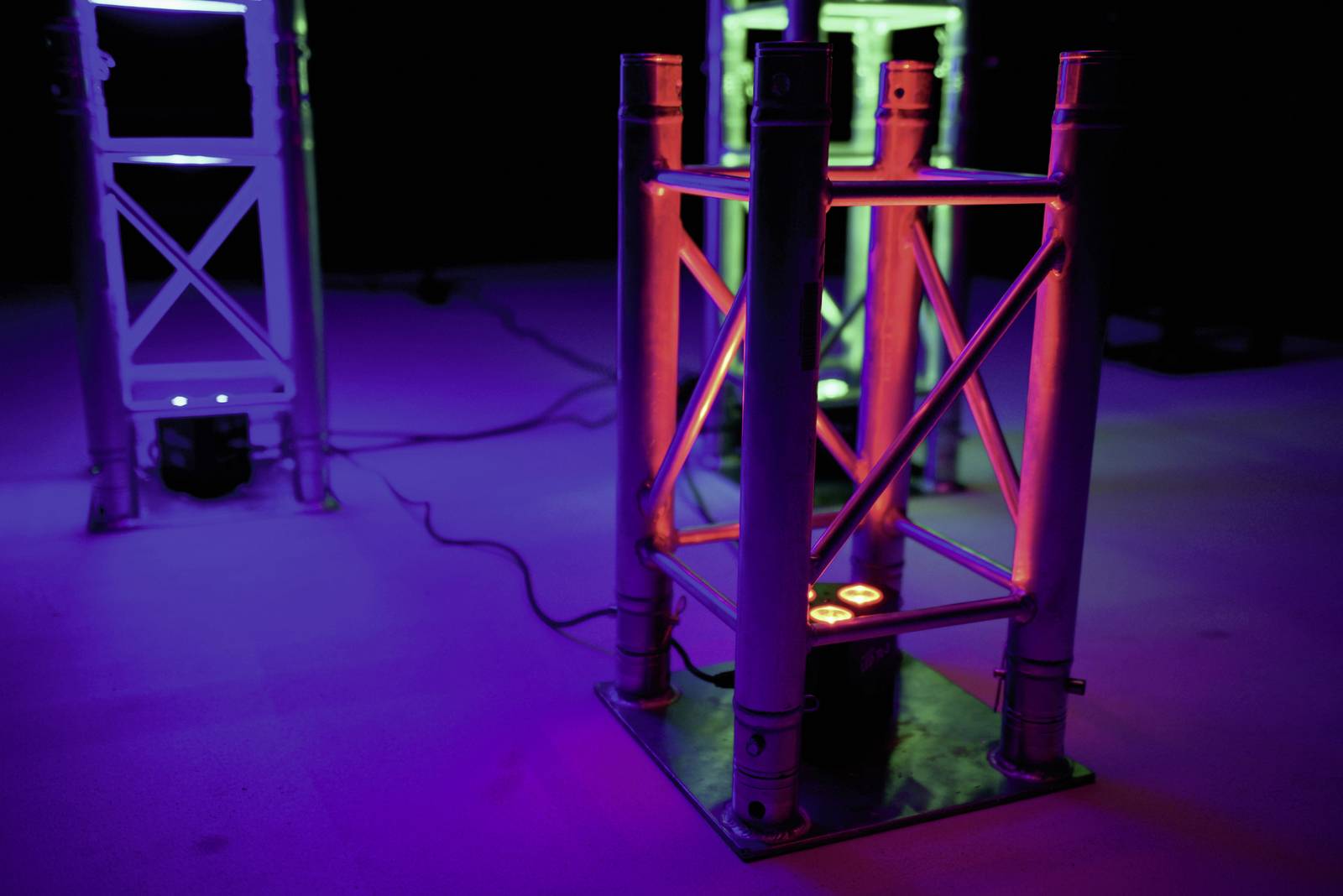

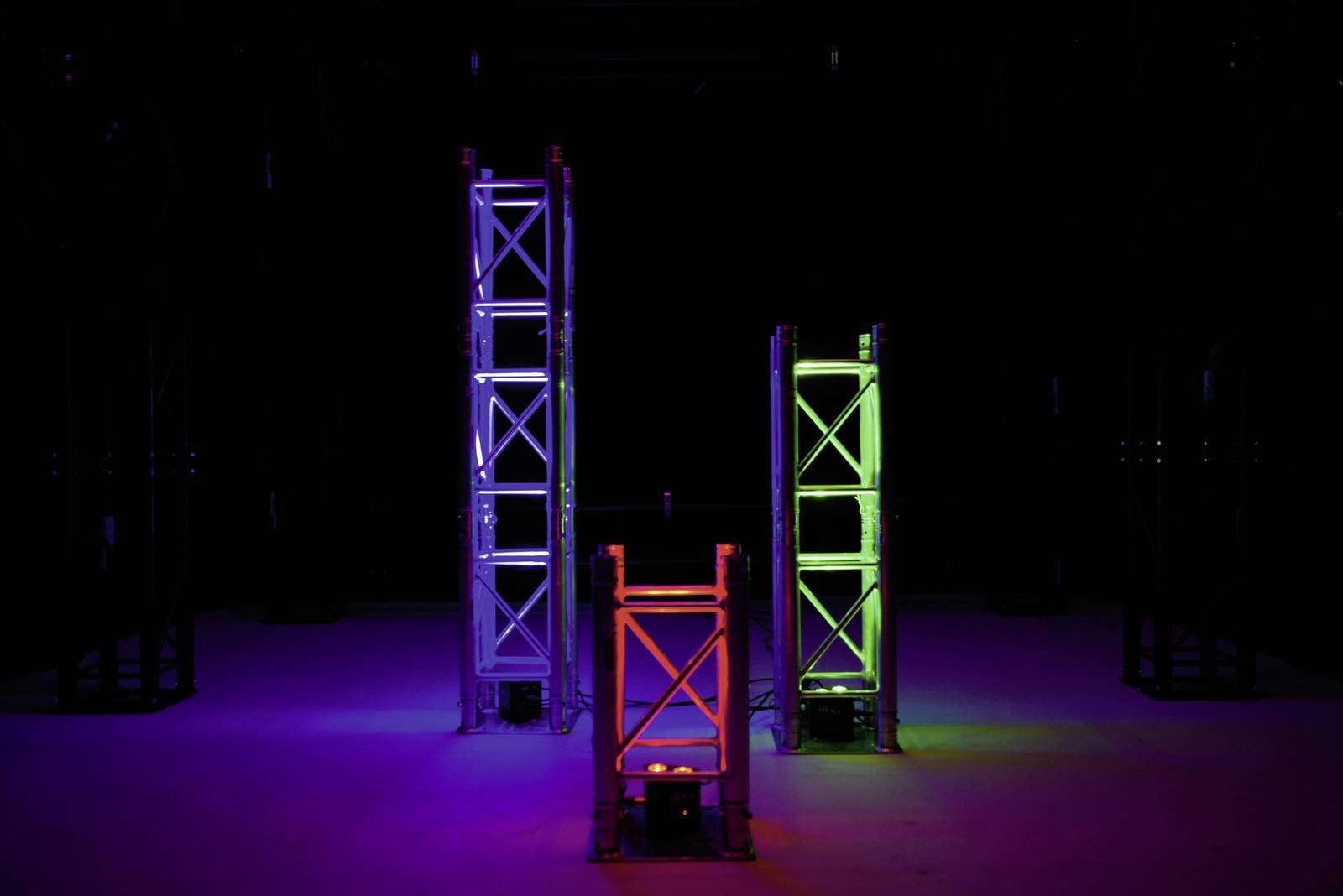

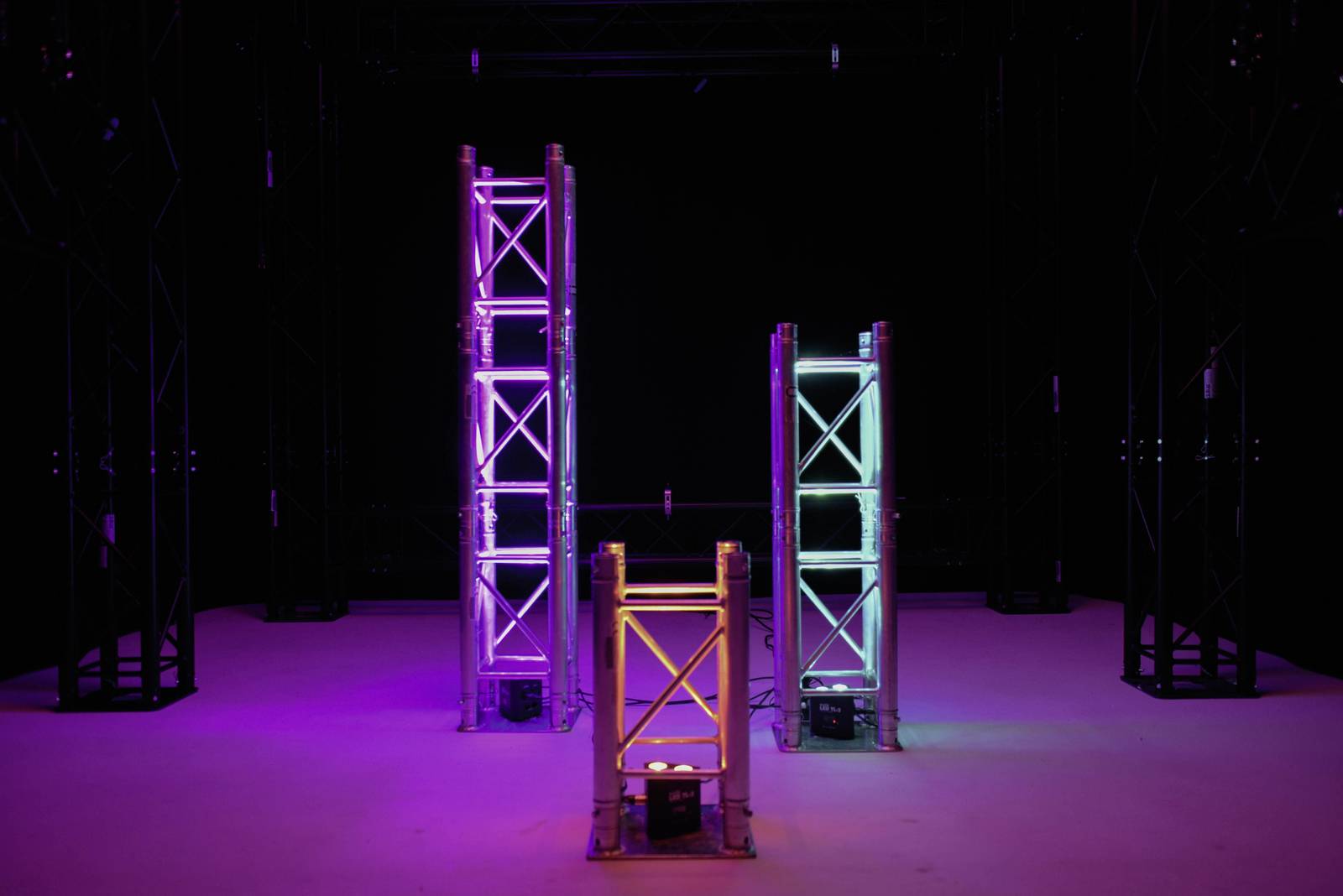

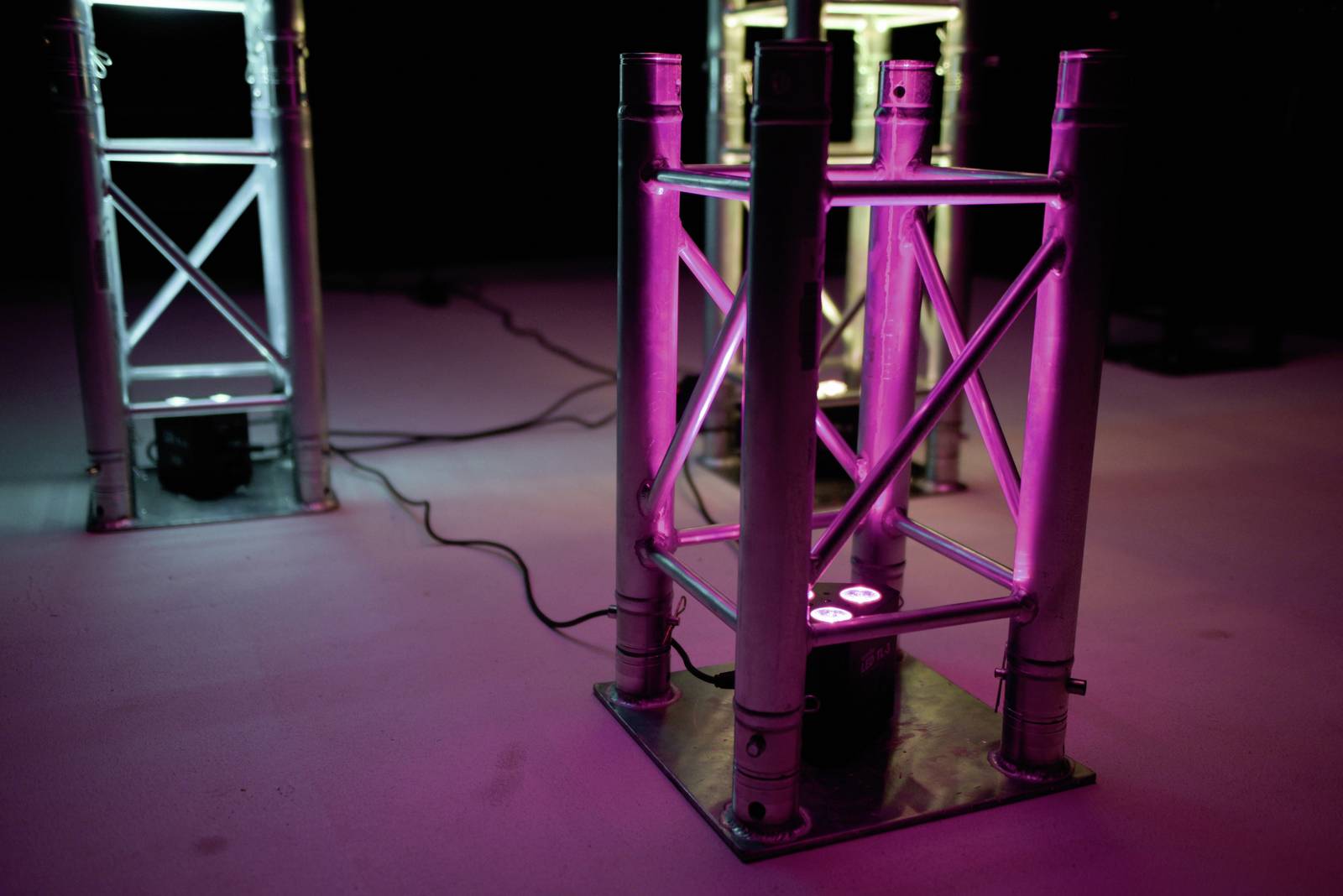

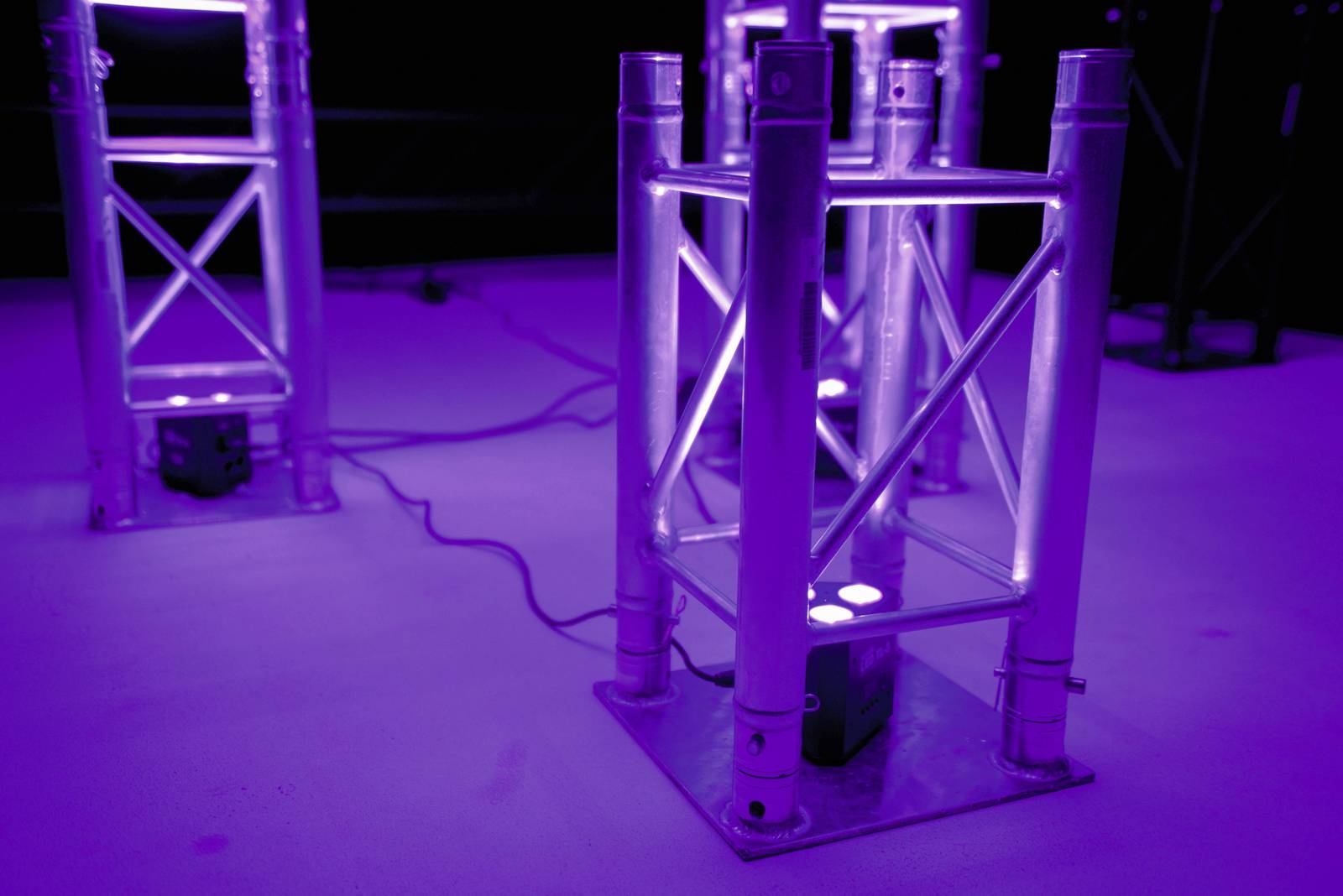

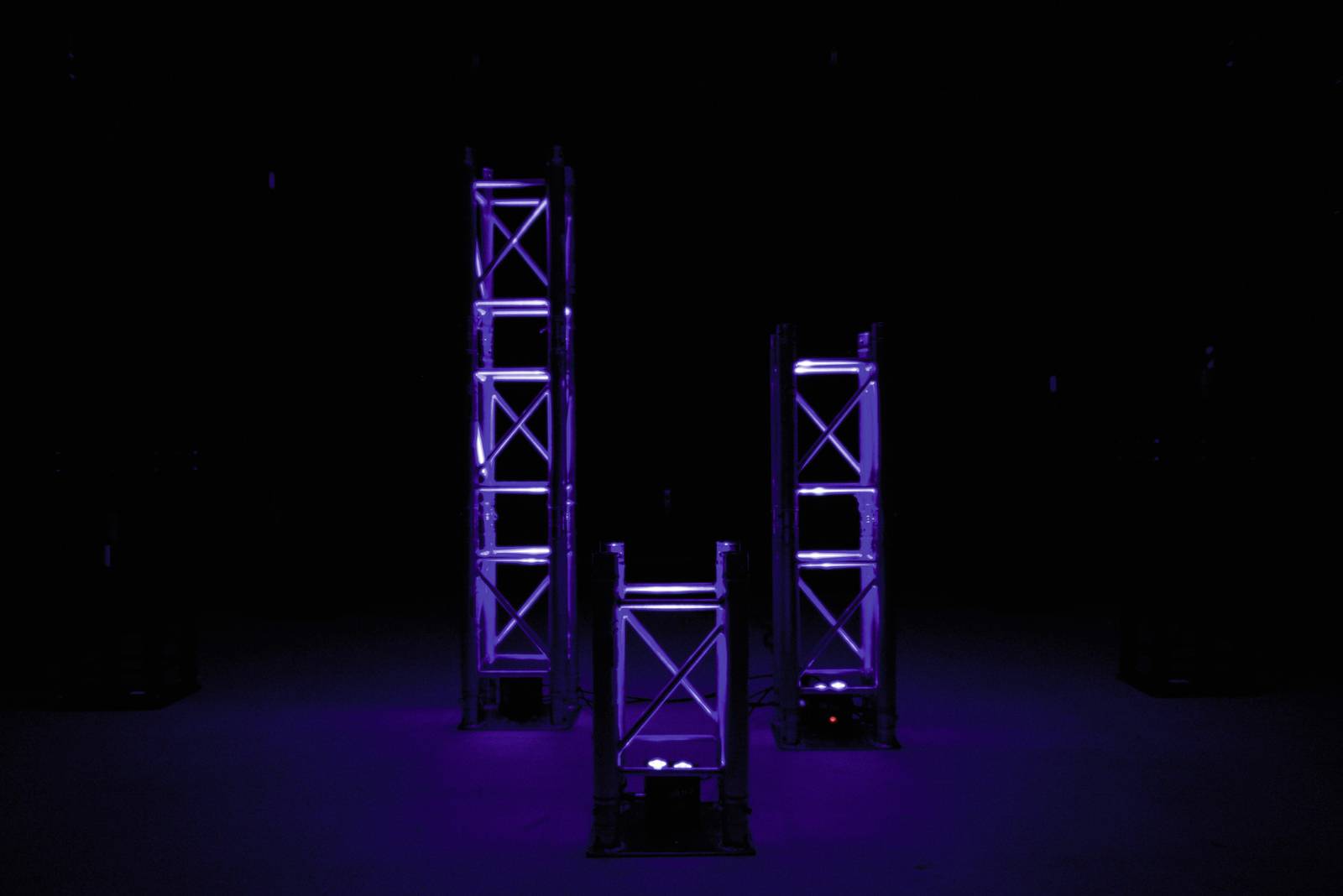

- ideal for stand construction, on stages and wherever Trussing is used
- Perfect for Alutruss 3-POINT SYSTEM Decolock DQ3

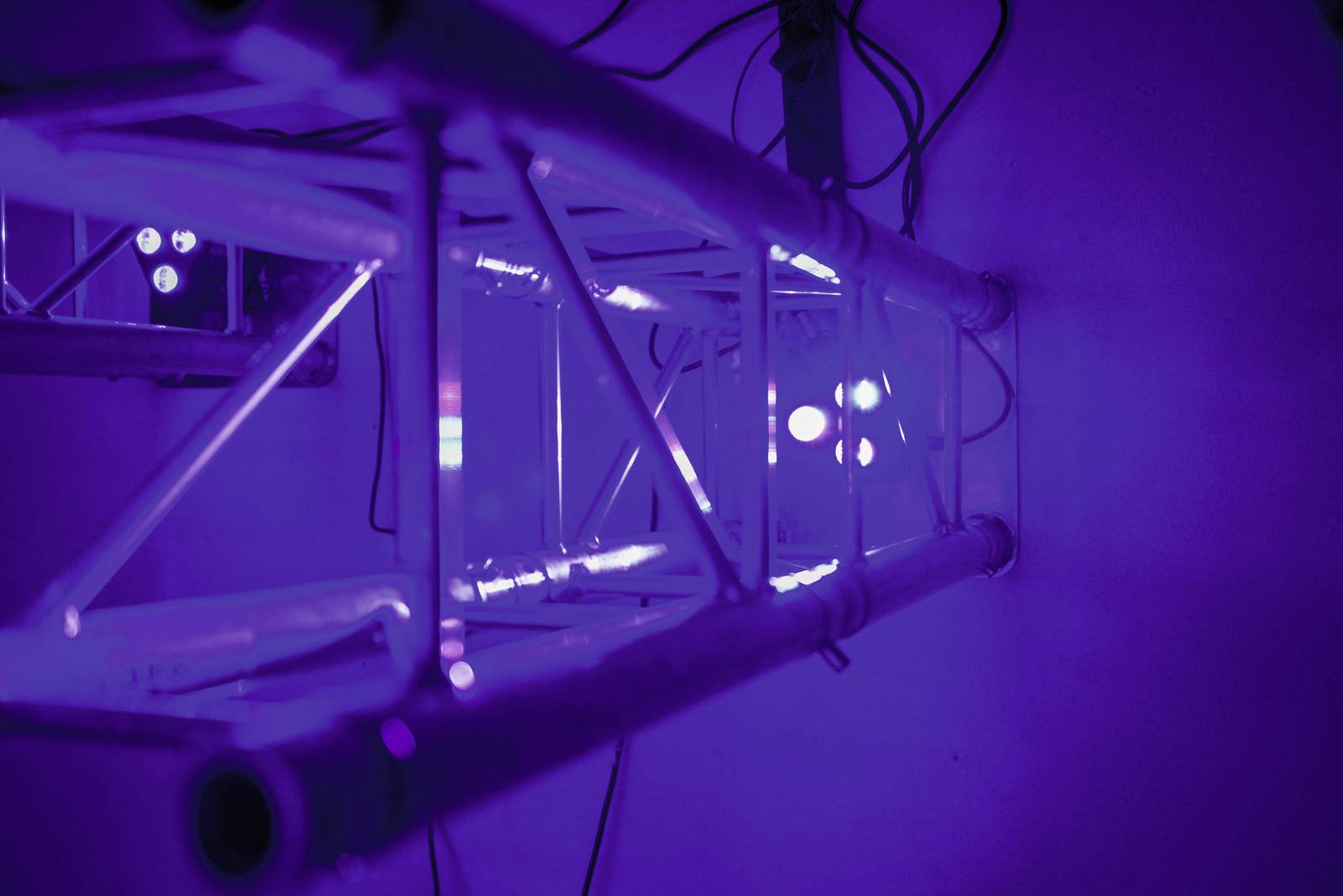

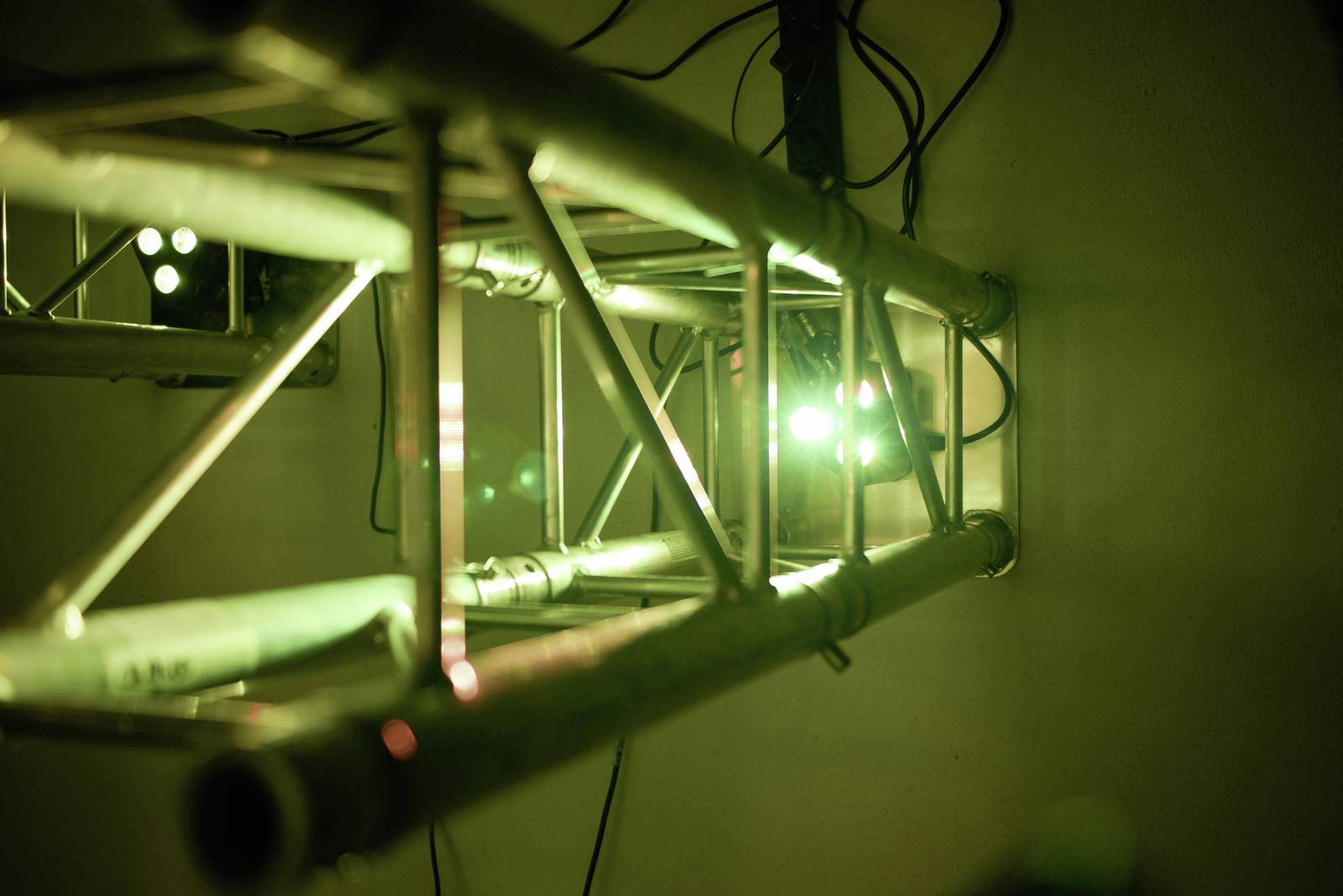

- Hanging as well as standing mounting is possible
- M10 threaded insert for hanging mounting
- Additional rubber feet when the spot is placed on the ground target

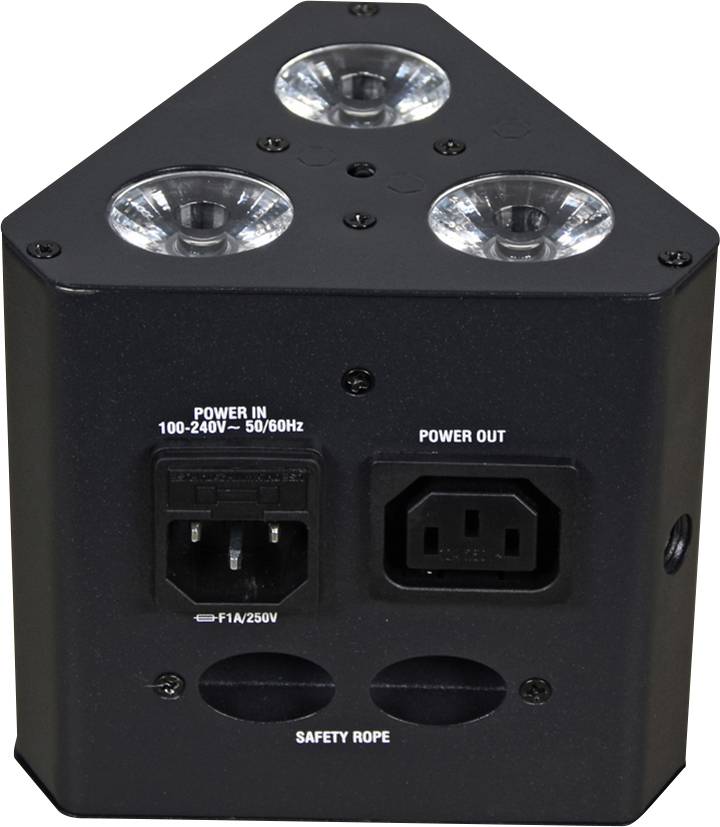

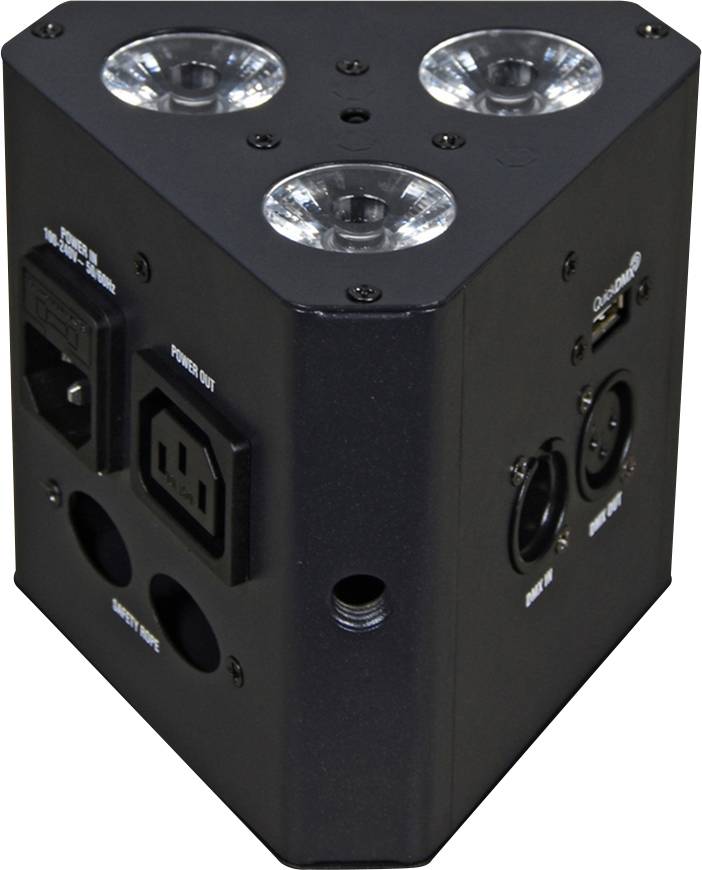

- IEC power connections for easy connection of up to 8 devices
- Switched-mode power supply technology for mains voltage between 100 and 240 volts
- Can be operated in 3; 4; 4; 8 CH DMX mode
- Controllable via IR remote control (included); stand-alone; DMX; master/slave function; QuickDMX via USB (optional); music control via microphone
- Is already pre-programd in the Light J software; Eurolite LED PC-Control 512 software; EASY SHOW; LED EASY OPERATOR DELUXE
- Flicker-free projection
- Effect: UV; strobe effect; dimmable
- Legal Specifications:
- Subject to eco-design: Yes
- Special product: Not intended for domestic lighting
- Intended use: Lighting for show effects.
