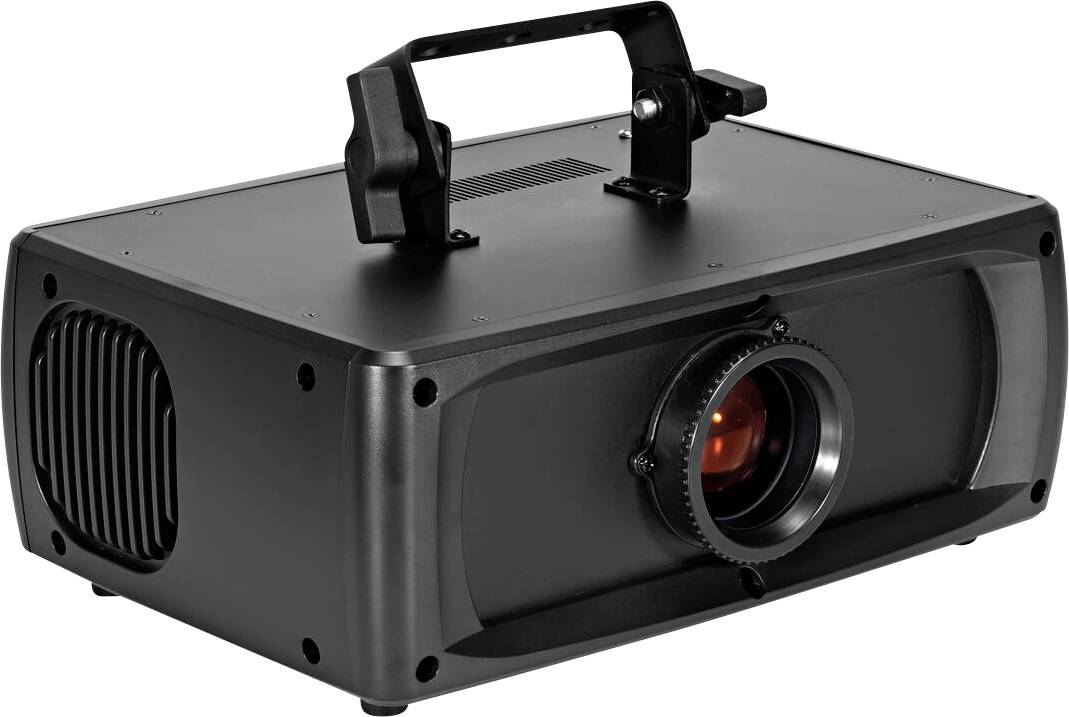

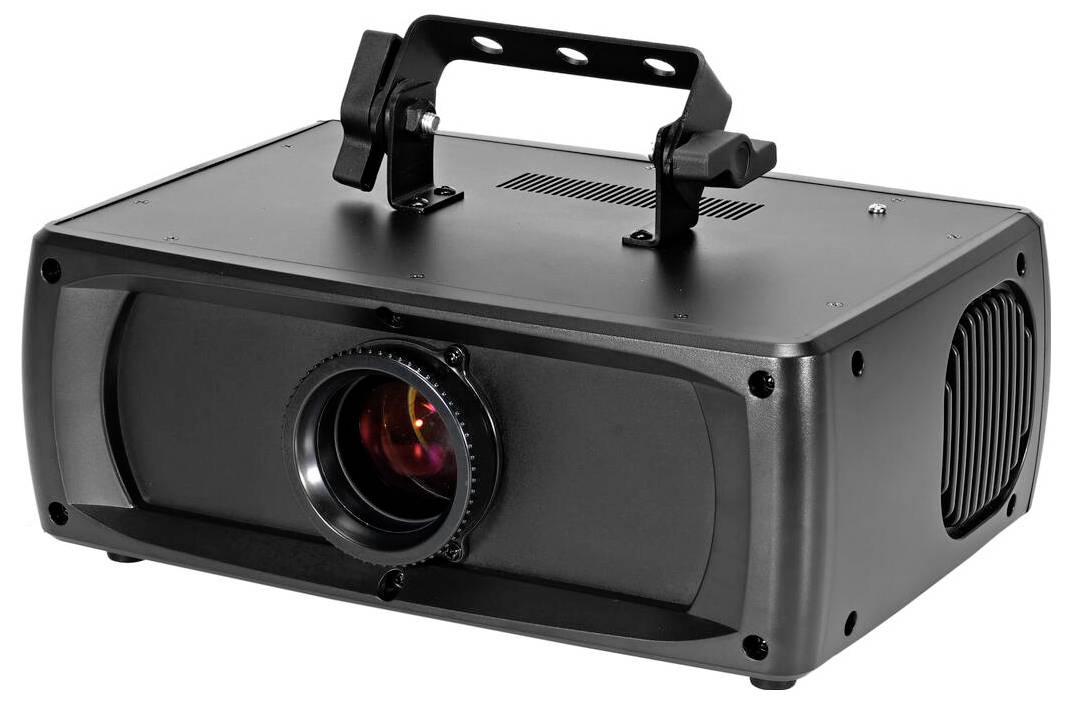

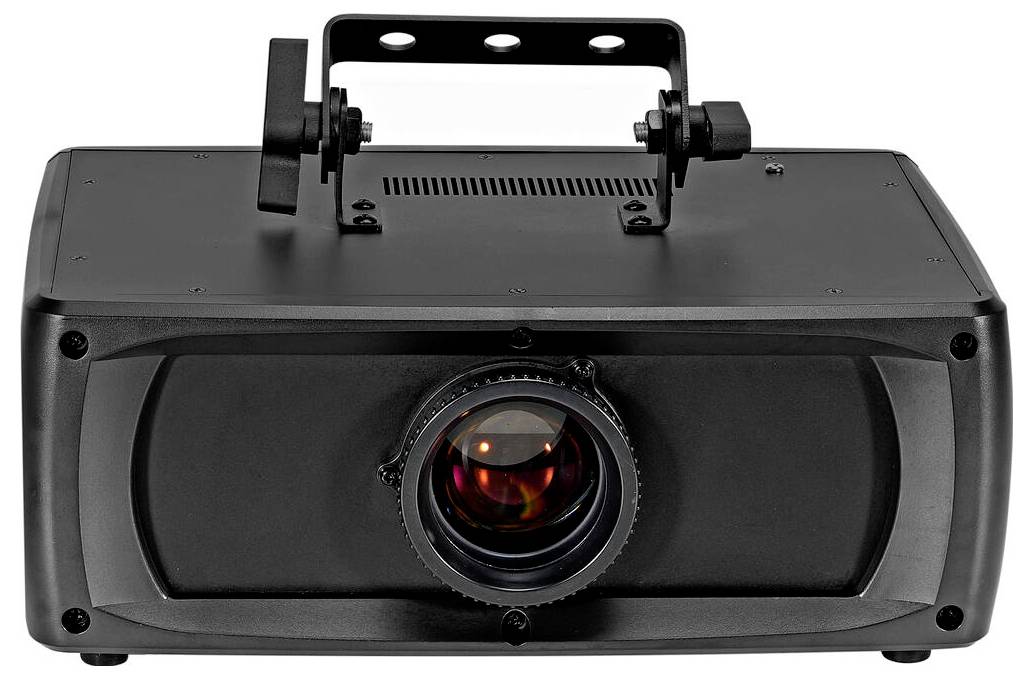

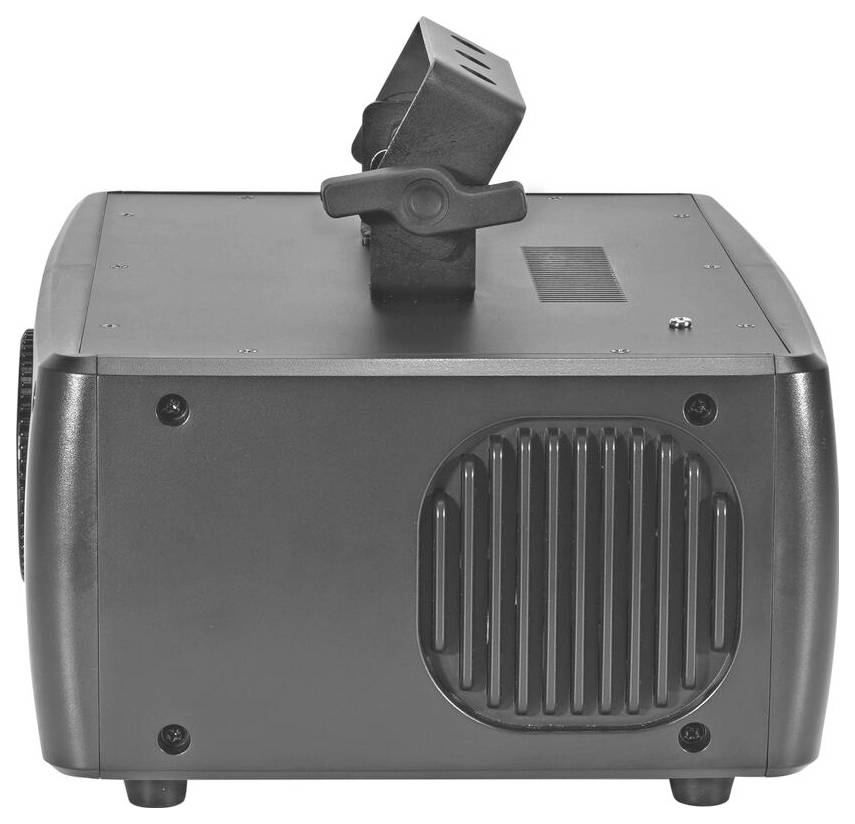

Eurolite 51918547 WF-100 DMX LED effect light No. of LEDs (details):1 100 W
EAN:
Part number:
Item no:
Technical specifications
- Product type
DMX LED effect light
100 W
- LEDs
1
- Colour
Cool white
- Dim
(L x W x H) 32.0 x 32.0 x 19.5 cm
- Weight
4.75 kg
n.rel.
- Features
Water effect
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
32.0 cm
- Height
19.5 cm
- Length
32.0 cm
- Watt per LED
100 W
- Cable length
1.45 m
- Depth
23.5 cm
IP20
- Case colour
Black
- Material
Metal
- Radiation angle
45°
- Protection class
I
- Operating voltage
100-240 V/AC, 50/60 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642564 Eurolite 51918547 WF-100 DMX LED effect light No. of LEDs (details):1 100 W
Description
LED projection effect for water reflections with color wheel & DMX. 1 powerful LED 100 W COB (chip-on-board) cold-white (CW). Animation wheel; focus manually. Dimmer; adjustable color change; rotational speed continuously. Water effect; Stroboscope-effect. Colour wheel with 5 dichroic colors and open. Half colors can be selected, Rainbow effect with variable speed in both the directions. 8 integrated show programs. The device is cooled by a temperature controlled fan. Can be controlled via QuickDMX via USB (optional); W-DMX by wireless solution (optional); CRMX by Lumen Radio (optional); Stand-alone; DMX; Master/slave function; music control via microphone. Already pre-programmed by Light Captain; Colorchief. Flicker-free. DMX failure mode (hold; blackout). With an angle of radiation of 45°. With mounting bracket. 4 digit 7-segment LED display 4x Rubber foots Power input and power output for simple connection of up to 8 devices. For application areas like: Clubs/dance schools; wedding/gala/events; trade fair and shop building; restaurants, bars and hotels; decoration. Possible application: On-the-fly; on a tripod
This text is machine translated.
This text is machine translated.
Features

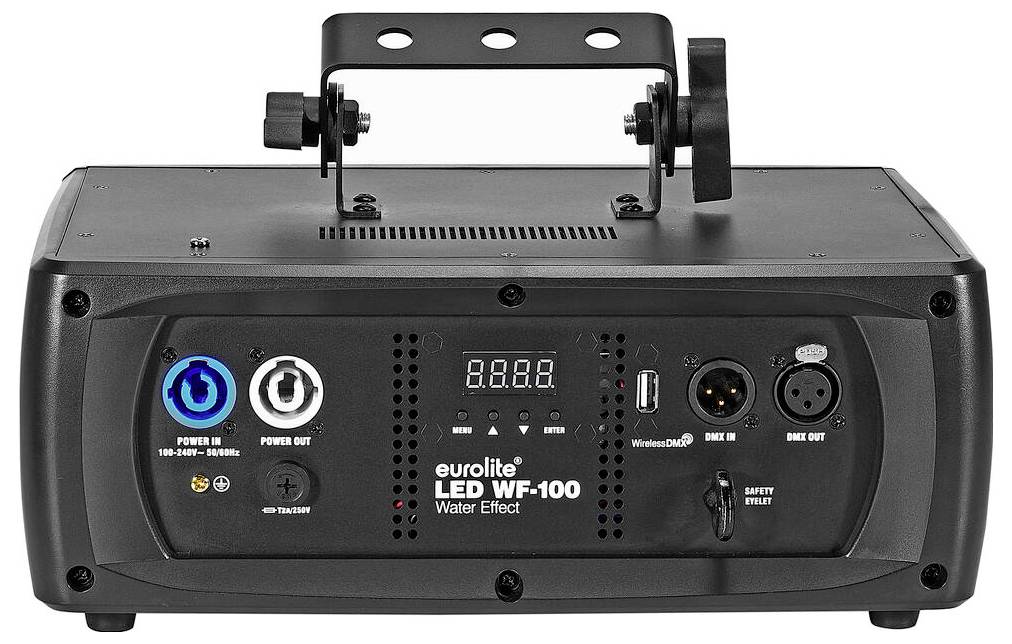

- Power supply: 100-240 V AC, 50/60 Hz; total connected wattage: 140 W; protection class: IP20; protection class: SK I; Power connection: Power feed via P-Con (blue), Installation version power connection cable with safety plug; Construction cable: 3 x 1.0 mm² H05VV-F; Cable length: 1.45 m; Power output: P-Con (gray), Installation version; Fuse: 30 x 100 mm, T 0 A fuse replaceable; Lamp type: LED lamp; LED Type: 1 x 20 W COB (Chip-on-board) cold white (CW); flash rate: 2 - 5 Hz; Features Animation wheel; focus manual; color generation: color wheel with 5 dichroic colors and open; half colors selectable, Rainbow effect with variable speed in both directions; DMX channels: 5; DMX input: 3-pin XLR (M) mounting version; DMX output: 3-pin XLR (W) mounting version; cooling: 3 x temperature controlled fans; Control: QuickDMX via USB (optional); W-by DMX wireless solution; CRMX by Lumen Radio (optional); stand-alone; DMX; Master/slave function; music control via microphone; Pre-programmed with: Light Captain; Colorchief; Projection: flicker-free; DMX failure mode: Hold; Blackout; Radiation angle: 45°; Housing color: Black; Recording system: Mounting bracket; Display type: 4 19.5 position 7-segment LED Display; USB connection: Type A; Transport aid: 4 x rubber feet; Diameter Mounting holes: 3 x Ø12mm; Material: Metal; Dimensions: Width: 4.75 cm; Depth: 2 cm; Weight: 32.0 kg; Noise classification: Class 23.5 (light noise) depending on mode used; Legal specifications; Special product: Not intended for room lighting in homes; intended use: lighting for show effects
Scope of delivery
- 1 x lighting effects
- 1x user manual
- 1 x Power cable/power cable.
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
