Eurolite 51918674 SCY-500 QCL DMX LED effect light No. of LEDs (details):5 15 W
EAN:
Part number:
Item no:
Highlights & Details

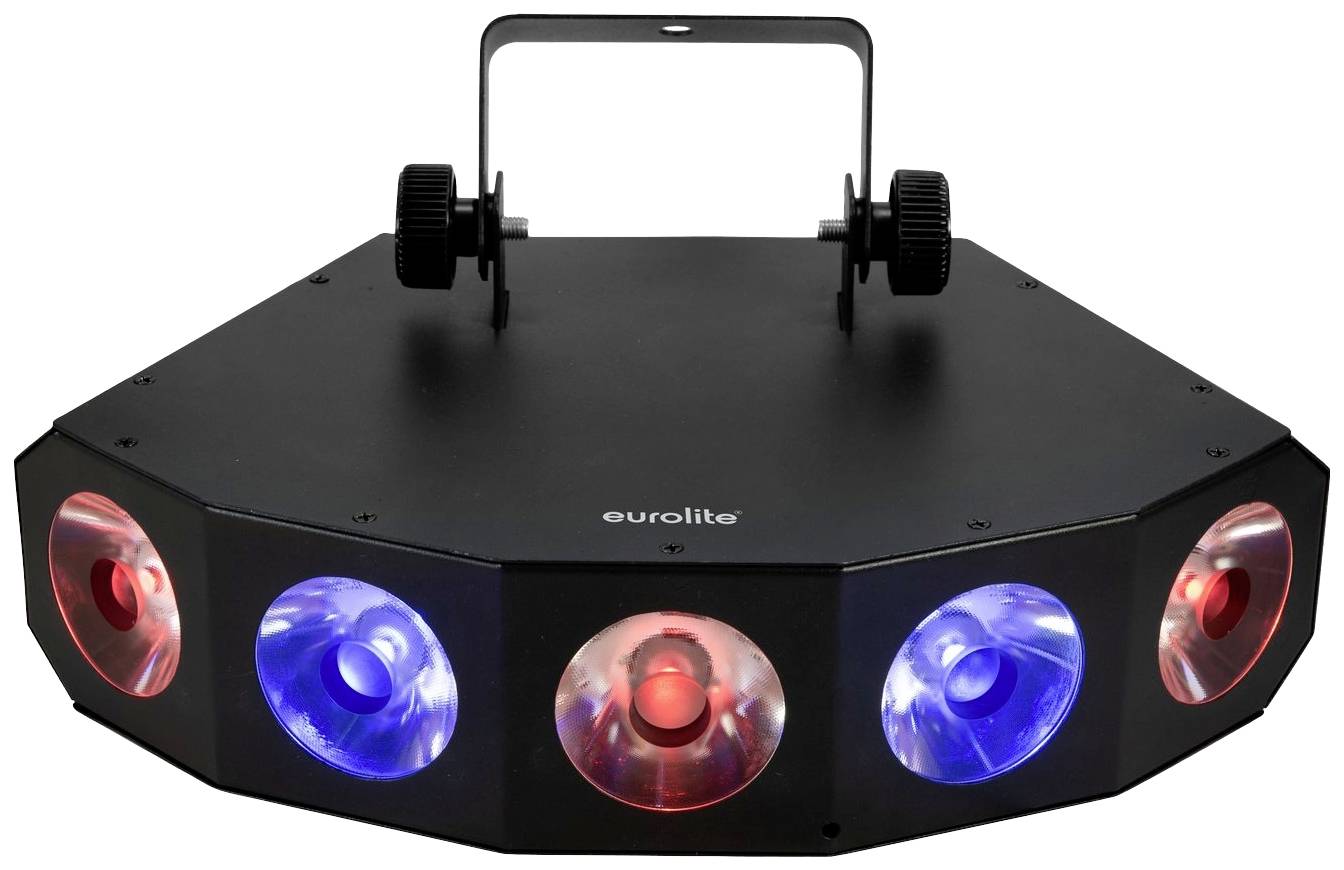

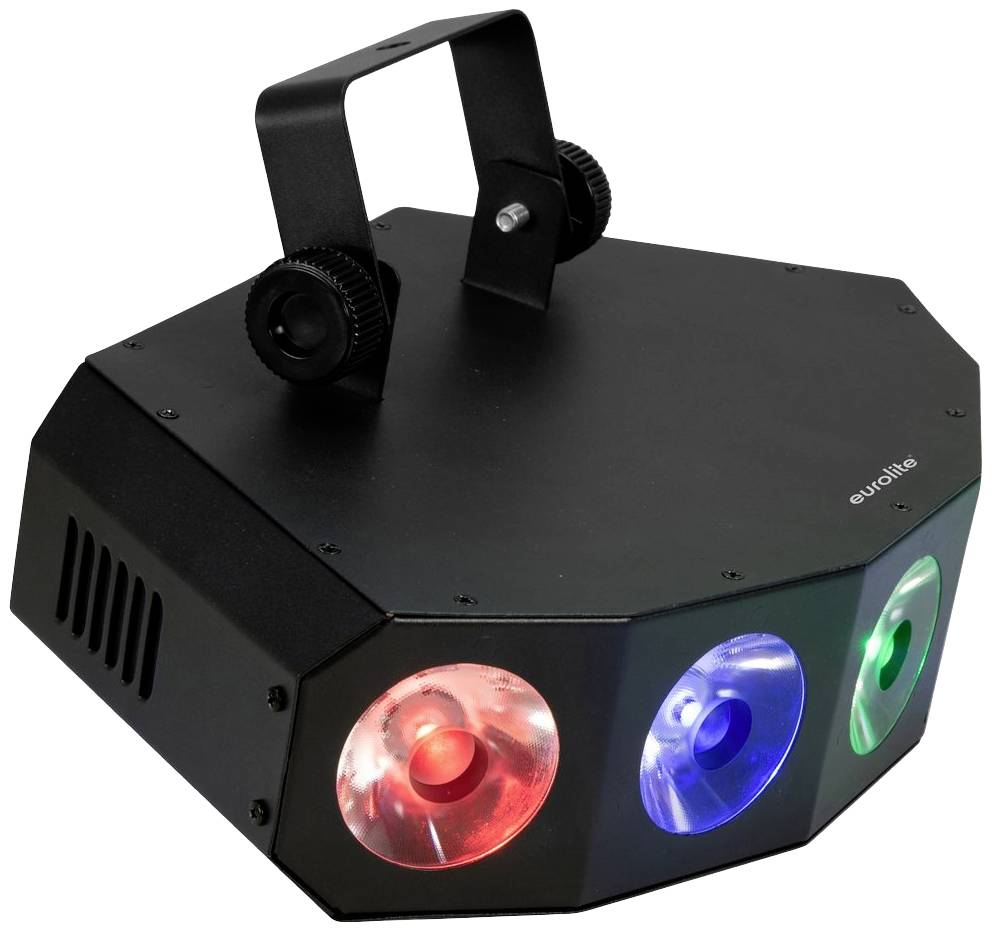

Eurolite LED SCY-500 QCL radiation effect
- LED-effect spotlights with RGBW LEDs, dynamic color effects and stroboscope
- 5 powerful LEDs 15 W COB (Chip-on-board) 4in1 QCL RGBW (homogeneous color mixing)
- LEDs can be controlled individually
Technical specifications
- Product type
DMX LED effect light
75 W
- LEDs
5
- Colour
RGBW
- Dim
(L x W x H) 390 x 250 x 180 mm
- Weight
333 g
n.rel.
- Features
Dimmable
incl. strobe
Audio control via built-in mic
USB connector
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
250 mm
- Height
180 mm
- Length
390 mm
- Watt per LED
15 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131227 Eurolite 51918674 SCY-500 QCL DMX LED effect light No. of LEDs (details):5 15 W
Description
Colour mixture continuously variable
Adjustable color change
Adjustable color blending
Electronic dimmer
Pocket-effect; Stroboscope-effect
3 integrated show programs
Direct color selection for 15 colors
The fan ensures that the unit is cooled with minimal noise
Can be controlled via stand alone; DMX; IR remote control; master/slave function; music control via microphone QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by Lumen Radio via USB (optional)
With an angle of radiation of 4°
With mounting bracket
4 digit 7-segment LED display
Pre-programmed by Light Captain
Power input and power output for simple connection of up to 8 devices
For applications such as: Clubs/dance schools; wedding/gala/events; stage; mobile DJ's/solo entertainer
Very quiet operation
Possible application: On-the-fly; on a tripod
This text is machine translated.
Adjustable color change
Adjustable color blending
Electronic dimmer
Pocket-effect; Stroboscope-effect
3 integrated show programs
Direct color selection for 15 colors
The fan ensures that the unit is cooled with minimal noise
Can be controlled via stand alone; DMX; IR remote control; master/slave function; music control via microphone QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by Lumen Radio via USB (optional)
With an angle of radiation of 4°
With mounting bracket
4 digit 7-segment LED display
Pre-programmed by Light Captain
Power input and power output for simple connection of up to 8 devices
For applications such as: Clubs/dance schools; wedding/gala/events; stage; mobile DJ's/solo entertainer
Very quiet operation
Possible application: On-the-fly; on a tripod
This text is machine translated.
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 75 W
- Power connection: Power feed via P-Con (blue), installation version power connection cable with safety plug (included)

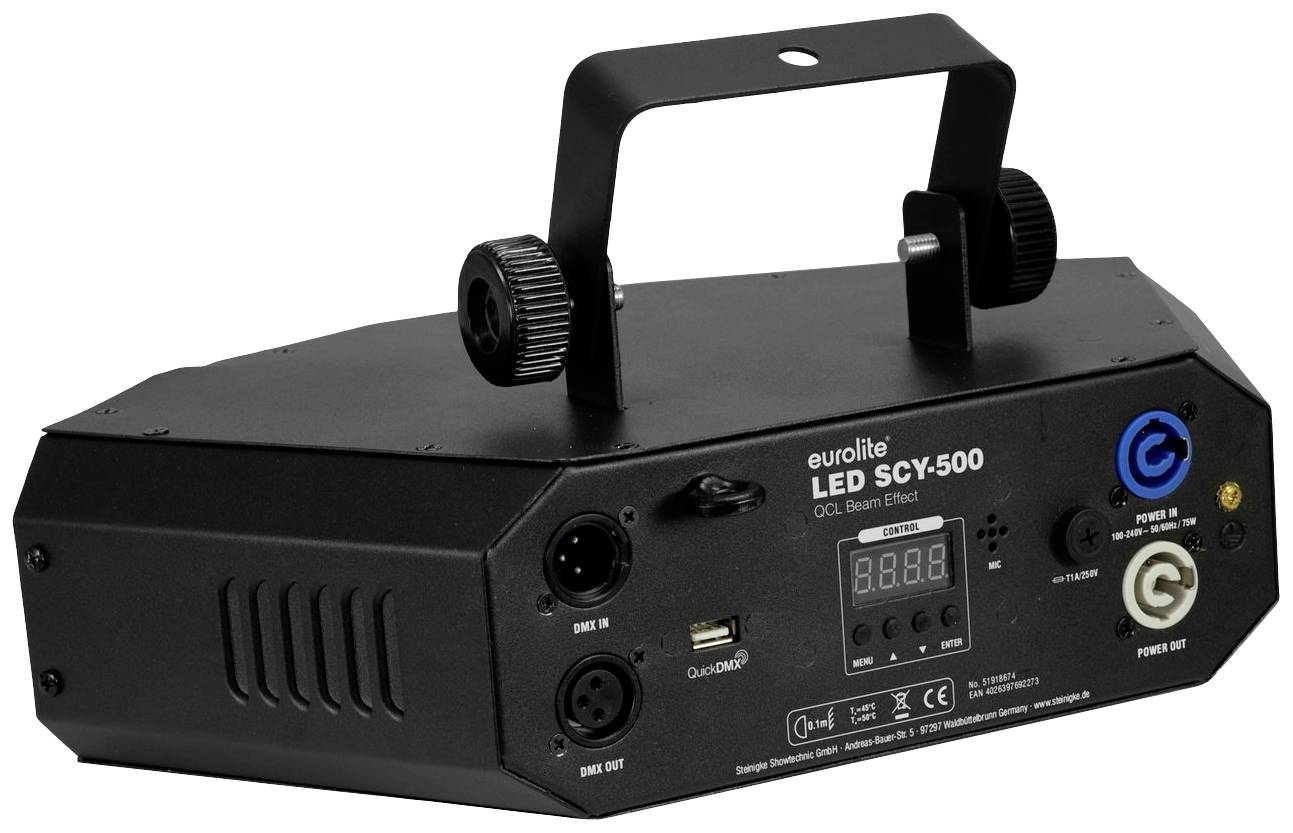

- Display type: 4 digit 7-segment LED display
- Protection class SK I
- Cooling: Fans quiet
- Housing colour black.
- Protection class: IP20
- Supporting system: Mounting bracket
- Control: Stand-alone
- 5 x 15 W COB (chip-on-board) 4in1 QCL RGBW (homogeneous color mixing)

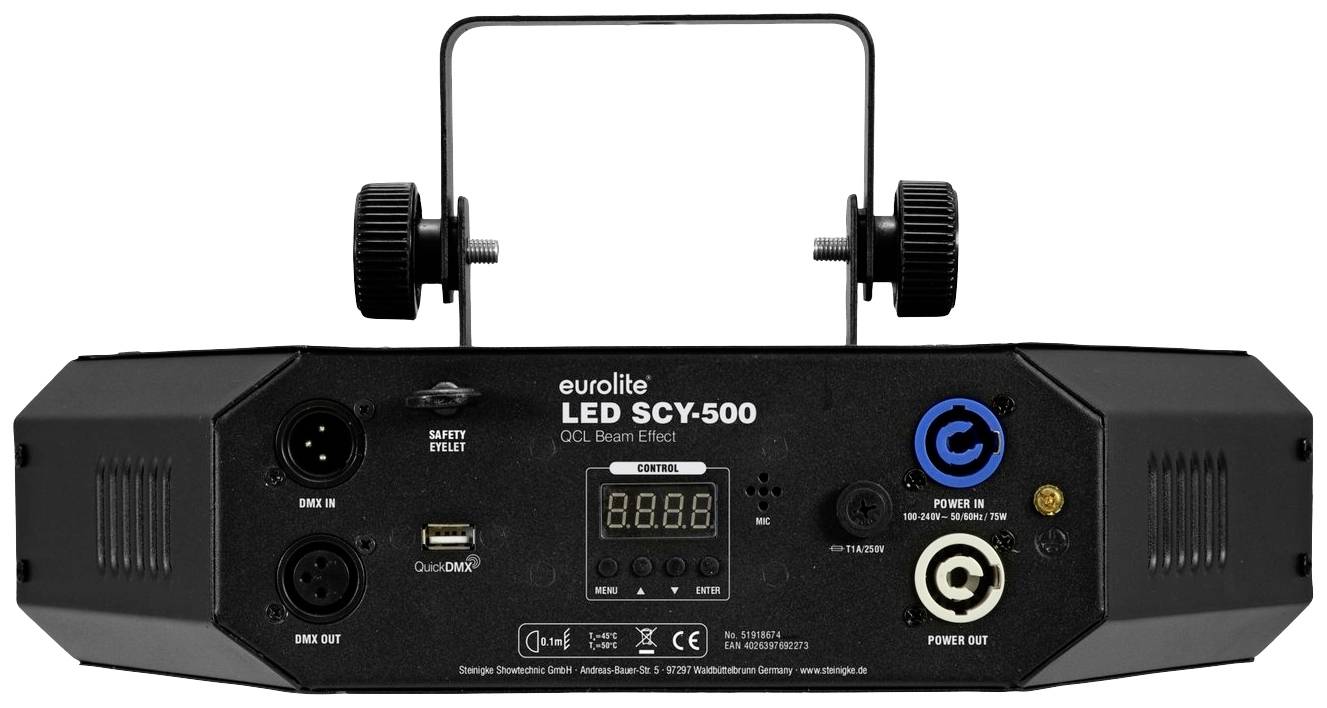

- DMX input 3-pin XLR (M), built in version
- Master/slave function: Master/slave function
- DMX
- Pre-programmed with: Light Captain
- Beam angle: 4°
- Beam angle (1/2 peak) 4°
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- DMX output 3-pin XLR (W) built-in version
- P-Con (gray), installation version
- Flash rate 0 - 20 Hz
- Music control via microphone
- CRMX by Lumen Radio via USB (optional)
- W-DMX by Wireless Solution via USB (optional)
- QuickDMX via USB (optional)
- IR remote control
- Beam effect 90°
Scope of delivery
- Lighting effect
- User manual

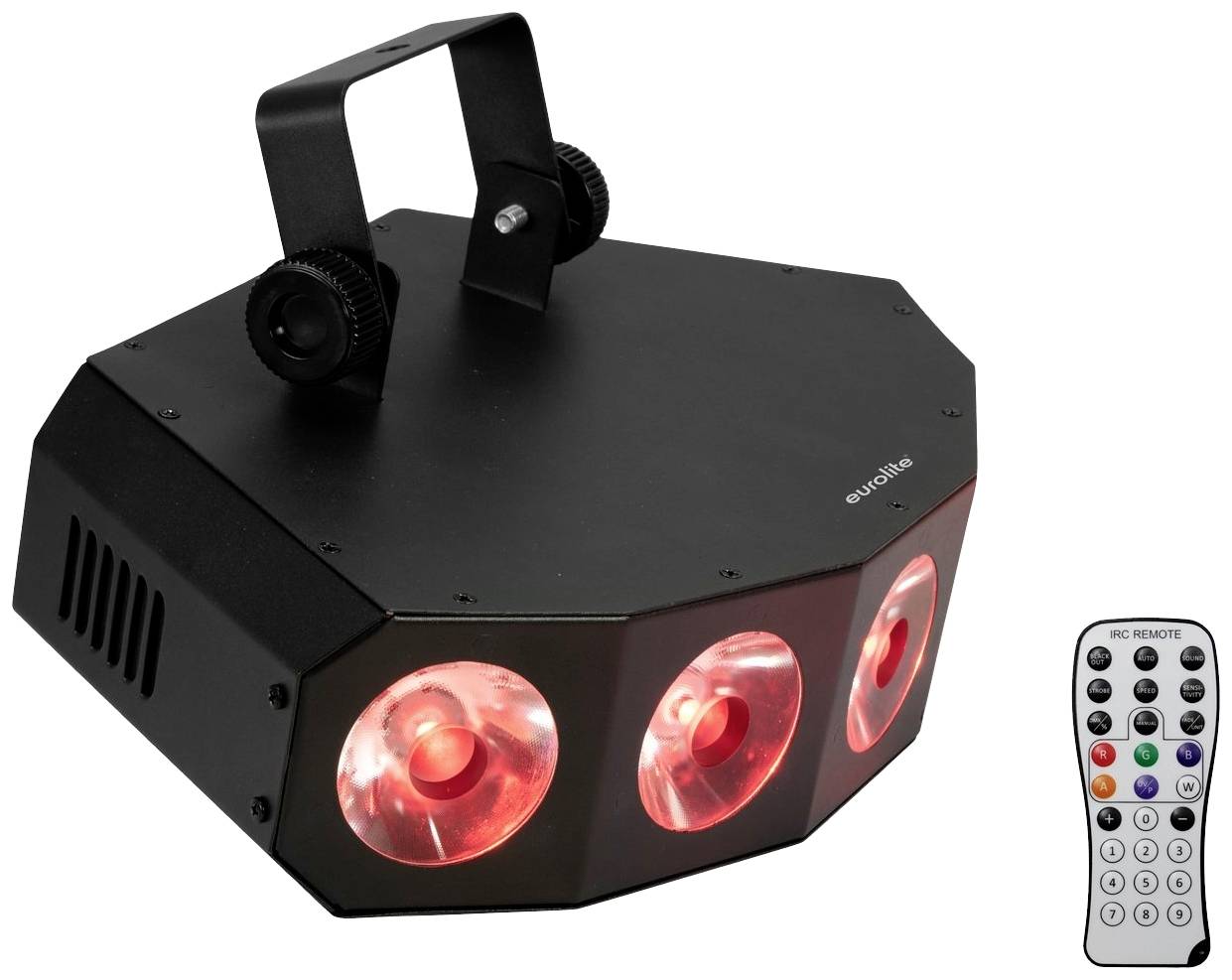

- Remote control
- Battery
- Network cable/power cable
