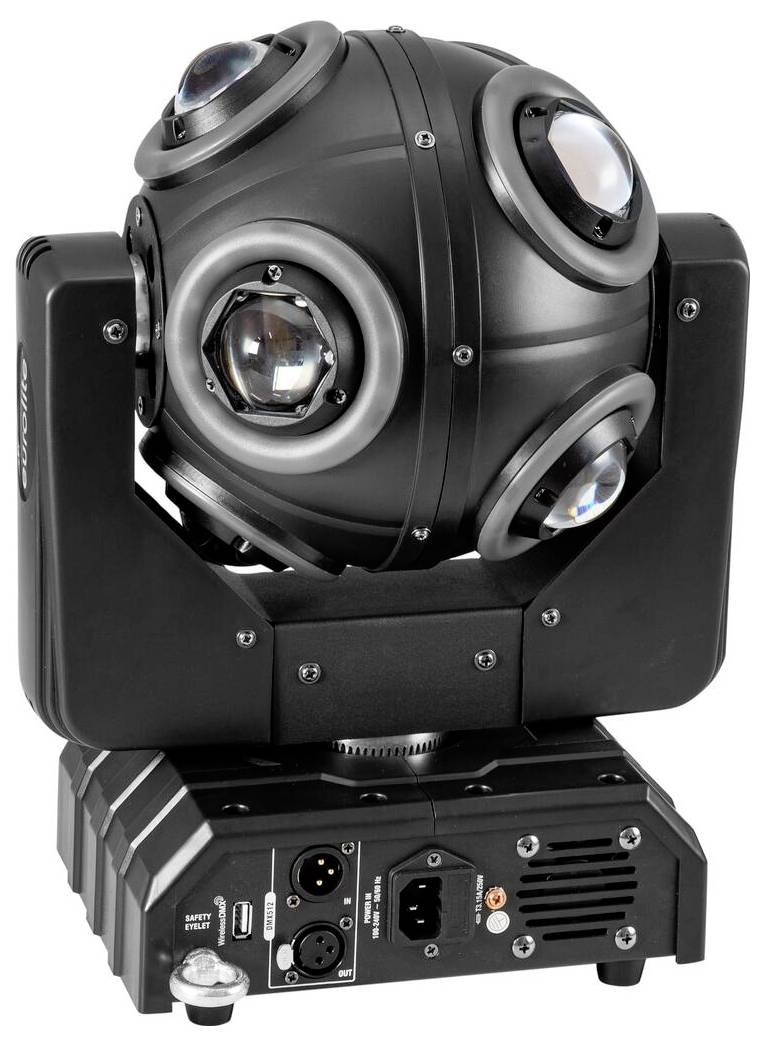

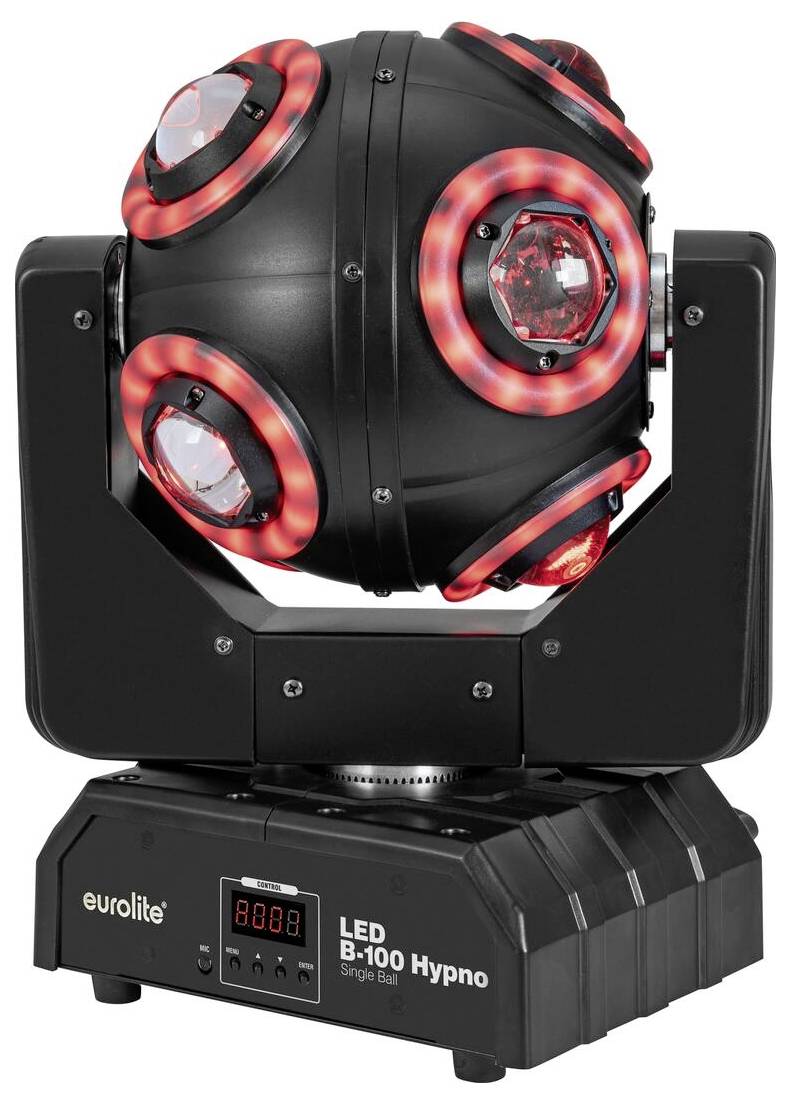

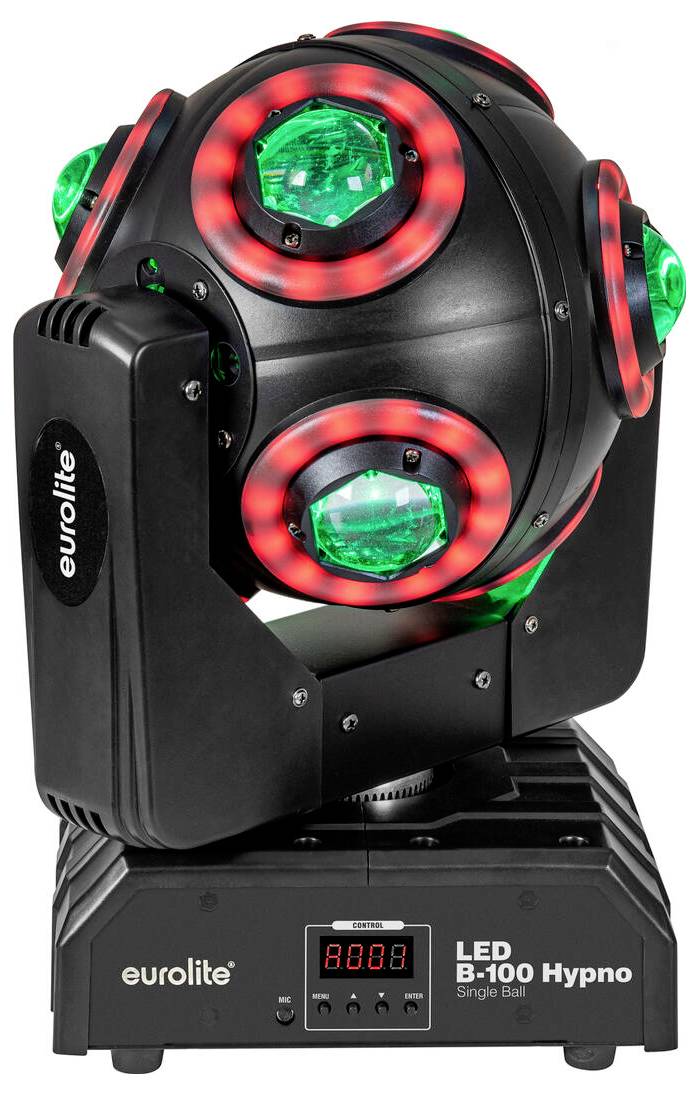

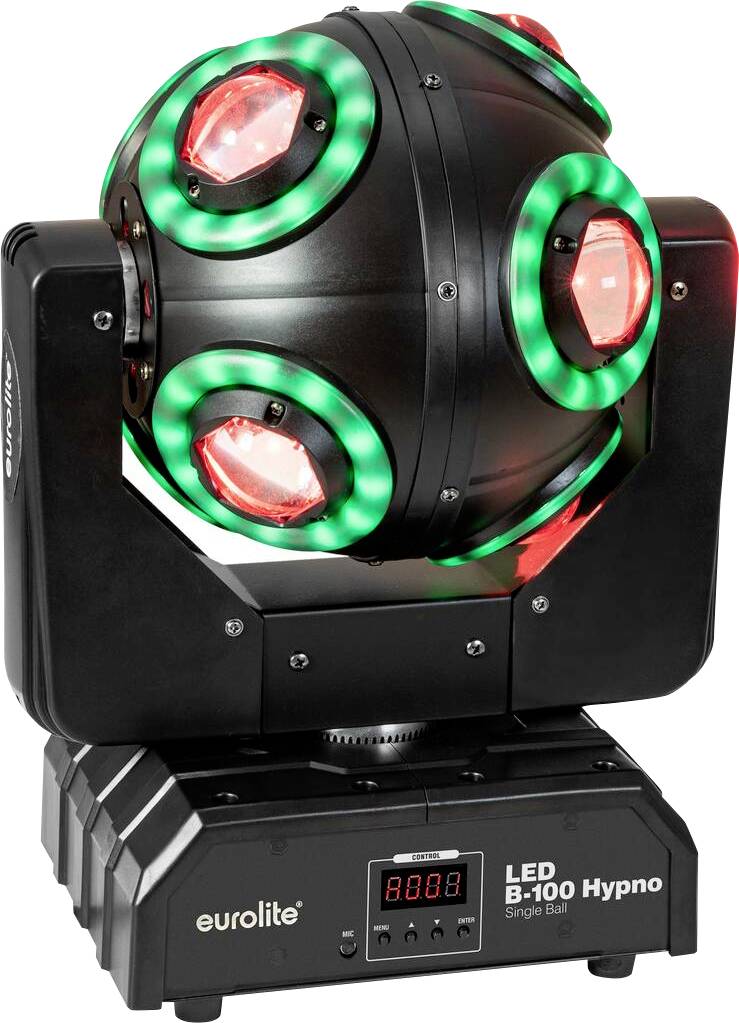

Eurolite 51918825 B-100 Hypno Single Ball DMX LED effect light No. of LEDs (details):8 10 W
EAN:
Part number:
Item no:
Technical specifications
- Product type
DMX LED effect light
80 W
- LEDs
8
- Colour
RGBW
- Dim
(L x W x H) 21.0 x 27.0 x 35.5 cm
- Weight
4.50 kg
n.rel.
- Features
incl. strobe
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
27.0 cm
- Height
35.5 cm
- Length
21.0 cm
- Watt per LED
10 W
- Depth
21.0 cm
IP20
- Case colour
Black
- Material
Plastic
- Protection class
I
- Operating voltage
100-240 V/AC, 50/60 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642567 Eurolite 51918825 B-100 Hypno Single Ball DMX LED effect light No. of LEDs (details):8 10 W
Description
LED-radiation effect with RGBW color mixing and 8 RGB hypno rings. Fuzzy sound control: Programme continues to run during periods without music or bass beat. 8 powerful LEDs 10 W SMD 5050 4in1 QCL RGBW. 96 powerful LEDs 0.2 W SMD 5050 3-in-1 TCL RGB. Electronic dimmer; color fading; color change; color mixing; rotation speed direction of rotation. Beam effect. 2 integrated show programs. The device is cooled by a fan. Can be controlled via stand alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional); music synchronization via microphone; Master/slave function. Already pre-programmed by Light Captain; Colorchief. Flicker-free. With Omega bracket, with mounting bracket. 4 digit 7-segment LED display For application areas like: Clubs/dance schools; party cellar; mobile DJs/solo entertainers; restaurants, bars and hotels. Possible application: Standing
This text is machine translated.
This text is machine translated.
Features
- Power supply: 100-240 V AC, 50/60 Hz; total connected wattage: 75 W; protection class: IP20; protection class: SK I; Power connection: Power feed via cold device (M) Installation version Power connection cable with safety plug; Fuse: 5 x 20 mm, T 3.15 A Fuse replaceable; Lamp type: LED lamp; LED type: 8 x 10 W SMD 5050 4in1 QCL RGBW; 96 x 0.2 W SMD 5050 3in1 TCL RGB; Max. Tilt movement TILT: 360° positioning endless; Max. Swivel movement PAN: 540°; Flash rate: 0 - 20 Hz; DMX channels: 16; DMX input: 3-pin XLR (M) installation version; DMX output: 3-pin XLR (W) installation version; Cooling: Fan; control: Stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); music control via microphone; Master/slave function programmed; Colorchief; Projection: flicker-free; illuminance in lux (lx): red (R) 1m: 4812 lx, 3M: 1146 lx, 6m: 271 lx; green (G) 1m: 8250 lx, 3M: 3918 lx, 6m: 723 lx; blue (B) 1m: 14513 lx, 3M: 604 lx, 6m: 153 lx; cold white (CW) 1m: 3015 lx, 3M: 2434 lx, 6m: 817 lx; casing color: black; recording system: Omega-clip; Mounting brackets; Display type: 4-digit 7-segment LED display; Diameter Mounting holes: 4 x Ø5mm; Material: Plastic; Dimensions: width: 27.0 cm; depth: 21.0 cm; height: 35.5 cm; Weight: 4.50 kg; Noise classification: Class 2 (light noises); Legal specifications; Special product: Not intended for use in domestic lighting; intended for show effects
Scope of delivery
- 1 x device
- 1x user manual
- 1 x Power cable/power cable

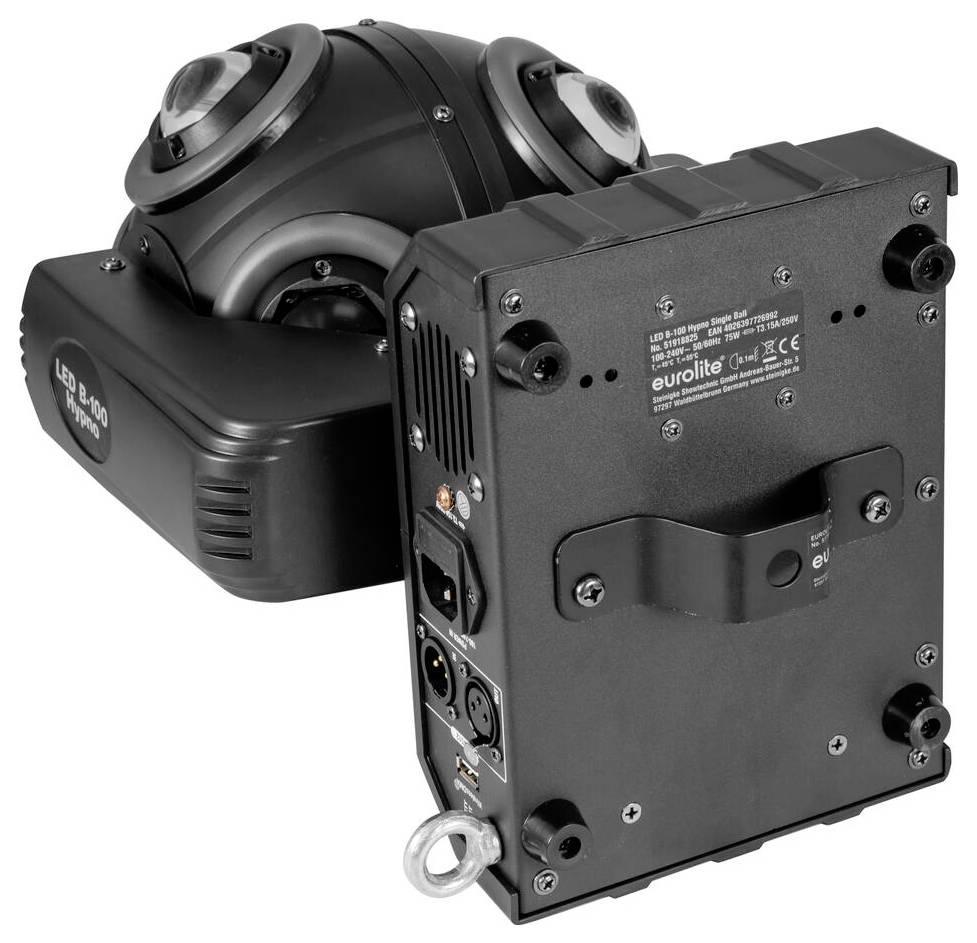

- 2 x Omega clip
- 2 x Screws
