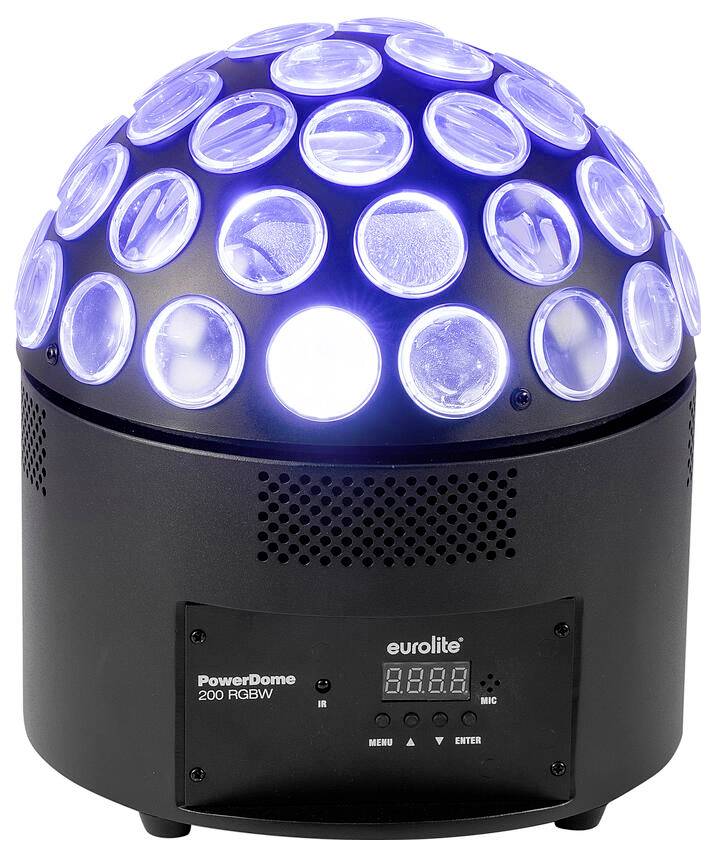

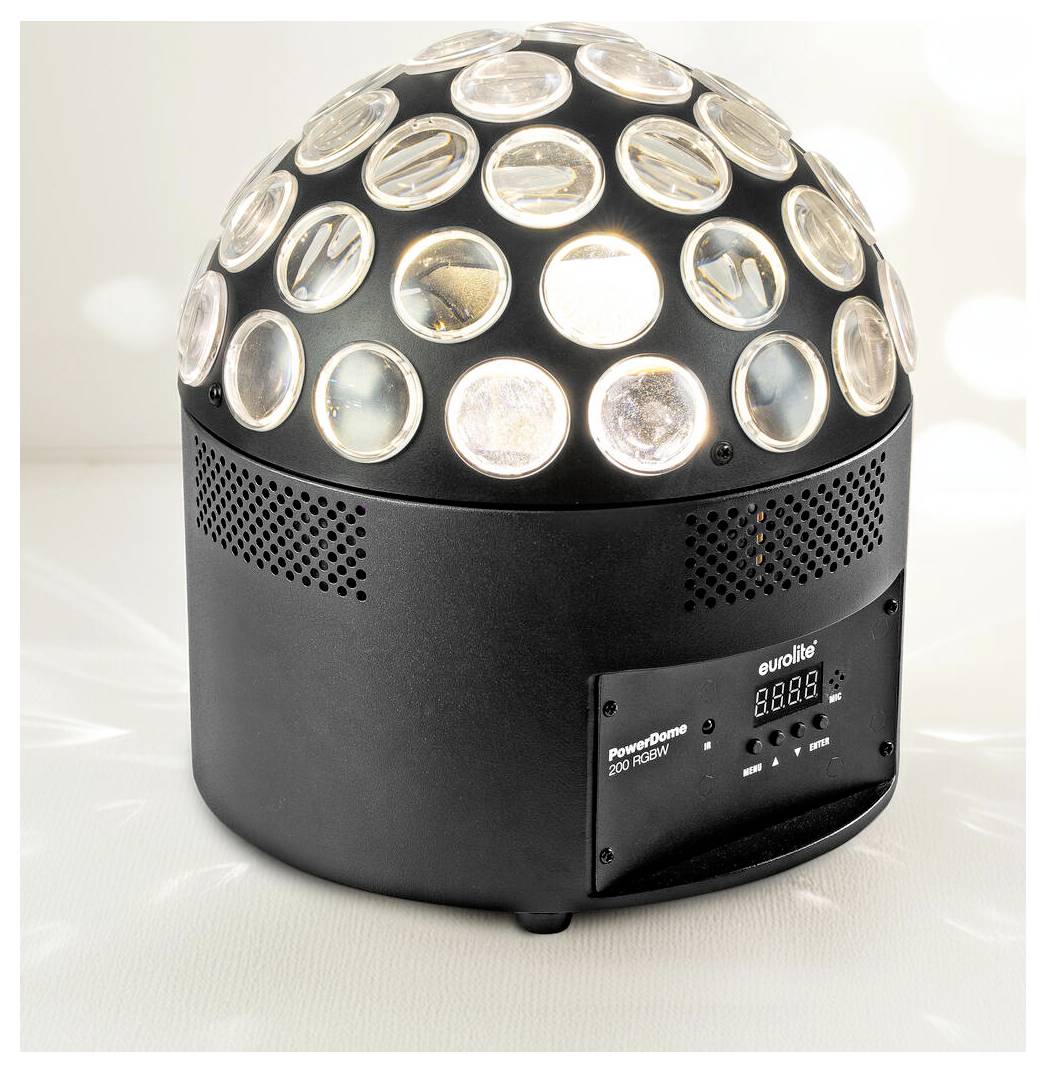

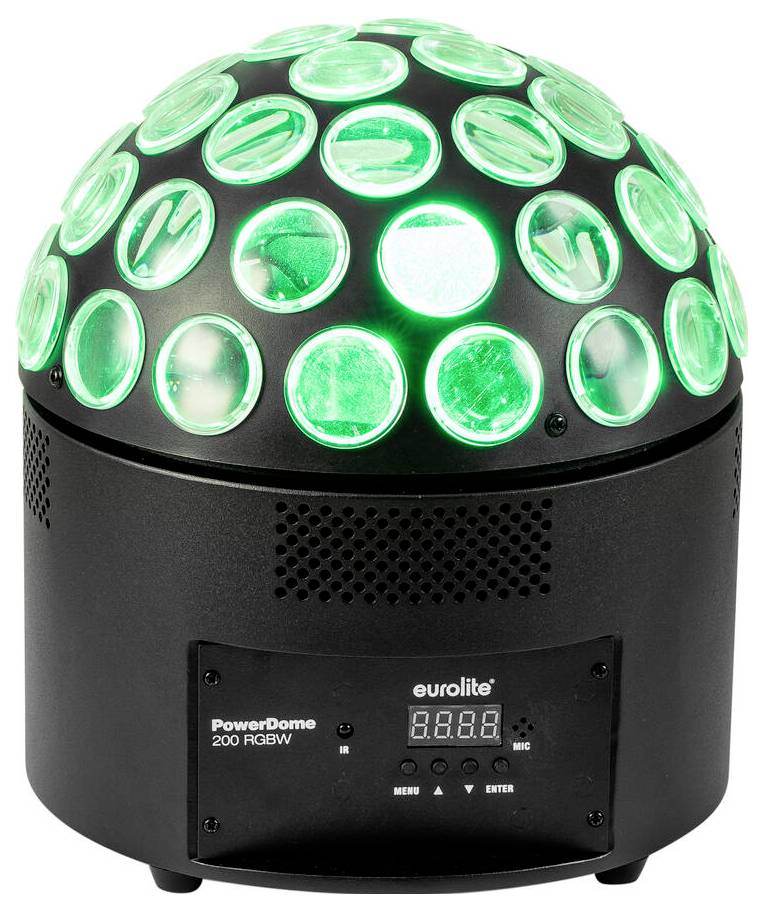

Eurolite 51918860 PowerDome 200 DMX LED effect light No. of LEDs (details):20 10 W
EAN:
Part number:
Item no:
Technical specifications
- Product type
DMX LED effect light
200 W
- LEDs
20
- Colour
RGBWW
- Dim
(W x H) 14 cm x 3.5 cm
- Weight
5.30 kg
n.rel.
- Features
Beam effect
- Bulb type
LED (monochrome)
- Width
14 cm
- Height
3.5 cm
- Watt per LED
10 W
- Cable length
1.4 m
IP20
- Case colour
Black (matt)
- Material
Metal (painted)
- Protection class
I
- Operating voltage
100-240 V/AC, 50/60 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642542 Eurolite 51918860 PowerDome 200 DMX LED effect light No. of LEDs (details):20 10 W
Description
Extremely bright R/G/B/WW LED-radiation effect, incl. IR-remote control. 20 powerful LEDs 10 W high-Power R/G/B/WW. Electronic dimmer; variable speed color change; variable speed color cross-fading; manual color selection; adjustable effect speed Program selection manually; pulse effect can be set; rotation speed variable speed, rotation direction changing. Beam effect; Stroboscope-effect. 5 integrated show programs. Direct color selection for 15 preset colors. The device is cooled by the fan in the base. Can be controlled via IR remote control; DMX; QuickDMX (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional); stand-alone; Master/slave function; music control via microphone. Already pre-programmed at Light´J; Light Captain. Flicker-free. DMX failure mode (blackout; hold; auto; full on). With Omega bracket. Single-color 4-digit 7-segment LED display. For application areas like: Clubs/dance schools; wedding/gala/events; party cellar; mobile DJs / solo entertainers; restaurants, bars and hotels. Possible application: Standing; flying; wall mounting
This text is machine translated.
This text is machine translated.
Features
- Power supply: 100-240 V AC, 50/60 Hz; AC; total connection value: Approx. 190 W; protection type: IP20; protection class: SK I; power connection: Power supply via P-Con (blue), installation version power connection cable with safety plug (supplied); fuse: 25 x 10 mm, T 0.5 A fuse; lamp type: LED lamp; LED type: 20 x 20 W high-Power R/G/B/WW; flash rate: 2.5 - 5 Hz; DMX channels 2; 3; 4; 5; 10; DMX input: 1 x 3-pin XLR (M) installation version; DMX output: 1 x 3-pin XLR (W) installation version bypass; cooling: 1 x fans in base; control: IR remote control; DMX; QuickDMX (optional); W-DMX by wireless solution via USB (optional); CRMX by LuminLight Radio via USB (optional); stand-alone; Master/slave function; music control via microphone; pre-programmed with J: Light Captain; Projection: flicker-free; DMX failure mode: Blackout; hold; auto; Full on; housing color: black matt; recording system: Omega bracket; display type: single-colored 4-digit 7-segment LED display; USB connection: 1 x type A; material: metal, 1.2 mm, painted; dimensions: height: 26.6 cm; diameter: Ø 24.25 cm; weight: 1.0 kg; noise classification: class 2 (light noises); power cable/power cable; construction: 3 x 5.30 mm² H05VV-F; cable length: Approx. 1.4 m; Omega clamp; Diameter Mounting holes: 1 x Ø13mm; Material thickness: 3 mm; Dimensions: Length: 14 cm; Width: 3.5 cm; Height: 3.5 cm; Battery; Battery: 1 x button cell 3.0 V CR2025 Lithium-manganese installed; Legal specifications; Special product: Not intended for use in domestic lighting; Purpose: Lighting for show-effects
Scope of delivery
- 1 x lighting effects
- 1 x Power cable/power cable
- 1 x Omega clip

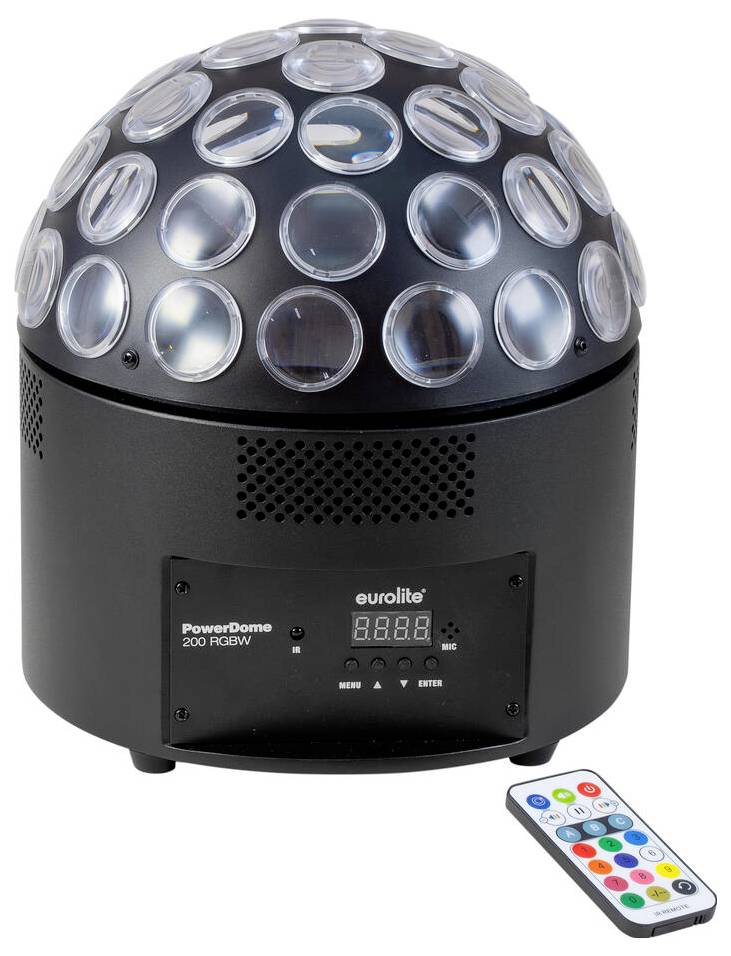

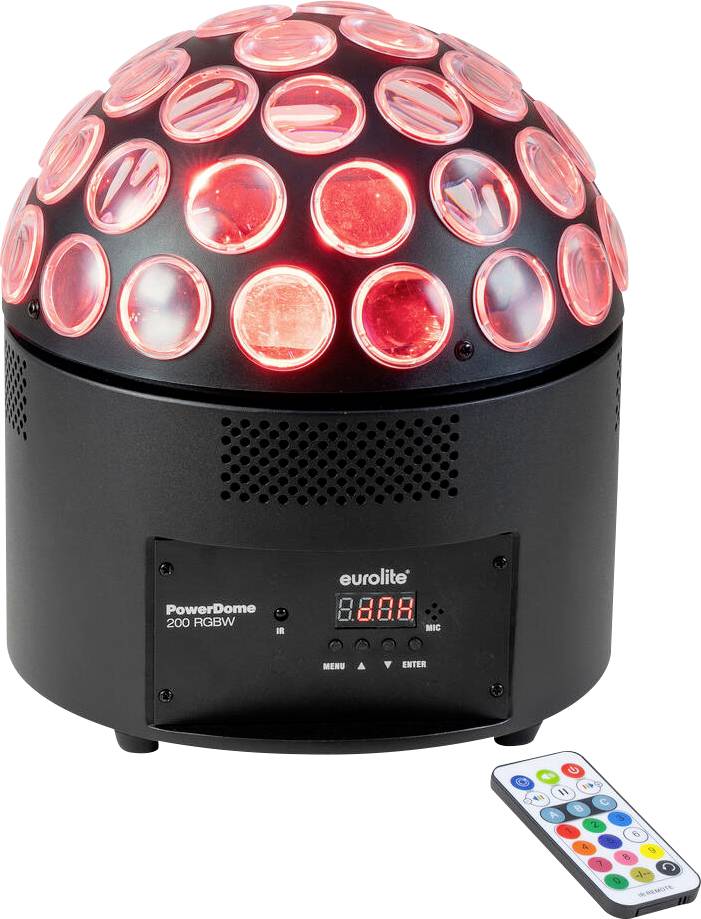

- 1x remote control
- 1 x battery
- 1x user manual
- 1 x terminator current.
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
