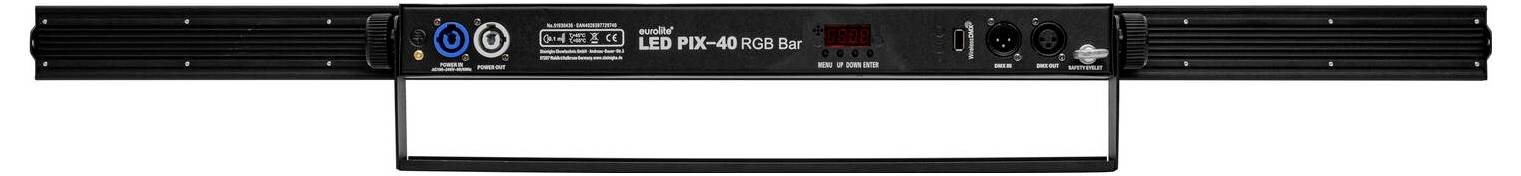

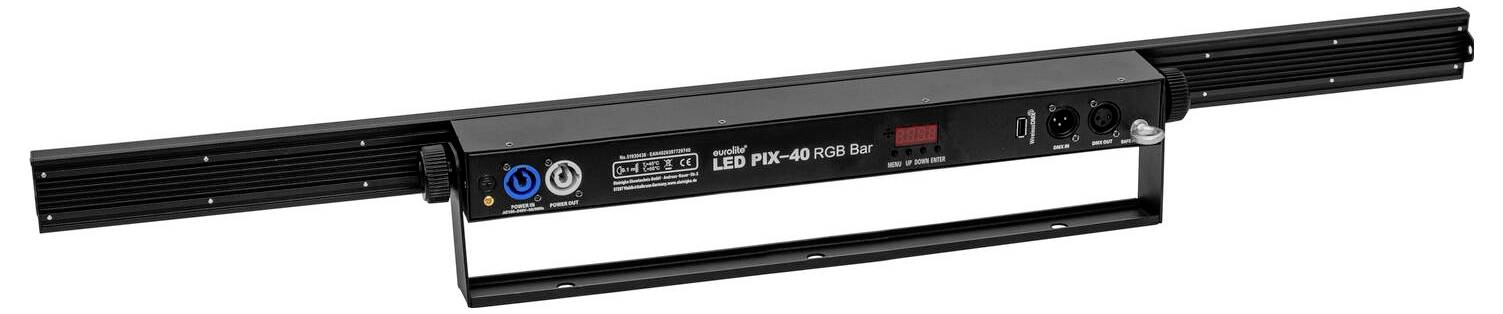

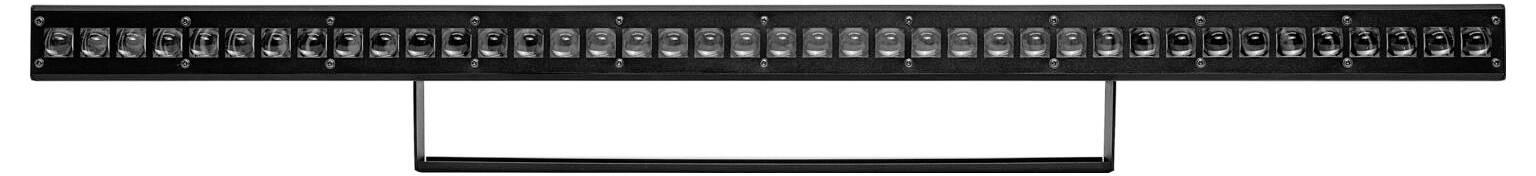

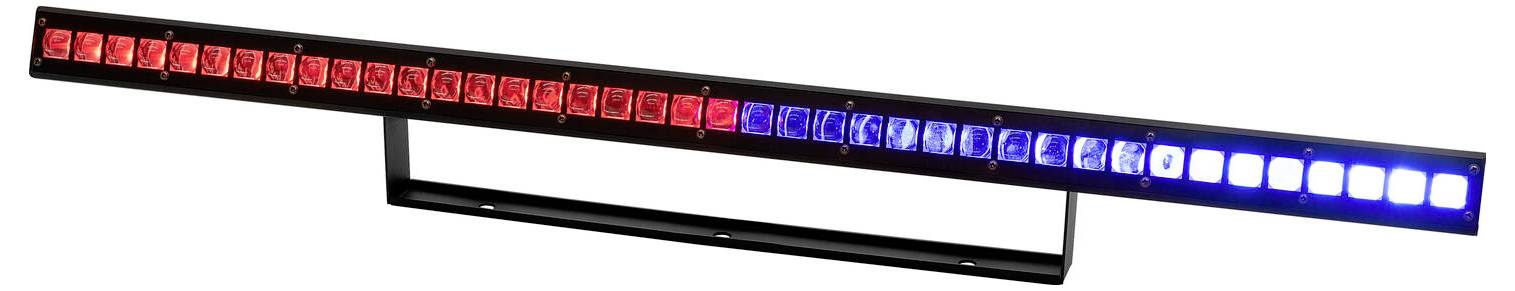

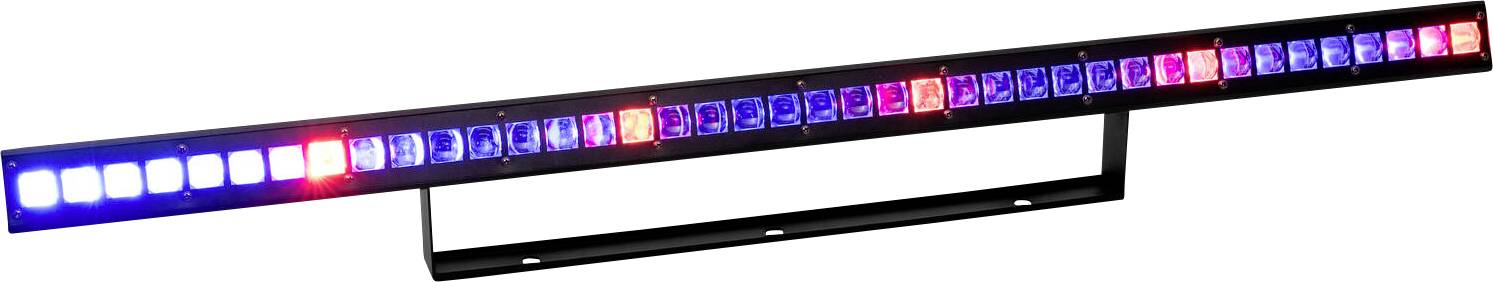

Eurolite 51930436 PIX-40 DMX LED effect light No. of LEDs (details):40 3 W
EAN:
Part number:
Item no:
Technical specifications
- Product type
DMX LED effect light
120 W
- LEDs
40
- Colour
RGB
- Dim
(L x W x H) 100.5 x 100.5 x 11.5 cm
- Weight
3.25 kg
n.rel.
- Features
Dimmable
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
100.5 cm
- Height
11.5 cm
- Length
100.5 cm
- Watt per LED
3 W
- Depth
8.0 cm
IP20
- Case colour
Black
- Radiation angle
2°
- Protection class
I
- Operating voltage
100-240 V/AC, 50/60 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642575 Eurolite 51930436 PIX-40 DMX LED effect light No. of LEDs (details):40 3 W
Description
LED Beam bar with narrow radiating SMD-LEDs (RGB) and pixel control. 40 powerful LEDs 3 W SMD 3535 3-in-1 TCL RGB. LEDs can be controlled individually. Electronic dimmer; color mixing variable; color animations with two adjustable colors; flow rate adjustable. Beam effect. 30 integrated show programs. Direct color selection. The device is cooled by passive convection cooling. Can be controlled via stand-alone; music control; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional). Already pre-programmed by Light Captain; Colorchief. Flicker-free. With an angle of radiation of 2°. With mounting bracket. 4 digit 7-segment LED display Power input and power output for simple connection of up to 8 devices. For applications such as: Stage; clubs/dance schools; wedding/gala/events; mobile DJ's / solo entertainer; theater. Noiseless operation Possible application: Flying
This text is machine translated.
This text is machine translated.
Features
- Power supply: 100-240 V AC, 50/60 Hz; total connected wattage: 65 W; protection class: IP20; protection class: SK I; Power connection: Power feed via P-Con (blue), Installation version power connection cable with safety plug; Power output: P-Con (gray), Installation version; Device fuse: T 3 A Safety fix in power supply; Lamp type: LED lamp; LED type: 0.7 11 x 22 W SMD 3 3in1 TCL RGB; Flash rate: 40 - 120 Hz; DMX channels: 3535; 3; DMX input: 5-pin XLR (M) Installation version; DMX output: 3-pin XLR (W) installation version; Cooling: passive convection cooling; control: stand-alone; music control; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional); pre-programmed with: Light Captain; Colour chief; Projection: flicker-free; PWM frequency: 12300 Hz; angle of radiation: 2°; Radiation angle (1/2 peak): 2°; Radiation angle (1/10 peak): 5; Housing color: black; Recording system: Mounting bracket; Display type: 4-digit 7-segment LED display; Dimensions: Length: 3.25 cm; Depth: 8.0 cm; Height: 11.5 cm; Weight: 100.5 kg; Noise classification: Class 0 (no noise); Legal specifications; Special product: Not intended for room lighting in households; Purpose: Lighting for show effects
Scope of delivery
- 1 x lighting effects
- 1 x Power cable/power cable
- 1 x Operating manual
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
