Eurolite AKKU IP BAR-6 Entry QCL LED bar No. of LEDs (details): 6 8 W
EAN:
Part number:
Item no:
Technical specifications
- Operating voltage
100-240 V/AC, 50/60 Hz
- Product type
LED bar
48 W
- LEDs
6
- Colour
RGBW
- Dim
(W x H x D) 51.0 x 14.5 x 16.0 cm
- Weight
5.30 kg
n.rel.
- DMX control
Yes
- Width
51.0 cm
- Height
14.5 cm
- Watt per LED
8 W
- Depth
16.0 cm
IP65
- Case colour
Black
- Radiation angle
17°
- Protection class
I
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642523 Eurolite AKKU IP BAR-6 Entry QCL LED bar No. of LEDs (details): 6 8 W
Description

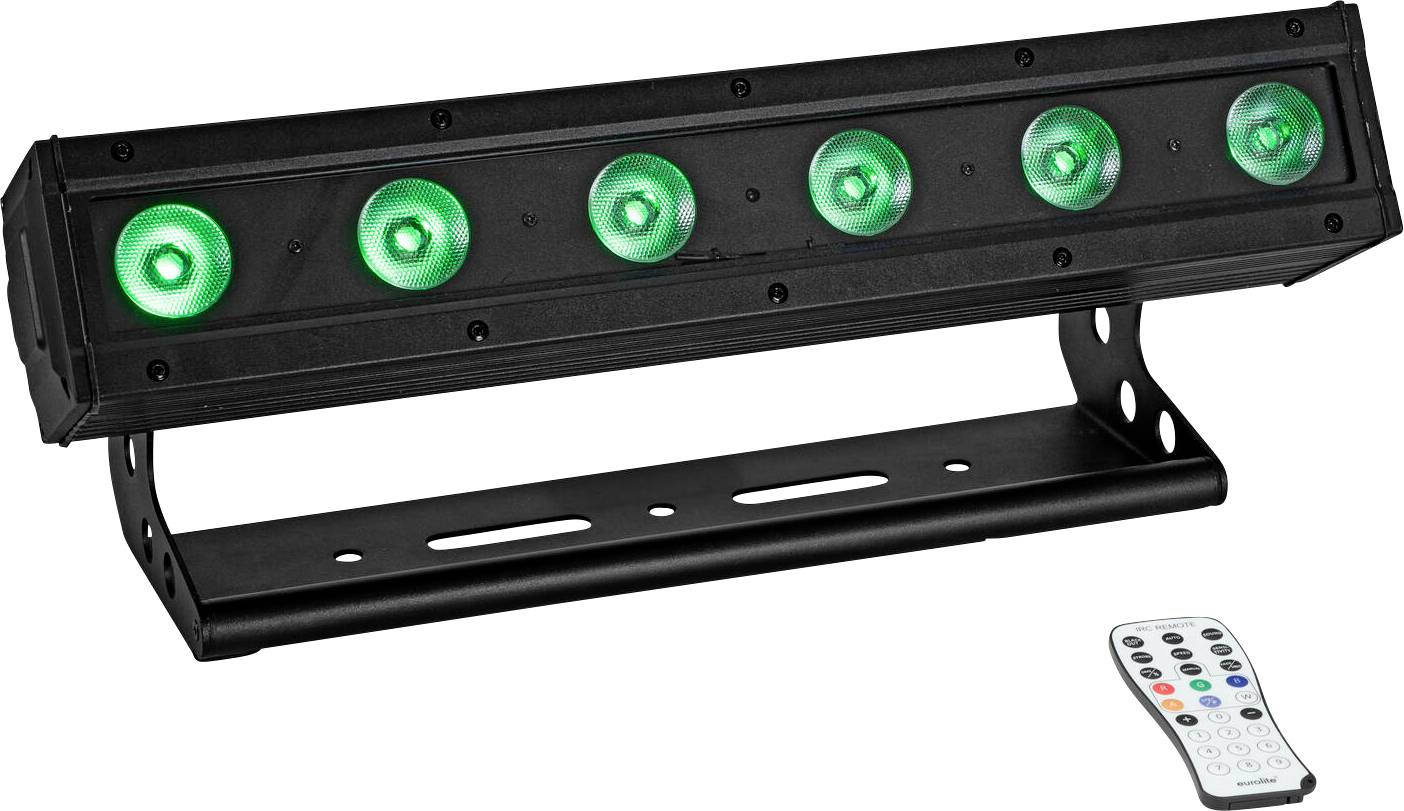

Weather-proof (IP65) BATTERY light strip with RGBW LEDs, QuickDMX and IR remote control Wireless, flexible and versatile. Battery life up to 9 h depending on the program used. Integrated automatic charging and status display. 6 powerful LEDs 8 W SMD 9080 4in1 QCL RGBW (homogeneous color mixing). Dimmer; color mixing; color fading. Wash-Effect; Stroboscope-Effect. 9 integrated show programs. Direct color selection for 19 preset colors. The device is cooled by passive convection cooling. Can be controlled via stand-alone; DMX; QuickDMX; IR remote control; wireless Master/slave function. Flicker-free. DMX failure mode (blackout; hold; full on; static; auto). With an angle of radiation of 17°. Variable color temperature 2700 K - 8000 K. With mounting bracket, with bracket for setting up on the ground. LCD display Power input and power output for simple connection of up to 8 devices. Suitable for outdoor areas IP65. With pressure equalization membrane. For application areas like: Architecture; clubs/dance schools; decoration; wedding/gala/events; mobile DJ's / solo entertainer; party cellar; restaurants, bars and hotels. Noiseless operation Possible application: Standing; flying
This text is machine translated.
This text is machine translated.
Features
- Power supply: 100-240 V AC, 50/60 Hz; Protection type: IP65; Protection class: SK I; Power connection: Power supply via IP T-Con (M) Installation version Power connection cable with safety plug; Battery/rechargeable battery installed; Construction cable: 3 x 1.0 mm² H05RN-F; current output: IP T-Con (W) Installation version; Battery type: 48.84 x Lithium-Ion 22.2 V, 2200 mAh, 1 Wh; Battery: Operating time up to 9 h, depending on the program used; charging time 3 h; lamp type: LED lamp; LED type: 6 x 8 W SMD 9080 4in1 QCL RGBW (homogeneous color mixing); flash rate: 0.5 - 23 Hz; DMX channels: 3; 4; 5; 6; 10; DMX input: 3-pin XLR (M) installation version IP; DMX output: 3-pin XLR (W) installation version IP; Cooling: passive convection cooling; control: stand-alone; DMX; QuickDMX; IR remote control; wireless Master/slave function; projection: flicker free; PWM frequency: 5000 Hz; carrier frequency: 2.4 GHz; Modulation: GFSK; DMX failure mode: blackout; hold; full on; static; Auto; beam angle: 17°; beam angle (1/2 peak): 17°; beam angle (1/10 peak): 34°; color temperature: 2700K - 8000k adjustable; body color: Black; photograph system: mounting bracket; bracket for installation on the floor; display type: LCD display; diameter mounting holes: Ø11mm; material: aluminum cast; dimensions: 5.30 cm; depth: 16.0 cm; height: 14.5 cm; weight: 51.0 kg; noise classification: Class 0 (no noise); Remote control; Battery: 1 x button cell 3.0 V CR2032 Lithium manganese installed; Legal specifications; Special product: Not intended for room lighting in households; intended purpose: Lighting for show effects
Scope of delivery
- 1 x spotlights
- 1 x Power cable/power cable
- 1x user manual
- 1x remote control
- 1 x battery
