Eurolite KLS-3002 MK2 AIR LED bar No. of LEDs (details): 28 12 W
EAN:
Part number:
Item no:
Technical specifications
- Operating voltage
100-240 V/AC, 50/60 Hz
- Product type
LED bar
336 W
- LEDs
28
- Colour
RGBAW
UV/blacklight
- Dim
(W x H x D) 107.5 x 28.7 x 5.5 cm
- Weight
11.30 kg
n.rel.
- DMX control
Yes
- Width
107.5 cm
- Height
28.7 cm
- Watt per LED
12 W
- Cable length
3 m
- Depth
5.5 cm
IP20
- Case colour
Black (matt)
- Material
Metal (painted)
- Radiation angle
15°
- Protection class
I
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642534 Eurolite KLS-3002 MK2 AIR LED bar No. of LEDs (details): 28 12 W
Description

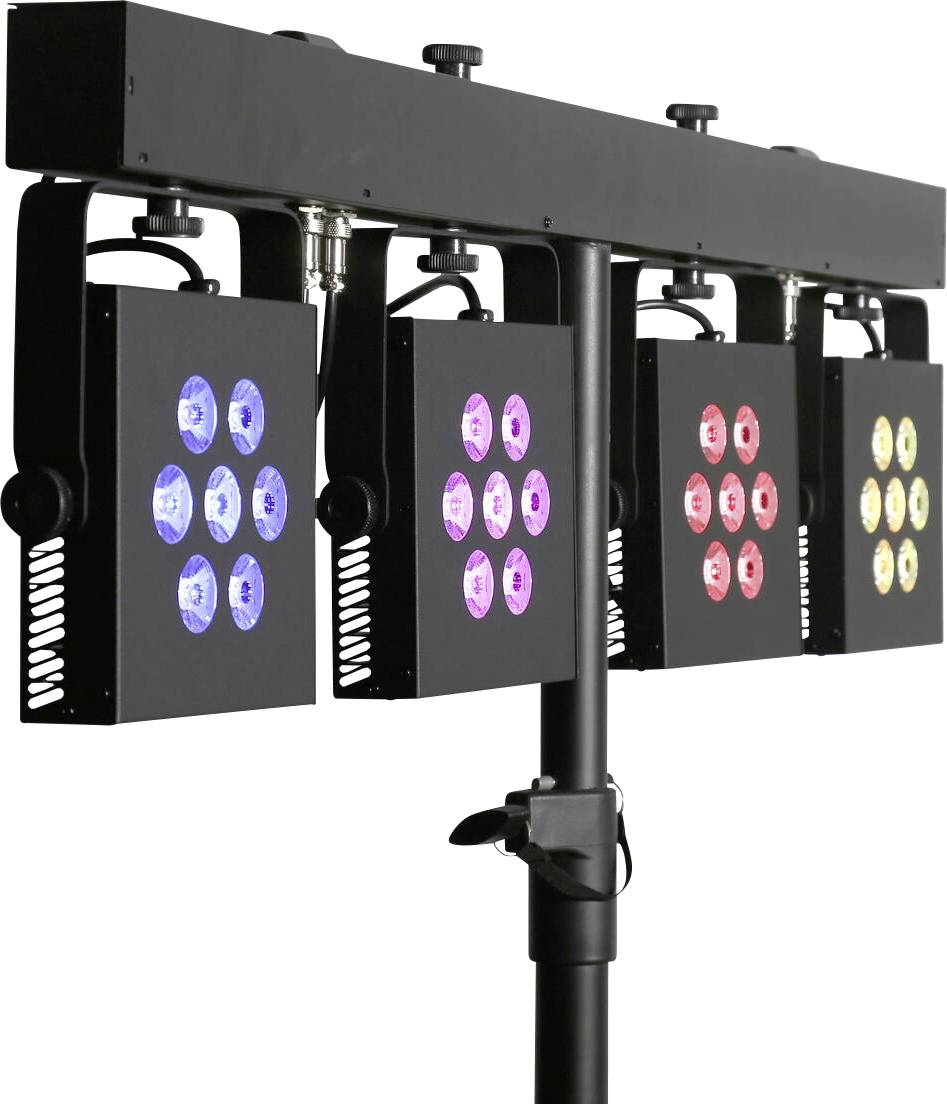

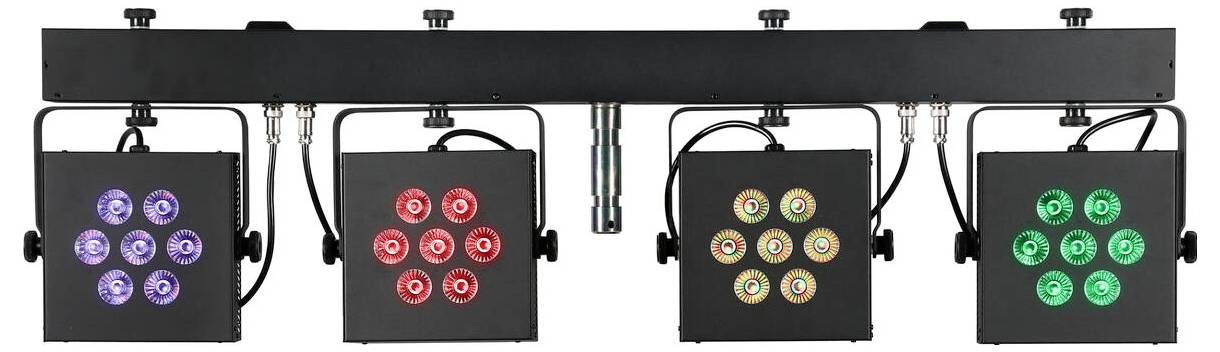

Bar with 4 bright 6in1 HCL RGBWA/UV spots, air-W radio unit (2.4 GHz), radio remote control and transport bag. Cross bar with integrated DMX control unit and TV mount for stand mounting. Integrated AirW radio transceiver for wireless Master / slave operation. Adaptive frequency hopping for interference-free signal transmission in the 2.4 GHz band. 28 powerful LEDs 12 W SMD 5050 6in1 HCL RGBWA/UV (homogeneous color mixing) 4 spots can be controlled individually. With an angle of radiation of 15°. Spot-effect; UV-effect; Stroboscope-effect. Electronic dimmer; adjustable color fading; adjustable color change; variable color mixing; color selection Program selection; flow rate adjustable, color macros. Direct color selection for 20 preset colors. 20 integrated show programs. Can be controlled via stand-alone; music control via microphone; Master/slave function; dial for brightness; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional); AirW; wireless Master/Slave function; wireless radio remote control; wireless foot switch (optional). 3 buttons of the remote control to store your own settings. DMX failure mode (blackout; hold; full on; auto). Flicker-free. Single-color 4-digit 7-segment LED display. With Omega bracket. Noiseless operation The device is cooled by passive convection cooling. For application areas such as: Wedding/gala/events; clubs/dance schools; mobile DJ's/solo entertainer; restaurants, bars and hotels; distributors. Possible application: On-the-fly; on a tripod. Power input and power output for simple connection of up to 8 devices. Radio remote control: Range of up to 30m outdoors. AirW: Range of up to 70m at visibility
This text is machine translated.
This text is machine translated.
Features

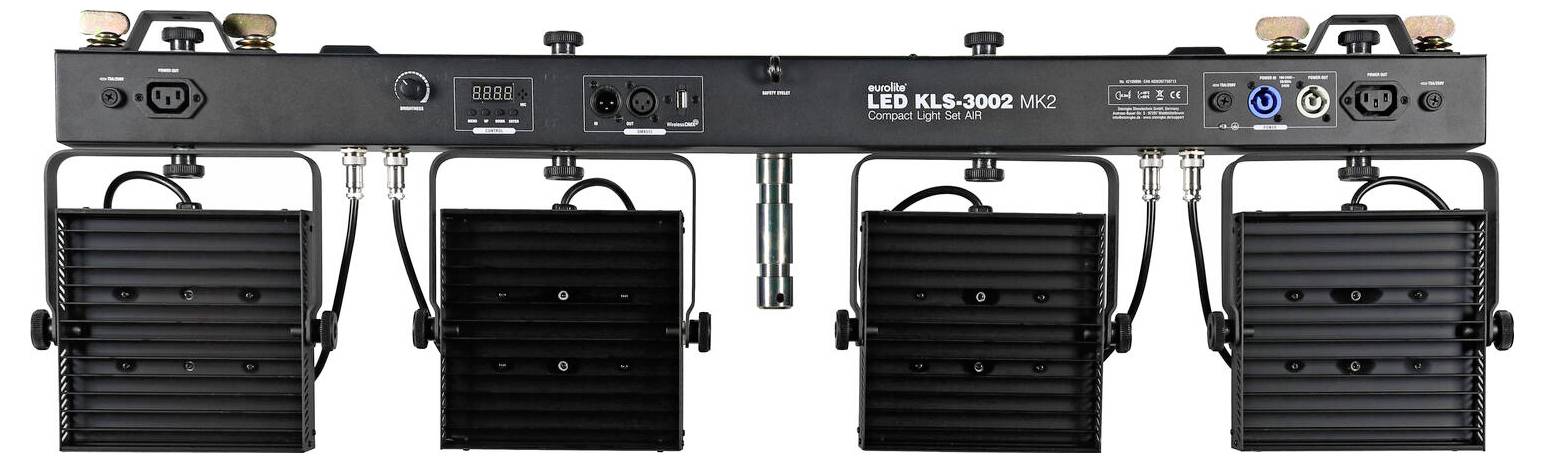

- Power supply: 100-240 V AC, 50/60 Hz; total connected wattage: 245 W; protection class: IP20; protection class: SK I; Power connection: Power feed via P-Con (blue), Installation version power connection cable with shock-proof plug (included); Design cable: 1 x 1.0 mm² H05VV-F; Cable length: 3 m; Power output: 3 x P-Con (gray), Installation version by-pass; 5 x cold devices (W) Mounting version secured; Device fuse: 5 x 20 mm, T 2 A fuse removable; Mains output fuse per channel: 5 x 20 mm, 5 A fuse, replaceable; lamp type: LED lamp, LED type: 28 x 12 W SMD 5050 6in1 HCL RGBWA/UV (homogeneous color mixing); flash rate: 0.3 - 20 Hz; DMX channels: 2; 4; 6; 10; 24; 28; 32; 34; DMX input: 1 x 3-pin XLR (M) installation version; 1 x USB, type A; DMX output: 1 x 3-pin XLR (W) installation version; Cooling: passive convection cooling; control: stand-alone; music control via microphone; Master/slave function; Dial for brightness; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional); AirW; wireless Master/Slave function; wireless remote control; wireless foot switch (optional); Projection: flicker-free; Range: wireless remote control: up to 30m outdoors; AirW: up to 70m at visibility; carrier frequency: 2.4 GHz; Modulation: GFSK; DMX failure mode: blackout; hold; Full on; Auto; beam angle: 15°; beam angle (1/2 peak): 15° multi-colored; beam angle (1/10 peak): Spot 30°; color temperature: 5700K; case color: black matt; photograph system: peg: 1x Ø 28mm; 2x Omega bracket; display type: 1 x single-colored 1-digit 107.5-segment LED display; USB connection: 1 x type A; Material: metal, 4 mm, painted; Dimensions: depth: 7 cm; 5.5 cm; Height: 28.7 cm; Weight: 11.30 kg; Noise classification: Class 0 (no noise); Remote control; Battery: 1 x 12 V 23AE Alkali-manganese attached; Carrier frequency: 433.92 MHz; Legal specifications; Special product: Not intended for use in domestic lighting; Purpose: Lighting for show effects
Scope of delivery
- 1 x device
- 1x user manual
- 1 x declaration of conformity
- 1 x Power cable/power cable

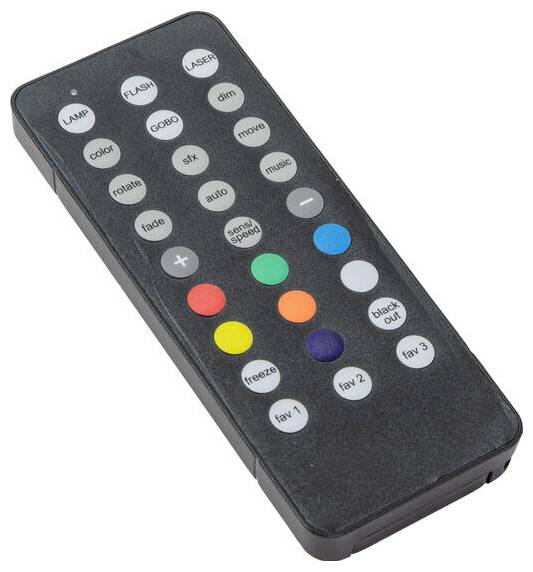

- 1x remote control
- 1 x pouch

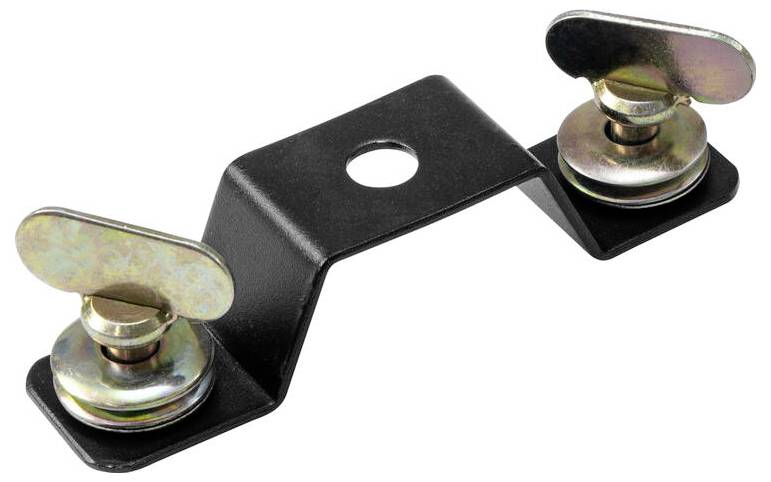

- 2 x Omega clip
- 4 x Knurled screw
- 4 x washers
- 1 x battery
- 1 x terminator current.
