Eurolite KLS-402 AIR LED bar No. of LEDs (details): 12 10 W
EAN:
Part number:
Item no:
Technical specifications
- Operating voltage
100-240 V/AC, 50/60 Hz
- Product type
LED bar
120 W
- LEDs
12
- Colour
RGBWW
- Dim
(W x H) 104 cm x 24.9 cm
- Weight
7.40 kg
n.rel.
- DMX control
Yes
- Width
104 cm
- Height
24.9 cm
- Watt per LED
10 W
- Cable length
3 m
IP20
- Case colour
Black (matt)
- Material
Metal (painted)
- Radiation angle
12°
- Protection class
I
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642533 Eurolite KLS-402 AIR LED bar No. of LEDs (details): 12 10 W
Description

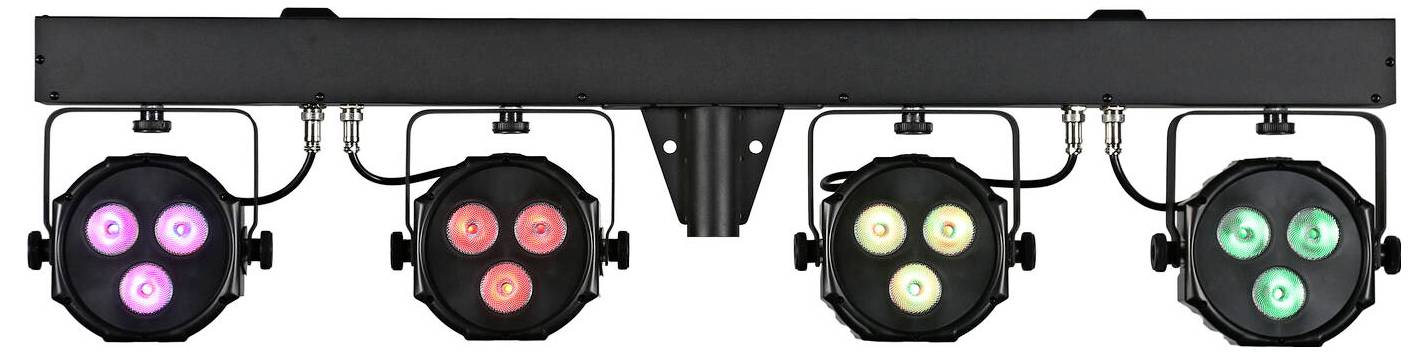

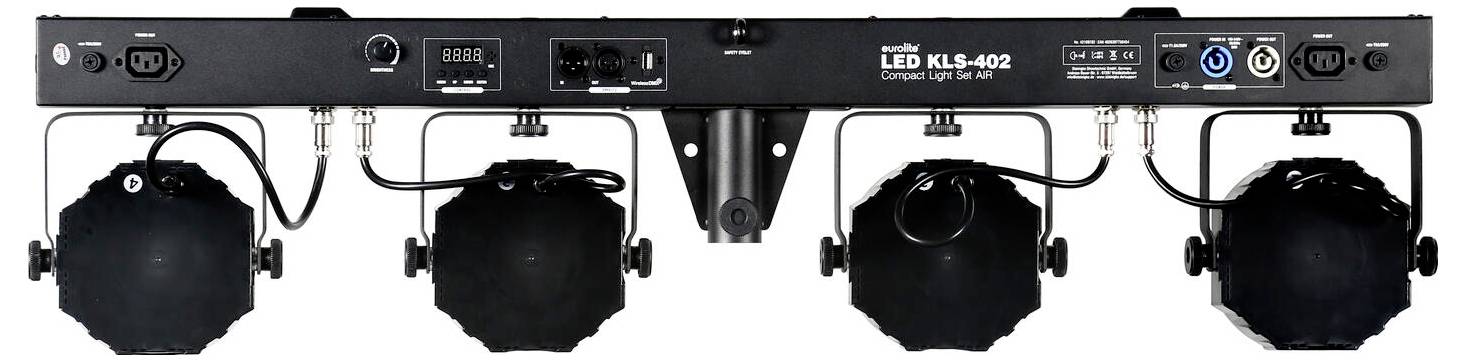

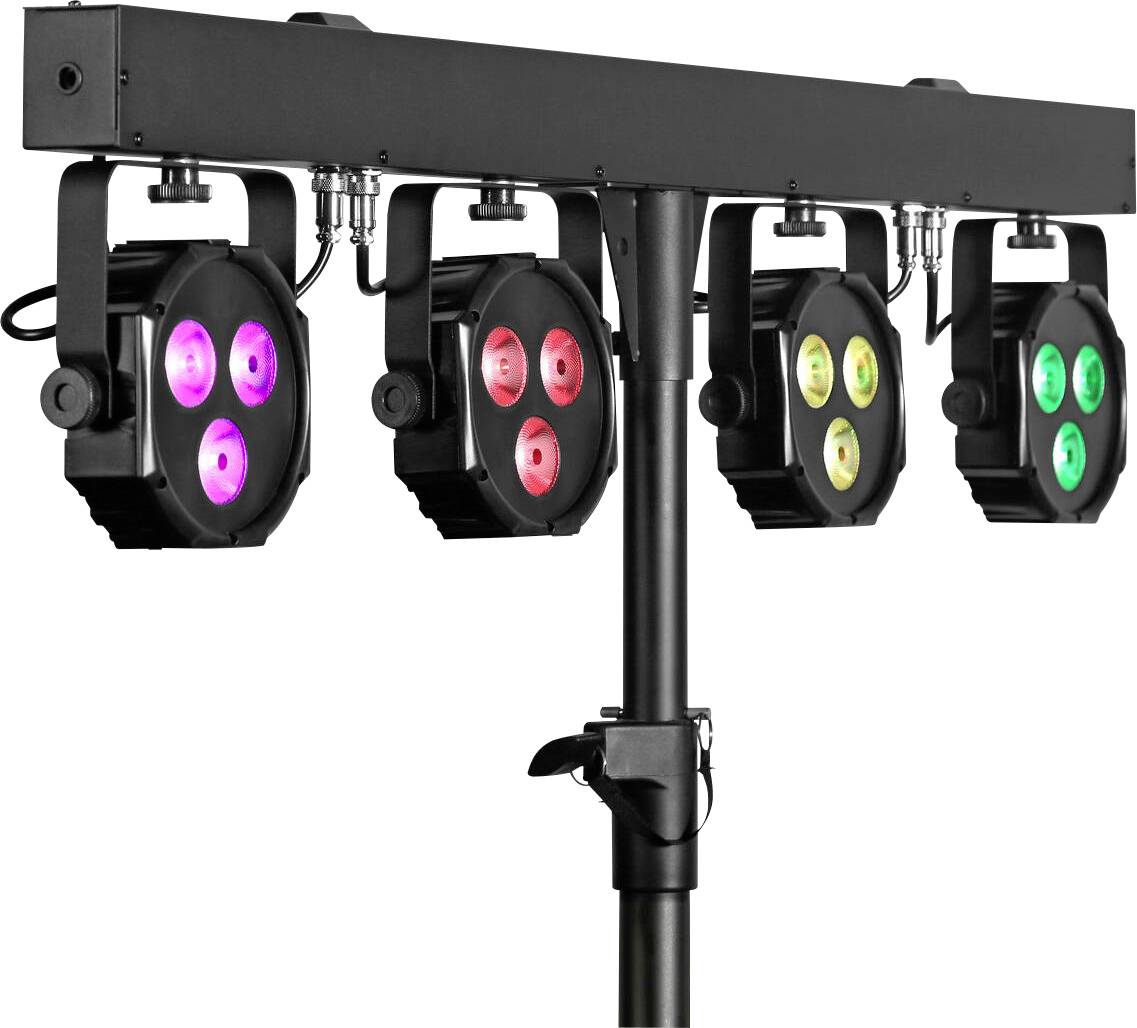

Bar with 4 bright 4in1 QCL RGB/WW spots, AirW radio unit (2.4 GHz), radio remote control and transport bag. Cross bar with integrated DMX control unit and stand sleeve. Integrated AirW radio transceiver for wireless Master / slave operation. AirW: Range of up to 70m at visibility. Adaptive frequency hopping for interference-free signal transmission in the 2.4 GHz band. 12 powerful LEDs 10 W SMD 5050 4in1 QCL RGB/WW (homogeneous color mixing). 4 spots can be controlled individually. With an angle of radiation of 12°. Spot effect; Stroboscope-effect. Electronic dimmer; adjustable color fading; adjustable color change; variable color mixing; color selection Program selection; flow rate adjustable, color macros. Direct color selection for 20 preset colors. 20 integrated show programs. Can be controlled via stand-alone; music control via microphone; Master/slave function; dial for brightness; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional); AirW; wireless Master/Slave function; wireless radio remote control; wireless foot switch (optional). 3 buttons of the remote control to store your own settings. DMX failure mode (blackout; hold; full on; auto). Good color reproduction index (CRI). Flicker-free. Single-color 4-digit 7-segment LED display. With mounting bracket. Noiseless operation The device is cooled by passive convection cooling. For application areas such as: Stage; clubs/dance schools; wedding/gala/events; mobile DJ's/solo entertainer; restaurants, bars and hotels. Possible application: On-the-fly; on a tripod. Power input and power output for simple connection of up to 8 devices; remote control. Wireless remote control: Range of up to 30m at sight
This text is machine translated.
This text is machine translated.
Features
- Power supply: 100-240 V AC, 50/60 Hz; total connected wattage: 50 W; protection class: IP20; protection class: SK I; Power connection: Power feed via P-Con (blue), Installation version power connection cable with safety plug (included); Power output: 1 x P-Con (gray), Installation version by-pass; 2 x cold devices (W) Mounting version secured / 5A; Device fuse: 5 x 20 mm, T 5 A fuse can be exchanged per channel: 5 x 20 mm, T 1.6 A fuse; Lamp type: 12 x 10 W SMD 5050 4in1 QCL RGB/WW (homogeneous color mixing); flash rate 0.3 - 20 Hz; DMX channels: 3, 4, 6, 8; 16; 18; 20; DMX input: 1 x 3-pin XLR (M) installation version; DMX output: 1 x 3-pin XLR (W) installation version bypass; cooling: passive convection cooling; control: stand-alone; music control via microphone; Master/slave function; Dial for brightness; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional); AirW; wireless Master/Slave function; wireless remote control; wireless foot switch (optional); Projection: flicker-free; range: AirW: up to 70m at visibility; carrier frequency: 2.4 GHz; modulation: GFSK; DMX failure mode: blackout; hold; Full on; Auto; beam angle: 12°; beam angle (1/2 peak): Spot 12°; beam angle (1/10 peak): Spot 25°; color temperature: 2880K; color reproduction index (CRI) Ø: 83 Ra; housing color: black matt; recording system: pipe: 1x Ø8mm 35mm; 2x mounting bracket; display type: 1 x single-colored 2-digit 7-segment LED display; USB connection: 1 x type A; diameter mounting holes: 4 x Length: 104 cm; Width: 5.5 cm; Height: 24.9 cm; Weight: 7.40 kg; Noise classification: Class 0 (no noise); Power cable/power cable; Assembly cable: 3 x 1.0 mm² H05VV-F; Cable length: Approx. 3 m; Remote control; Battery: 1 x 12 V 23AE Alkaline-manganese enclosed; Range: Radio remote control: up to 30m in visibility; Carrier frequency: 433.92 MHz; Bar; Material: Metal, painted; Legal specifications; special product: Not intended for indoor lighting; intended use: lighting for show effects
Scope of delivery
- 1 x device
- 1x user manual
- 1 x Power cable/power cable

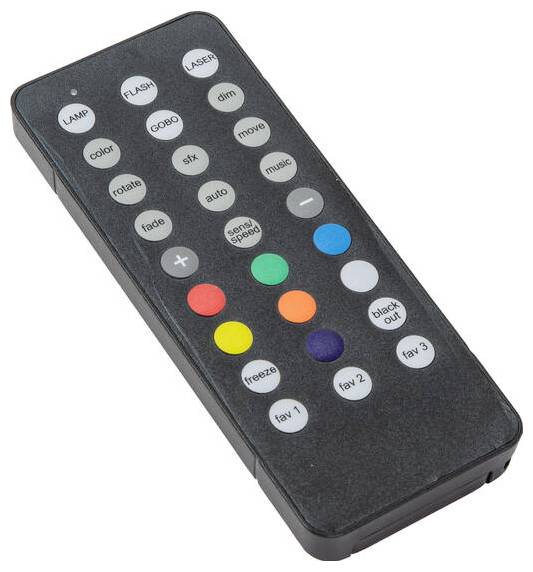

- 1x remote control
- 1 x battery
- 2 x mounting bracket
- 1 x declaration of conformity
- 9 x Knurled screw

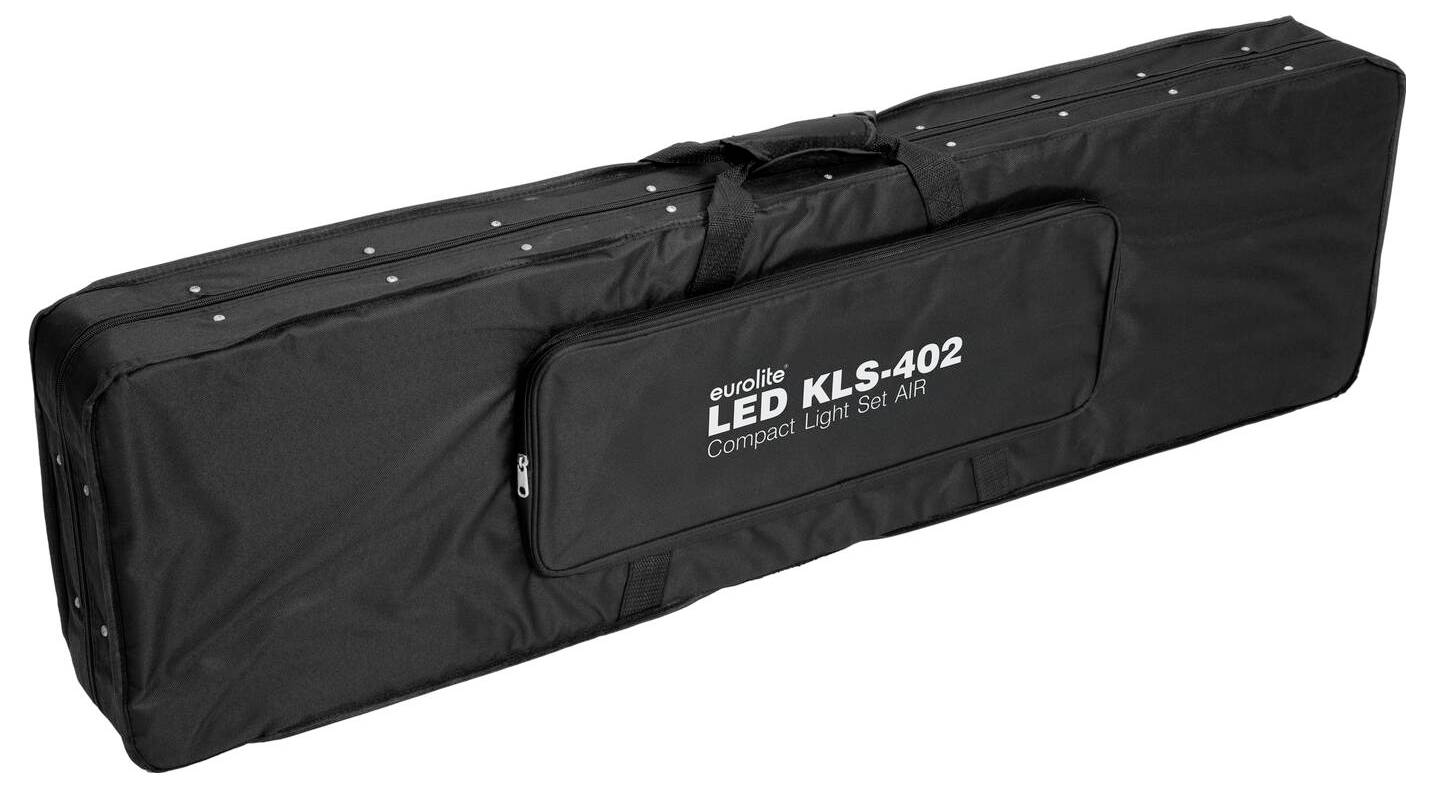

- 1 x pouch
- 9 x washers
- 1 x Adapter
