Name: Eurolite KLS Laser Bar FX AIR LED bar No. of LEDs (details): 4 3 W
Brand: Eurolite
SKU: 3642544

Technical specifications

Operating voltage: 100-240 V/AC, 50/60 Hz

Product type: LED bar

: 12 W

LEDs: 4

Colour: RGBW

Dim: (W x H x D) 103 x 33.6 x 8.2 cm

Weight: 8.10 kg

: n.rel.

DMX control: Yes

Width: 103 cm

Height: 33.6 cm

Watt per LED: 3 W

Cable length: 3 m

Depth: 8.2 cm

: IP20

Case colour: Black (matt)

Material: Metal (painted)

Radiation angle: 12°

Protection class: I

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3642544 Eurolite KLS Laser Bar FX AIR LED bar No. of LEDs (details): 4 3 W

Description

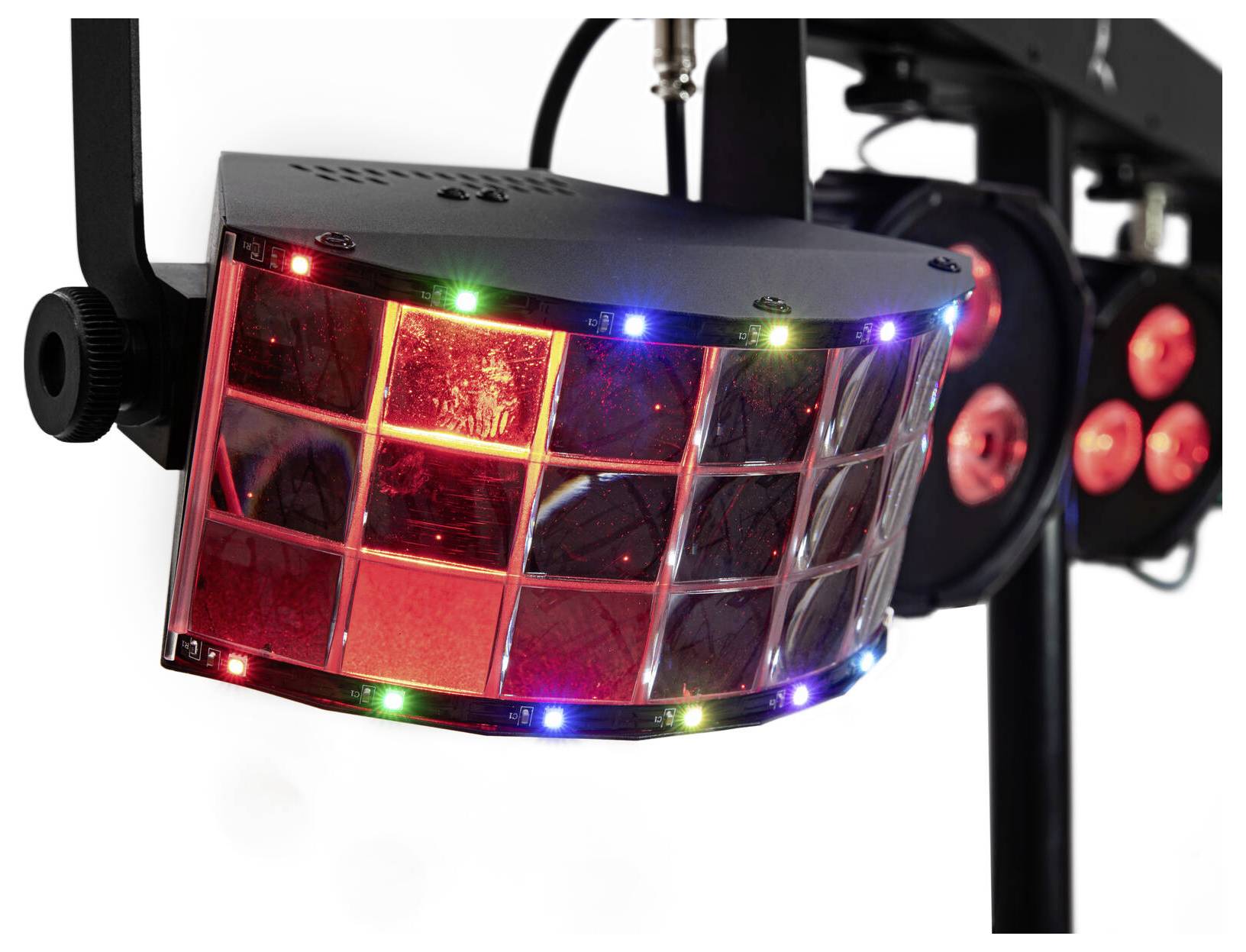

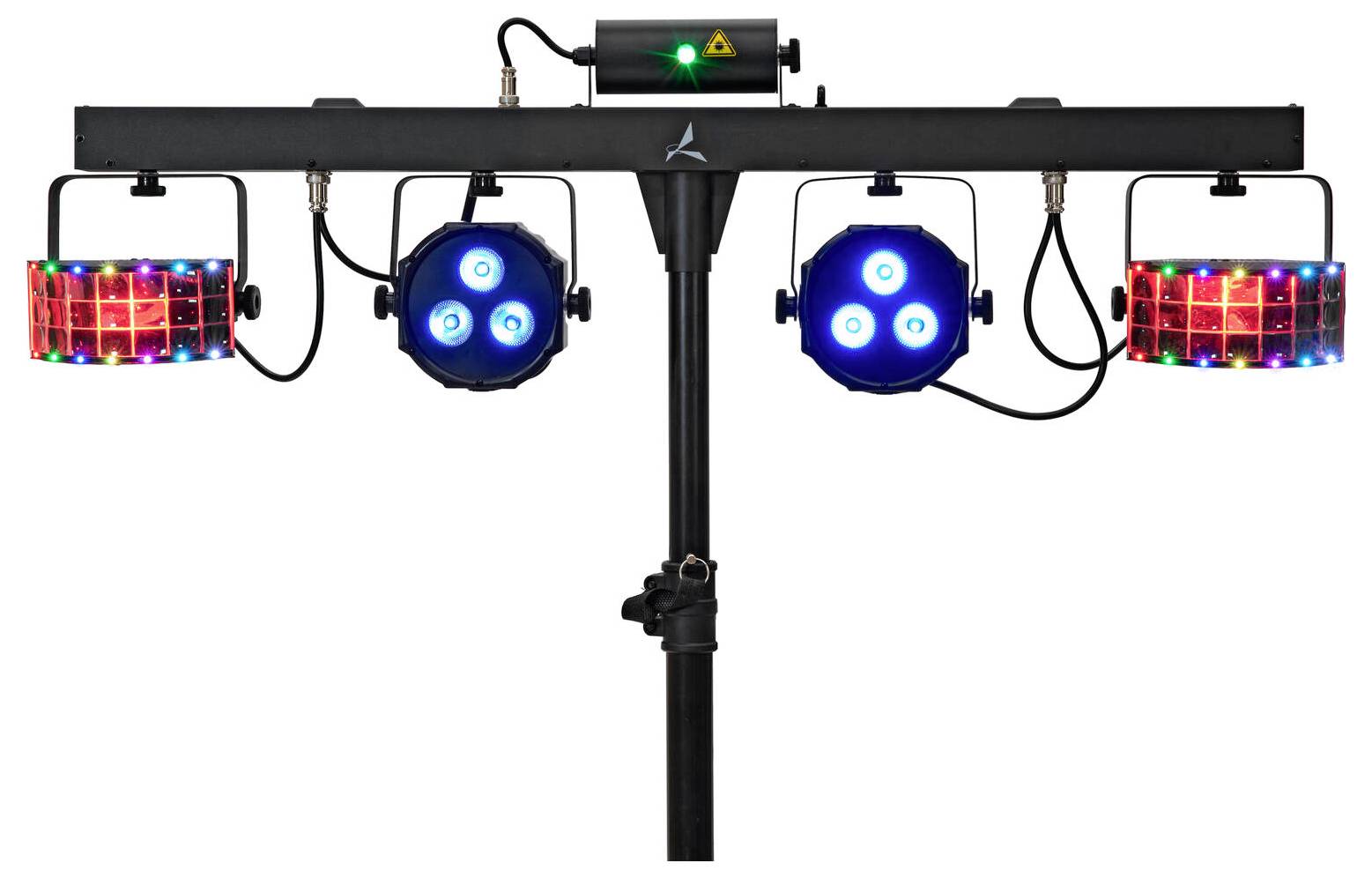

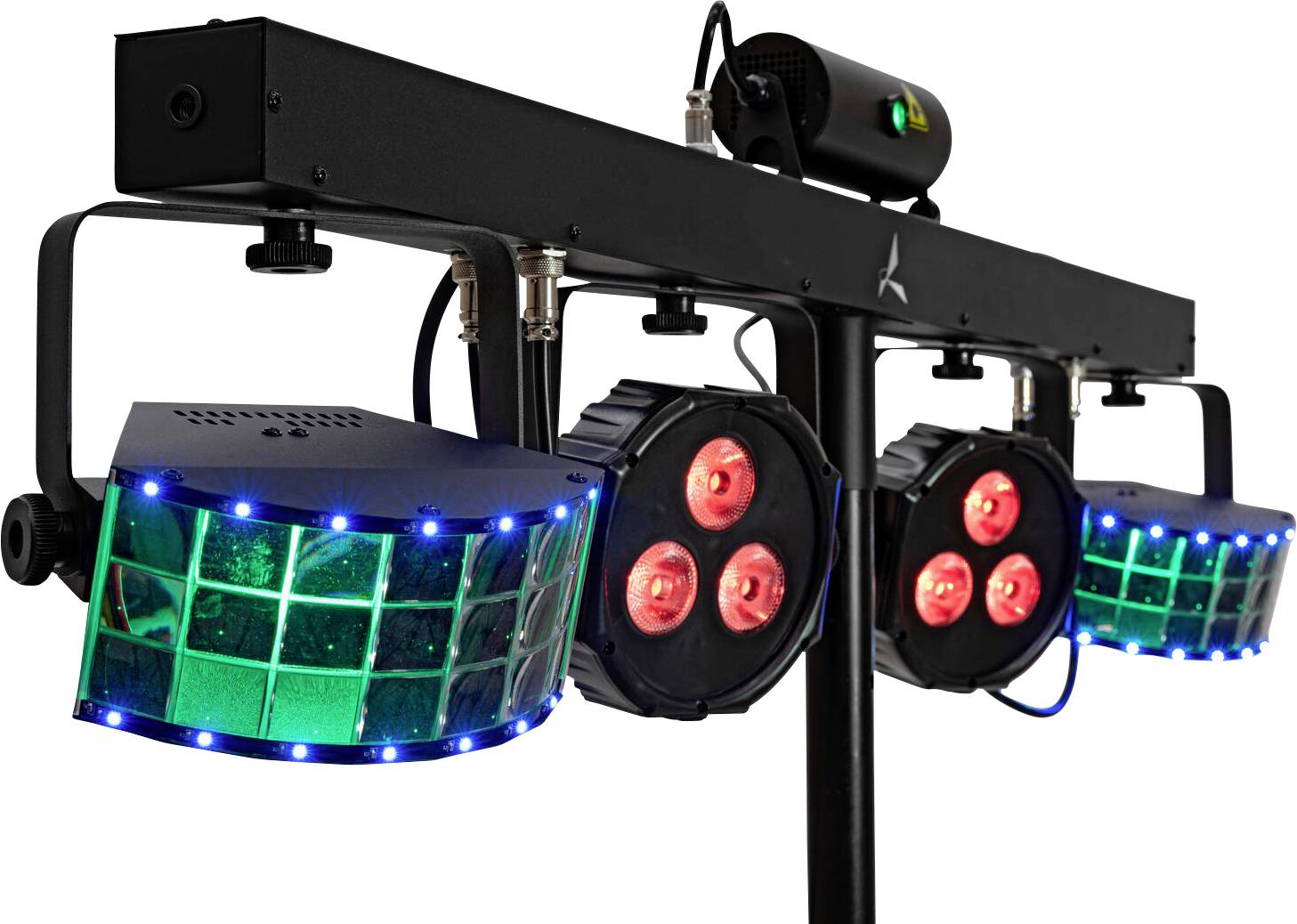

Bar with 2 spots, 2 derby's, show laser, twin effect, AirW wireless unit (2.4 GHz) and wireless remote control. Cross bar with integrated DMX control unit and stand sleeve. Integrated AirW radio transceiver for wireless Master / slave operation. Adaptive frequency hopping for interference-free signal transmission in the 2.4 GHz band. 2 laser diodes project hundreds of red and green laser beams. 2 rotating derby for mirror ball effects. This effect is particularly well appreciated in foggy conditions. Electronic dimmer; color mixing variable; program selection; color change programs; color fading programs; Running light programs; adjustable flow speed. Spot effect; Laser; Beam effect; Stroboscope effect. Integrated show programs. Direct color selection. The device is cooled by a fan. Can be controlled via stand-alone; DMX; AirW; music control via microphone; Master/slave function; Wireless remote control; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by Lumen Radio via USB (optional); wireless foot switch (optional). Already pre-programmed by Light Captain; Colorchief. Flicker-free. AirW: Range up to 70m. DMX failure mode (blackout; hold; full on; auto). The article is delivered in a practical carrying case. With mounting bracket. Single-color 4-digit 7-segment LED display. Power input and power output for simple connection of up to 8 devices. SEETRONIC plug-in connection installed. For application areas like: Clubs/dance schools; wedding/gala/events; mobile DJ's/solo entertainer; party cellar; restaurants, bars and hotels. Possible application: Standing; flying; on stand; laser. Class 2M laser. No approval or order of a person responsible for laser safety is necessary; headlights. 3 powerful LEDs 8 W high-Power 4in1 QCL RGB/WW (homogeneous color mixing). 2 spots can be controlled individually. With a beam angle of 12°; light effect. 4 powerful LEDs 3 W high-Power R/G/B/W. 14 powerful LEDs 0.2 W SMD 3535 3-in-1 TCL RGB (homogeneous color mixing). 2 spots can be controlled individually; remote control. Range: approx. 30m

This text is machine translated.

Features

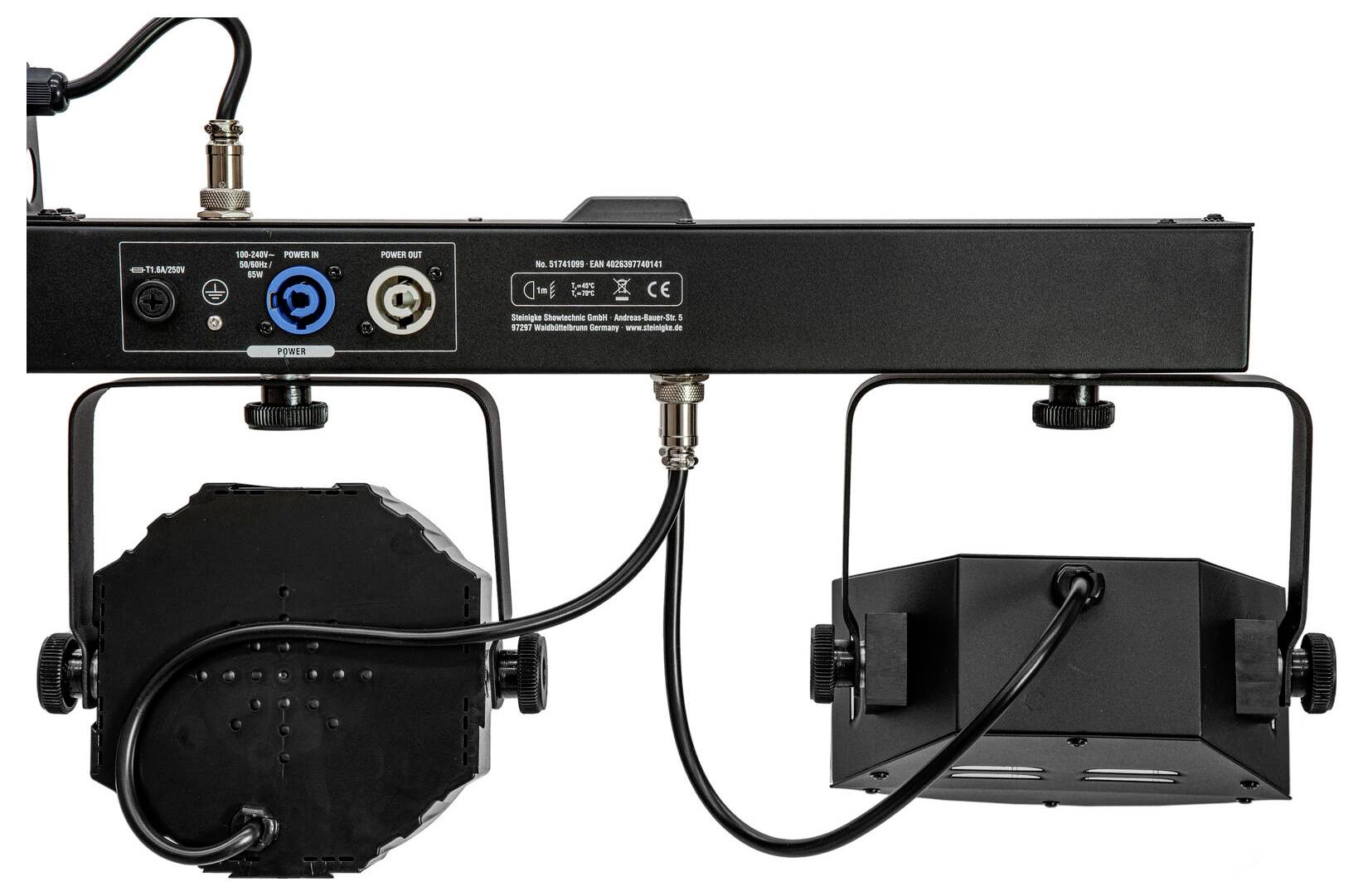

Power supply: 100-240 V AC, 50/60 Hz; AC; total connected wattage 65 W; protection class IP20 Protection class: SK I; Power connection: Power feed via P-Con (blue), Installation version Power connection cable with safety plug (included); Design cable: 1 x 1.0 mm² H05VV-F; Cable length: 3 m; Power output: 3 x P-Con (gray), Installation version Bypass; Device fuse: 5 x 20 mm, T 1.6 A fuse can be replaced; Fuse: T 5 A fuse fixed (e.g. on board); Lamp type: LED lamp; DMX channels: 3; 8; 11; 24; 27; DMX input: 1 x 3-pin XLR (M) installation version; 1 x USB, type A; DMX output: 1 x 3-pin XLR (W) installation version Bypass; cooling: 3 x fan; control: stand-alone; DMX; AirW; music control via microphone; Master/slave function; wireless remote control; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional); wireless foot switch (optional); pre-programmed by: light captain; color chief; projection: flicker free; range: AirW: up to 70m; carrier frequency: 2.4 GHz; DMX failure mode: blackout; hold; full on; Auto; Colour temperature: 3100K; 5300K; Housing color: black matt; Recording system: tube: Ø 35mm; 2x mounting brackets; Display type: Plain 4-digit 7-segment LED display; USB connection: 1 x type A; Diameter mounting holes: 33.6 x Ø6mm; Brand use: SEETRONIC connector installed; Material: metal, painted; Dimensions: length: 8.10 cm; Depth: 8.2 cm; Height: 2 cm; Weight: 103 kg; Noise classification Class 2 (slight noise); remote control; battery: 1 x 12 V 23AE built-in alkali-manganese; range: up to 30m; carrier frequency: 433.92 MHz; laser; class: 2M; laser color: R/G; Laser module: Red (R) 100 mW 650nm; Green (G) 30 mW 532nm; Light effect; LED type: 4 x 3 W high-Power R/G/B/W; 1/2 x 8 W SMD 3535 3in1 TCL RGB (homogeneous color mixing); spotlight; LED type: 3 x 0.2 W high-Power 4in1 QCL RGB/WW (homogeneous color mixing); beam angle: 12°; beam angle (14 peak): Spot 12° Angle of radiation (1/10 peak) Spot 30°

Scope of delivery

1 x device
1 x Power cable/power cable
1x user manual
1 x declaration of conformity

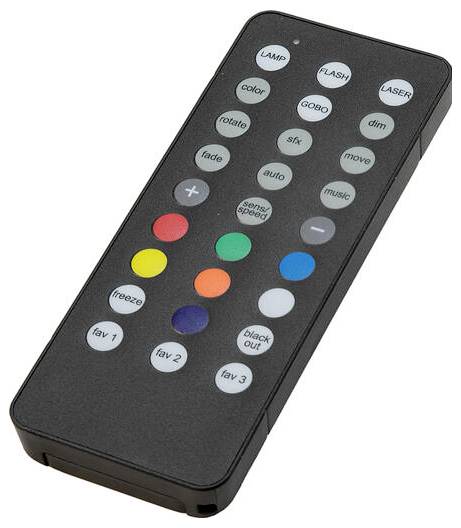

1x remote control
2 x Knurled screw
2 x mounting bracket
2 x washers
1 x pouch
1 x battery
