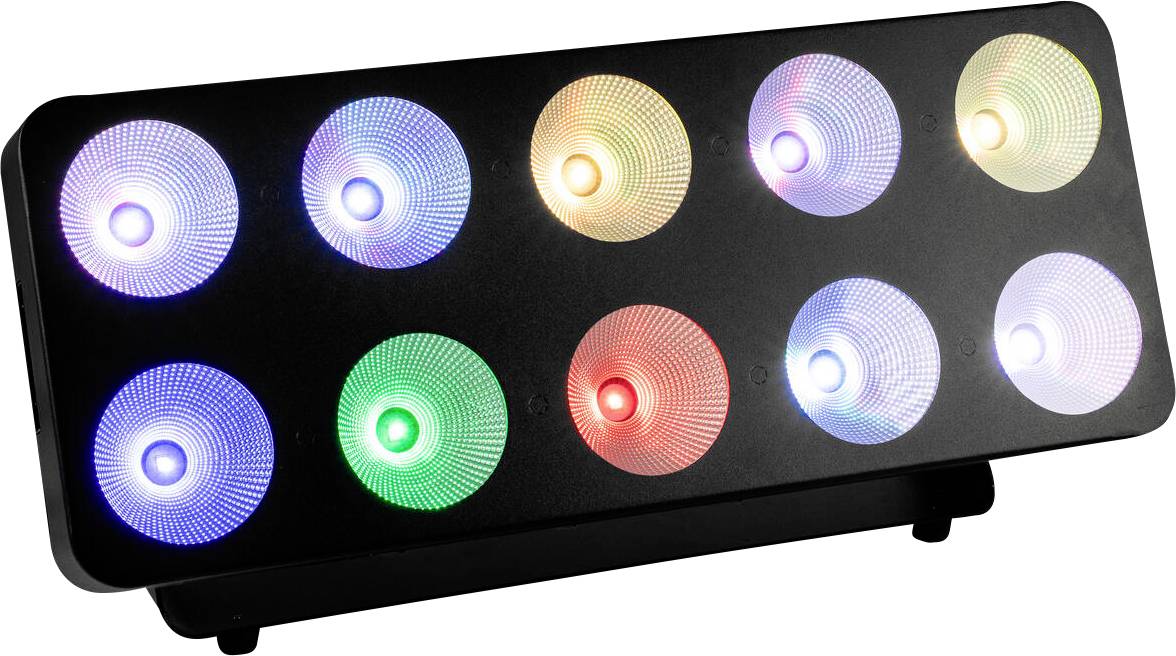

Eurolite LED Pixel Matrix Panel 2x5 DMX LED effect light No. of LEDs (details): 10 12 W
EAN:
Part number:
Item no:
Technical specifications
- Operating voltage
100-240 V/AC, 50/60 Hz
- Product type
DMX LED effect light
120 W
- LEDs
10
- Colour
RGB
Warm white
- Dim
(W x H x D) 45.0 x 20.3 x 13.5 cm
- Weight
5.00 kg
n.rel.
- DMX control
Yes
- Width
45.0 cm
- Height
20.3 cm
- Watt per LED
12 W
- Depth
13.5 cm
IP20
- Case colour
Black
- Material
Metal
- Radiation angle
45°
- Protection class
I
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642521 Eurolite LED Pixel Matrix Panel 2x5 DMX LED effect light No. of LEDs (details): 10 12 W
Description
Matrix-headlight with RGB/WW-LEDs, pixel control & macros for processes. Create sensational light-effect areas by connecting several devices. 10 powerful LEDs 12 W SMD 5050 4in1 QCL RGB/WW (homogeneous color mixing). LEDs can be controlled individually. Electronic dimmer; color change; color fading; color animations with two adjustable colors. Blinder effect; Matrix effect; Stroboscope effect. 9 integrated show programs. The device is cooled by passive convection cooling. Can be controlled via stand alone; DMX; QuickDMX via USB (optional); RDM; Art Net; W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional); music control; Master/slave function. Pre-programmed by Light Captain. Flicker-free. DMX failure mode (hold; blackout). With an angle of radiation of 45°. With mounting bracket; with bracket for setting up on the ground. Multi-colored LCD display. Power input and power output for simple connection of up to 8 devices. For application areas such as: Stage; clubs/dance schools; wedding/gala/events; mobile DJ's/solo entertainer; restaurants, bars and hotels; distributors. Very quiet operation. Possible application: Standing; flying; on a tripod
This text is machine translated.
This text is machine translated.
Features

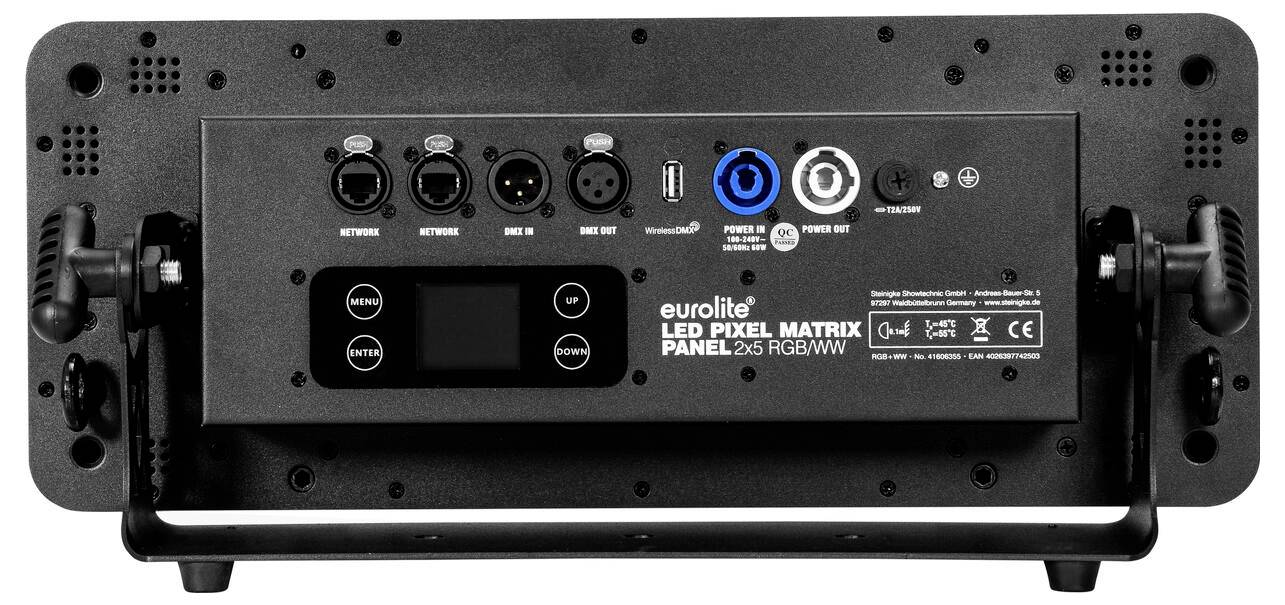

- Power supply: 100-240 V AC, 50/60 Hz; total connected wattage: 60 W; protection class: IP20; protection class: SK I; Power connection: power feed via P-Con (blue), installation version power connection cable with safety plug; power output: P-Con (gray), installation version; fuse: 5 x 15 mm, T 40 A fuse exchangeable; lamp type: LED lamp; LED type: 10 x 11 W SMD 4 4in1 QCL RGB/WW (homogeneous color mixing); flash rate: 0.4 - 12 Hz; DMX channels: 5050; 10, 20, 2; 42; DMX input: 3-pin XLR (M) mounting version; DMX output: 3-pin XLR (W) mounting version; Network connection: Protocol Master: Art-Net 3 via 2x RJ-45 E-Con (W) installation version; Cooling: passive convection cooling; Control: stand-alone; DMX; QuickDMX via USB (optional); Art-Net; W-DMX by wireless solution via USB (optional); CRMX pre-slave radio; Light Captain; Projection: flicker-free; PWM frequency: 2900 Hz; DMX failure mode: hold; blackout; Radiation angle: 45°; Angle of radiation (1/2 peak): 45°; Angle of radiation (1/10 peak): 82°; Housing color: black; photograph system: mounting bracket; clip to set up on the ground; display type: multicolor LCD display; USB-connection: Type A; Diameter of mounting holes: 20.3 x Ø10mm; Material: metal; dimensions: width: 5.00 cm; depth: 13.5 cm; height: 3 cm; weight: 45.0 kg; noise classification: Class 1 (very light noise, suitable for noise sensitive environments); Legal specifications; Special product: Not intended for indoor lighting; intended use: lighting for show effects
Scope of delivery
- 1 x lighting effects
- 1 x Power cable/power cable
- 1 x Operating manual
