Eurolite LED Pixel Matrix Panel 5x5 DMX LED effect light No. of LEDs (details): 25 12 W
EAN:
Part number:
Item no:
Technical specifications
- Operating voltage
100-240 V/AC, 50/60 Hz
- Product type
DMX LED effect light
300 W
- LEDs
25
- Colour
RGB
Warm white
- Dim
(W x H x D) 45.0 x 45.0 x 10.6 cm
- Weight
9.00 kg
n.rel.
- DMX control
Yes
- Width
45.0 cm
- Height
45.0 cm
- Watt per LED
12 W
- Cable length
1.45 m
- Depth
10.6 cm
IP20
- Case colour
Black
- Material
Metal
- Radiation angle
45°
- Protection class
I
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642520 Eurolite LED Pixel Matrix Panel 5x5 DMX LED effect light No. of LEDs (details): 25 12 W
Description

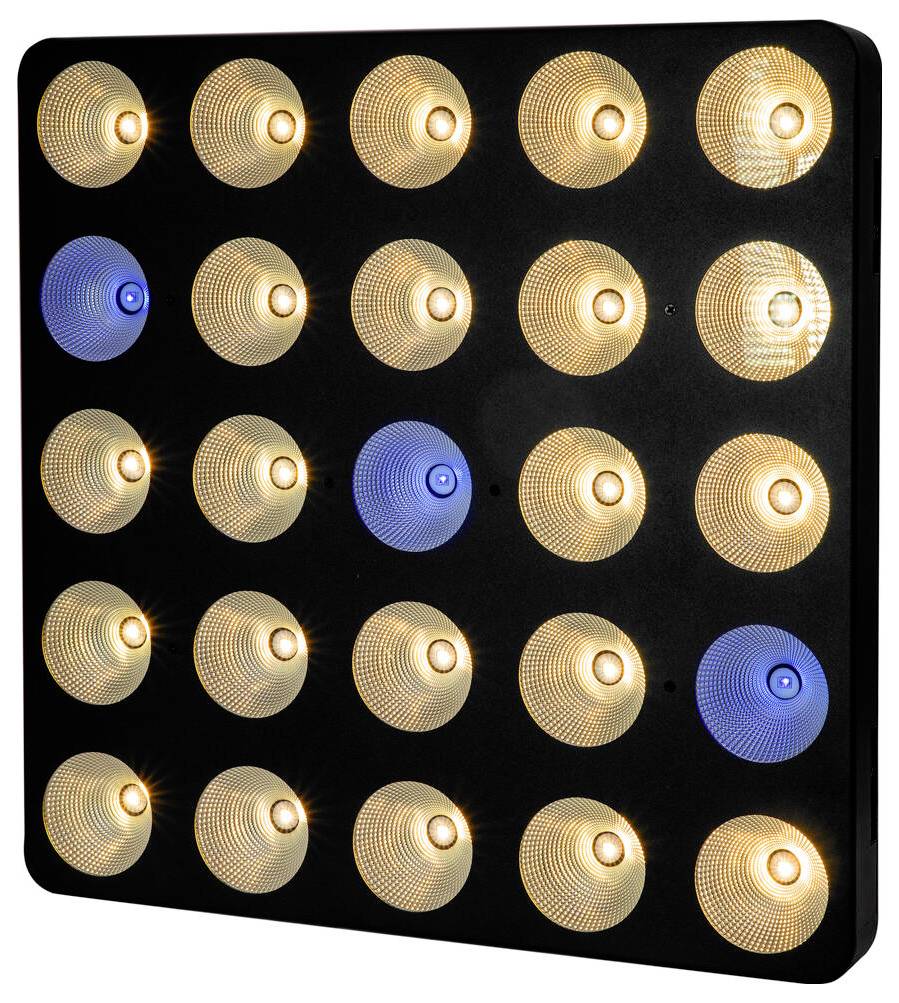

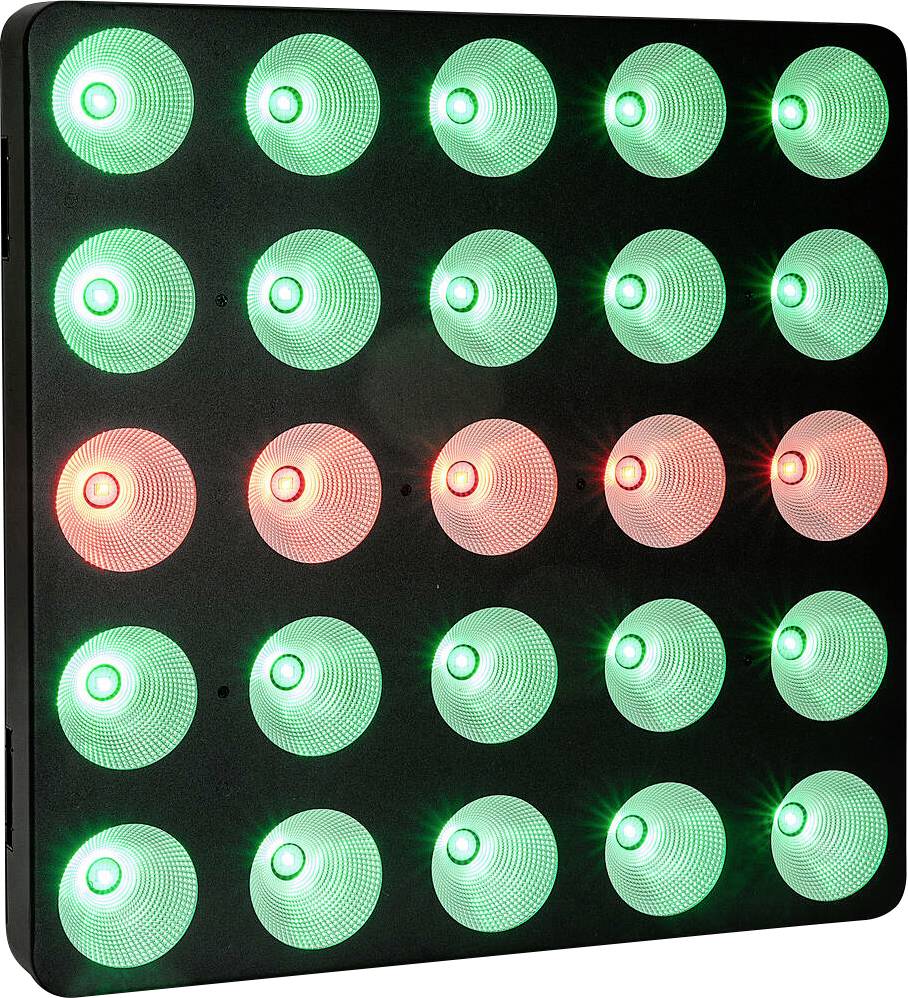

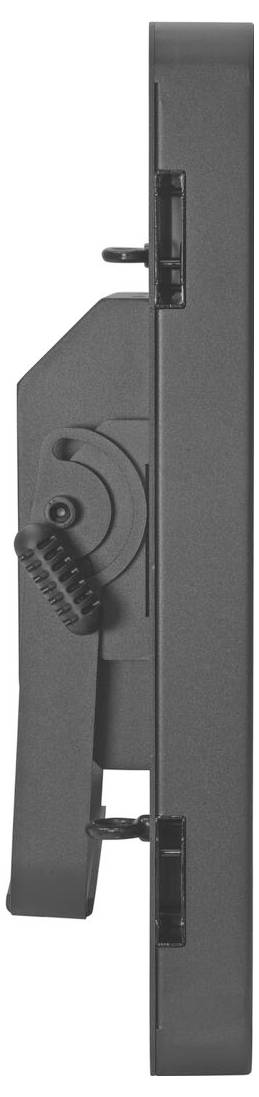

Matrix-headlight with RGB/WW-LEDs, pixel control & macros for processes, letters and numbers. Create sensational light-effect areas by connecting several devices. 25 powerful LEDs 12 W SMD 5050 4in1 QCL RGB/WW (homogeneous color mixing); LEDs can be controlled individually. Colour change; color cross-fading; color animations with two adjustable colors; dimmer electronic. Blinder effect; Matrix effect; Stroboscope effect. 9 integrated show programs. The device is cooled by a temperature controlled fan. Can be controlled via DMX; stand-alone; RDM; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional); ART-Net; music control; Master/slave function. Pre-programmed by Light Captain. Flicker-free. DMX failure mode (hold; blackout). With an angle of radiation of 45°. With mounting bracket. Multi-colored LCD display. Power input and power output for simple connection of up to 8 devices. For application areas such as: Stage; clubs/dance schools; wedding/gala/events; mobile DJ's/solo entertainer; restaurants, bars and hotels; distributors. Very quiet operation. Possible application: Standing; flying; on a tripod
This text is machine translated.
This text is machine translated.
Features

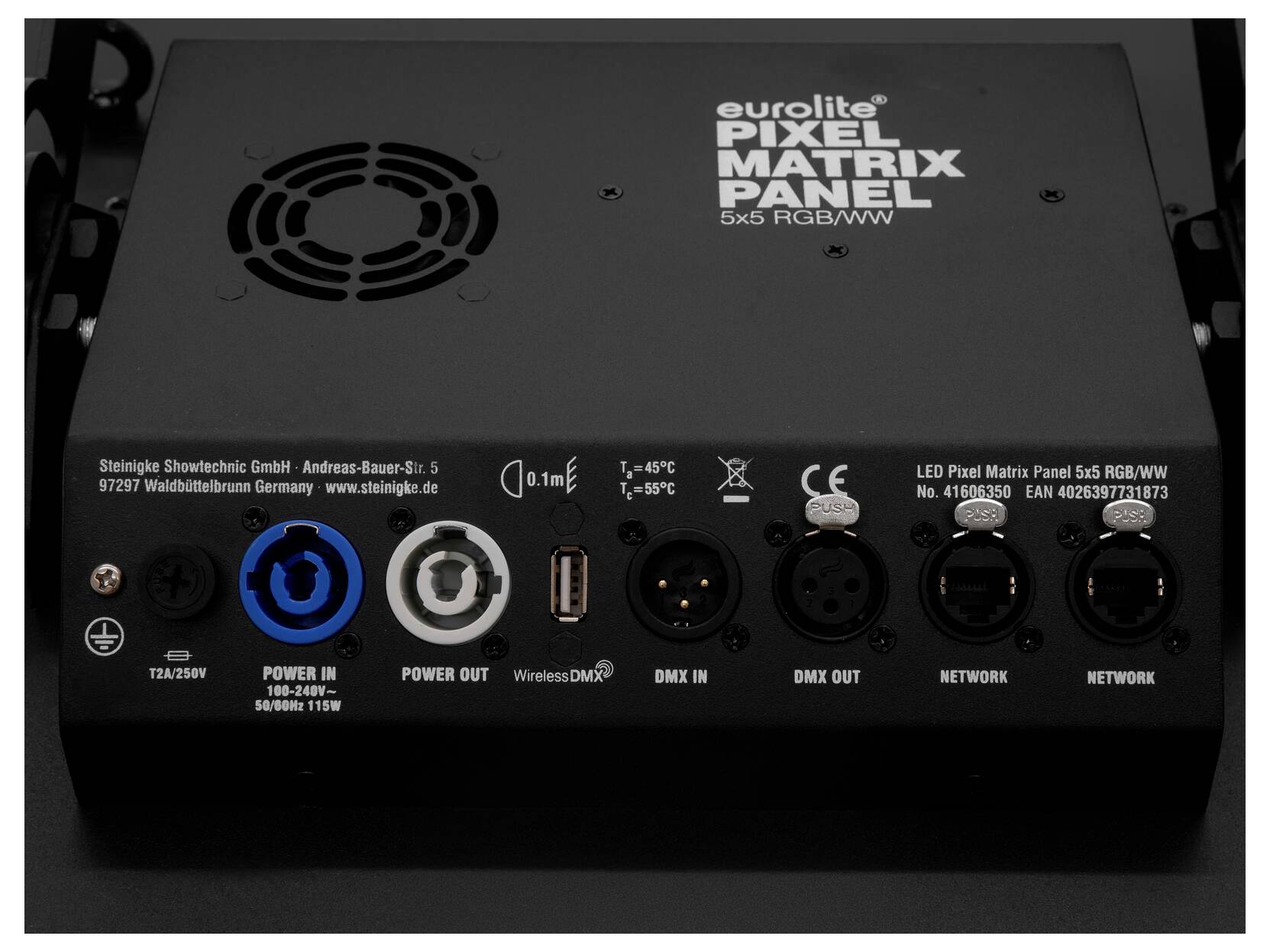

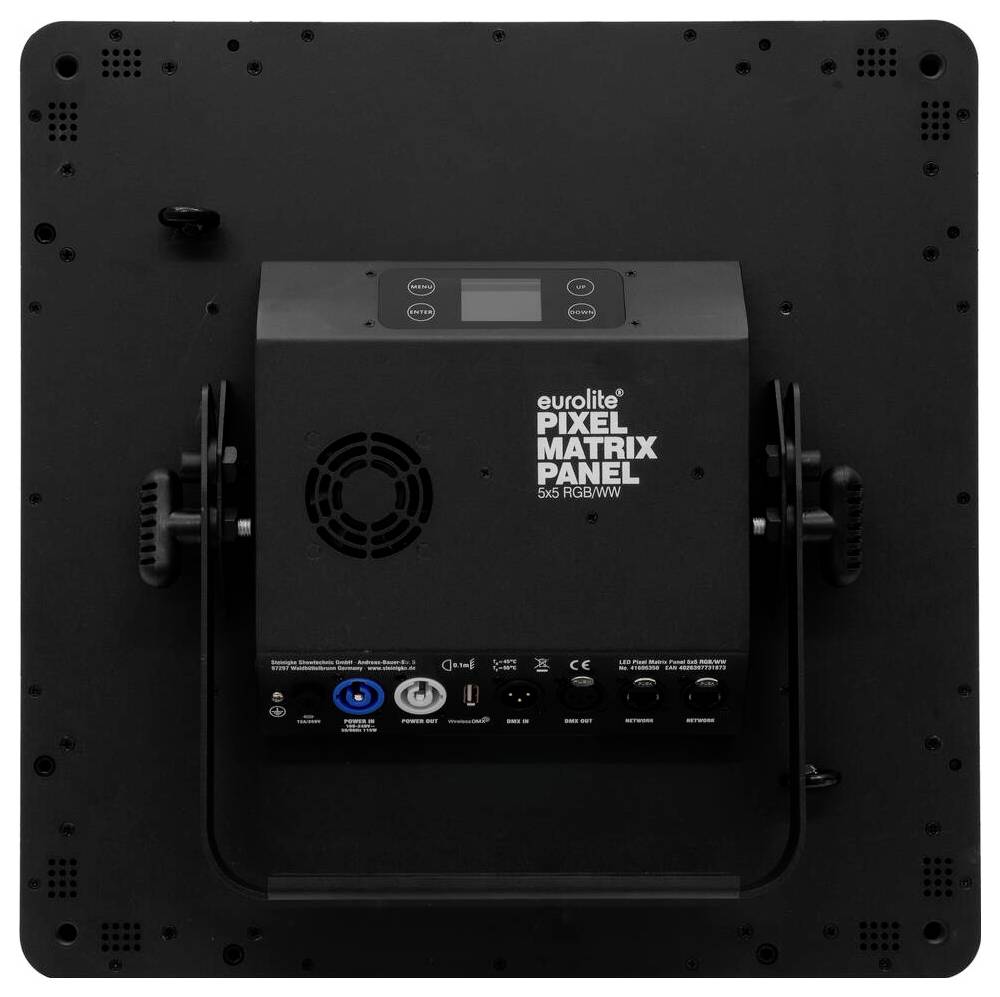

- Power supply: 100-240 V AC, 50/60 Hz; total connected wattage: 115 W; protection class: IP20; protection class: SK I; Power connection: Power feed via P-Con (blue), Installation version; Construction cable: 3 15 x 1.0 mm² H05VV-F; Cable length: 1.45 m; Power output: 1 x P-Con (gray), Installation version; Fuse: 4 x 12 mm, T 5050 A Fuse: Lamp type: LED lamp; LED Type: 25 x 10 W SMD 2 4in1 QCL RGB/WW (homogeneous color mixing); DMX channels: 5; 20; 100; 102; DMX input: 3-pin XLR (M) mounting version; DMX output: 3-pin XLR (W) mounting version; Network connection: Protocol: Art-Net 3 via 2x RJ-45 E-Con (W) installation version; Cooling: fan temperature controlled; Control: DMX; Stand-alone; RDM; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional); Art-Net; Music Control; Master/Slave-Function; Pre-programmed by: Light Captain; Projection: flicker-free; DMX failure mode: hold; Blackout; Radiation angle: 45°; Radiation angle (1/2 peak): 45°; Angle of radiation (1/10 9.00 peak): 82°; Housing color: black; Recording system: Mounting bracket; Display type: Multi-colored LCD display; USB-connection: Type A; Diameter Mounting holes: 45.0 x Ø10mm; Material: Metal; Dimensions: Width: 45.0 cm; Depth: 1 cm; Weight: 3 kg; Noise classification: Class 10.6 (very light noise, suitable for noise-sensitive environments); Legal specifications; special product: Not intended for indoor lighting; intended use: lighting for show effects
Scope of delivery
- 1 x device
- 1x user manual
- 1 x Power cable/power cable
- 2 x safety loop.
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.

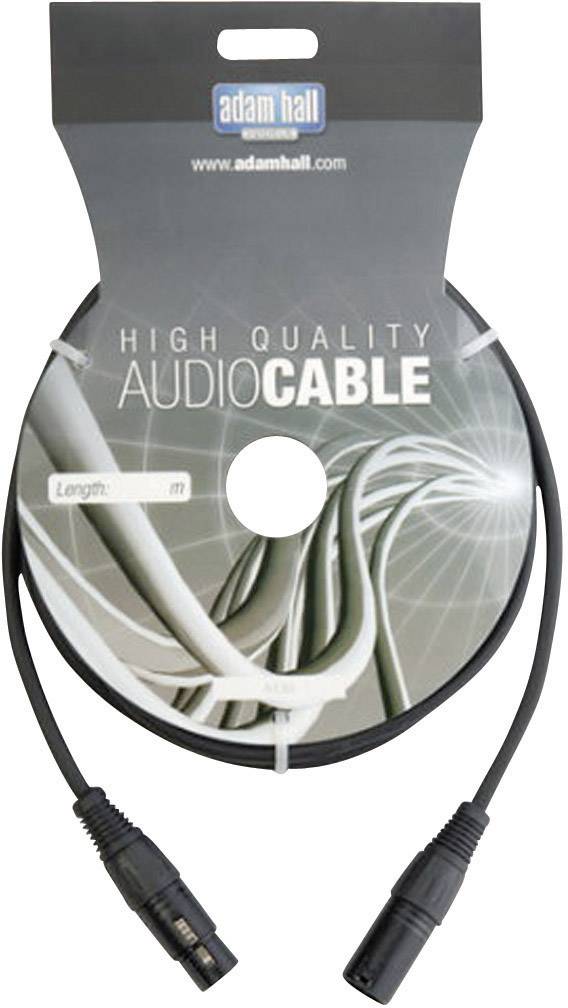

![AH Cables KDMX150 DMX Connection cable [1x XLR plug - 1x XLR socket] 1.50 m](https://asset.conrad.com/media10/isa/160267/c1/-/en/310484_ZB_00_FB/ah-cables-kdmx150-dmx-connection-cable-1x-xlr-plug-1x-xlr-socket-1-50-m.jpg?x=130&y=130&format=webp&ex=130&ey=130&align=center)
