Eurolite PIX-144 LED bar No. of LEDs (details): 144
EAN:
Part number:
Item no:
Technical specifications
- Operating voltage
100-240 V/AC, 50/60 Hz
- Product type
LED bar
- LEDs
144
- Colour
RGBW
- Dim
(W x H x D) 108.5 x 9.0 x 6.5 cm
- Weight
1.63 kg
n.rel.
- DMX control
Yes
- Width
108.5 cm
- Height
9.0 cm
- Depth
6.5 cm
IP20
- Case colour
White
- Radiation angle
120°
- Protection class
I
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642573 Eurolite PIX-144 LED bar No. of LEDs (details): 144
Description

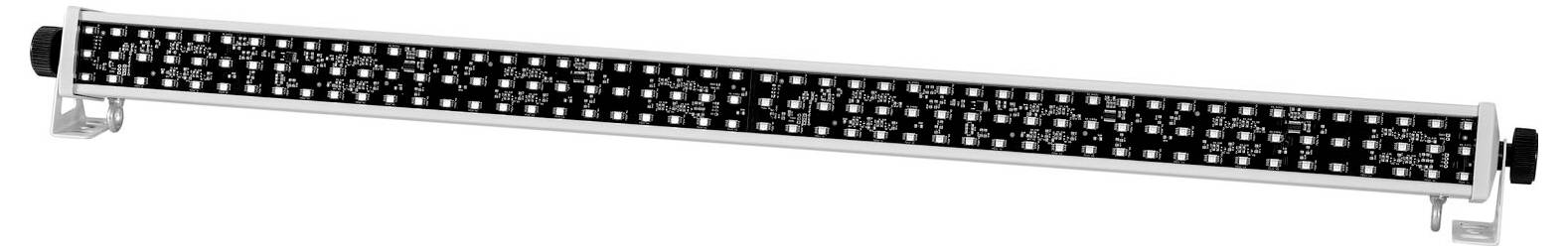

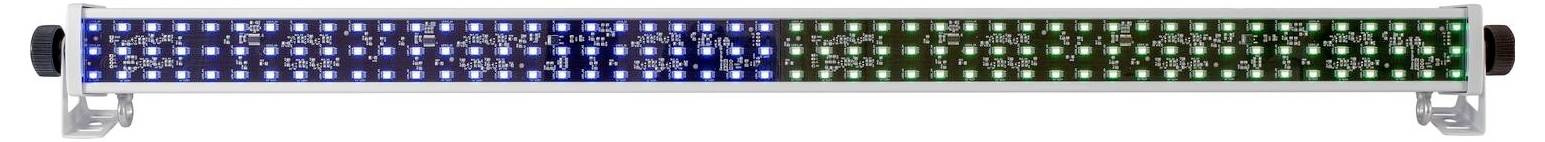

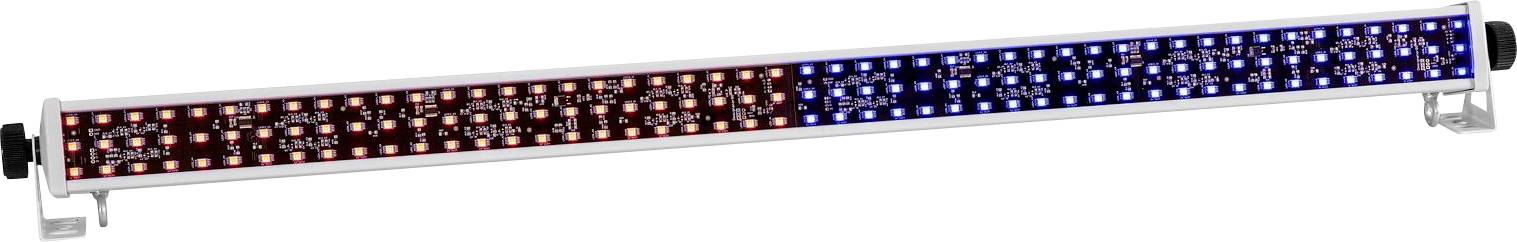

LED strip light with 144 broad radiating SMD-LEDs in RGBW and pixel control. Additional frost filter for a broad, homogeneous and soft light. 144 powerful LEDs SMD 5050 4in1 QCL RGBW (homogeneous color mixing). 8 segments can be controlled individually. Electronic dimmer; color mixing variable; color change adjustable, colors preset. Stroboscope-effect 16 integrated show programs. The device is cooled by passive convection cooling. Controllable via stand-alone; Master/slave function; music control via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional). Pre-programmed by Light Captain. Flicker-free. With an angle of radiation of 120°. With mounting bracket. 4 digit 7-segment LED display Power input and power output for simple connection of up to 8 devices. For application areas like: Clubs/dance schools; decoration; mobile DJ's / solo entertainer; party cellar; restaurants, bars and hotels; advertising/shop window
This text is machine translated.
This text is machine translated.
Features

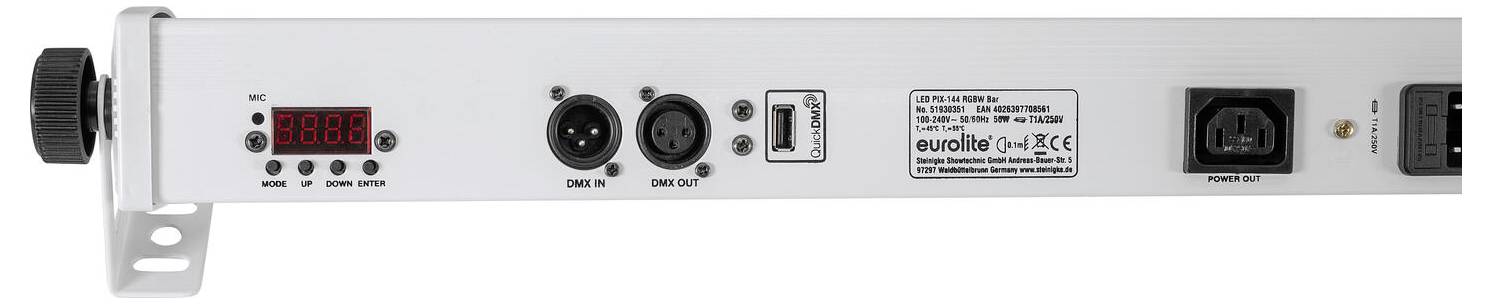

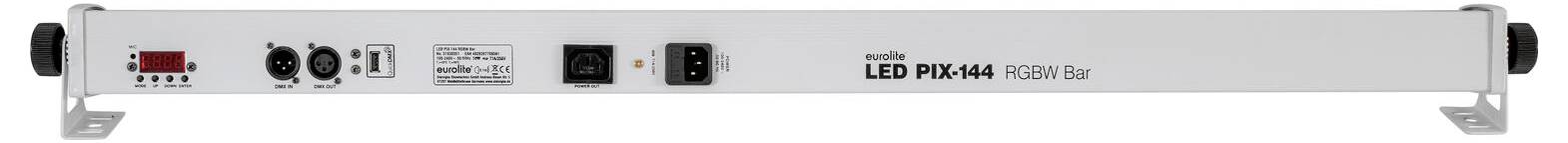

- Power supply: 100-240 V AC, 50/60 Hz; total connected wattage: 50 W; protection class: IP20; protection class: SK I; Power connection: power feed via cold devices (M) Installation version power supply cable with shock-proof plug (supplied); current output: cold devices (W) installation version; fuse: 20 16 x 20 30 mm, T 0 9 A Fuse replaceable; Lamp type: LED lamp; LED type: 144 x SMD 6 4in1 QCL RGBW (homogeneous color mixing); flash rate: 1 - 5 Hz; DMX channels: 5050; 58; DMX input: 3-pin XLR (M) mounting version; DMX output: 3-pin XLR (W) mounting version; Cooling: passive convection cooling; control: stand-alone; Master/slave function; music control via microphone DMX; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by Lumen Radio via USB (optional); Pre-programmed by: Light Captain; Projection: flicker-free; Radiation angle: 6.5°; Angle (9.0 Peak): 108.5°; Housing color: white; Recording system: 2x mounting brackets; Display type: 4-digit 7-segment LED display; Dimensions: length: 120 cm; Depth: 120 cm; Height: 1/2 cm Weight: 1.63 kg; legal specifications; Special product: Not intended for room lighting in homes; intended use: lighting for show effects
Scope of delivery
- 1 x lighting effects
- 1x user manual
- 1 x Power cable/power cable
- 2 x mounting bracket
- 2 x Knurled screw
- 2 x washers
- 1 x frost filters
