Name: EVN 239501 239501 Flush mount light HV halogen G9 White
Brand: EVN
SKU: 2483472

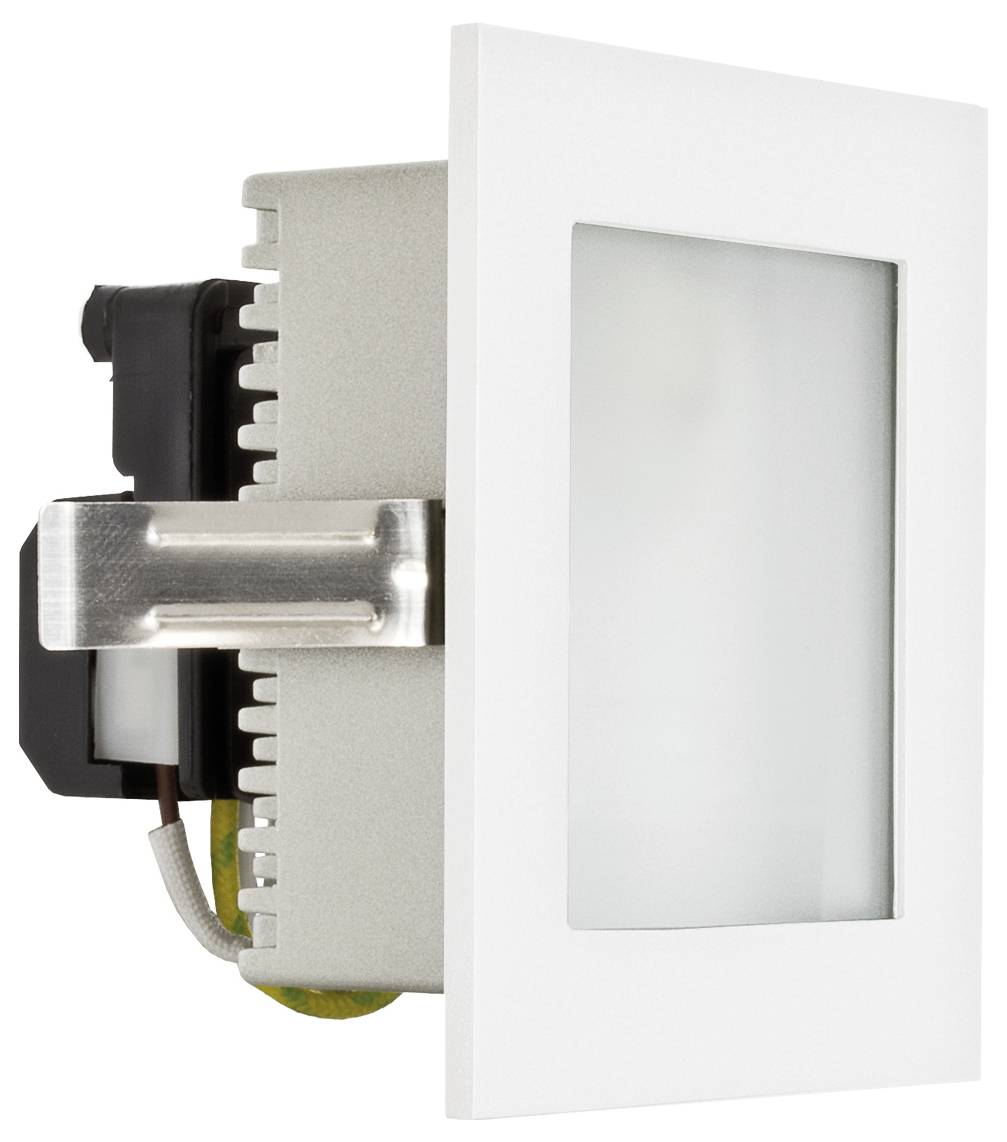

A rectangular LED wall recessed luminaire with a white frame. The front and side view is visible, half-embedded into the wall.

EVN 239501 239501 Flush mount light HV halogen G9 White-1

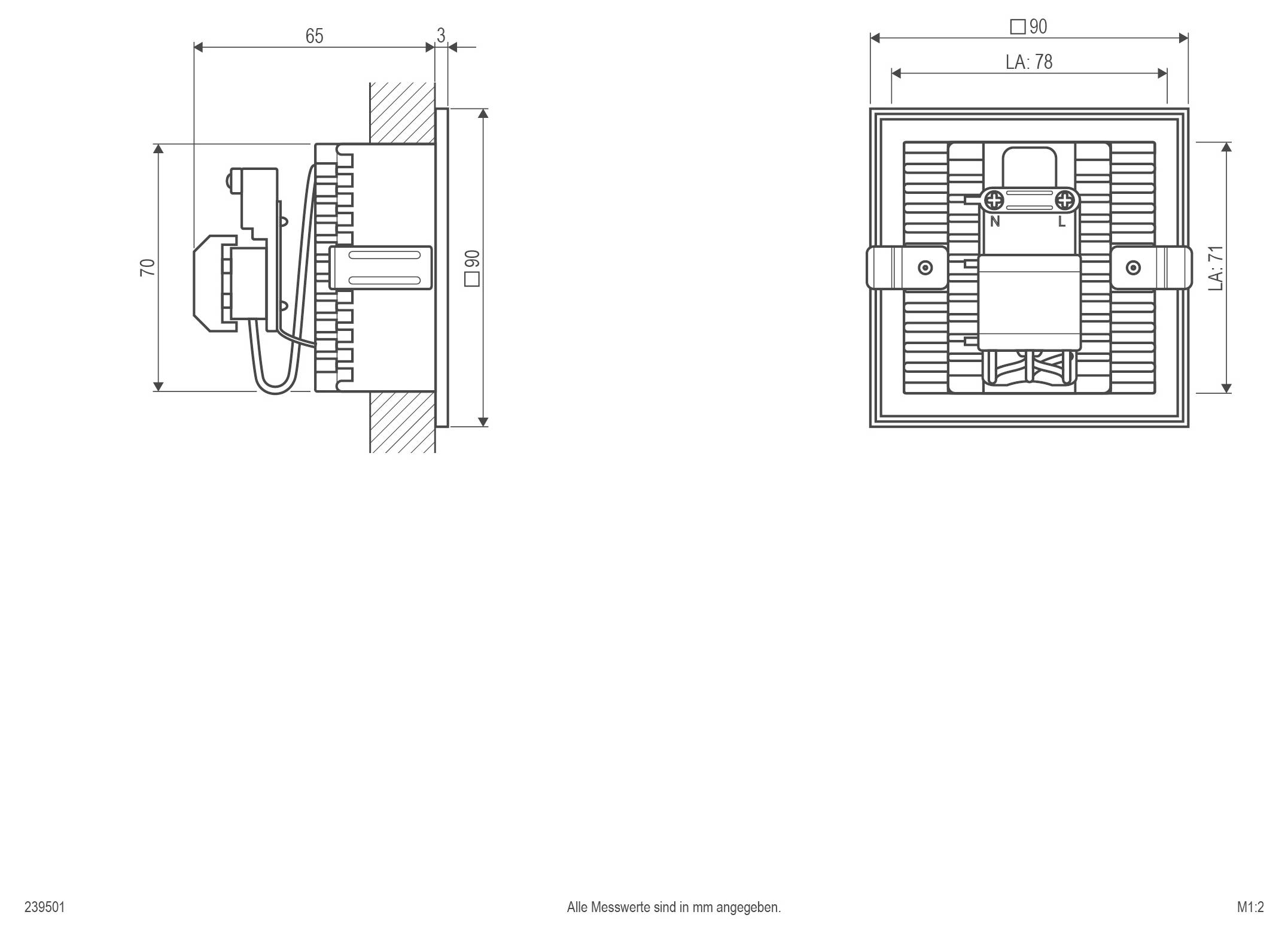

Technical line drawing of a wall-mounted electrical device shown in side and front views with dimensions in millimeters.<br>

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Anti-glare recessed wall light, IP20

White

Technical specifications

Product type: Flush mount light

: G9

Bulb type: HV halogen

Rating per bulb: 25 W

Colour: White

Light features: Incl. strain relief

Recess length: 78 mm

Recess width: 71 mm

Recess depth: 65 mm

: IP20

Protection class: I

Factory colour: White

Material: Aluminium

: n.rel.

Dim: (L x W x H) 90 x 90 x 68 mm

Light bulb included: No

Width: 90 mm

Height: 68 mm

Length: 90 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2483472 EVN 239501 239501 Flush mount light HV halogen G9 White

User & Safety Instructions

User & Safety Instructions 2483472 EVN 239501 239501 Flush mount light HV halogen G9 White

Description

Wall mounted light fixture for various applications in the interior. To avoid a blinding effect, the lamp is provided with an opal glass cover. In addition to the tension springs, the lamp can also be fixed with two screws, whereby the screw heads are covered by the cover. Illuminants up to max. 25W may be operated in the lamp. When using the optional recessed head, the rear strain relief must be offset, ensuring that the earth remains connected to the lamp body.

This text is machine translated.
