EVN 441520 441520 Recessed floor light Built-in LED LED (monochrome) 0.6 W Stainless steel
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LED sunken ground light, IP65
- Power= 0.6 W
- Total luminous flux= 36 lm
- Colour temperature= 3000 K
- Warm white
Technical specifications
- Product type
Recessed floor light
- Operating voltage
12 V DC
- Outside Ø
45 mm
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
0.6 W
0.6 W
3000 K
- Colour
Warm white
36 lm
- Total luminous flux
36 lm

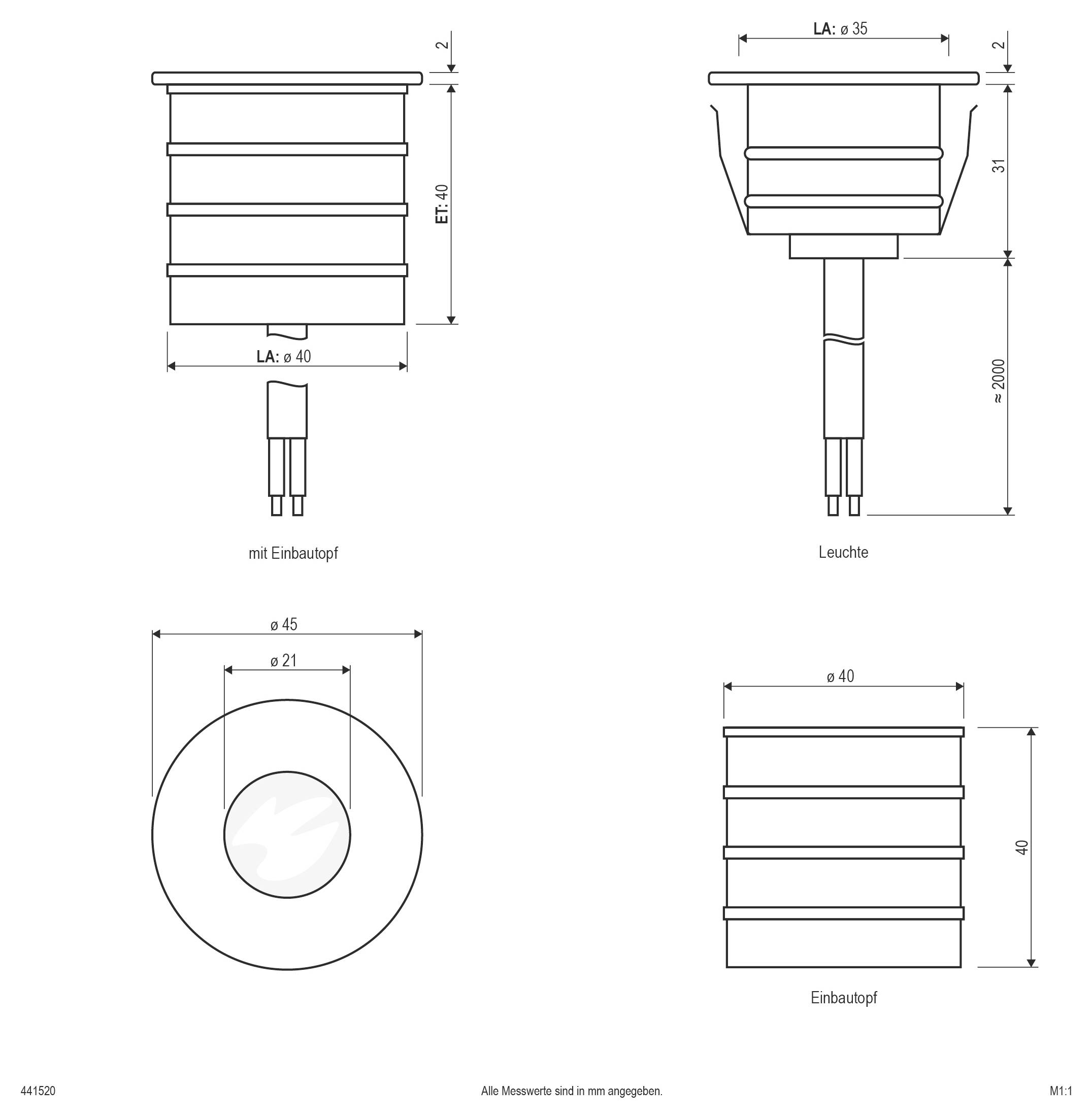

- Recess diameter
35 mm
- Recess depth
40 mm
- Light features
Dimmable
- Protection class
III
IP65
- Factory colour
Stainless steel
- Material
Aluminium
- Dim
(Ø x H) 40 mm x 33 mm
n.rel.
- Radiation angle
80°
- Light bulb included
Yes
- Colour temperature range
3000 K
- Height
33 mm
- (Ø)
40 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483475 EVN 441520 441520 Recessed floor light Built-in LED LED (monochrome) 0.6 W Stainless steel
User & Safety Instructions
User & Safety Instructions 2483475 EVN 441520 441520 Recessed floor light Built-in LED LED (monochrome) 0.6 W Stainless steel
Description

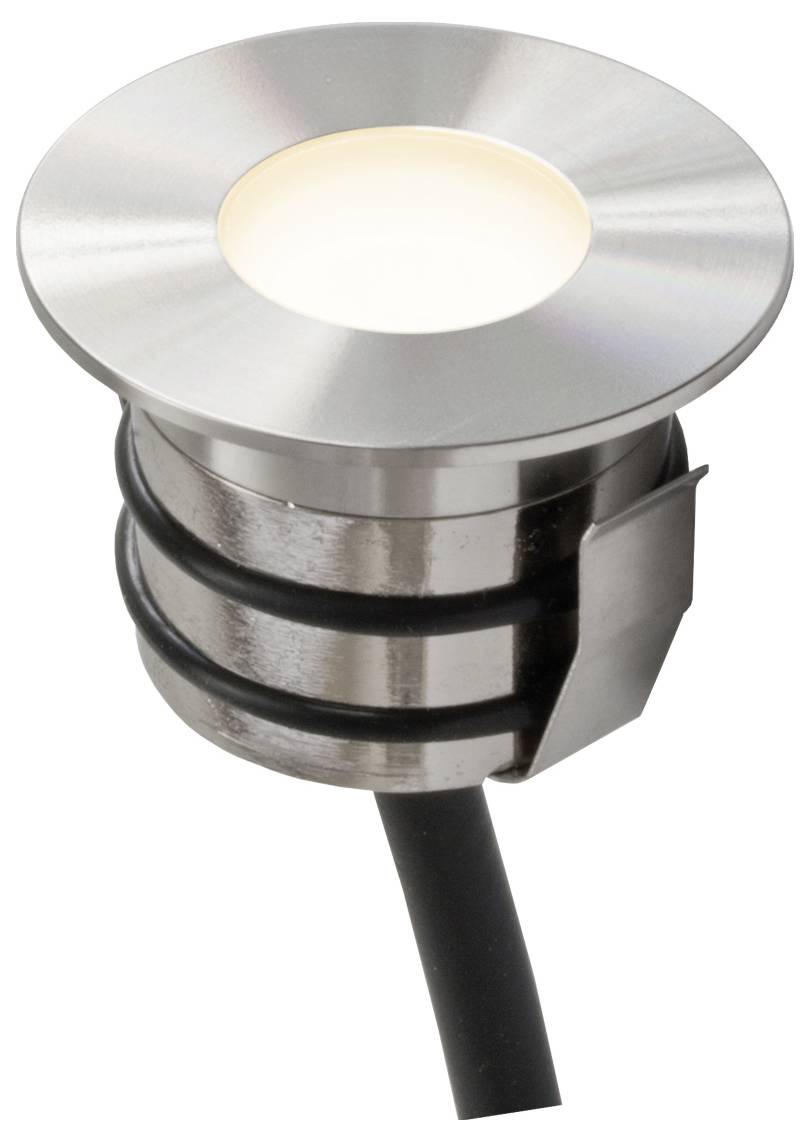

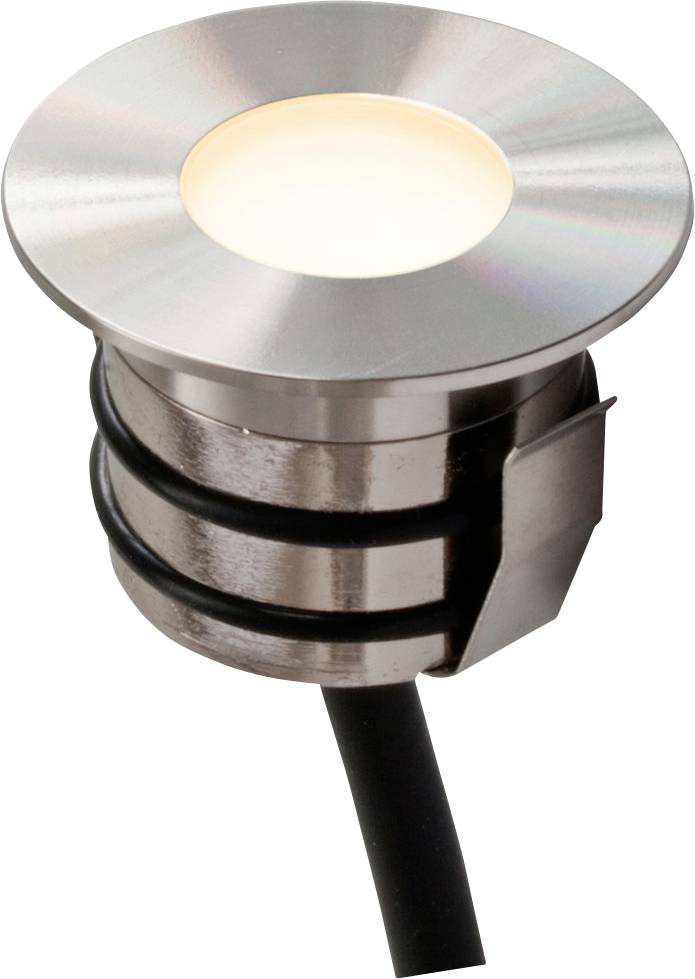

The lamp body is made of solid aluminum, while the cover plate is made of stainless steel. Due to the given power, the lamp is perfectly suitable for orientation lighting, patio lighting and much more. The mounting sleeve included in the delivery can be used optionally for mounting, whereby the installation depth remains unchanged, the hole cut-out changes to 40mm. Since the LED chip is permanently installed, there is no additional cost for bulbs. The type of dimming depends on the power supply used.
