EVN 484016N 484016N Outdoor wall light Pin base GU10 Anthracite
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Outdoor wall light
- Type
Rectangular
- Operating voltage
240 V
- No. of bulbs
1
- Bulb type
Pin base
GU10
- Rating per bulb
11 W
- Light features
adjustable
- Protection class
I
IP54
IK03
- Factory colour
Anthracite
- Material
Aluminium
- Dim
(L x W x H) 110 x 63 x 96 mm
n.rel.
- Light bulb included
No
- Width
63 mm
- Height
96 mm
- Length
110 mm
- Depth
33 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483481 EVN 484016N 484016N Outdoor wall light Pin base GU10 Anthracite
User & Safety Instructions
User & Safety Instructions 2483481 EVN 484016N 484016N Outdoor wall light Pin base GU10 Anthracite
Description

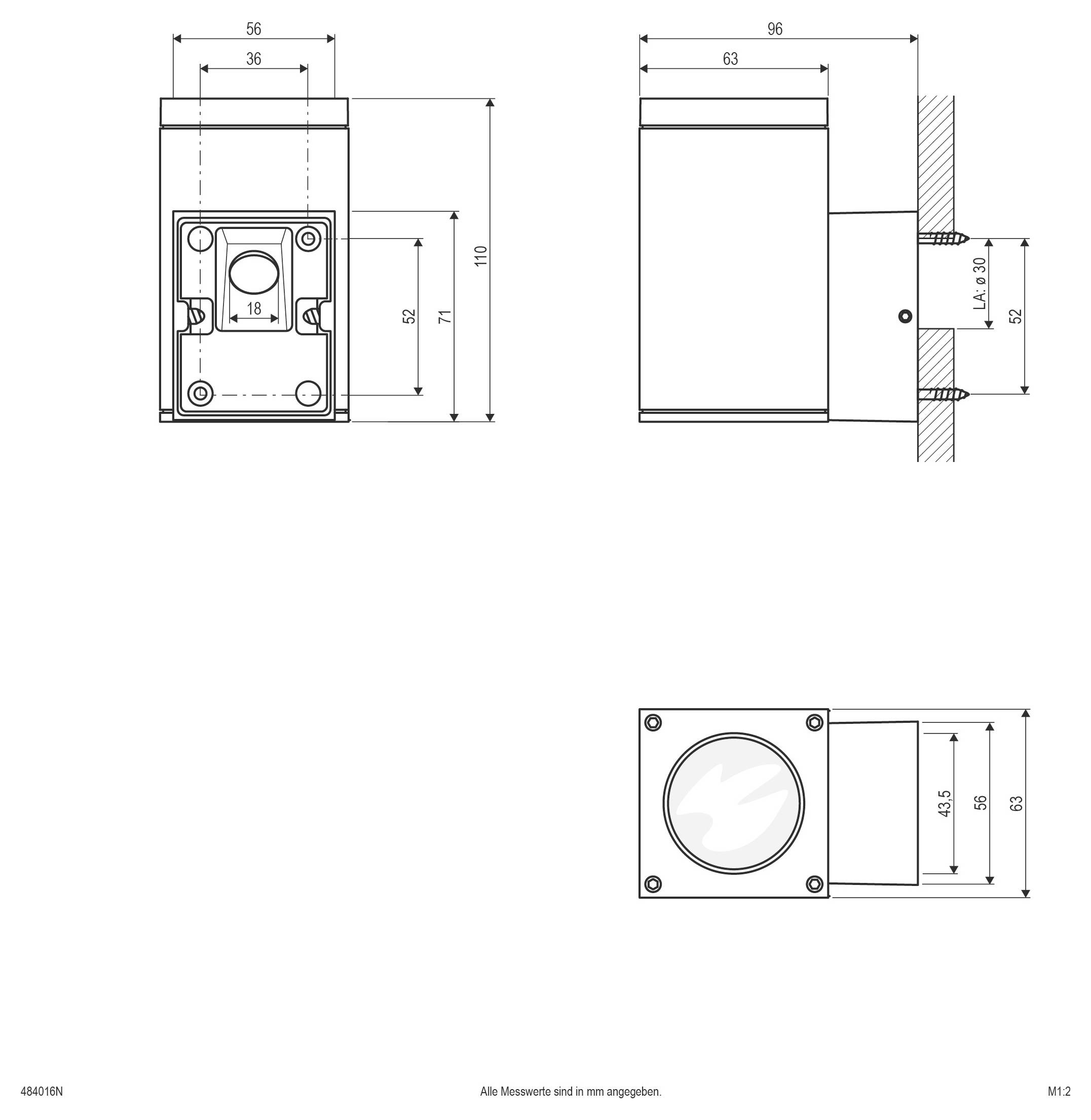

Solid wall light for outdoor use. Mounting is possible as up and down light. Even when selecting the illuminant, there are almost no limits due to the high voltage sockets, however only illuminants up to a max. of 11W may be used. Base size: 71mm x 56mm, depth: 33mm, the specified depth is measured incl. base.
This text is machine translated.
This text is machine translated.
Hints
Please order lamp separately.
