EVN 645421 645421 Recess-mount bracket HV halogen w/o 50 W Gold

Technical drawing of a square element with a circular opening. Cross-section shows mounting and dimensions: 47 mm diameter, 75 mm overall width.

Technical drawing of a square element with a circular opening. Cross-section shows mounting and dimensions: 47 mm diameter, 75 mm overall width.

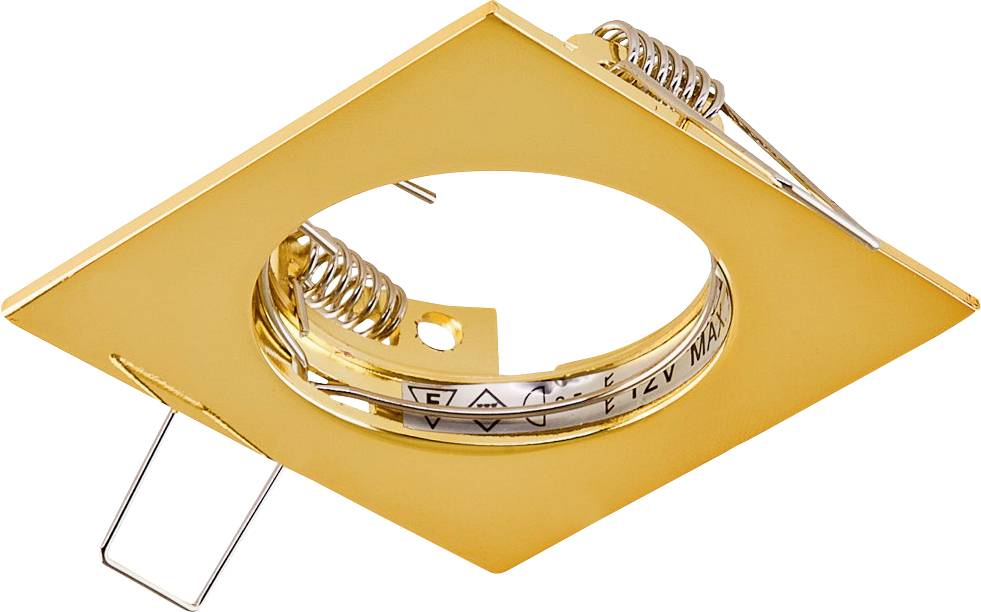

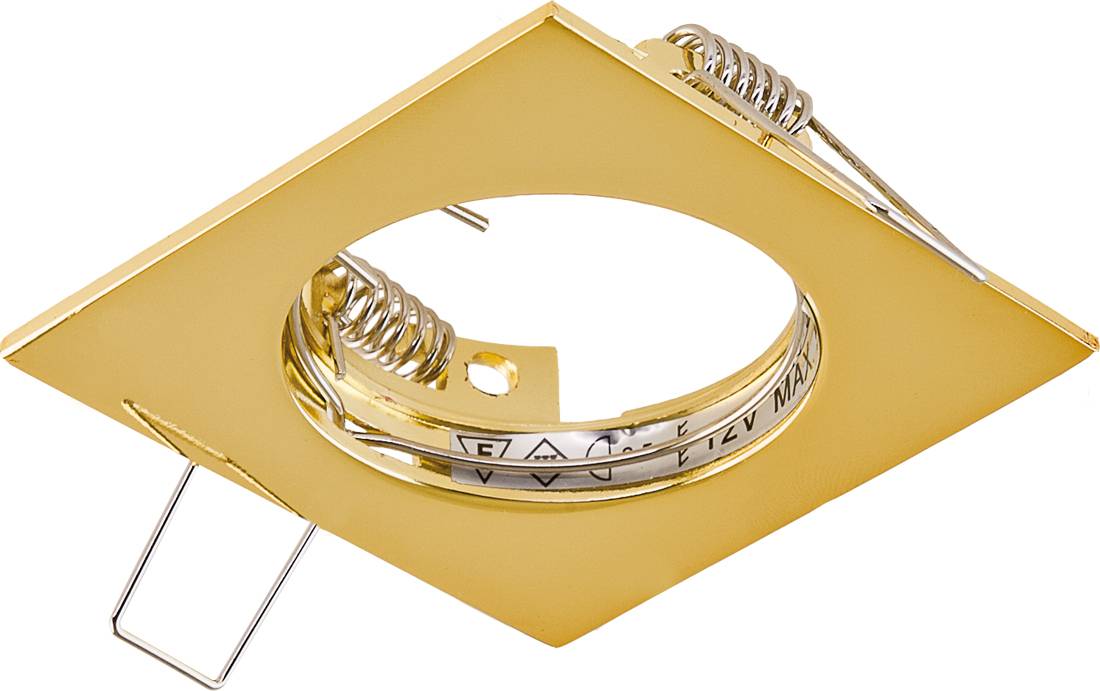

Gold square recessed ceiling light with adjustable inner ring and spring clips, shown on a white background.

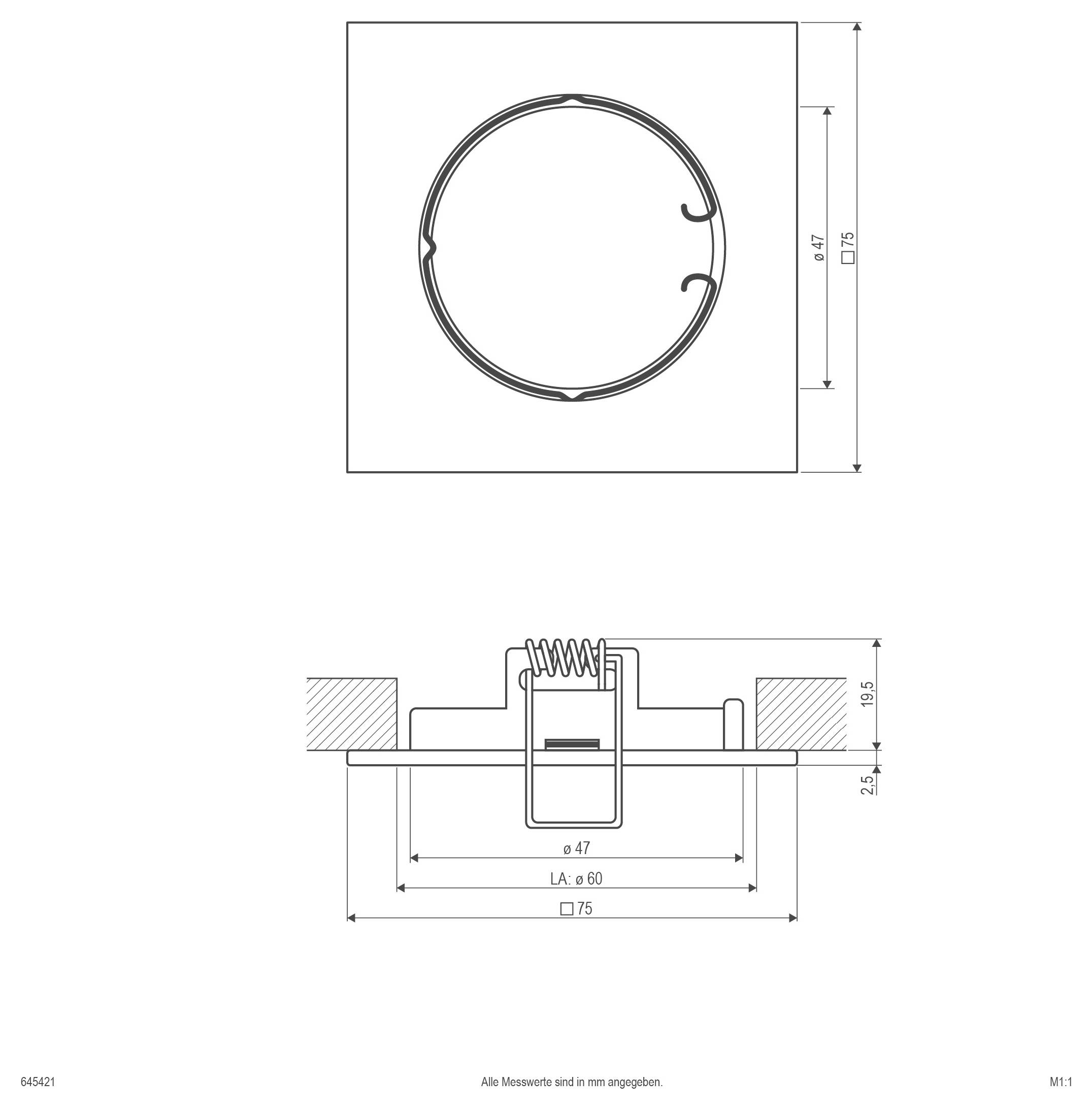

Technical drawing of a circular clip or ring, showing top and side views with dimensions 47 mm diameter, 60 mm opening, and 75 mm outer size.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Power= 50 W Gold

Technical specifications

Product type: Recess-mount bracket

Operating voltage: 12 V

No. of bulbs: 1

: w/o

Bulb type: HV halogen

Rating per bulb: 50 W

: 50 W

Colour: Gold

Type: Ring

Light features: Recess mount option

Recess diameter: 60 mm

Recess depth: 55 mm

External length: 75 mm

External width: 75 mm

: IP20

Protection class: III

Factory colour: Gold

Material: Aluminium

: n.rel.

Dim: (Ø x H) 60 mm x 22.00 mm

: Yes

Light bulb included: No

Width: 75.00 mm

Height: 22.00 mm

Length: 75.00 mm

Depth: 22 mm

(Ø): 60 mm

Nominal voltage: 12 V

UKCA: yes
