Name: EVN 6515225RE 6515225RE Wall light GU10 8 W LED (monochrome) Anthracite
Brand: EVN
SKU: 2483507

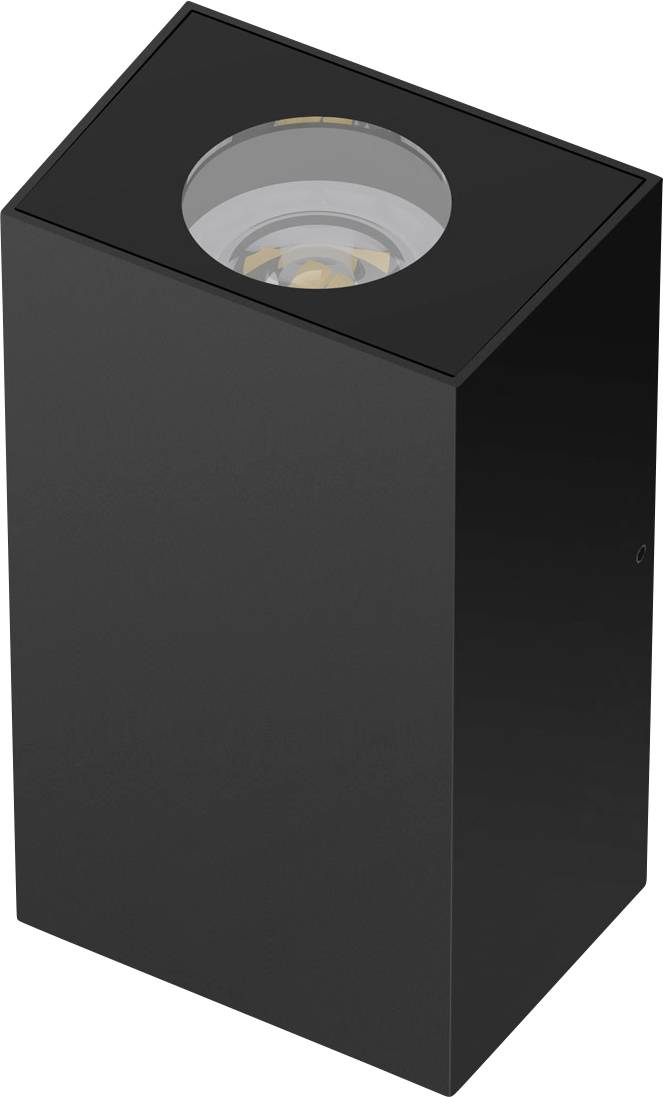

Black rectangular wall light fixture with a circular recessed spotlight opening on top, shown in 3D product view<br>

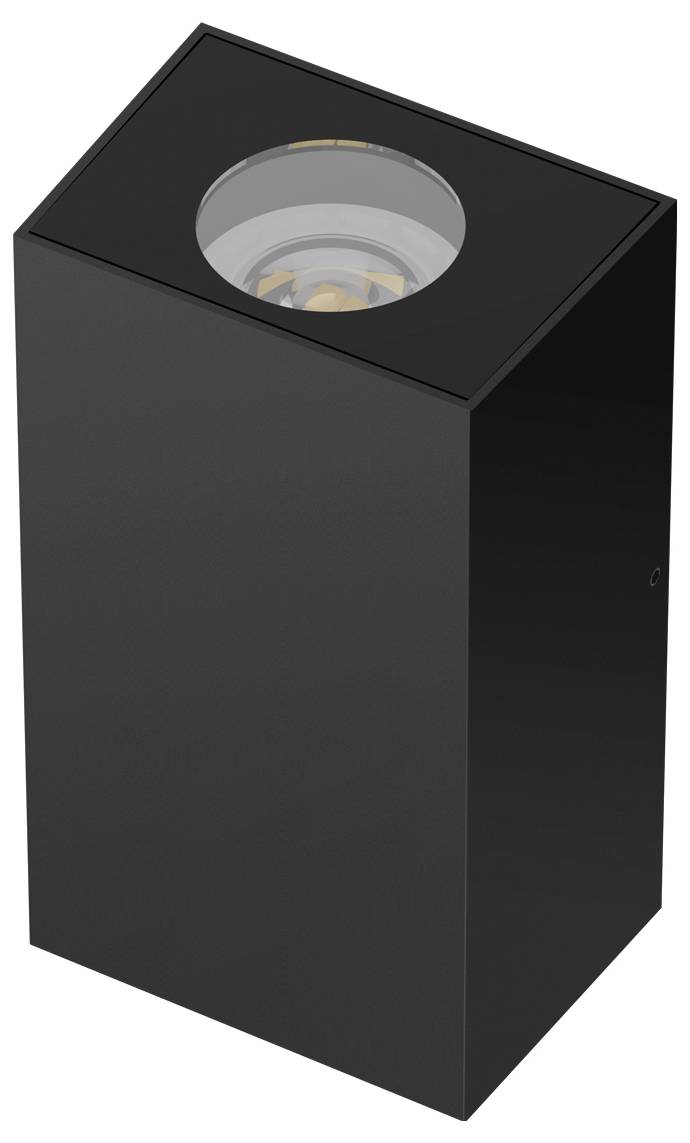

EVN 6515225RE 6515225RE Wall light GU10 8 W LED (monochrome) Anthracite-1

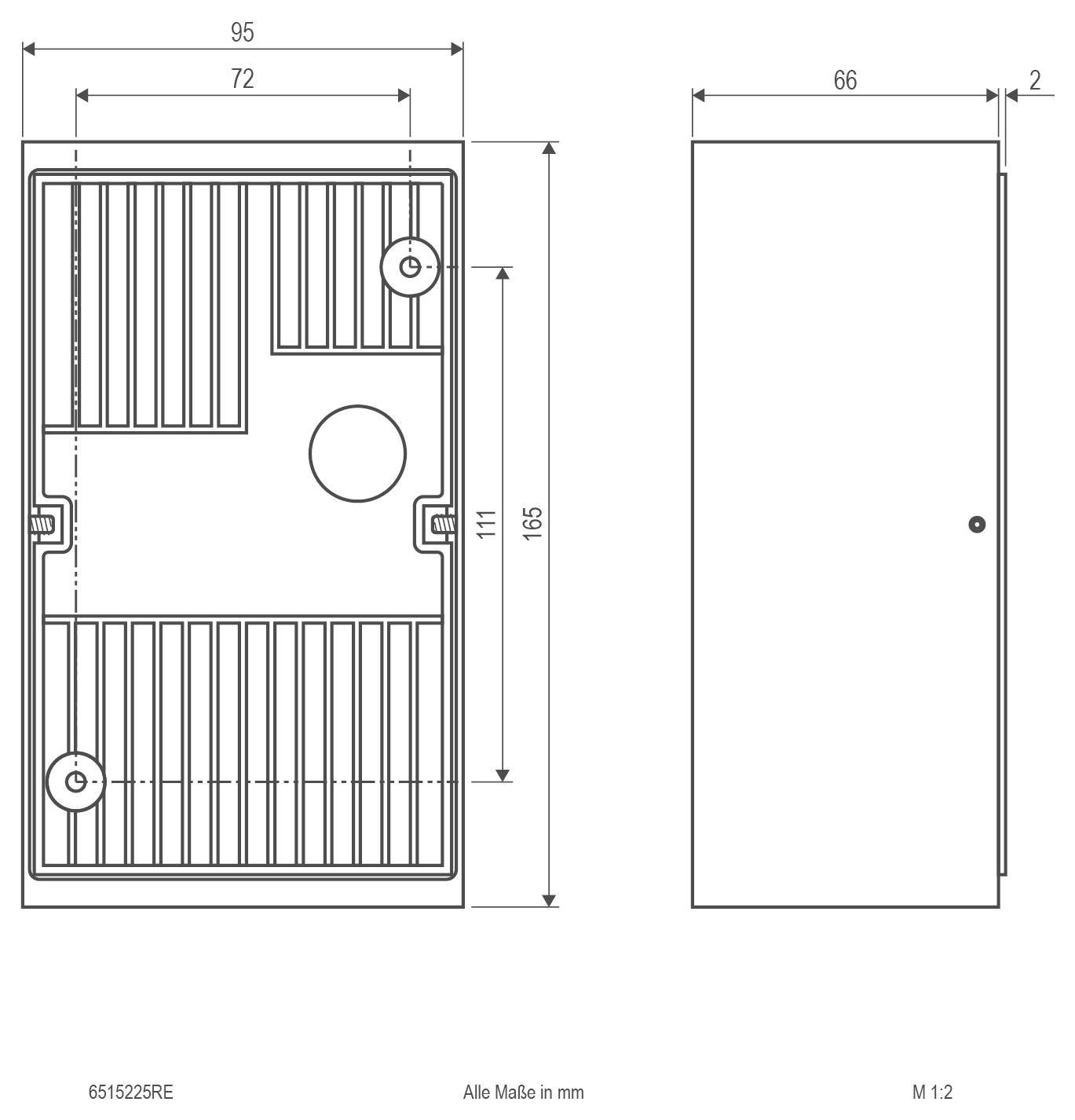

Technical drawing of a rectangular panel or door, showing front and side views with dimensions in millimeters: 95 wide, 165 high, 66 deep.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Two-flame wall lamp, IP65

Power= 8 W

Technical specifications

Product type: Wall light

Operating voltage: 100 V
240 V

No. of bulbs: 2

Bulb type: LED (monochrome)

: GU10

Rating per bulb: 8 W

: 8 W

Light features: Suitable for wall mounting

Protection class: I

: IK06
IP65

Factory colour: Anthracite

Material: Aluminium

Dim: (L x W x H) 165 x 95 x 67 mm

: n.rel.

Light bulb included: No

Width: 95 mm

Height: 67 mm

Length: 165 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2483507 EVN 6515225RE 6515225RE Wall light GU10 8 W LED (monochrome) Anthracite

User & Safety Instructions

User & Safety Instructions 2483507 EVN 6515225RE 6515225RE Wall light GU10 8 W LED (monochrome) Anthracite

Description

The light can be used in indoor and outdoor areas due to the given protection class. LED bulbs up to max. 8W can be used. The illuminants used must not exceed a length of 60mm. The casing color corresponds to RAL7016.

This text is machine translated.
