EVN 654110 654110 Recessed floor light Built-in LED LED (monochrome) 2 W Stainless steel
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LED sunken ground light, IP65
- Power= 2 W
- Total luminous flux= 90 lm
- Colour temperature= 6000 K
- Daylight white
Technical specifications
- Product type
Recessed floor light
- Operating voltage
240 V AC
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
2 W
2 W
6000 K
- Colour
Daylight white
90 lm
- Total luminous flux
90 lm

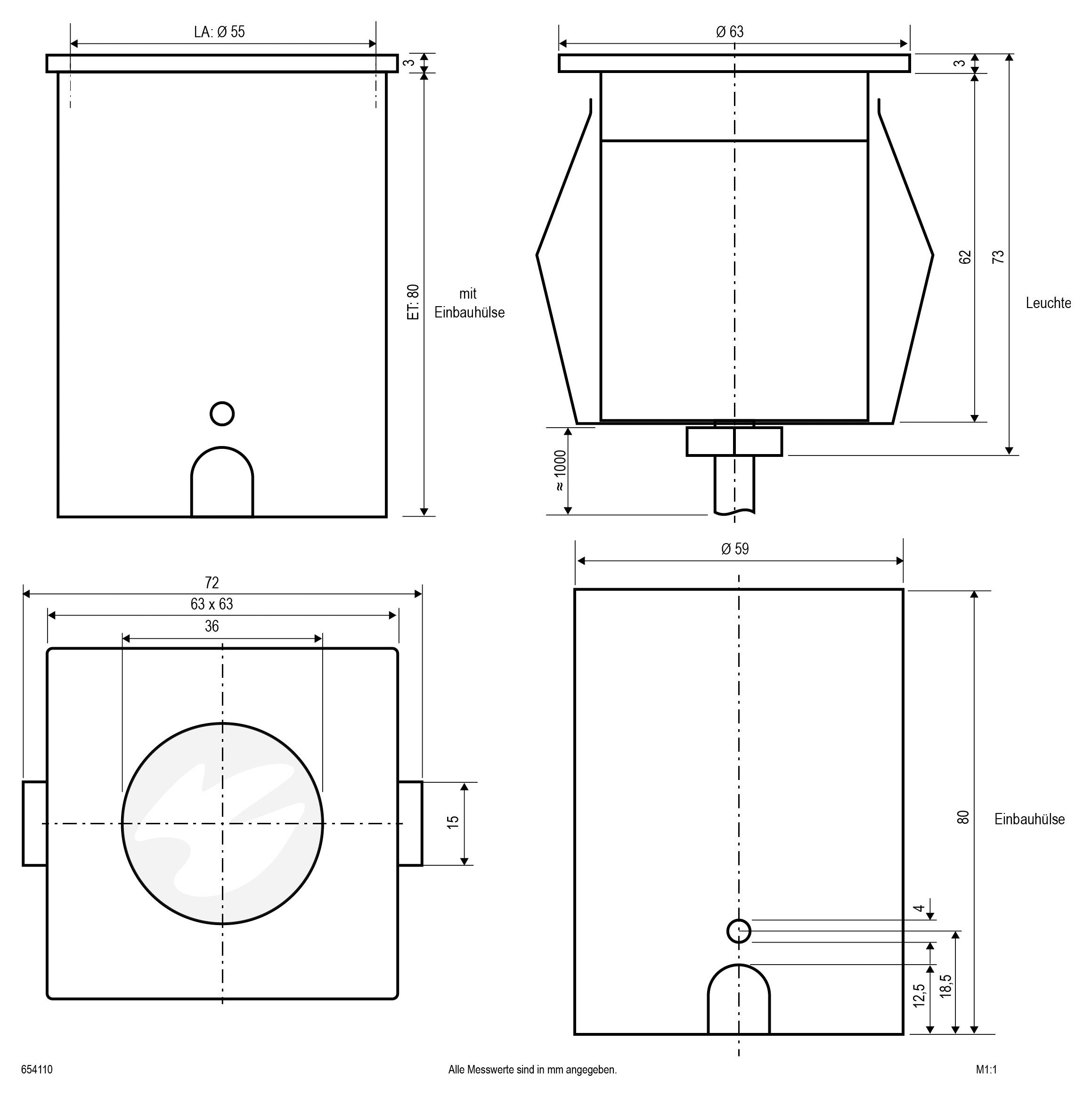

- Recess diameter
55 mm
- Recess depth
80 mm
- Protection screen
Textured
- Light features
Hardwearing
- Protection class
I
IP65
- Factory colour
Stainless steel
- Material
Steel (stainless)
- Dim
(L x W x H) 63 x 63 x 73 mm
n.rel.
- Radiation angle
40°
80°
- Light bulb included
Yes
- Colour temperature (max.)
6000 K
- Colour temperature (min.)
6000 K
- Colour temperature range
6000 - 6000 K
- Width
63 mm
- Height
73 mm
- Length
63 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483511 EVN 654110 654110 Recessed floor light Built-in LED LED (monochrome) 2 W Stainless steel
User & Safety Instructions
User & Safety Instructions 2483511 EVN 654110 654110 Recessed floor light Built-in LED LED (monochrome) 2 W Stainless steel
Description

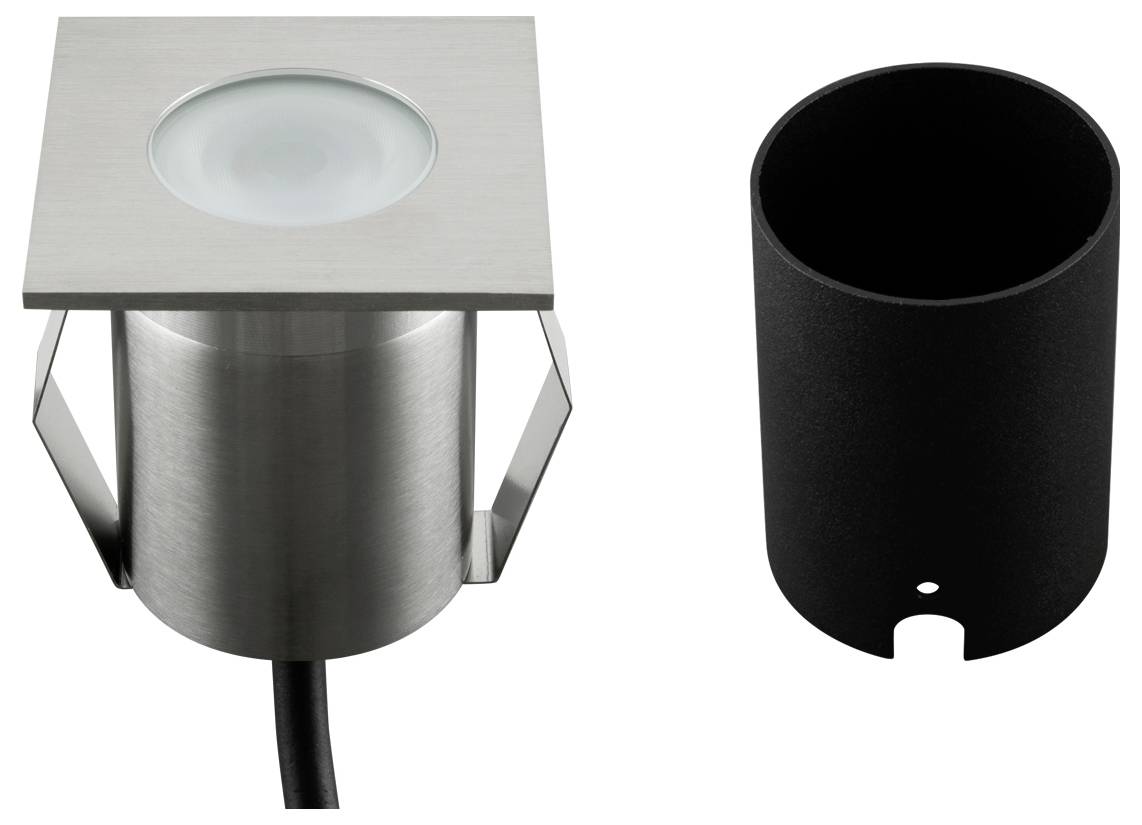

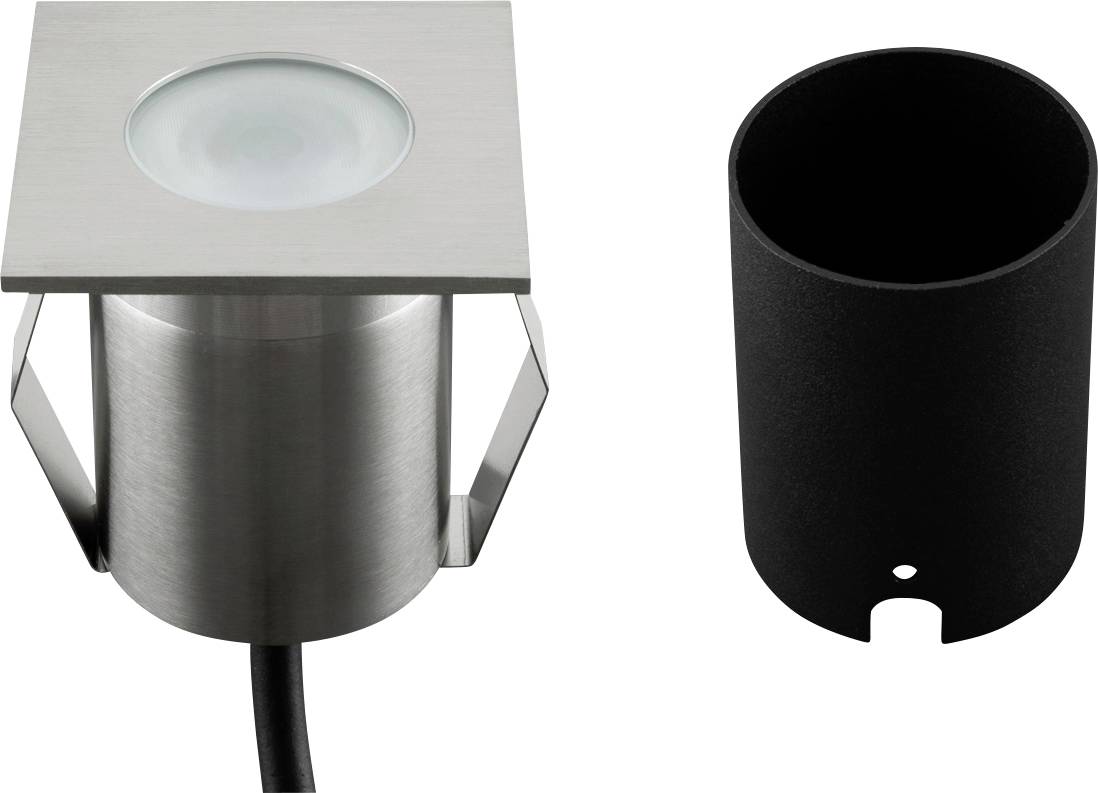

The LED sunken ground light is made entirely of V4A stainless steel and can be used for a variety of applications in outdoor as well as indoor areas. The aluminum mounting sleeve included in the delivery can be used optionally for mounting, whereby the installation depth remains unchanged, the hole cut-out changes to 59mm. Since the LED chip is permanently installed, there is no additional cost for bulbs. Likewise, there is no additional cost for a ballast, since the connection is made directly to the 230V supply line. The maximum overtravel speed is 20km/h.
