EVN 6740402 6740402 Recessed floor light Built-in LED LED (monochrome) 3 W Stainless steel
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

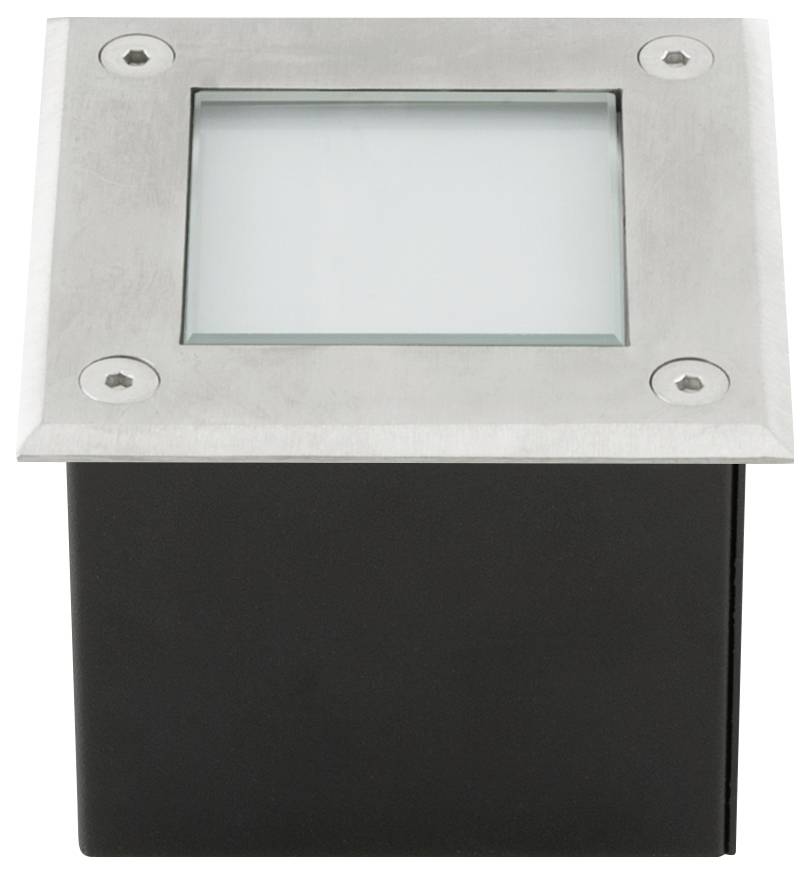

LED sunken ground light, IP67
- Power= 3 W
- Total luminous flux= 140 lm
- Colour temperature= 3000 K
- Warm white
Technical specifications
- Product type
Recessed floor light
- Operating voltage
100 V AC
240 V AC
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
3 W
3 W
3000 K
- Colour
Warm white
140 lm
- Total luminous flux
140 lm

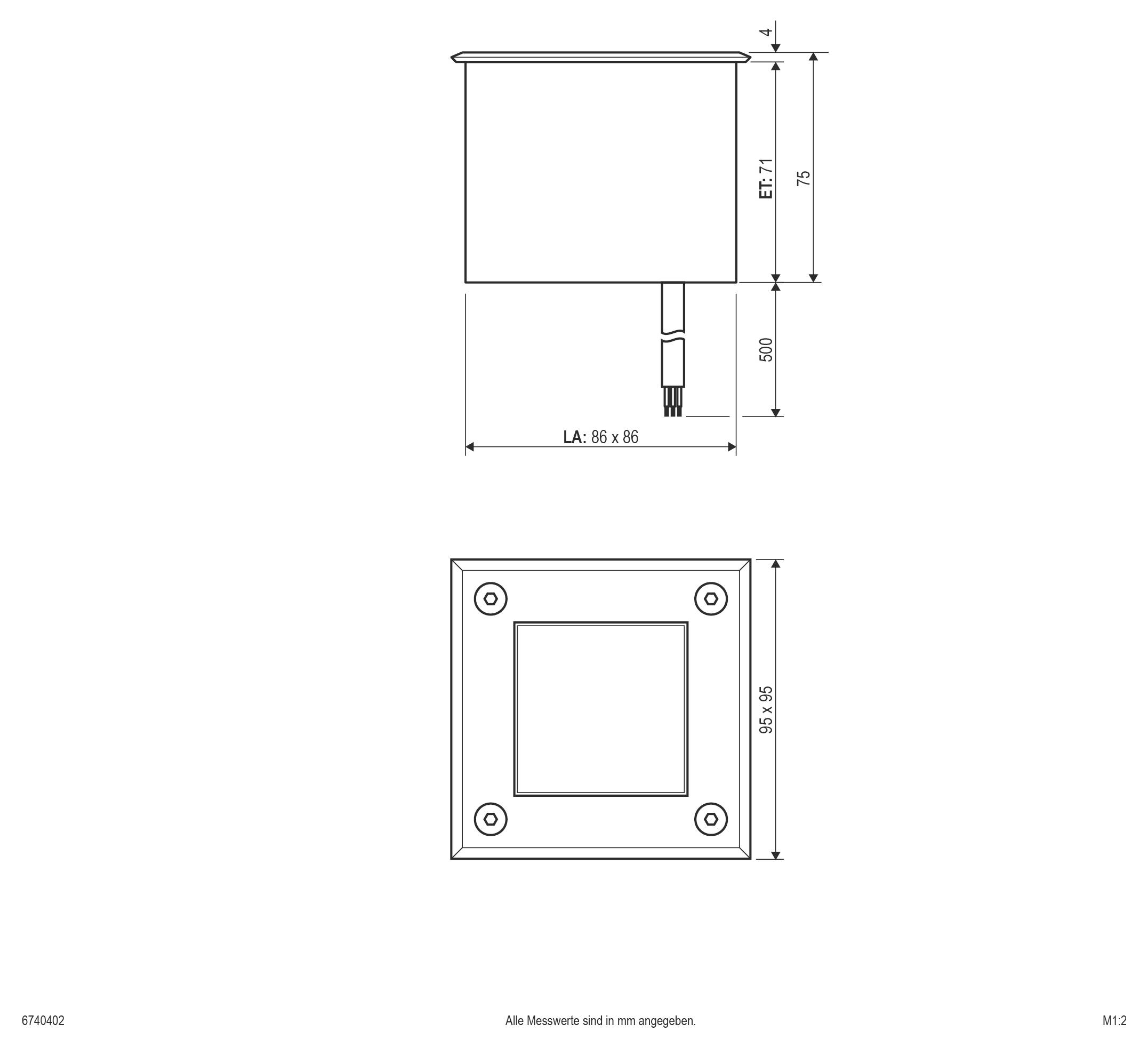

- Recess length
86 mm
- Recess width
86 mm
- Recess depth
71 mm
- Light features
Hardwearing
- Protection class
I
IP67
- Factory colour
Stainless steel
- Material
Aluminium
- Dim
(L x W x H) 95 x 95 x 75 mm
n.rel.
- Radiation angle
80°
- Light bulb included
Yes
- Colour temperature range
3000 K
- Width
95 mm
- Height
75 mm
- Length
95 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483518 EVN 6740402 6740402 Recessed floor light Built-in LED LED (monochrome) 3 W Stainless steel
User & Safety Instructions
User & Safety Instructions 2483518 EVN 6740402 6740402 Recessed floor light Built-in LED LED (monochrome) 3 W Stainless steel
Description
The lamp body of the sunken ground light is made of solid aluminum, the upper cover ring is made of V2A stainless steel and can be used for a variety of outdoor applications. Since the LED chip is permanently installed, there is no additional cost for bulbs. Likewise, there is no additional cost for a ballast, since the connection is made directly to the 230V supply line. The maximum overtravel speed is 20km/h.
