EVN 677010061 677010061 Recessed floor light GX53 LED (monochrome)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
EVN floor build-in emitter round Starr GX53 5.5W 230V IP67 cold-white
Technical specifications
- Product type
Recessed floor light
- Bulb type
LED (monochrome)
GX53
- Recess diameter
104 mm
- Recess depth
66 mm
- Light features
Hardwearing
- Material
Stainless steel V4A
n.rel.
- Light bulb included
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3035435 EVN 677010061 677010061 Recessed floor light GX53 LED (monochrome)
User & Safety Instructions
User & Safety Instructions 3035435 EVN 677010061 677010061 Recessed floor light GX53 LED (monochrome)
Description

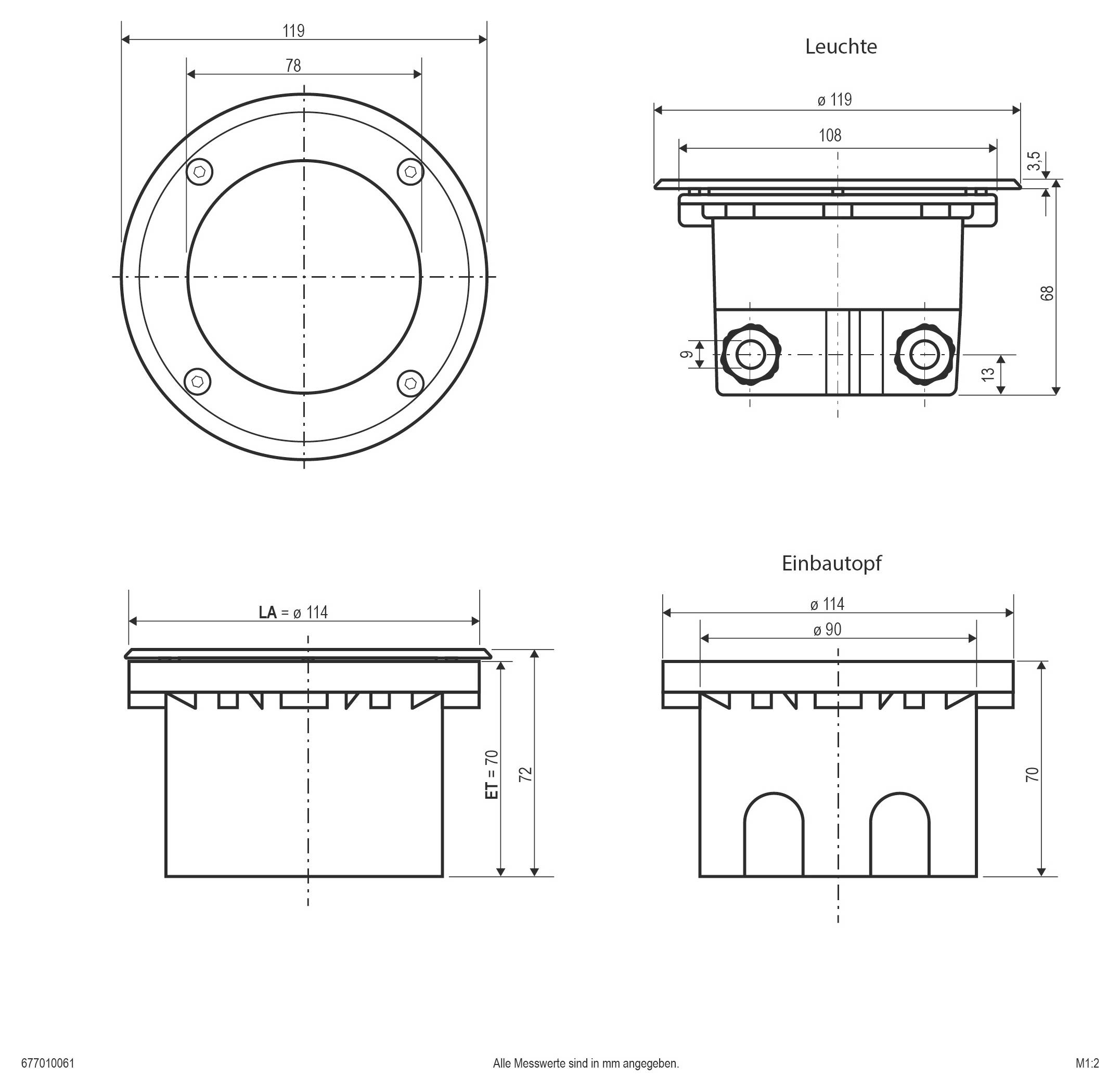

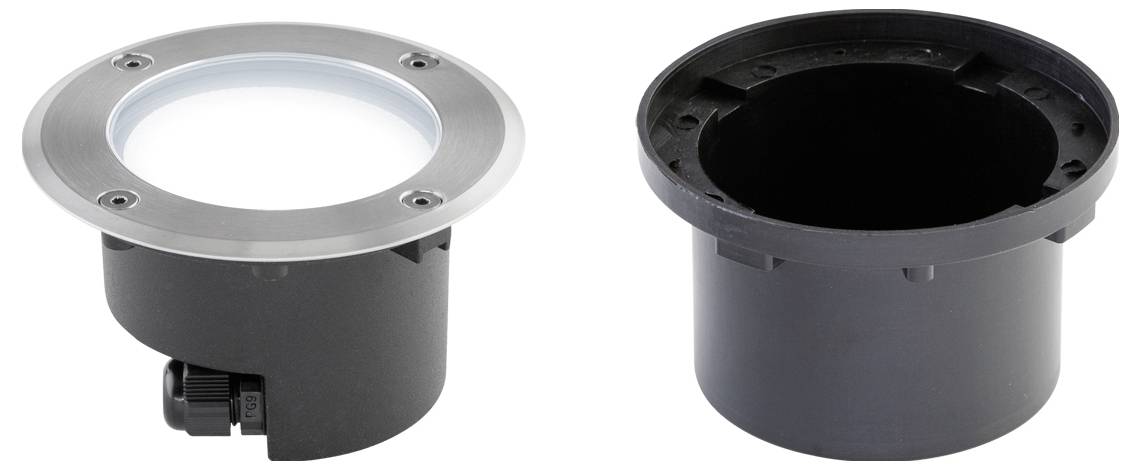

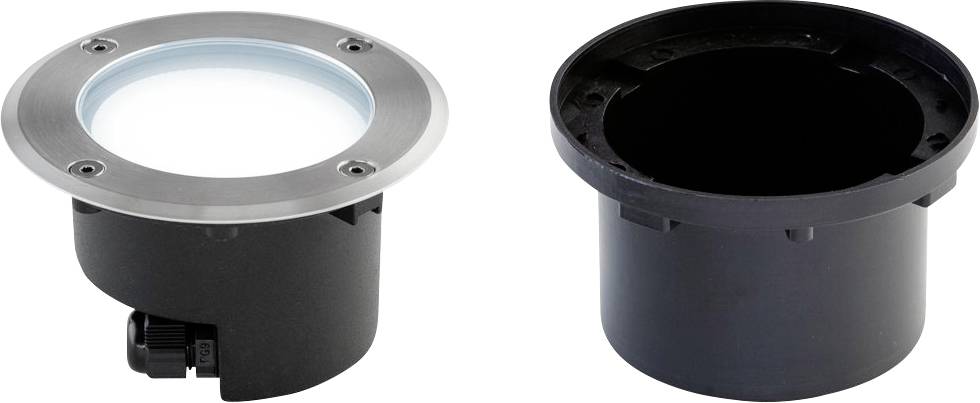

The light body made of die-cast aluminum is covered with polyester, while the cover plate is made of V4A stainless steel. The 2 side-mounted cable glands are suitable for cables up to 9mm diameter. They enable several lights to be wired through which the installation on longer cable runs is much easier. There is the option of mounting the lamp without the plastic mounting pot included in the delivery. In this case, the installation depth is 66 mm and the required hole cut-out is 104mm. The cable entry in the installation pot takes place from below. The LED light supplied can be replaced at any time, if required. The maximum crossing speed is 25km/h.
