EVN 678235 678235 Recessed floor light GU10 High-voltage halogen lamp Stainless steel
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Swiveling sunken ground light, IP67
Technical specifications
- Product type
Recessed floor light
- Operating voltage
230 V AC
- Outside Ø
150 mm
- Bulb type
High-voltage halogen lamp
GU10
- Rating per bulb
35 W
- Recess diameter
143 mm
- Recess depth
195 mm
- Protection screen
Textured
- Light features
Hardwearing
- Swivel range (max.)
30°
- Protection class
II
IP67
- Factory colour
Stainless steel
- Material
Aluminium
- Dim
(Ø x H) 137 mm x 175 mm
n.rel.
- Light bulb included
No
- Height
175 mm
- Depth
180 mm
- (Ø)
137 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483522 EVN 678235 678235 Recessed floor light GU10 High-voltage halogen lamp Stainless steel
User & Safety Instructions
User & Safety Instructions 2483522 EVN 678235 678235 Recessed floor light GU10 High-voltage halogen lamp Stainless steel
Description

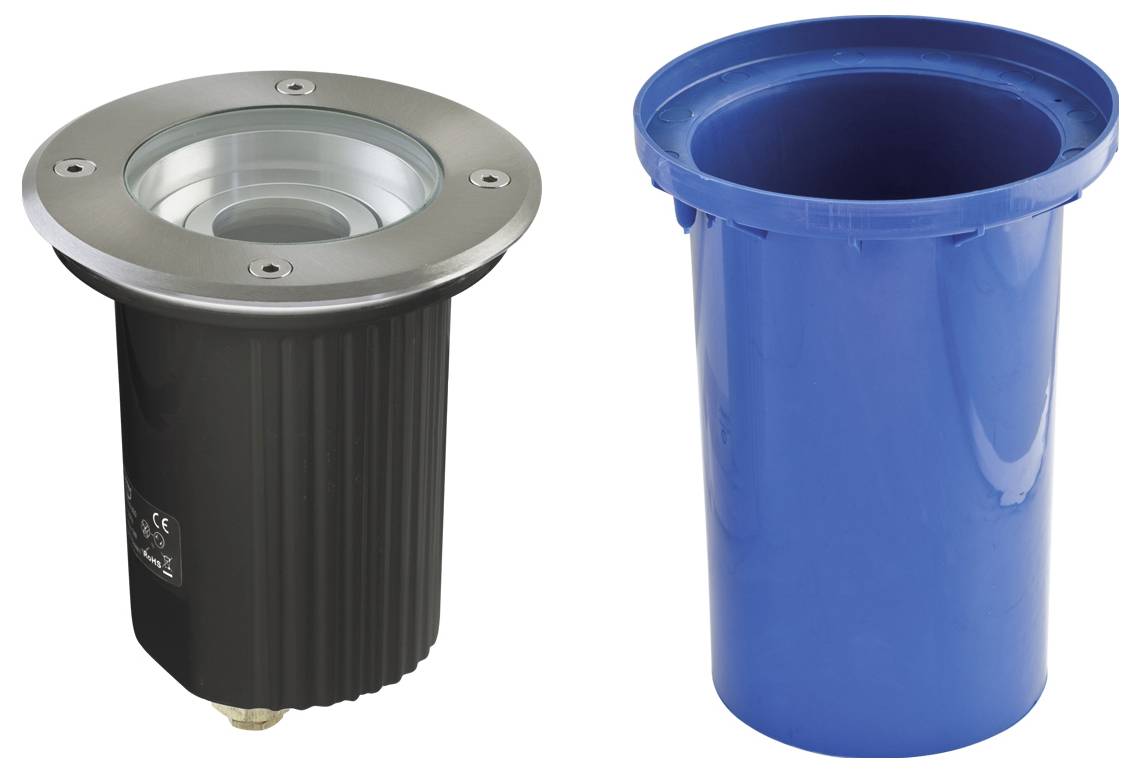

The lamp body is made of plastic, while the cover plate is made of V2A stainless steel. The cable entry takes place via the cable gland located at the bottom, which is suitable for cables up to 9mm diameter. The second cable gland included in the delivery can be attached to the lamp as an option, making it easy to wire through. It is possible to mount the lamp without the plastic installation pot included in the delivery, in this case the installation depth is 180mm and the required hole size 137mm. Due to the high voltage socket, different illuminants up to max. 35W can be operated in the lamp. The maximum overrun speed is 20km/h, the swivel angle is 30°.
This text is machine translated.
This text is machine translated.
Hints
Please order lamp separately.
