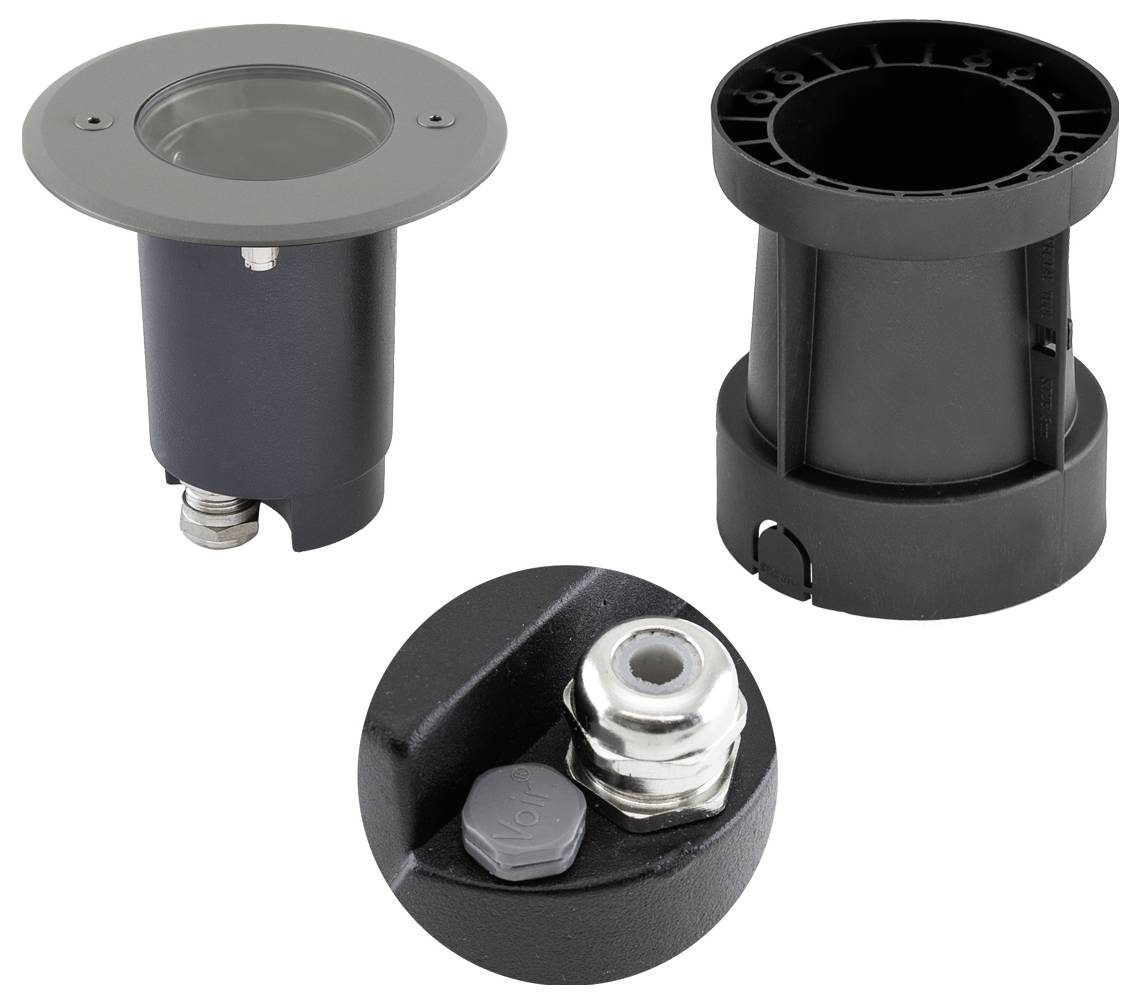

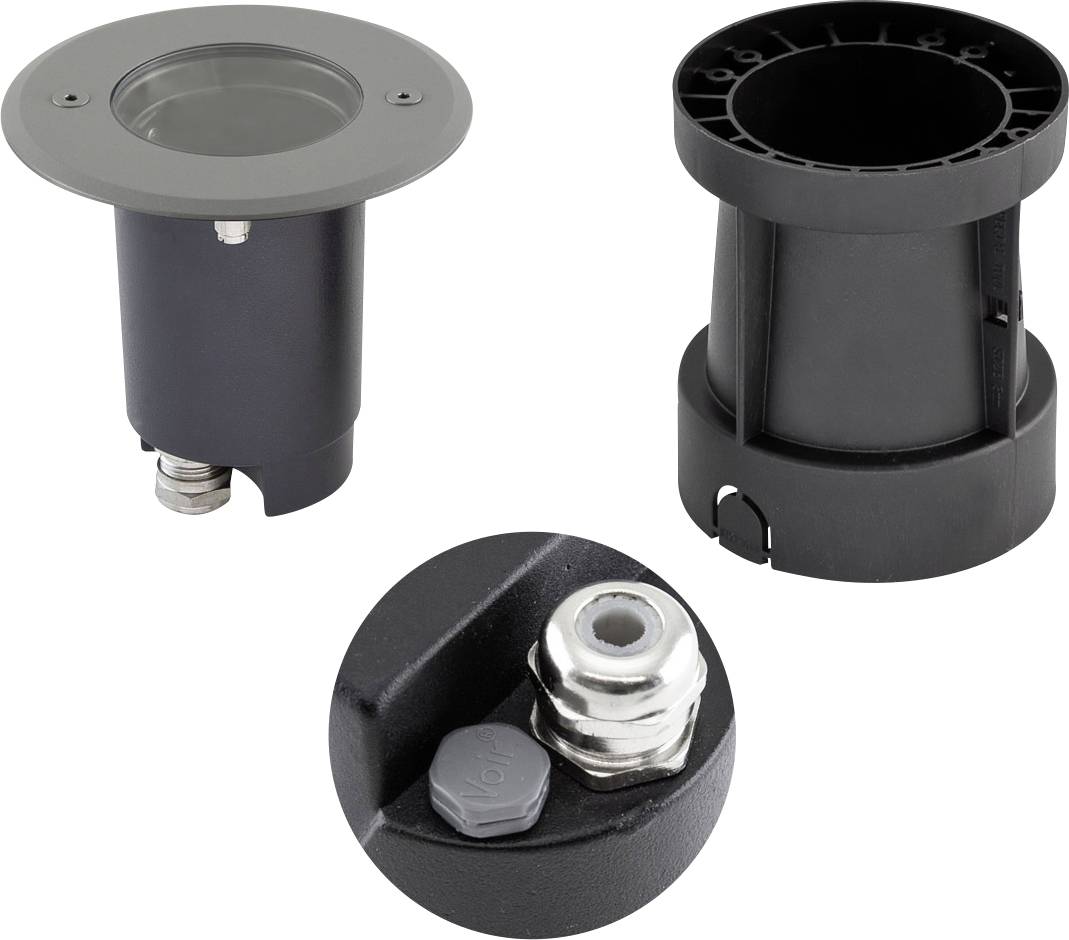

EVN 679235A 679235A Recessed floor light GU10 LED (monochrome) Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EVN LED floor build-in radiator LB22 max. 35W GU10 IP67 anthracite
Technical specifications
- Product type
Recessed floor light
- Bulb type
LED (monochrome)
GU10
- Rating per bulb
35 W

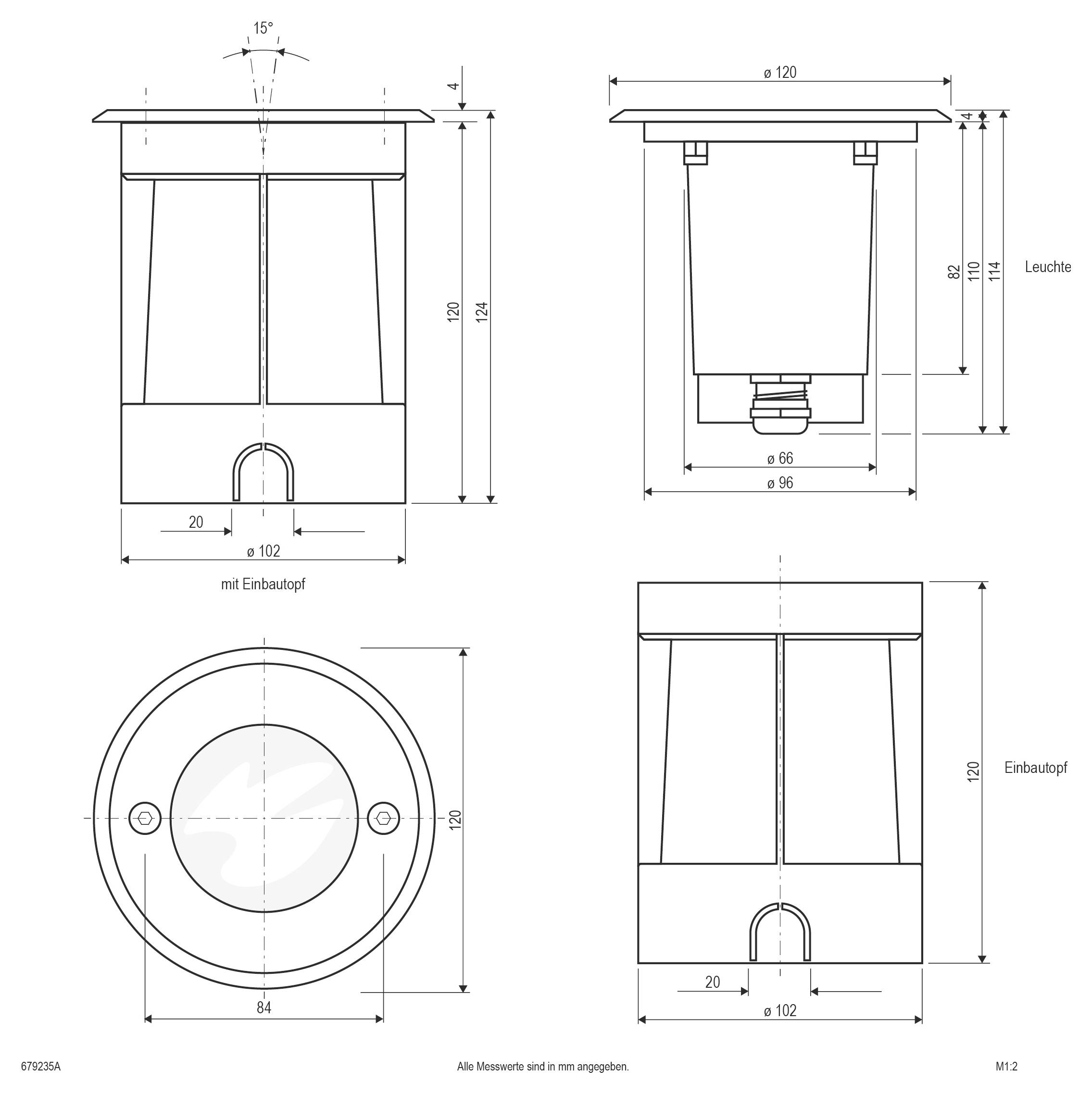

- Recess diameter
96 mm
- Protection screen
Satinised
- Swivel range (max.)
10°
- Factory colour
Grey
- Material
Aluminium
n.rel.
- Light bulb included
No
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3035715 EVN 679235A 679235A Recessed floor light GU10 LED (monochrome) Grey
User & Safety Instructions
User & Safety Instructions 3035715 EVN 679235A 679235A Recessed floor light GU10 LED (monochrome) Grey
Description
The lamp body is made of aluminum, while the cover plate is made of V2A stainless steel. Cable entry is made via the cable gland on the ground, which is suitable for cables up to 9mm diameter. There is the option of mounting the lamp without the plastic mounting pot included in the scope of supply, in this case the hole cut-out is 96mm while the installation depth remains unchanged. Due to the GU10 high-voltage socket different bulbs up to max. 35W can be operated in the lamp. The slewing angle is 10°. Additionally, a matt safety glass is included in the delivery.
