EVN 679235A402 679235A402 Recessed floor light GU10 LED (monochrome) 4.6 W Anthracite
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Swiveling LED floor mounted light fixture, IP67
- Power= 4.6 W
- Total luminous flux= 370 lm
- Colour temperature= 3000 K
- Warm white
Technical specifications
- Product type
Recessed floor light
- Operating voltage
230 V AC

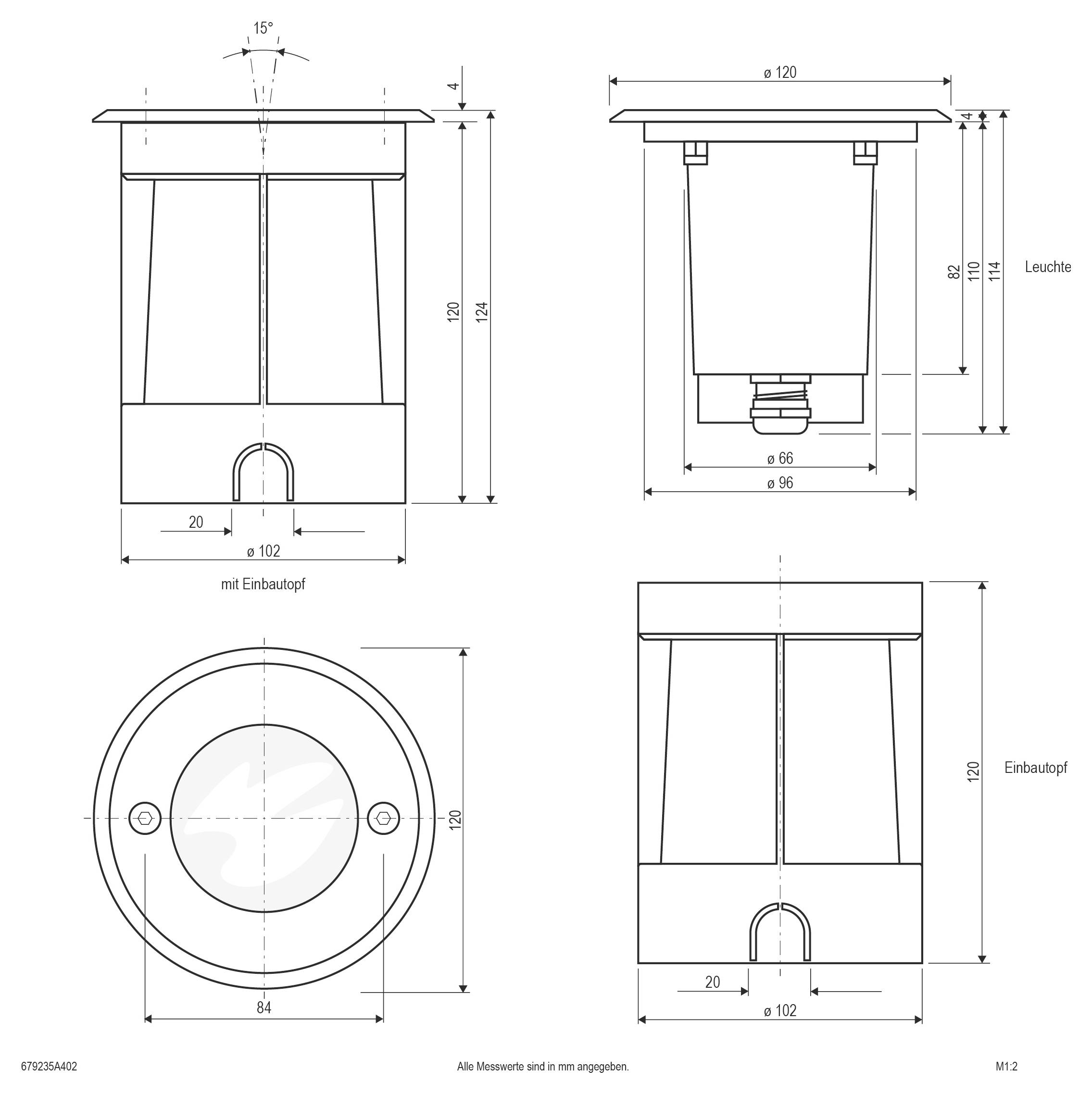

- Outside Ø
120 mm
- No. of bulbs
1
- Bulb type
LED (monochrome)
GU10
- Rating per bulb
4.6 W
4.6 W
3000 K
- Colour
Warm white
370 lm
- Total luminous flux
370 lm
- Recess diameter
102 mm
- Recess depth
120 mm
- Protection screen
Textured
- Light features
Swivelling
- Swivel range (max.)
10°
- Protection class
I
IP67
- Factory colour
Anthracite
- Material
Aluminium
n.rel.
- Radiation angle
20°
40°
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 3000 K
- Height
110 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483525 EVN 679235A402 679235A402 Recessed floor light GU10 LED (monochrome) 4.6 W Anthracite
User & Safety Instructions
User & Safety Instructions 2483525 EVN 679235A402 679235A402 Recessed floor light GU10 LED (monochrome) 4.6 W Anthracite
Description

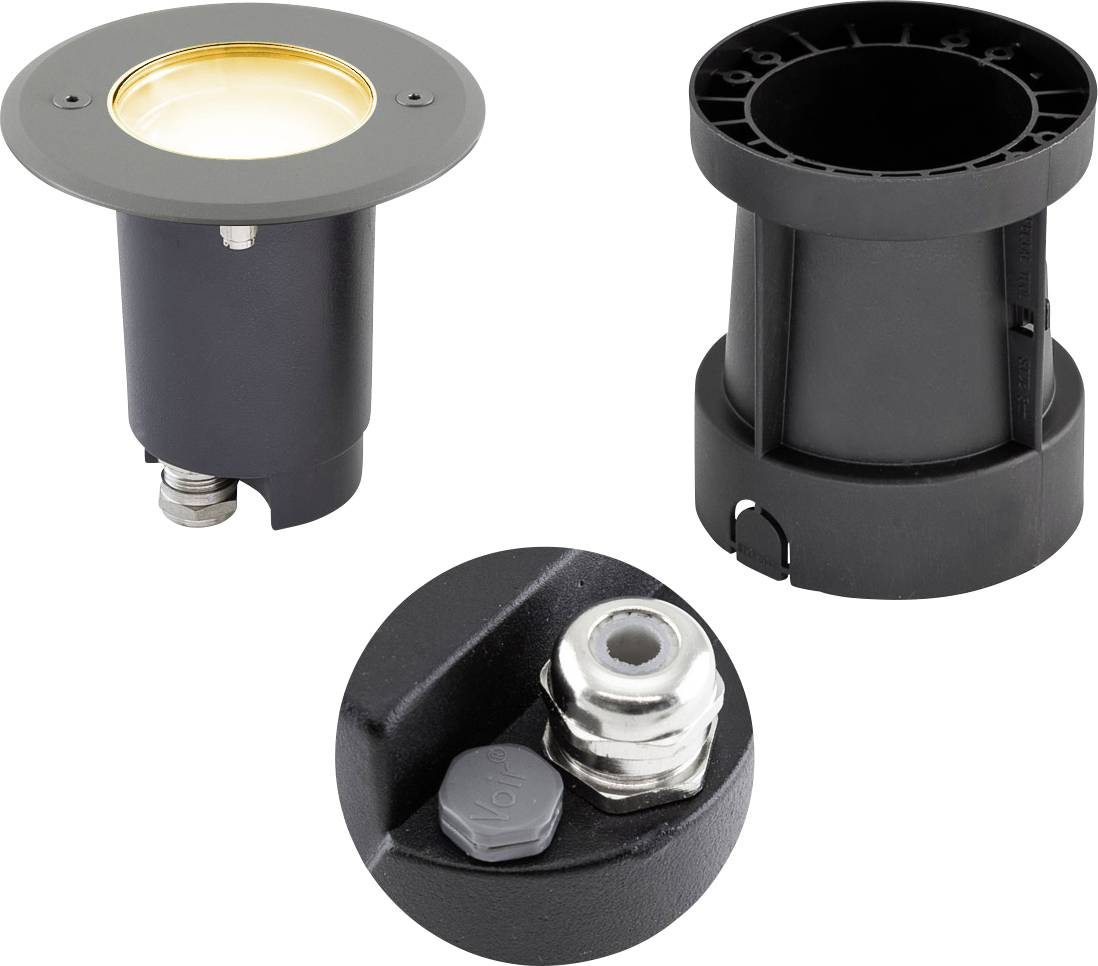

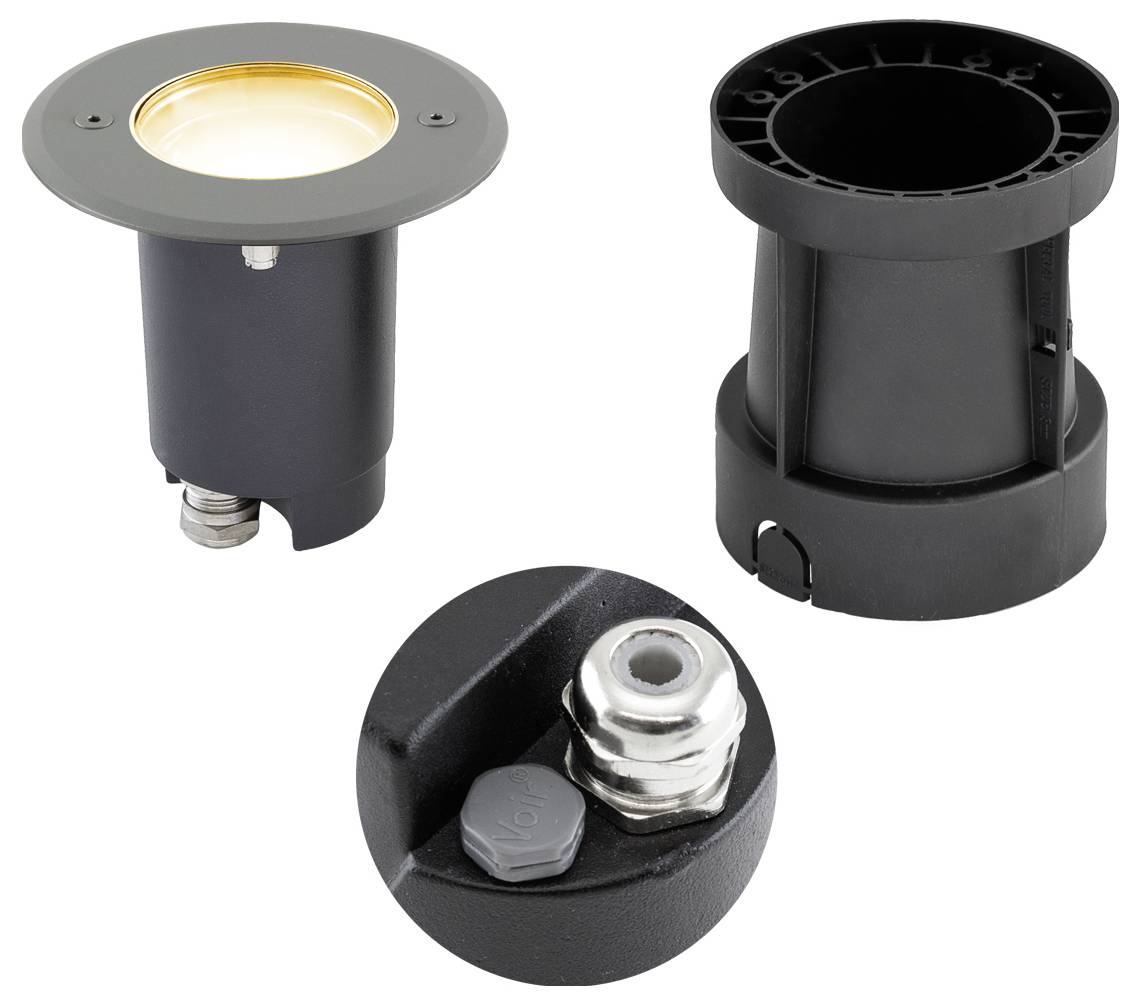

The lamp body is made of aluminum, while the cover plate is made of V2A stainless steel. The cable entry takes place via the cable gland located at the bottom, which is suitable for cables up to 9mm diameter. It is possible to mount the lamp without the plastic installation pot included in the delivery, in this case the hole cut-out is 96mm while the installation depth remains unchanged. The supplied GU10 LED light bulb can be replaced at any time if required. The swivel angle is 10°. In addition, a matt protective glass is included in the delivery.
