EVN 679235EV 679235EV Recessed floor light GU10 High-voltage halogen lamp Stainless steel
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Swiveling sunken ground light, IP67
- Colour temperature= 0 K
Technical specifications
- Product type
Recessed floor light
- Operating voltage
230 V AC
- Outside Ø
120 mm
- Bulb type
High-voltage halogen lamp
GU10
- Rating per bulb
35 W
0 K
- Recess diameter
102 mm
- Recess depth
120 mm
- Protection screen
Textured
- Light features
Incl. receptacle
- Swivel range (max.)
10°
- Protection class
I
IP67
- Factory colour
Stainless steel
- Material
Aluminium
n.rel.
- Light bulb included
No
- Height
110 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483526 EVN 679235EV 679235EV Recessed floor light GU10 High-voltage halogen lamp Stainless steel
User & Safety Instructions
User & Safety Instructions 2483526 EVN 679235EV 679235EV Recessed floor light GU10 High-voltage halogen lamp Stainless steel
Description

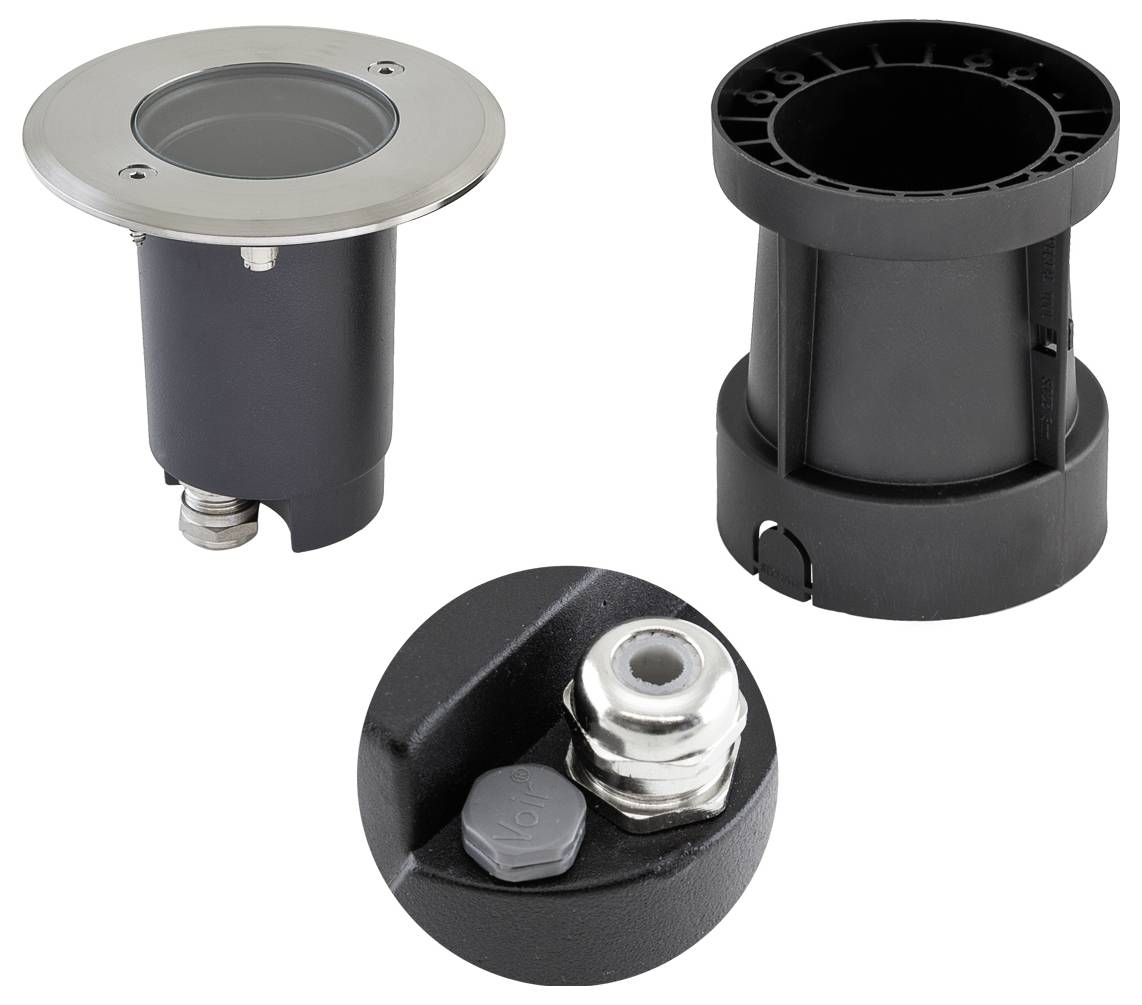

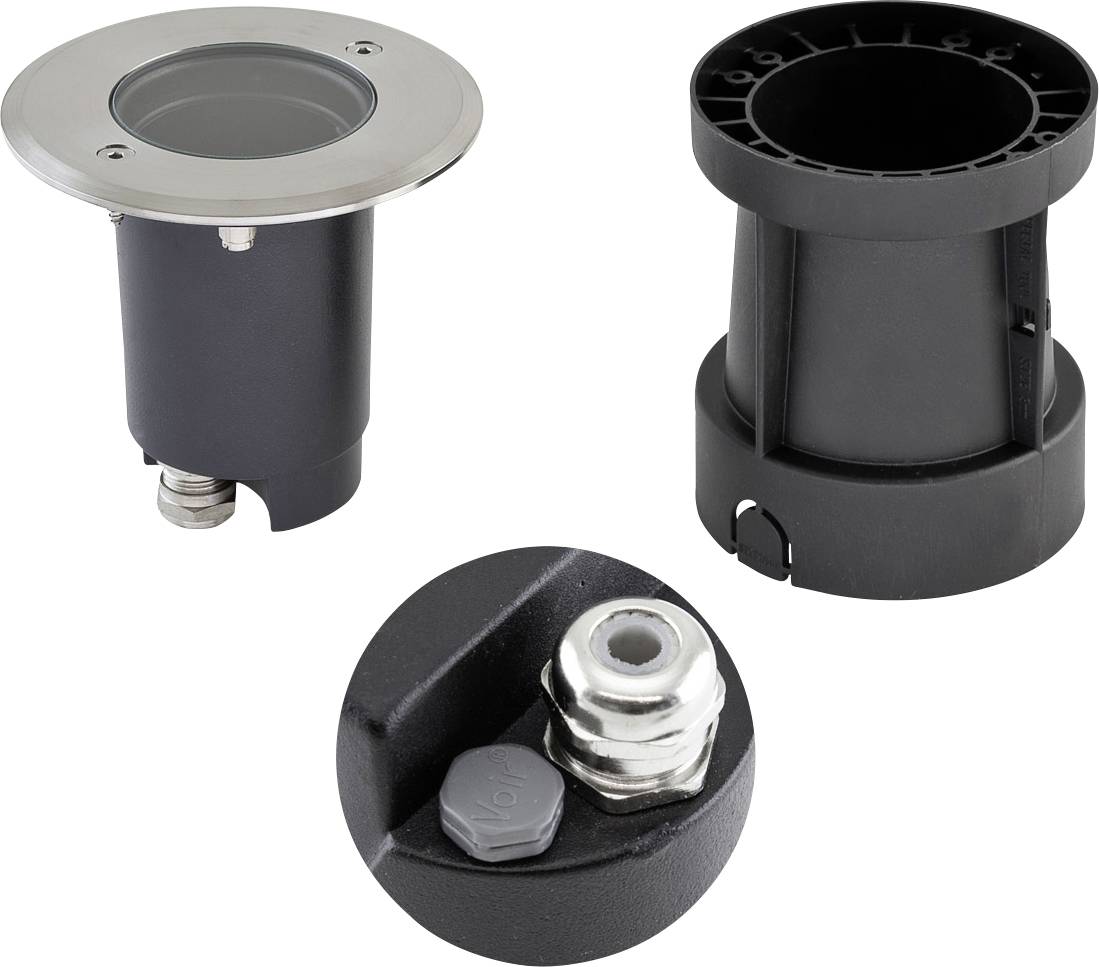

The lamp body is made of aluminum, while the cover plate is made of V2A stainless steel. The cable entry takes place via the cable gland located at the bottom, which is suitable for cables up to 9mm diameter. To prevent condensation, there is a self-venting bleed valve on the bottom of the lamp. It is possible to mount the lamp without the plastic installation pot included in the delivery, in this case the hole cut-out is 96mm while the installation depth remains unchanged. The GU10 mains voltage socket allows different bulbs up to 35W to be used in the lamp. The maximum overrun speed is 20km/h, the swivel angle is 10°. In addition, a matt protective glass is included in the delivery.
This text is machine translated.
This text is machine translated.
Hints
Please order lamp separately.
