EVN 679235EV527 679235EV.527 Recessed floor light GU10 LED (monochrome)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EVN LED floor build-in radiator IP67 230V 5.5W 2700K 390LM round swb EDS
Technical specifications
- Product type
Recessed floor light
- No. of bulbs
1
- Bulb type
LED (monochrome)
GU10

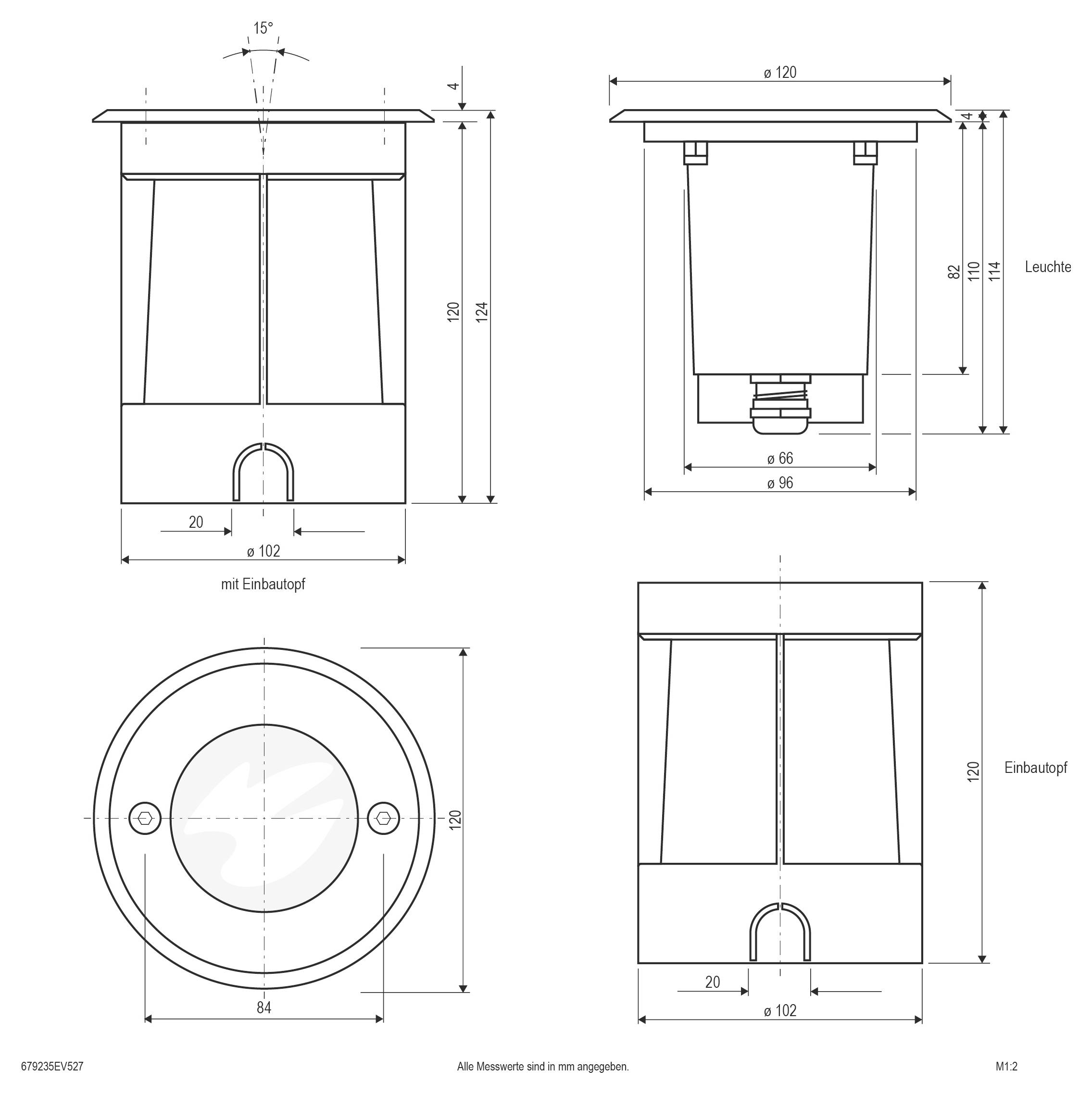

- Recess diameter
96 mm
- Protection screen
Satinised
- Light features
Incl. receptacle
- Swivel range (max.)
10°
- Material
Aluminium
n.rel.
- Light bulb included
Yes
Documents & Downloads
Datasheet
Datasheet 3035610 EVN 679235EV527 679235EV.527 Recessed floor light GU10 LED (monochrome)
User & Safety Instructions
User & Safety Instructions 3035610 EVN 679235EV527 679235EV.527 Recessed floor light GU10 LED (monochrome)
Description

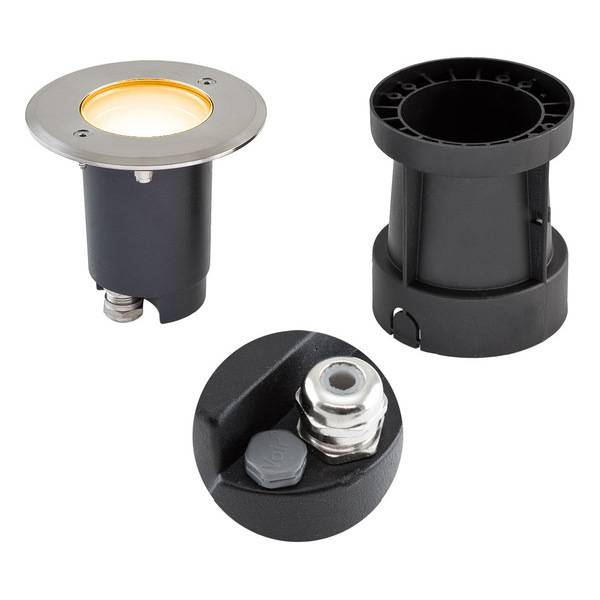

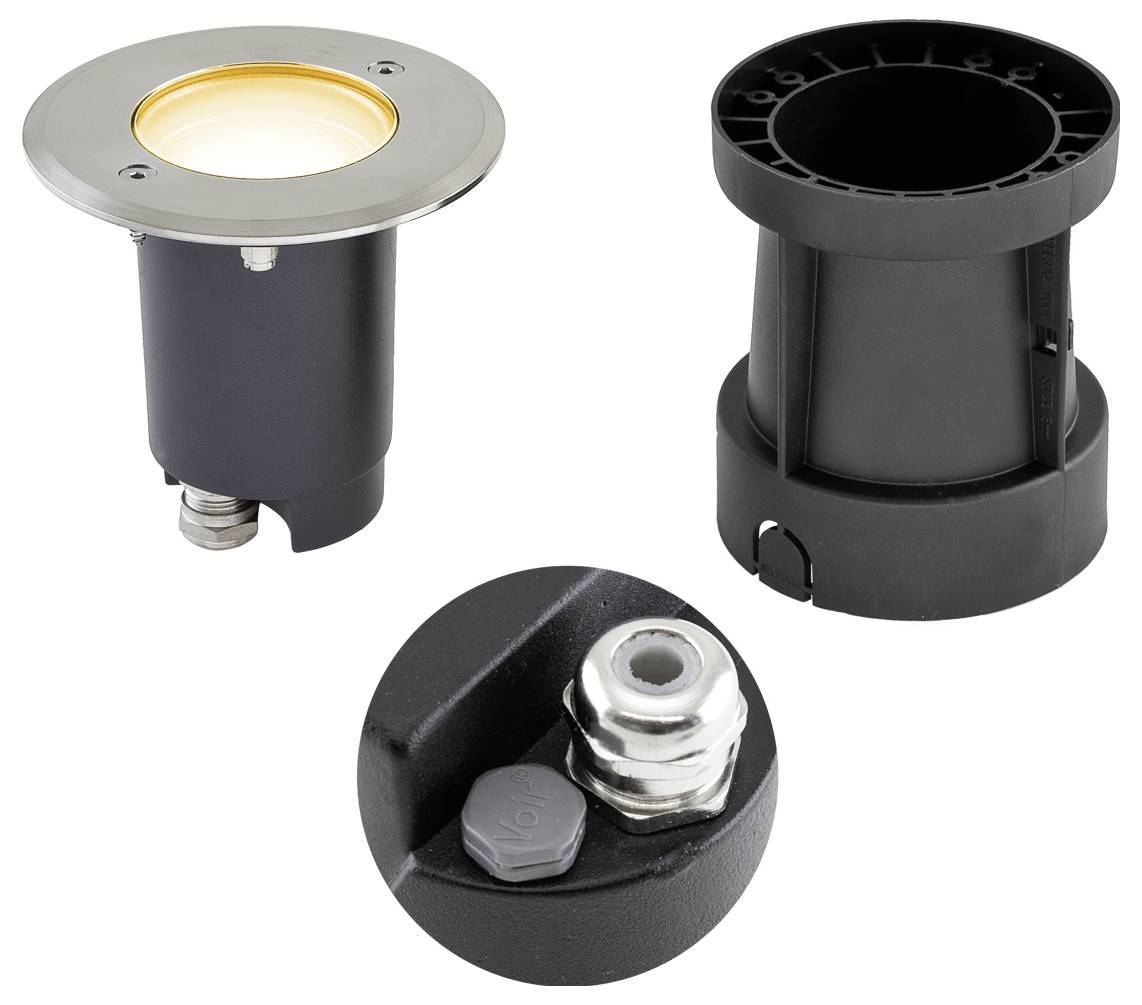

The lamp body is made of aluminum, while the cover plate is made of V2A stainless steel. Cable entry is made via the cable gland on the ground, which is suitable for cables up to 9mm diameter. To avoid condensation, there is a self-venting bleed valve on the underside of the lamp. There is the option of mounting the lamp without the plastic mounting pot included in the scope of supply, in this case the hole cut-out is 96mm while the installation depth remains unchanged. The supplied GU10 LED bulb can be replaced at any time, if required. The maximum crossing speed is 20 km/h, the swivel angle is 10°. Additionally, a matt safety glass is included in the delivery.
