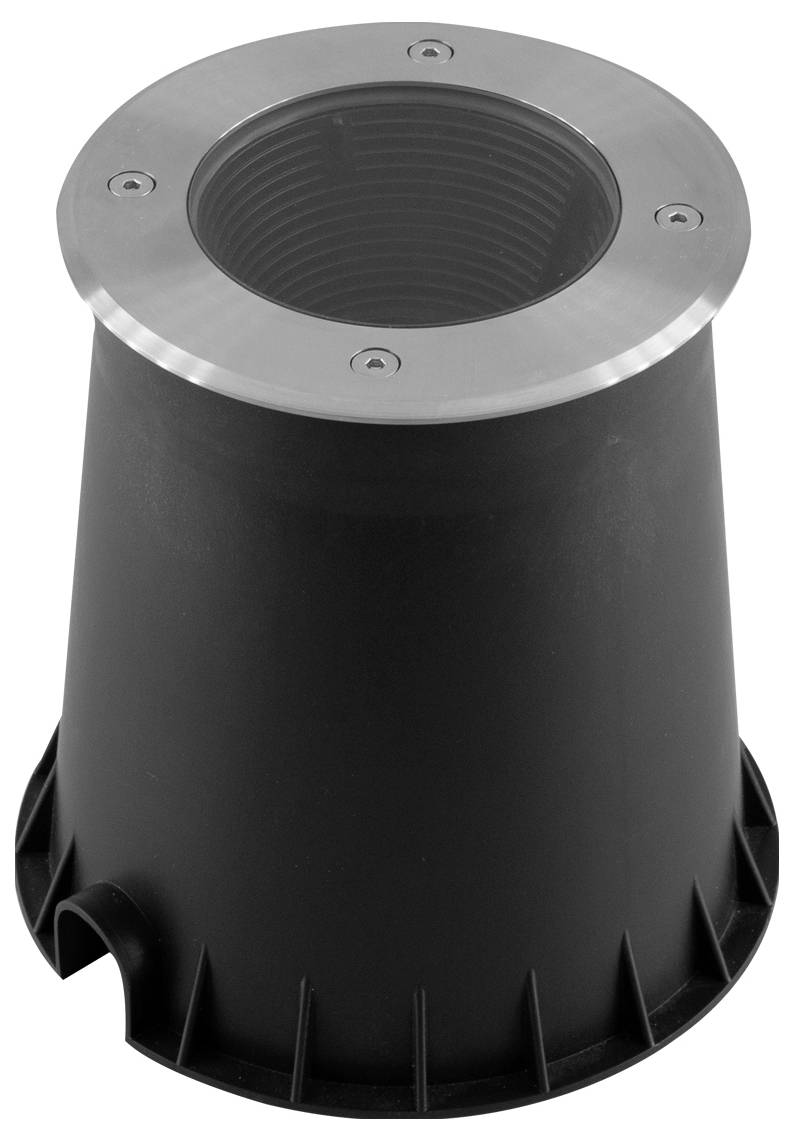

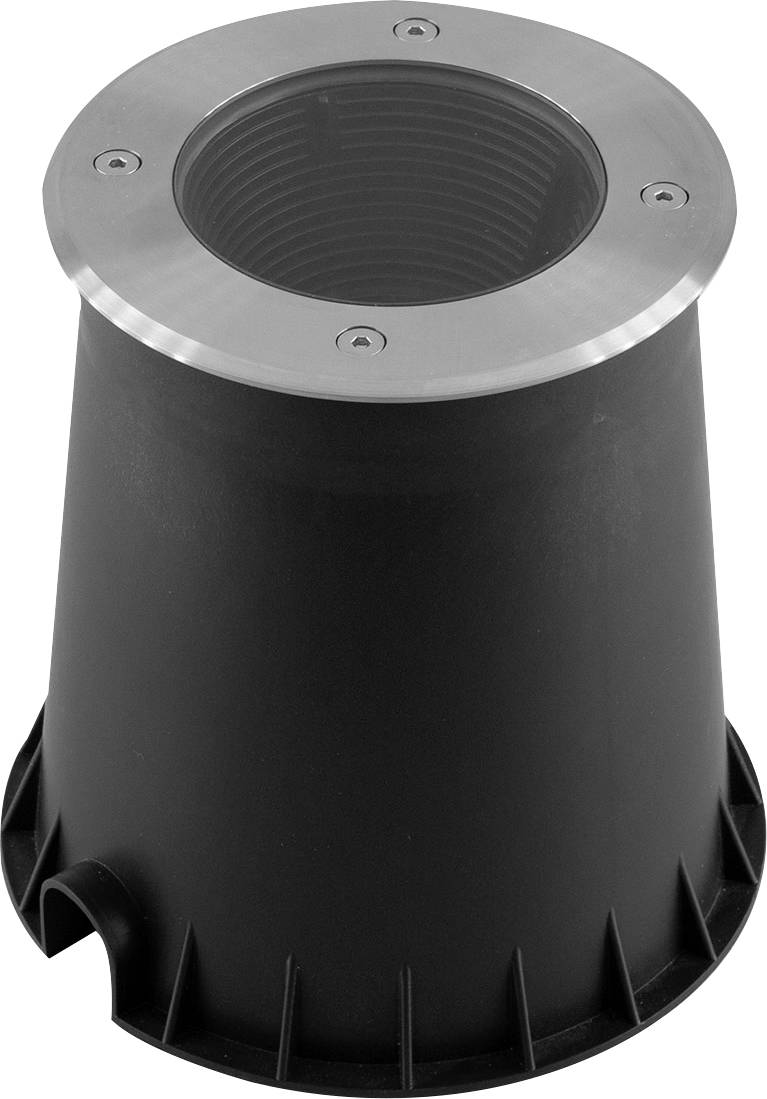

EVN 679238 679238 Recessed floor light GU10 High-voltage halogen lamp Stainless steel
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Swiveling sunken ground light, IP67
Technical specifications
- Product type
Recessed floor light
- Operating voltage
230 V AC
- Outside Ø
180 mm
- Bulb type
High-voltage halogen lamp
GU10
- Rating per bulb
50 W

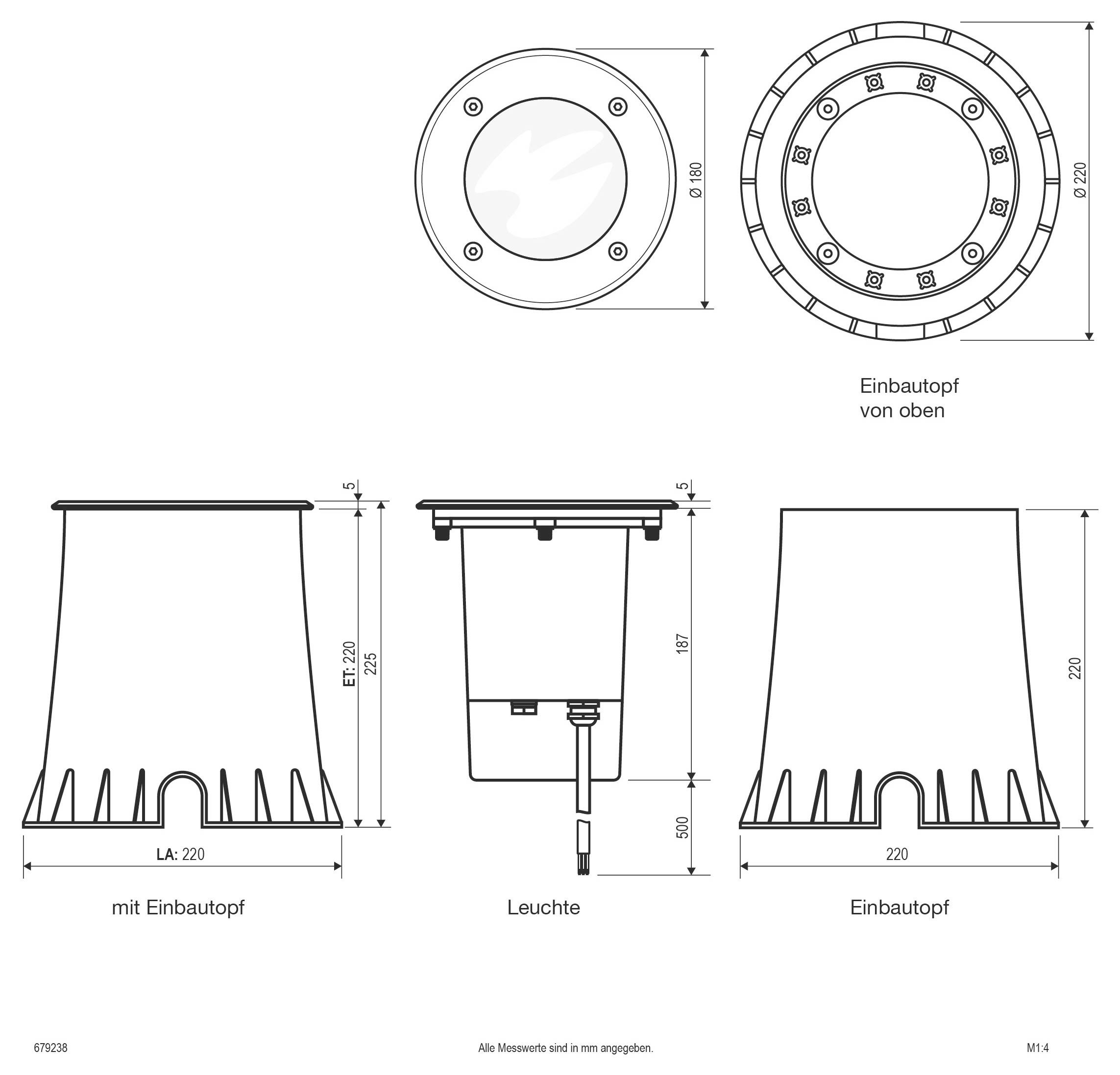

- Recess diameter
220 mm
- Recess depth
220 mm
- Protection screen
Textured
- Light features
Hardwearing
- Swivel range (max.)
20°
- Protection class
I
IP67
- Factory colour
Stainless steel
- Material
Aluminium
- Feed length
0.5 m
n.rel.
- Light bulb included
No
- Height
192 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483528 EVN 679238 679238 Recessed floor light GU10 High-voltage halogen lamp Stainless steel
User & Safety Instructions
User & Safety Instructions 2483528 EVN 679238 679238 Recessed floor light GU10 High-voltage halogen lamp Stainless steel
Description
The lamp body is made of aluminum, while the cover plate is made of V2A stainless steel. To prevent condensation, there is a self-venting bleed valve on the bottom of the lamp. The GU10 mains voltage socket allows different bulbs up to 50W to be used in the lamp. The maximum overrun speed is 20km/h, the swivel angle is 20°. In addition, the light bulb holder is mounted in a rotating position. The cable located on the lamp has a length of 0.5m.
This text is machine translated.
This text is machine translated.
Hints
Please order lamp separately.
