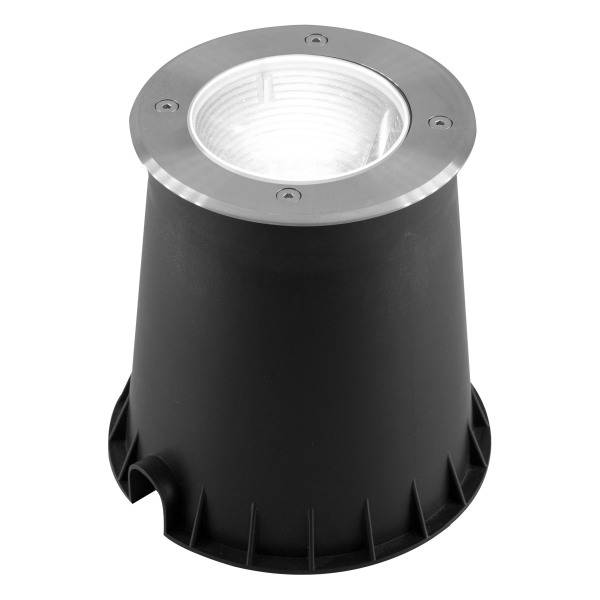

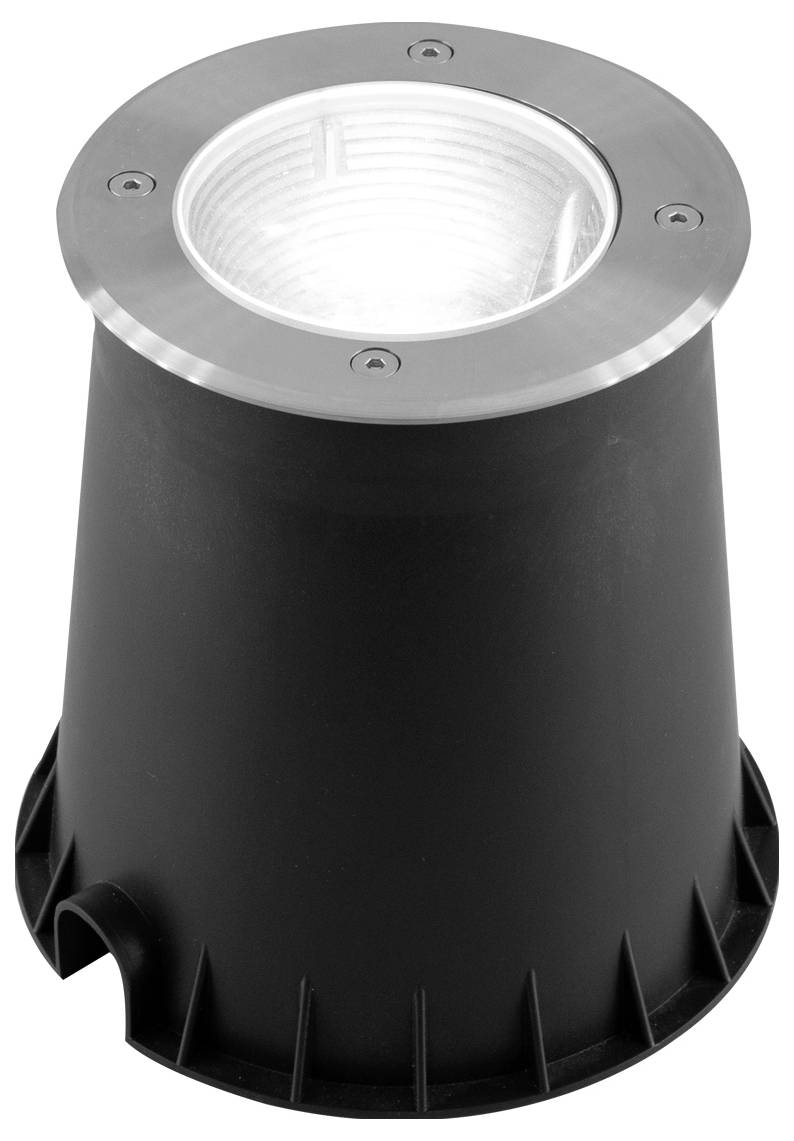

EVN 679238504 679238504 Recessed floor light GU10 LED (monochrome)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EVN LED floor panel-mounted spotlight 230V 4.6W 4000K 390LM incl. LM round
Technical specifications
- Product type
Recessed floor light
- Bulb type
LED (monochrome)
GU10
- Rating per bulb
50 W
- Light features
Pivoted
- Swivel range (max.)
20°
- Material
Aluminium
- Feed length
0.50 m
n.rel.
- Light bulb included
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3035654 EVN 679238504 679238504 Recessed floor light GU10 LED (monochrome)
User & Safety Instructions
User & Safety Instructions 3035654 EVN 679238504 679238504 Recessed floor light GU10 LED (monochrome)
Description
The lamp body is made of aluminum, while the cover plate is made of V2A stainless steel. To avoid condensation, there is a self-venting bleed valve on the underside of the lamp. Due to the GU10 high-voltage socket different light bulbs up to max. 50W can be operated in the light. The LED light supplied can be replaced at any time, if required. The maximum crossing speed is 20 km/h, the swivel angle is 20°. The bulb holder is also mounted in a rotating fashion. The lamp has a 0.50 m long connection cable (ÖLFLEX CLASSIC 110 BLACK 3 x 0,75mm²) with free wire ends.
