EVN 679461 679461 Outdoor recessed light GX5.3 LED (monochrome)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EVN LED panel-mounted light fixture noble steel angled 12V AC/DC Gx 5.3 Max 35W
Technical specifications
- Product type
Outdoor recessed light
- Bulb type
LED (monochrome)
GX5.3
- Rating per bulb
35 W

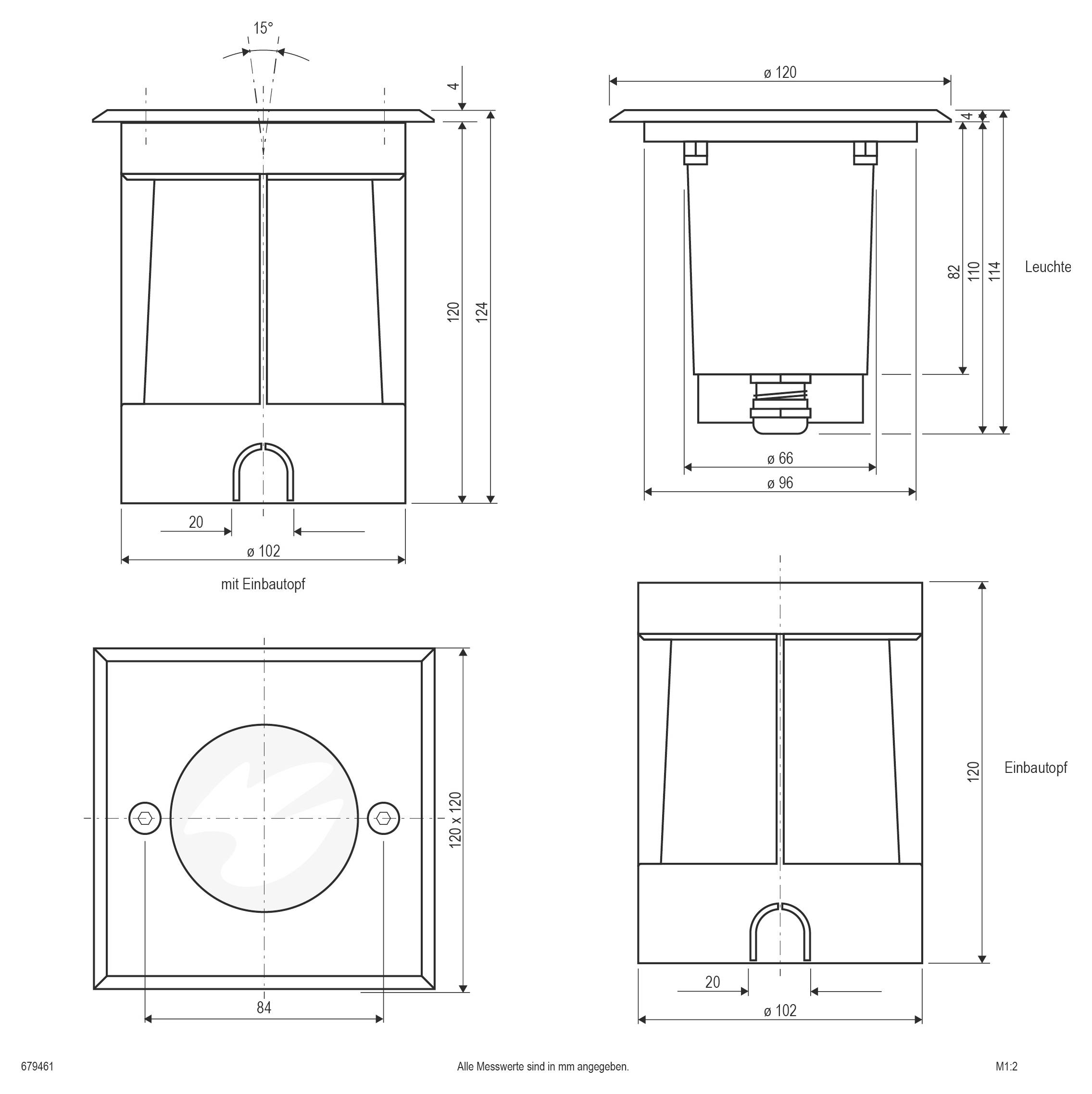

- Recess diameter
96 mm
- Protection screen
Satinised
- Light features
Swivelling
- Swivel range (max.)
15°
- Material
Aluminium
n.rel.
- Light bulb included
No
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3035078 EVN 679461 679461 Outdoor recessed light GX5.3 LED (monochrome)
User & Safety Instructions
User & Safety Instructions 3035078 EVN 679461 679461 Outdoor recessed light GX5.3 LED (monochrome)
Description
The lamp body is made of aluminum, while the cover plate is made of V2A stainless steel. Cable entry is made via the cable gland on the ground, which is suitable for cables up to 9mm diameter. There is the option of mounting the lamp without the plastic mounting pot included in the scope of supply, in this case the hole cut-out is 96mm while the installation depth remains unchanged. Due to the low-voltage socket different illuminant up to max. 35W can be operated in the lamp. The maximum crossing speed is 20 km/h, the swivel angle is 15°. Additionally, a matt safety glass is included in the delivery.
