EVN AD27250125 AD27250125 LED panel 25 W Warm white to daylight white White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

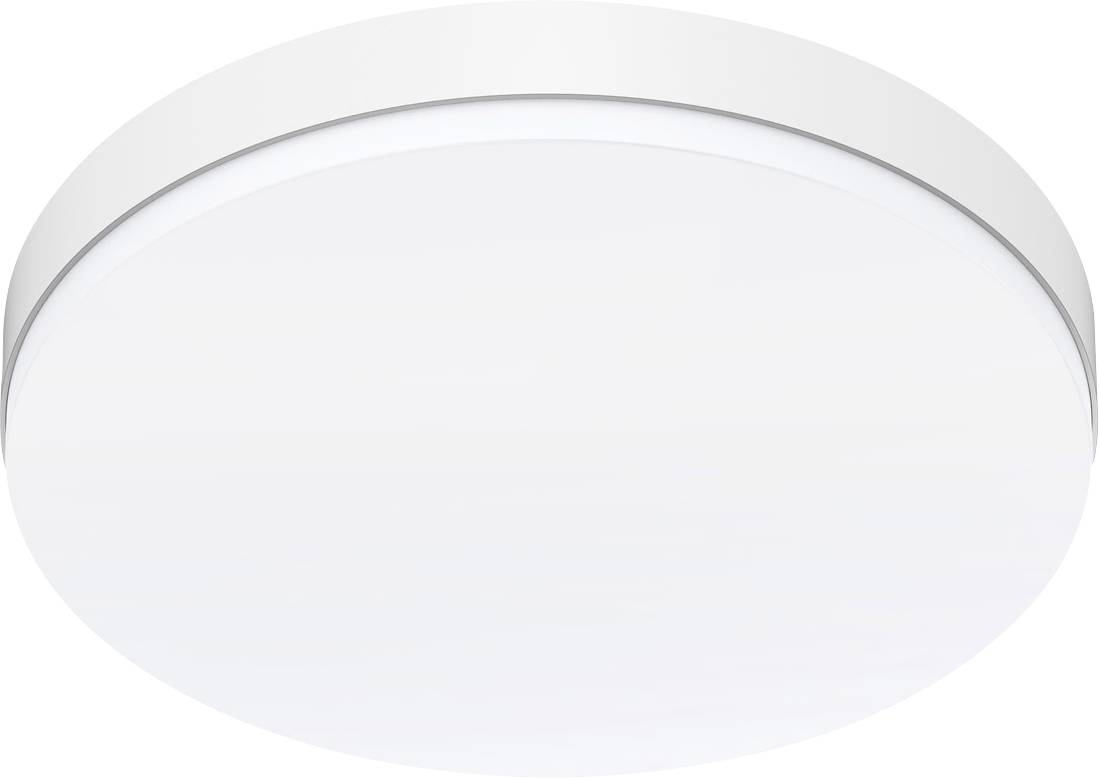

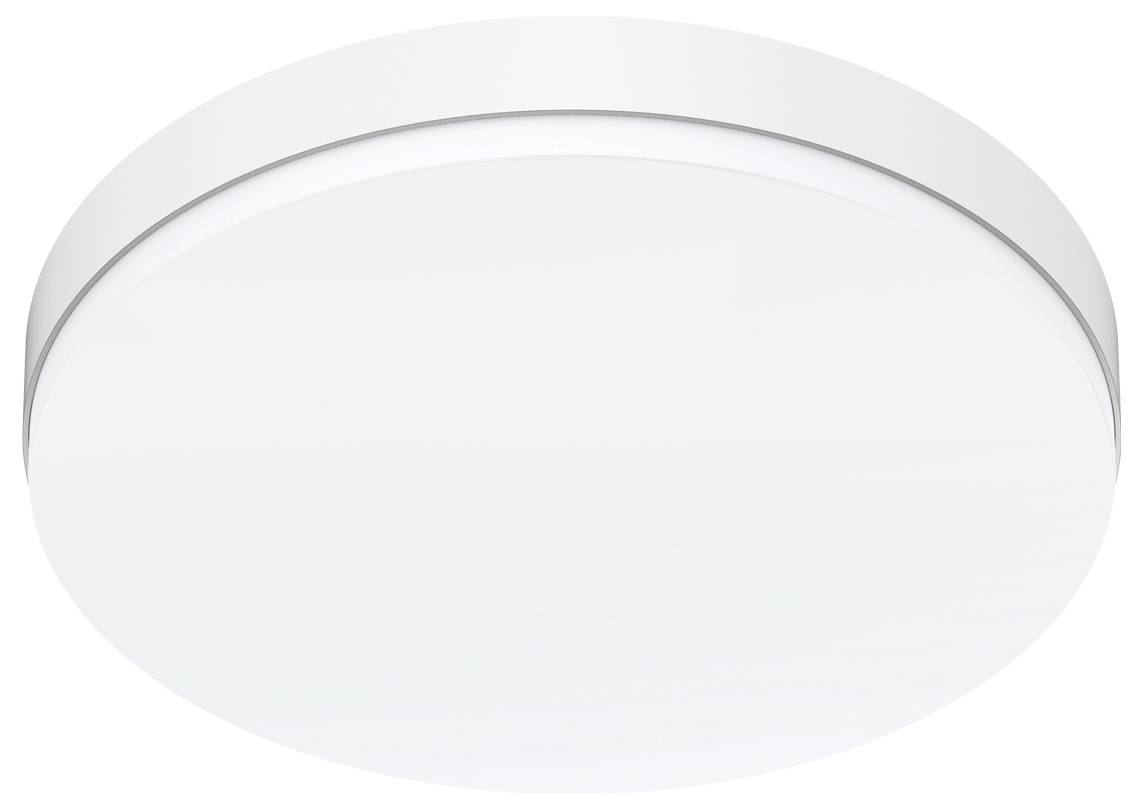

LED mounting panel with adjustable color temperature
- Power= 25 W
- Total luminous flux= 2700 lm
- Colour temperature= 5700 K
- Warm white to daylight white
Technical specifications
- Product type
LED panel
- Type
Planar
- Operating voltage
200 V
240 V
- Bulb type
LED (monochrome)
Built-in LED
25 W
5700 K
- Colour
Warm white to daylight white
- Total luminous flux
2700 lm
- Light features
Selectable colour
Ceiling mount option
Suitable for wall mounting
- Radiation angle
80°
- Protection class
II
IP54
IK08
- Factory colour
White
- Material
Plastic

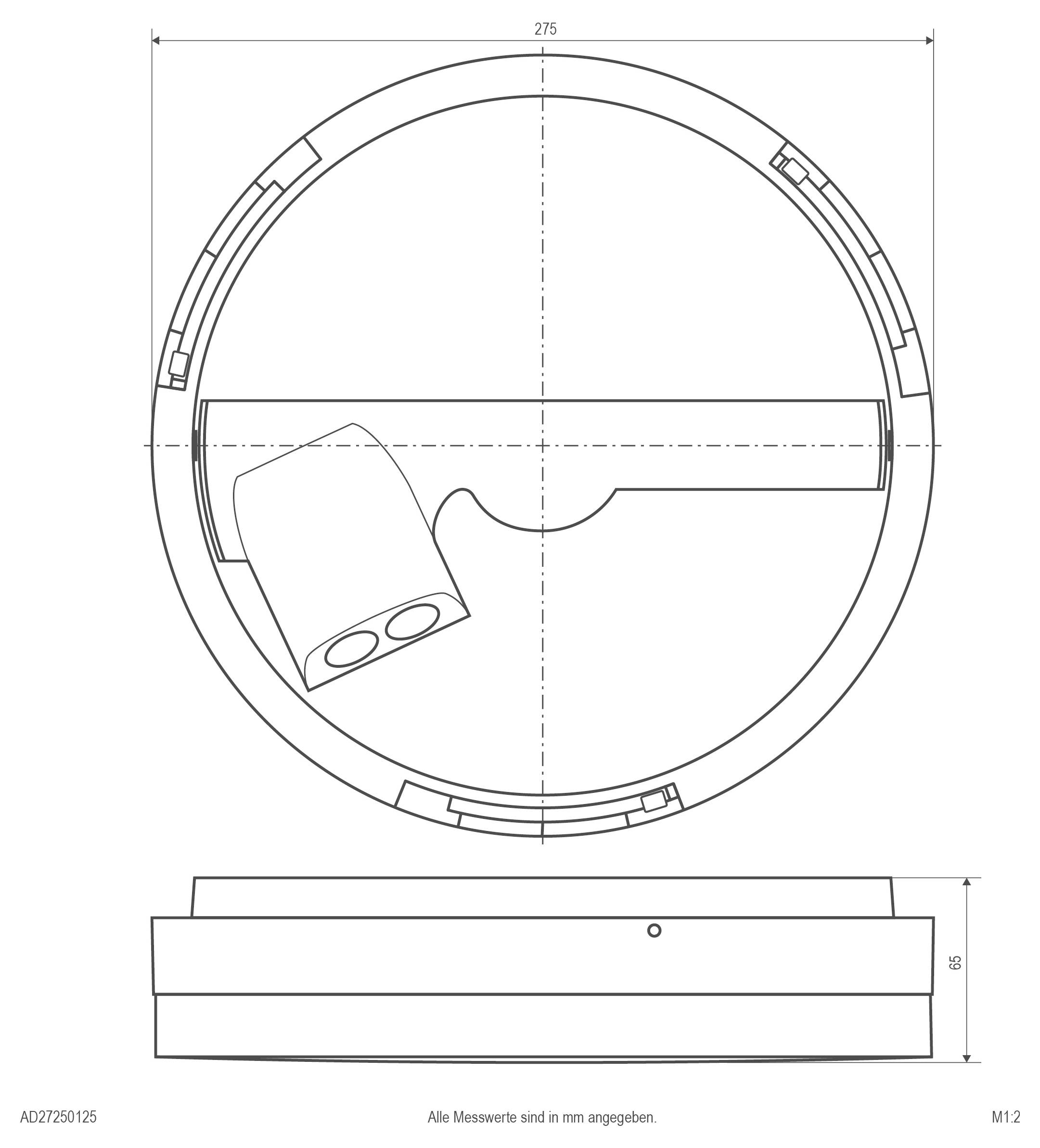

- Height
65 mm
- (Ø)
275 mm
n.rel.
- Light bulb included
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483538 EVN AD27250125 AD27250125 LED panel 25 W Warm white to daylight white White
User & Safety Instructions
User & Safety Instructions 2483538 EVN AD27250125 AD27250125 LED panel 25 W Warm white to daylight white White
Description
LED mounting panel for various applications in indoor and outdoor areas. The panel can be mounted on ceilings as well as on walls. Through the large-area light emission, a very homogeneous illumination of the room is always achieved. With the switch on the rear side, one of three possible color temperatures can be set. The possible color temperatures and resulting lumen are: 3000K (2350lm), 4000K (2900lm), 5700K (2700lm). The housing color corresponds to RAL9016. Protocol: dt6,DALI2.
