EVN AD27251425 AD27251425 LED panel 25 W Warm white to daylight white Silver
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LED mounting panel with adjustable color temperature
- Power= 25 W Colour temperature= 5700 K Warm white to daylight white
Technical specifications
- Product type
LED panel
- Type
Planar
- Operating voltage
200 V
240 V
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
25 W
25 W
5700 K
- Colour
Warm white to daylight white
2700 lm
- Light features
Selectable colour
Ceiling mount option
Suitable for wall mounting
- Radiation angle
80°
- Protection class
II
IP54
IK08
- Factory colour
Silver
- Material
Plastic

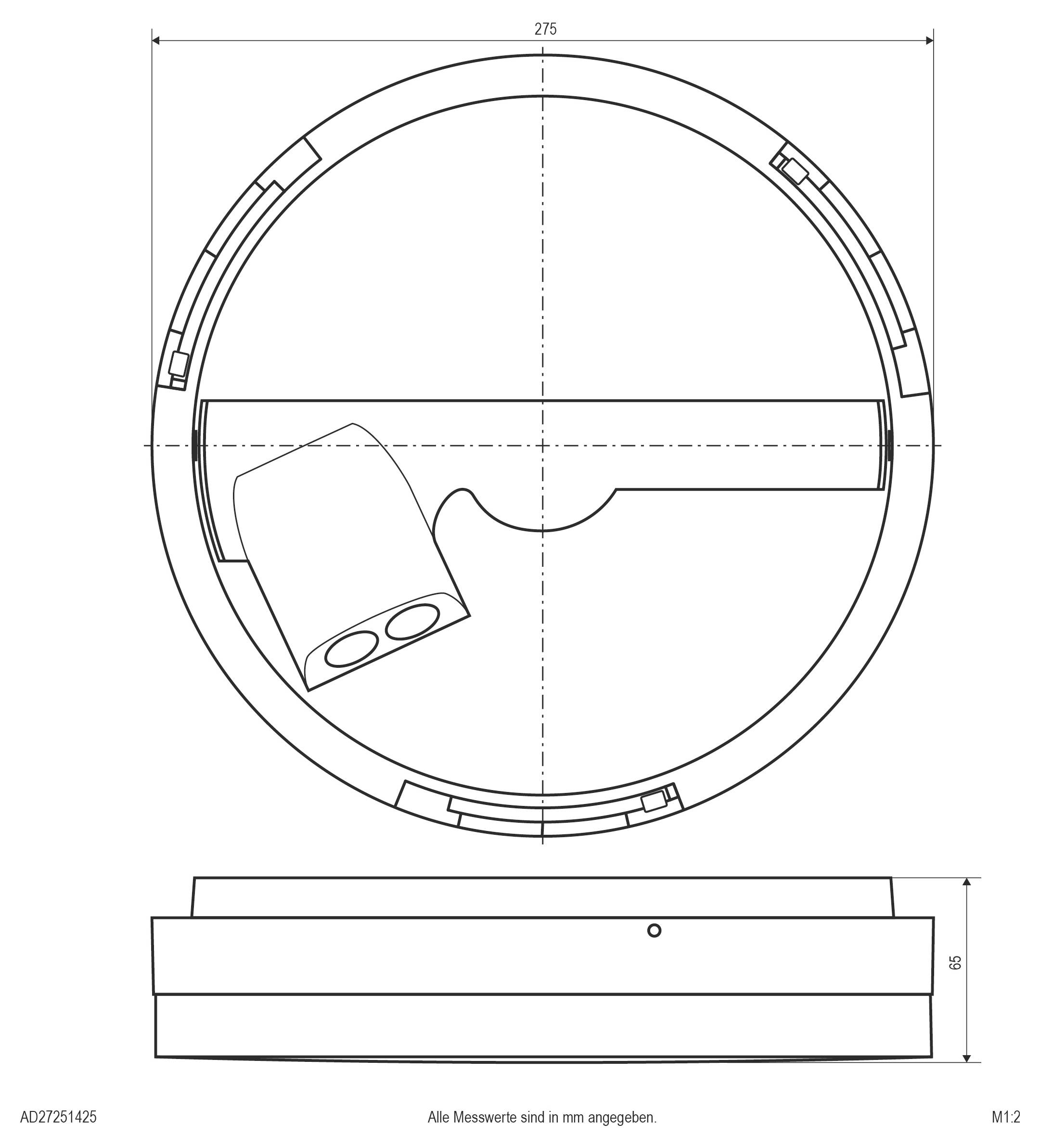

- Height
65 mm
- (Ø)
275 mm
n.rel.
- Light bulb included
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483539 EVN AD27251425 AD27251425 LED panel 25 W Warm white to daylight white Silver
User & Safety Instructions
User & Safety Instructions 2483539 EVN AD27251425 AD27251425 LED panel 25 W Warm white to daylight white Silver
Description
LED mounting panel for various applications in indoor and outdoor areas. The panel can be mounted on ceilings as well as on walls. Through the large-area light emission, a very homogeneous illumination of the room is always achieved. With the switch on the rear side, one of three possible color temperatures can be set. The possible color temperatures and resulting lumen are: 3000K (2350lm), 4000K (2900lm), 5700K (2700lm). The housing color corresponds to RAL9006. Protocol: dt6,DALI2.
