Name: EVN ALR250140 ALR250140 LED ceiling light LED (monochrome) Built-in LED 12 W White
Brand: EVN
SKU: 2483557

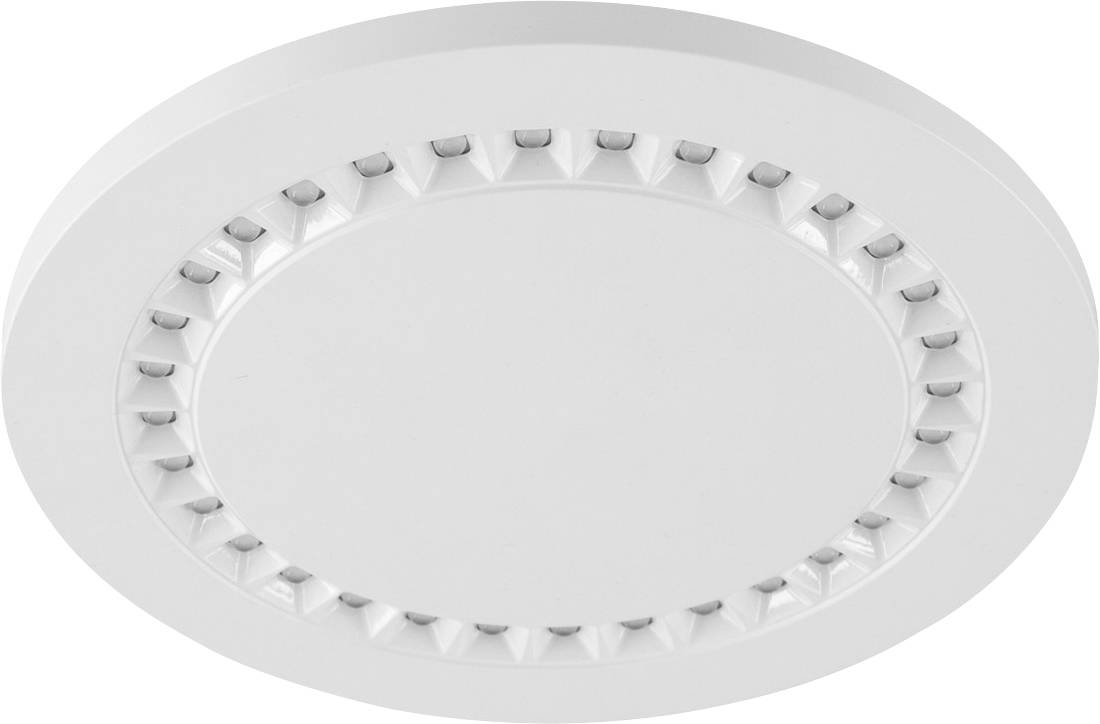

Round white ceiling light fixture with a recessed inner ring of evenly spaced small tabs.

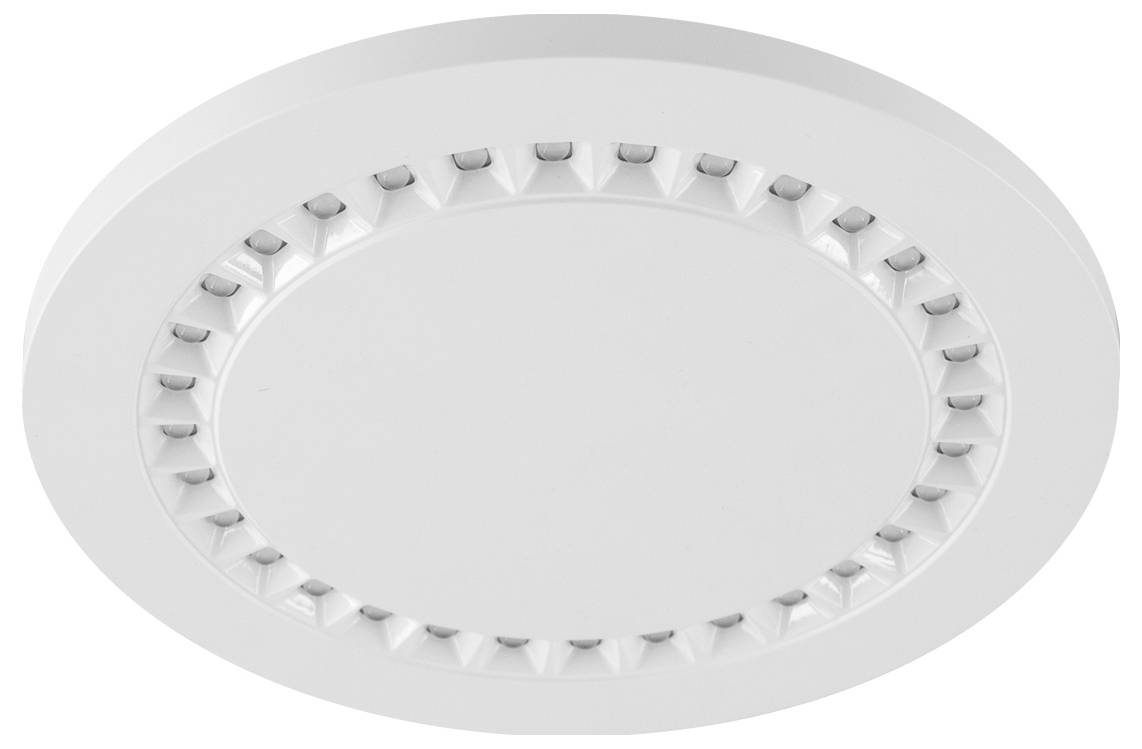

White round ceiling light fixture with a recessed center and ring of small vents or lenses around the inner edge.

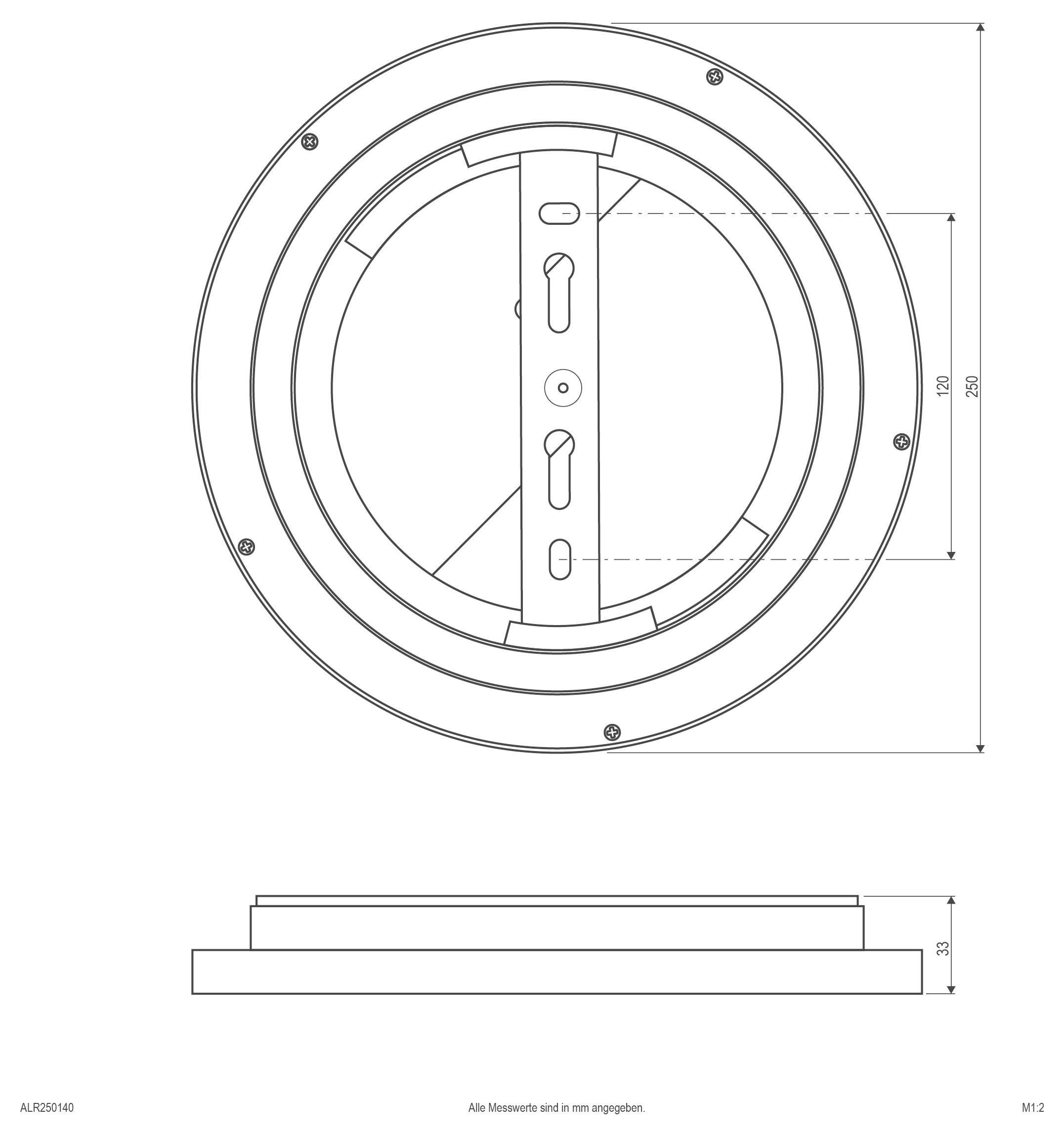

Technical drawing of a circular mechanical part with front and side views, showing mounting holes and dimensions labeled 120 and 250 mm.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

LED mounted lamp with low height

Power= 12 W
Total luminous flux= 1325 lm
Colour temperature= 4000 K
Natural white

Technical specifications

Dim: (Ø x H) 250 mm x 33 mm

Operating voltage: 200 V
240 V

Product type: LED ceiling light

Bulb type: LED (monochrome)

Height: 33 mm

: Built-in LED

Rating per bulb: 12 W

: 12 W

(Ø): 250 mm

Light features: Suitable for wall mounting

Protection class: II

: IP20
IK08

Factory colour: White

Material: Plastic

: n.rel.

Colour: Natural white

Light bulb included: Yes

: 4000 K

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Total luminous flux: 1325 lm

: 1325 lm

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Bulb type

Dim

Factory colour

Light features

Power

Product type

EVN ALR250140 ALR250140 LED ceiling light LED (monochrome) Built-in LED 12 W White

Item no:2483557

Unavailable

Conrad Electronic

This article

LED (monochrome)

(Ø x H) 250 mm x 33 mm

White

Suitable for wall mounting

12 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN AL20100102 AL20100102 LED ceiling light LED (monochrome) 10 W White

Item no:2483542

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x L) 80 mm x 130 mm

White

Dimmable

10 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN AL20100902 AL20100902 LED ceiling light LED (monochrome) 10 W Black

Item no:2483543

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x L) 80 mm x 130 mm

Black

Dimmable

10 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN AL20180902 AL20180902 LED ceiling light LED (monochrome) 18 W Black

Item no:2483545

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x L) 80 mm x 160 mm

Black

Dimmable

18 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN AL54100102 AL54100102 LED ceiling light LED (monochrome) Built-in LED 10 W White

Item no:2483546

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x H) 70 mm x 100 mm

White

10 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN AL54101502 AL54101502 LED ceiling light LED (monochrome) Built-in LED 10 W Anthracite

Item no:2483547

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x H) 70 mm x 100 mm

Anthracite

10 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN ALG54130125 ALG54130125 LED ceiling light LED (monochrome) 13 W White

Item no:2483548

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x H) 213 mm x 129 mm

White

Incl. switch

13 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN ALG54131525 ALG54131525 LED ceiling light LED (monochrome) 13 W Anthracite

Item no:2483549

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x H) 213 mm x 129 mm

Anthracite

Colour-changing

13 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN ALG54250125 ALG54250125 LED ceiling light LED (monochrome) 25 W White

Item no:2483550

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x L) 213 mm x 129 mm

White

Incl. switch

25 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN ALG54251525 ALG54251525 LED ceiling light LED (monochrome) 25 W Anthracite

Item no:2483551

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x L) 213 mm x 129 mm

Anthracite

Colour-changing

25 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2483557 EVN ALR250140 ALR250140 LED ceiling light LED (monochrome) Built-in LED 12 W White

User & Safety Instructions

User & Safety Instructions 2483557 EVN ALR250140 ALR250140 LED ceiling light LED (monochrome) Built-in LED 12 W White

Description

LED mounted light for different application areas, such as covering area, but also effective lighting in hall, living room, office, and much more. The panel is only suitable for indoor use. The mounting is done without visible screws by means of carrier plate and is possible on ceilings as well as on walls. The blend value is UGR less than 22.
