Name: EVN ALR300140 ALR300140 LED surface-mount light LED (monochrome) Built-in LED 15 W White
Brand: EVN
SKU: 2483559

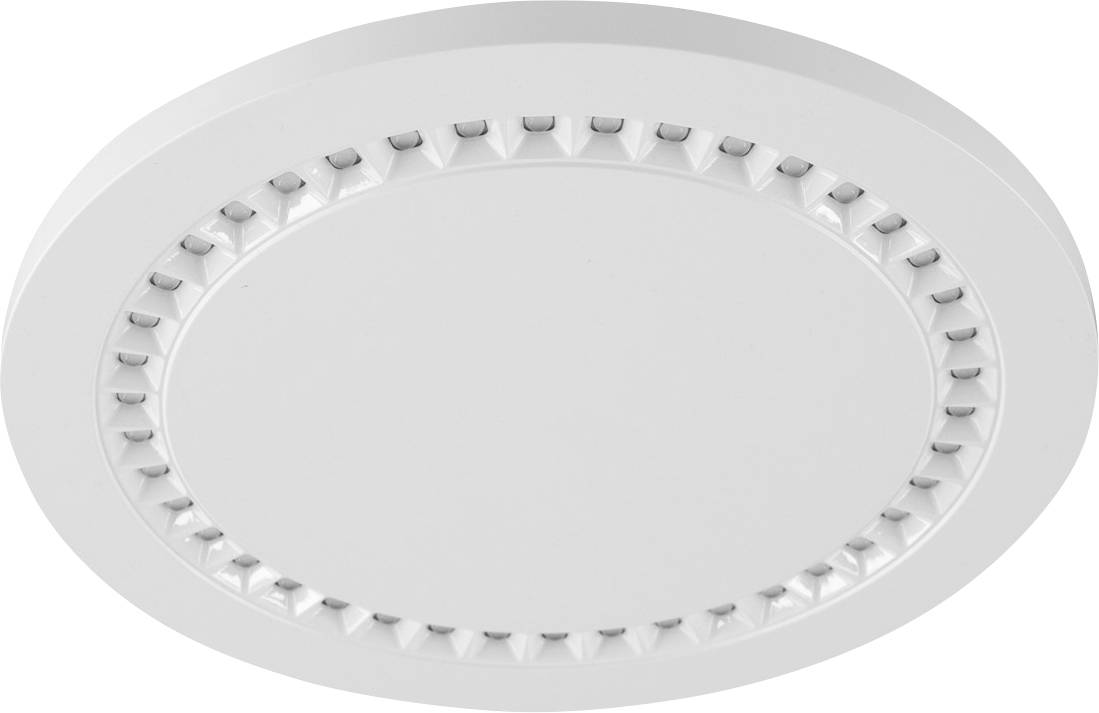

Round white recessed ceiling light fixture with an outer trim and inner ring of small vent-like openings.

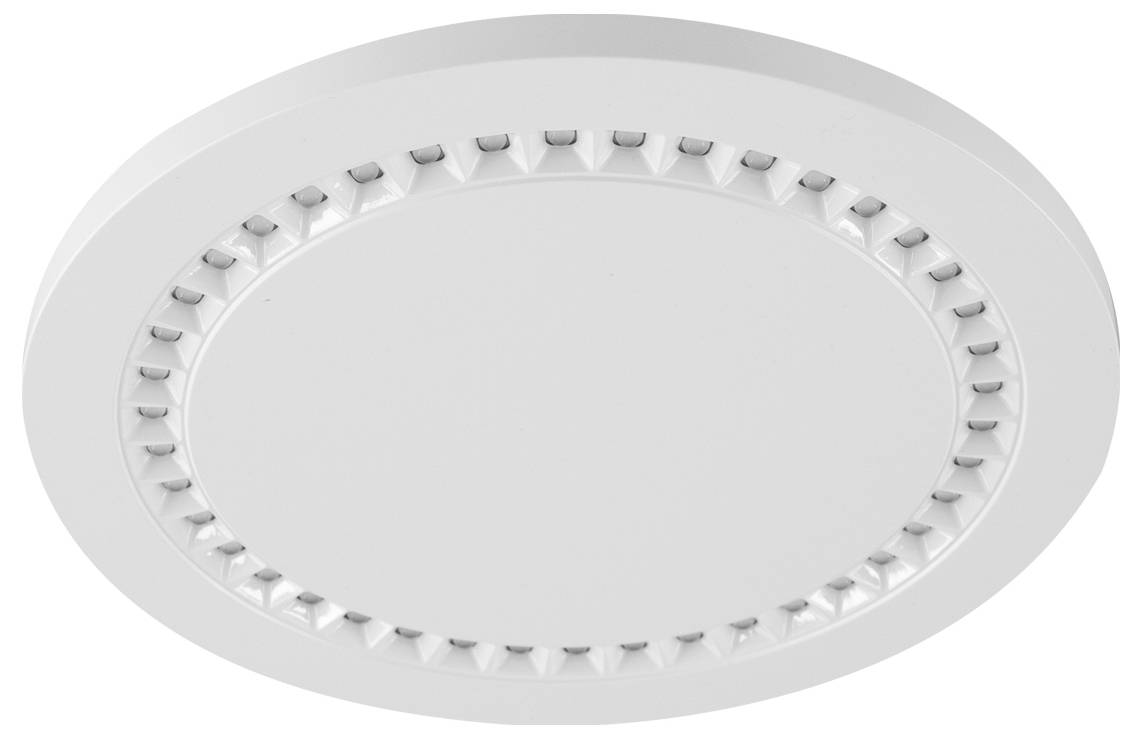

Round white LED ceiling light fixture with a smooth center and ring of small angled vents around the edge.

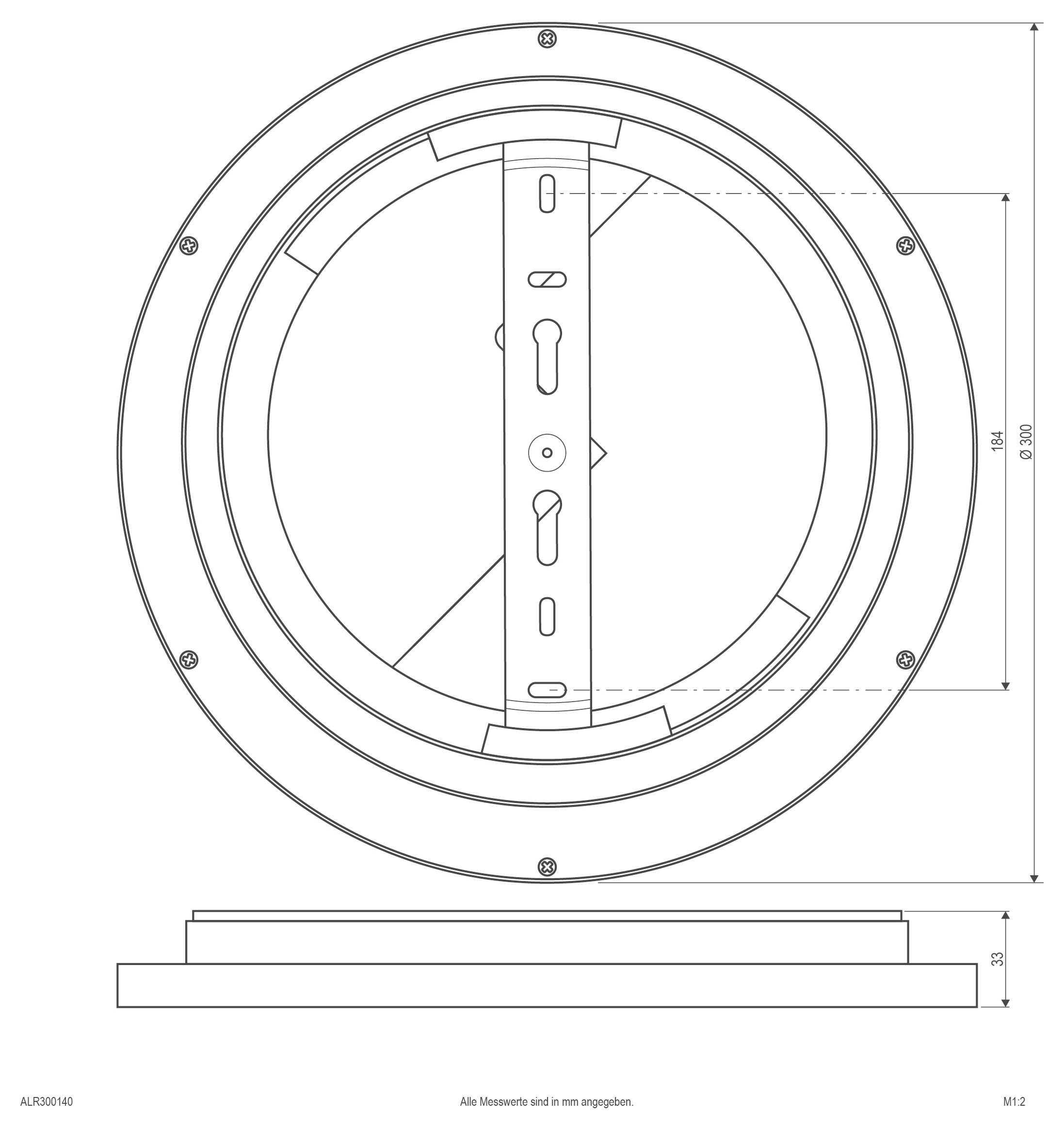

Technical line drawing of a circular recessed fixture with mounting plate, showing front and side views with dimension lines and measurements.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

LED mounted lamp with low height

Power= 15 W
Total luminous flux= 1840 lm
Colour temperature= 4000 K
Natural white

Technical specifications

Dim: (Ø x H) 300 mm x 33 mm

Operating voltage: 200 V
240 V

Product type: LED surface-mount light

Bulb type: LED (monochrome)

Height: 33 mm

: Built-in LED

Rating per bulb: 15 W

: 15 W

(Ø): 300 mm

Light features: Suitable for wall mounting

Protection class: II

: IP20
IK06

Factory colour: White

Material: Plastic

: n.rel.

Colour: Natural white

Light bulb included: Yes

: 4000 K

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Total luminous flux: 1840 lm

: 1840 lm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2483559 EVN ALR300140 ALR300140 LED surface-mount light LED (monochrome) Built-in LED 15 W White

User & Safety Instructions

User & Safety Instructions 2483559 EVN ALR300140 ALR300140 LED surface-mount light LED (monochrome) Built-in LED 15 W White

Description

LED mounted light for different application areas, such as covering area, but also effective lighting in hall, living room, office, and much more. The panel is only suitable for indoor use. The mounting is done without visible screws by means of carrier plate and is possible on ceilings as well as on walls. The blend value is UGR less than 22.
