Name: EVN AP44400125 AP44400125 LED ceiling light LED (monochrome) Built-in LED 40 W White
Brand: EVN
SKU: 3152005

Technical drawing of a circular component with dimensions. The diameter is 440 mm, height 39 mm. Details of the shape and cutouts are shown.

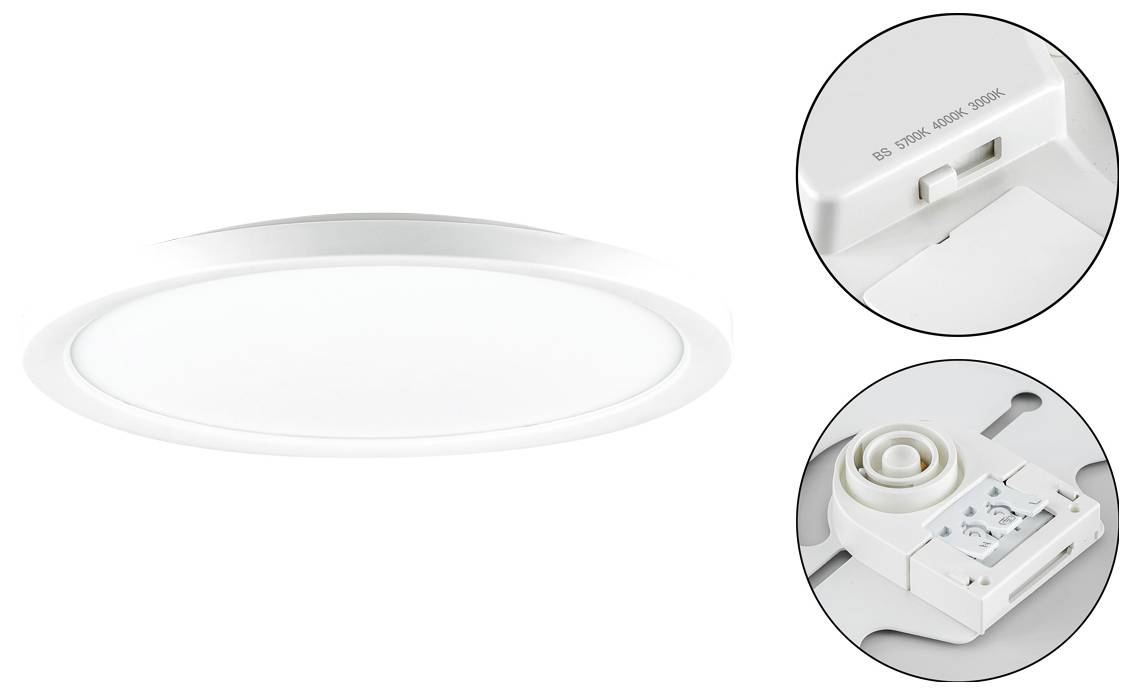

Round white LED ceiling light panel shown with close-ups of mounting clip and wiring compartment.

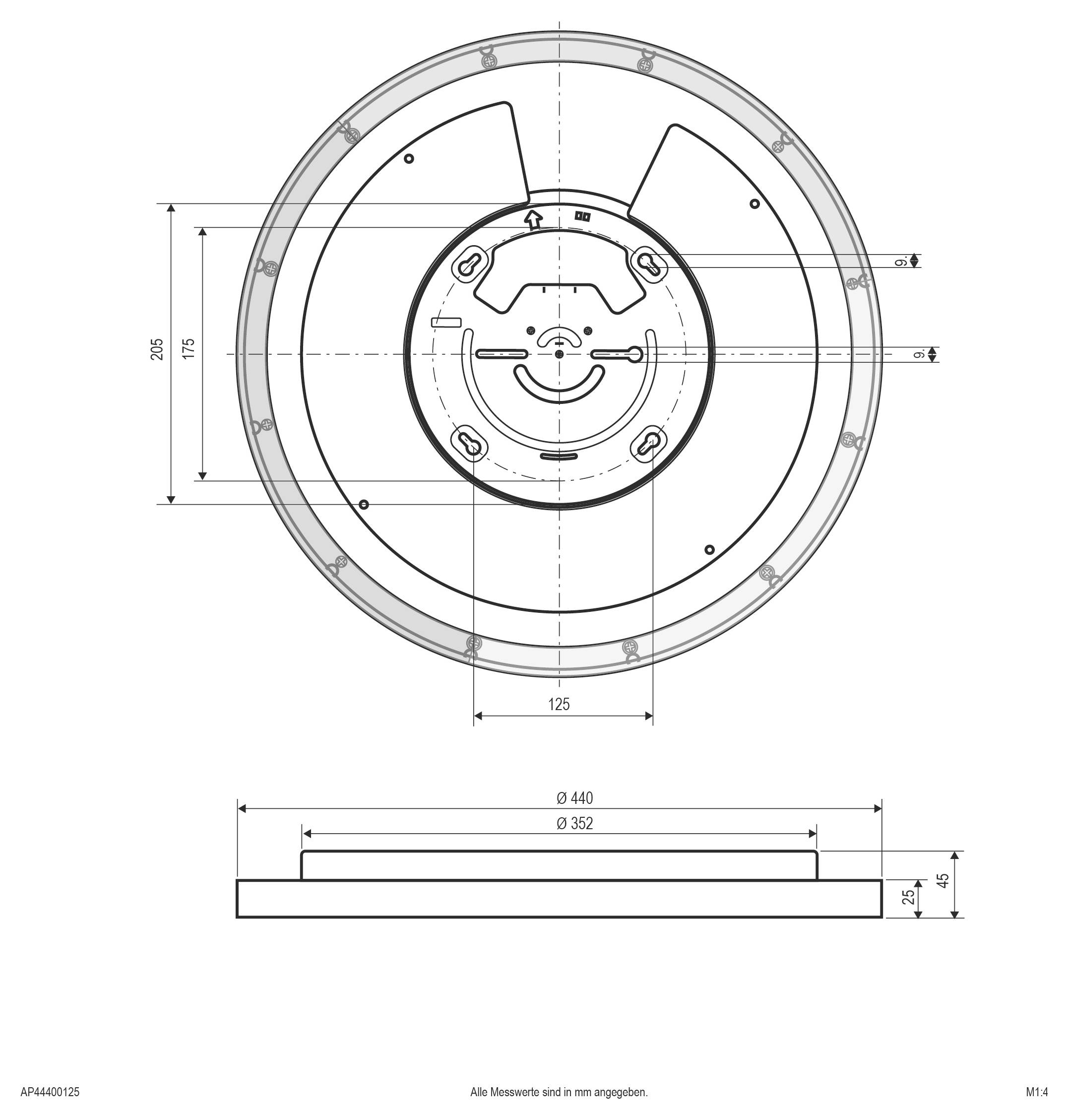

Technical dimension drawing of a circular mechanical part shown in top and side views, with diameter and height measurements labeled in millimeters.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

EVN Lighting technology LED-Add-on lamp CCT AP44400125

Power= 40 W
Total luminous flux= 4301 lm
Colour temperature= 5700 K
White

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for wall mounting: Yes
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: Yes
Suitable for panel mounting: No.
Suitable for mounting on the panel: Yes
Suitable for light band configuration: No.
Suitable for screen workstations according to EN 12464-1: No.
Housing material: Plastic
Housing color: White
Cover material: Plastic opal
Voltage type AC
Nominal voltage 200..240 V
Nominal current: 180 mA
Operating device: LED operating device current-controlled
With operating device: Yes
Removable operating device: No.
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: No.
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming of phase section: Yes
Dimming of leading edge: Yes
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Dimming depends on the operating device: No.
Without dimmer function: No.
Light distribution: Symmetric
Radiation angle: Extremely wide radiation >80°
Light emission: Direct/indirect
Rated life L80/B10 at 25 °C: 50000 h
Light current decline at medium. Service life 50,000 h at 25 °C surrounding temperature: 20 %
Protection class (IP) IP20
Impact strength: IK04
Protection class: I
Lamp with limited surface temperature "D-sign": No.
Rated ambient temperature according to IEC62722-2-1: -20..45°C.
Suitable for emergency light: No.
Integrated emergency power supply: No.
With motion detector: No.
With light sensor: No.
Covering of the lamp with thermal insulation material is possible: No.
With air vents: No.
Max. System power 40 W
Light output 108 lm/W
Rated light current according to IEC 62722-2-1: 4301 lm
Light color: White
Colour temperature 3000..5700 K
Color Rendering Index CRI: 80-89
Constant luminous flux regulation: No.
Height/depth 45 mm
Outer diameter: 440 mm
Type of wiring: Finish
Number of poles: 2
Connection type: Plug-in terminal
Colour temperature adjustable: Levels
Adjustable radiation angle: No.
Operation via Bluetooth: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Bulb: LED not replaceable
With bulb: Yes

Dim: (Ø x H) 440 mm x 45.00 mm

Type: Circular

Operating voltage: 230 V

Product type: LED ceiling light

Bulb type: LED (monochrome)

Height: 45.00 mm

: Built-in LED

Rating per bulb: 40 W

Depth: 45 mm

: 40 W

(Ø): 440 mm

Light features: Dimmable

Protection class: I

: IP20

Factory colour: White

Material: Plastic

: n.rel.

Colour rendering index: 80-89

Colour: White

Light bulb included: Yes

: 5700 K

Colour temperature (max.): 5700 K

Colour temperature (min.): 3000 K

Colour temperature range: 3000 - 5700 K

Total luminous flux: 4301 lm

: 4301 lm

Rated luminous flux: 4301 lm

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3152005 EVN AP44400125 AP44400125 LED ceiling light LED (monochrome) Built-in LED 40 W White

User & Safety Instructions

User & Safety Instructions 3152005 EVN AP44400125 AP44400125 LED ceiling light LED (monochrome) Built-in LED 40 W White

Description

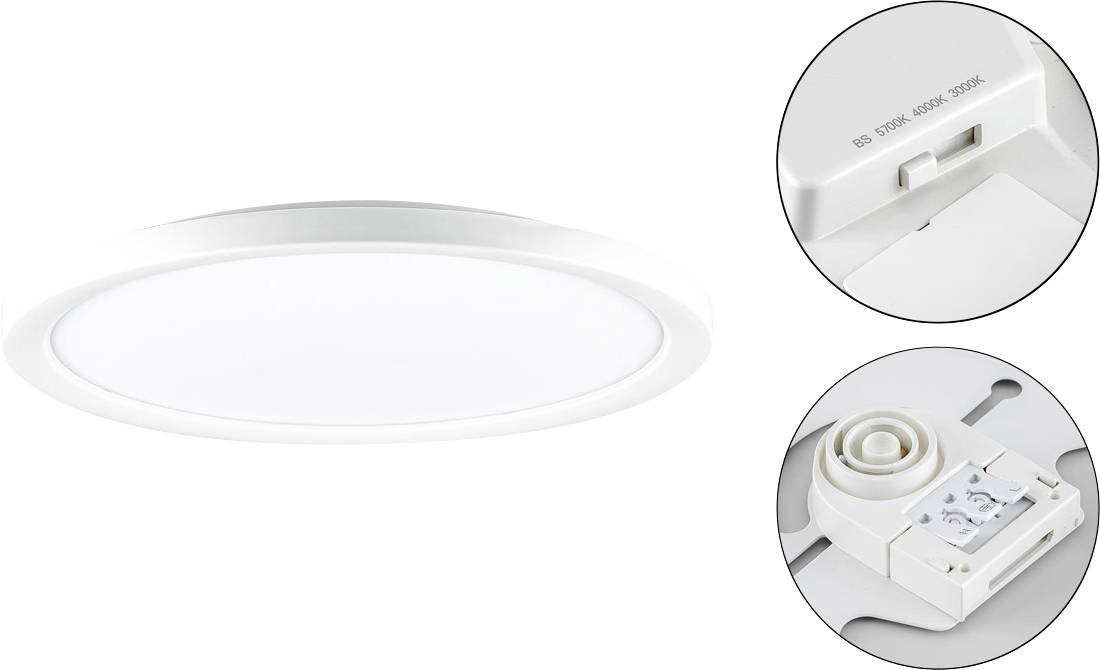

LED panel-mounted light for various applications, such as comprehensive but also effective lighting in corridors, living room, office and much more. One of the three possible color temperatures can be set with the switch on the back. The possible color temperatures and the resulting lumens are: 3000K (3772lm), 4000K (4301lm) and 5700K (4221lm). In addition, the switch can be set to the BS setting. In this case, a change of the color temperature is possible via the light switch by quickly switching on/off. Due to the large light output, even illumination is always provided. The transparent cover for the indirect light output on the rear side can be replaced with other optional covers in the colors red, blue or amber. Since the covers are divided into three segments each, different colors can also be combined. Housing color similar to RAL9003.
