1/3
EVN APFLAT7AM200W EVN Lichttechnik U-section rail Aluminium (L x W) 2000 mm x 13.40 mm 1 pc(s)
Product type
U-section rail
Material
Aluminium
Length
2000 mm
Energy efficiency rating
n.rel.
Faceplate type
Opal
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
U-section rail
- Faceplate type
Opal
- Factory colour
Aluminium
- Material
Aluminium
- Material properties
powder-coated
- Width
13.40 mm
- Length
2000 mm
- Dim

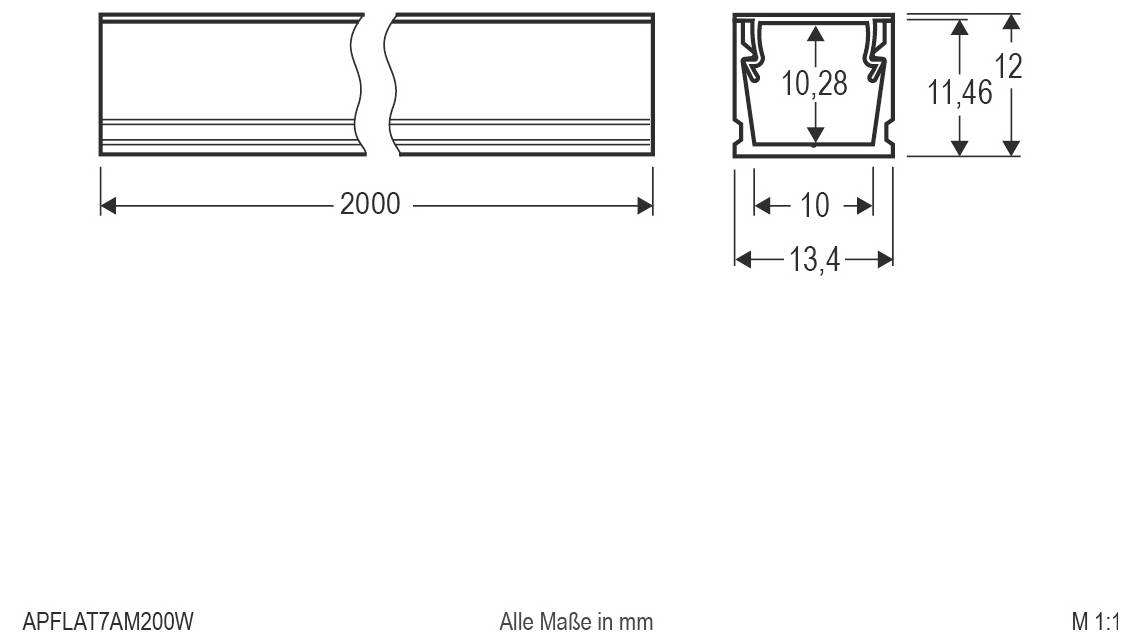

(L x W) 2000 mm x 13.40 mm
n.rel.
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483598 EVN APFLAT7AM200W EVN Lichttechnik U-section rail Aluminium (L x W) 2000 mm x 13.40 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2483598 EVN APFLAT7AM200W EVN Lichttechnik U-section rail Aluminium (L x W) 2000 mm x 13.40 mm 1 pc(s)
Description

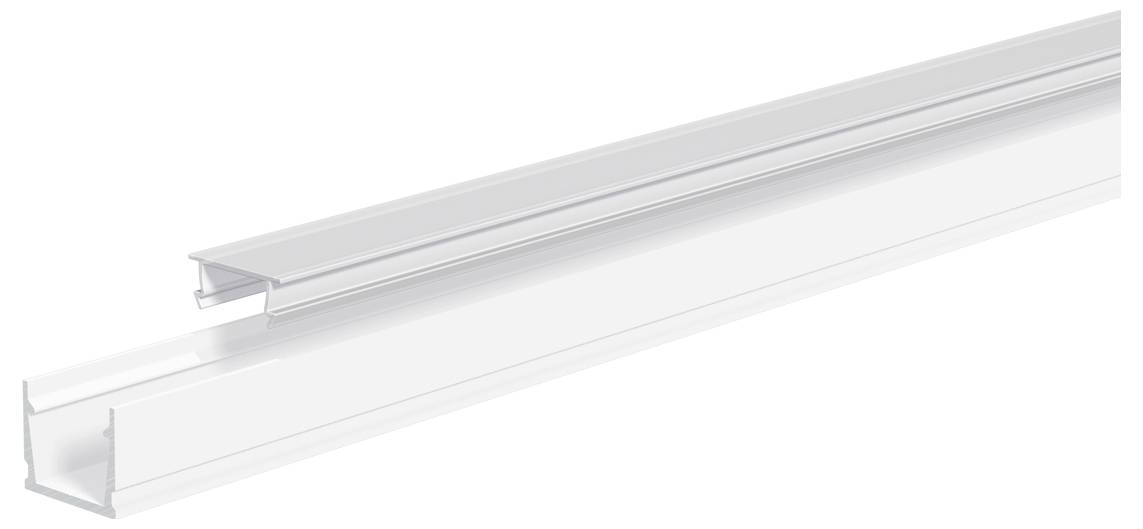

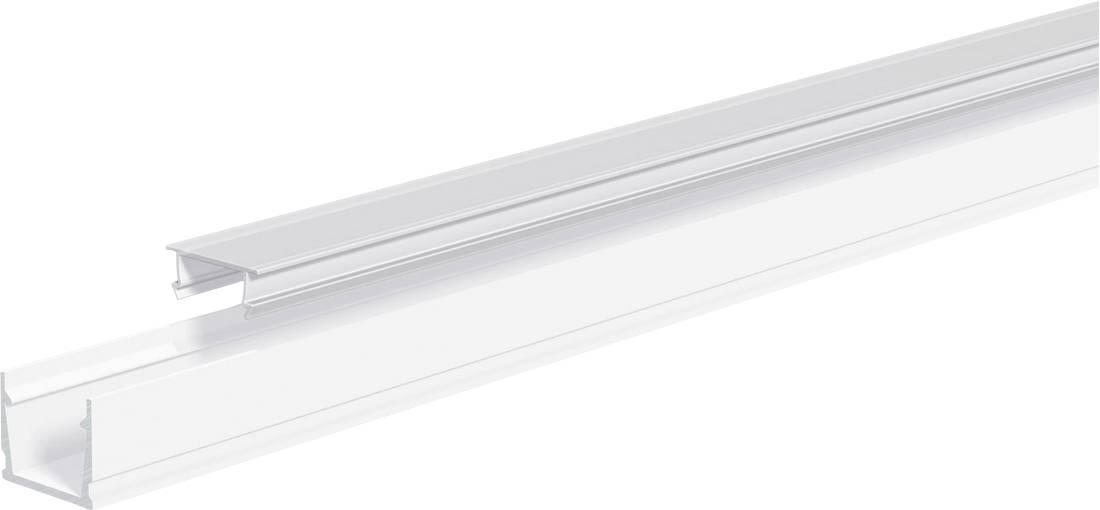

Aluminum profile including matching, opal plastic cover. The aluminum profile acts both as a heat sink when mounting LED strips, but can also be used as a cable duct. End caps can be ordered separately for the profile. Otherwise, the profile cannot be combined with any other accessories or with any other aluminum profiles. Due to its filigree design, the profile is ideal for furniture construction, e.g. display cases, kitchen cabinets, work surface lighting and much more. However, only LED strips with a maximum power of 14.4W per meter may be installed in the profile. Technical data: Profile: Aluminum powder-coated, color: White (similar to RAL9010), cover: Polycarbonate, transmission level: Approx. 65%
