Name: EVN BF230940 BF230940 Ceiling light EEC: E (A - G) 9 W White
Brand: EVN
SKU: 3151974

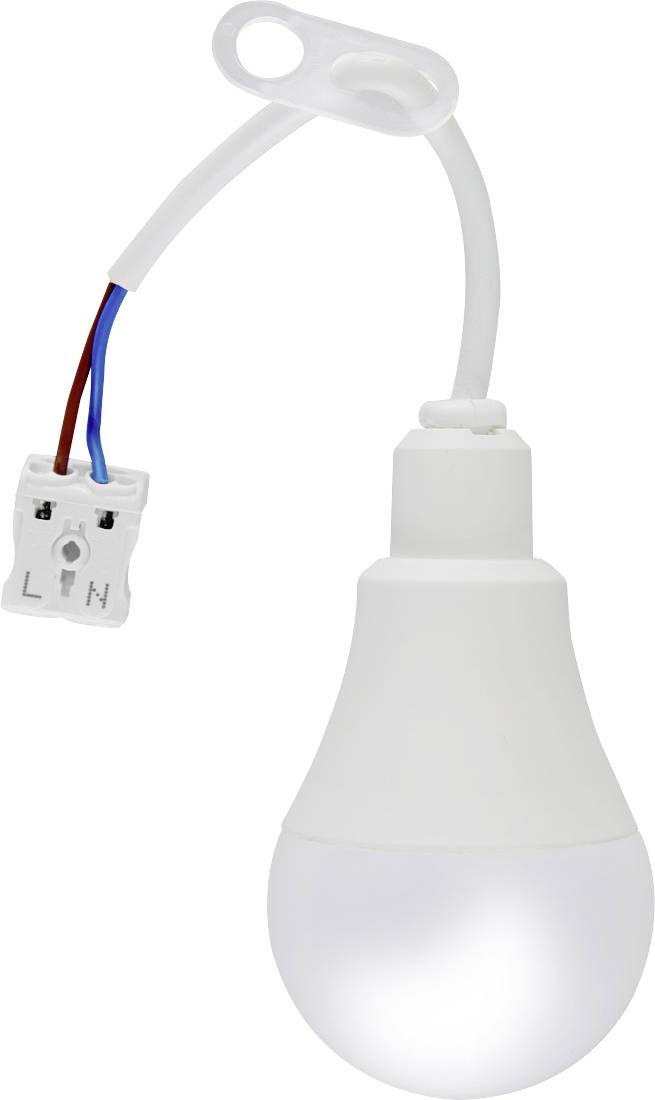

A white LED lamp with attached cable and plug, suitable for interior lighting.

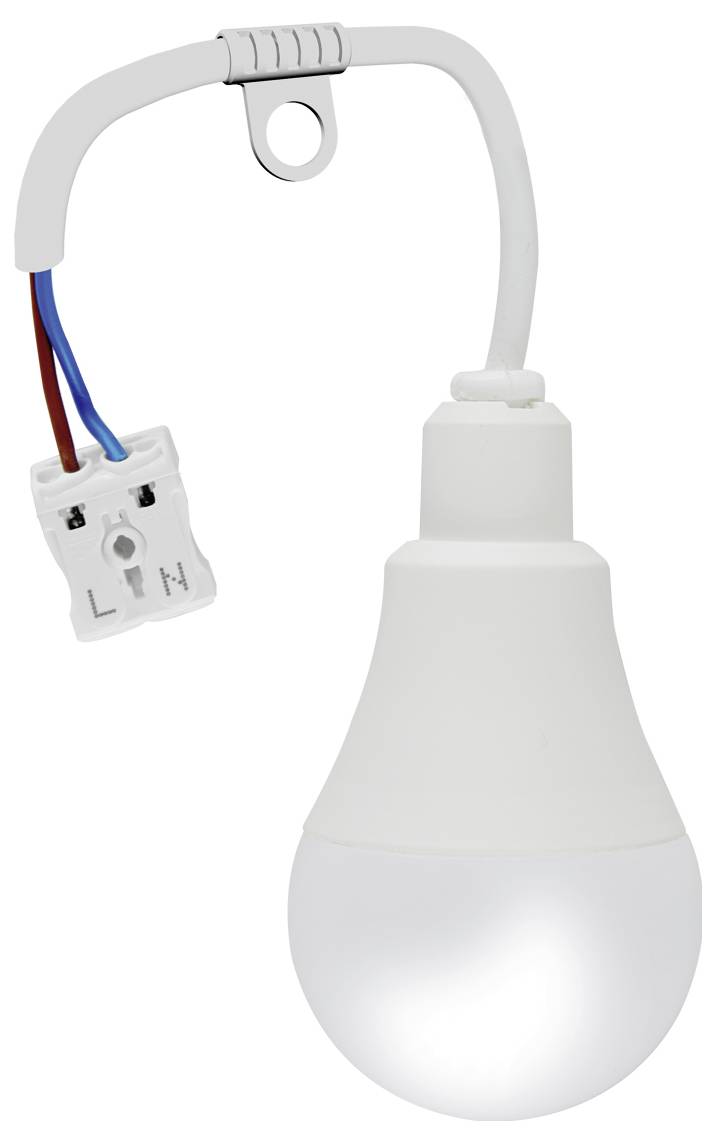

White LED light bulb hanging from a short cord with exposed wiring and connector plug.<br>

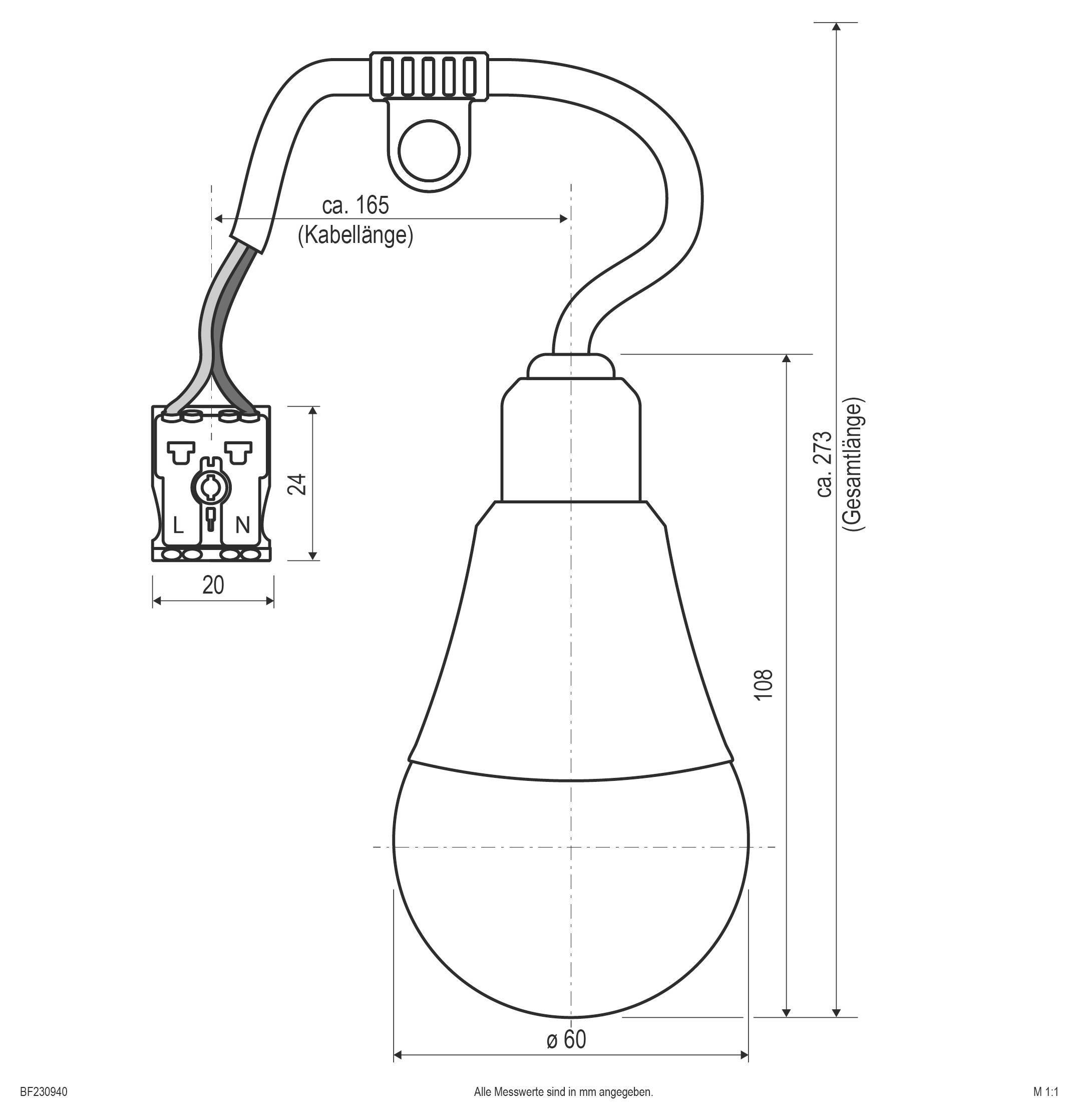

Technical drawing of a hanging light bulb pendant, showing dimensions: about 165 mm cable, 273 mm total length, 60 mm bulb diameter, and 20 x 24 mm connector.

1/3

Product data sheet

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

EVN Light technology LED construction site version 4000K 230V IP20 BF230940 280x65mm

Power= 9 W
Total luminous flux= 991 lm
Colour temperature= 4000 K
Neutral white

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: E.
Energy efficiency class spectrum: A to G.
Nominal voltage 170..250 V
Lamp power 9 W
Voltage type AC
Luminous flux: 991 lm
Light output 110 lm/W
Light intensity 191 cd
Color Rendering Index CRI: 80-89
Bulb-shape: Pear-shaped
Filament lamp: No.
Glass/cover: Optional
Colour temperature according to EN 12464-1: Neutral white 3300 to 5300 K
Socket: Other
Colour: white
Colour temperature: 4000 K
Reflected beam angle 160°
Dimmable: No.
Diameter 60 mm
Length: 108 mm
Protection class (IP) IP20
Lamp name A-type
Min Number of switching operations: 15000
Weighted energy consumption in 1,000 hours: 9 kWh
Average nominal lifespan 30000 h
Remote control possible: No.
With remote control: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.

Dim: (Ø x L) 60 mm x 108.00 mm

Operating voltage: 250 V

Product type: Ceiling light

Length: 108.00 mm

Rating per bulb: 9 W

: 9 W

(Ø): 60 mm

Energy consumption: 9 kWh/1000h

Protection class: IP20

: IP20

Factory colour: White

: E (A - G)

Colour rendering index: 80-89

Colour: Neutral white

: 4000 K

Colour temperature (max.): 5300 K

Colour temperature (min.): 3300 K

Colour temperature range: 3300 - 5300 K

Total luminous flux: 991 lm

: 991 lm

Nominal voltage: 250 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3151974 EVN BF230940 BF230940 Ceiling light EEC: E (A - G) 9 W White

User & Safety Instructions

User & Safety Instructions 3151974 EVN BF230940 BF230940 Ceiling light EEC: E (A - G) 9 W White

Description

Theft-proof mounting socket with LED and two-pole plug terminal Extremely high efficiency compared to standard bulbs. Technical data: Design: A60, supply line: 16.5cm (2 x 0.75mm²), ta: -20 - +40°.

This text is machine translated.
