Name: EVN DD20120902 DD20120902 LED ceiling light LED (monochrome) Built-in LED 11.7 W Black
Brand: EVN
SKU: 3151998

Technical drawing of a cylindrical component with dimensions in millimetres: diameter 120 mm, height 35 mm, base view shows connections.

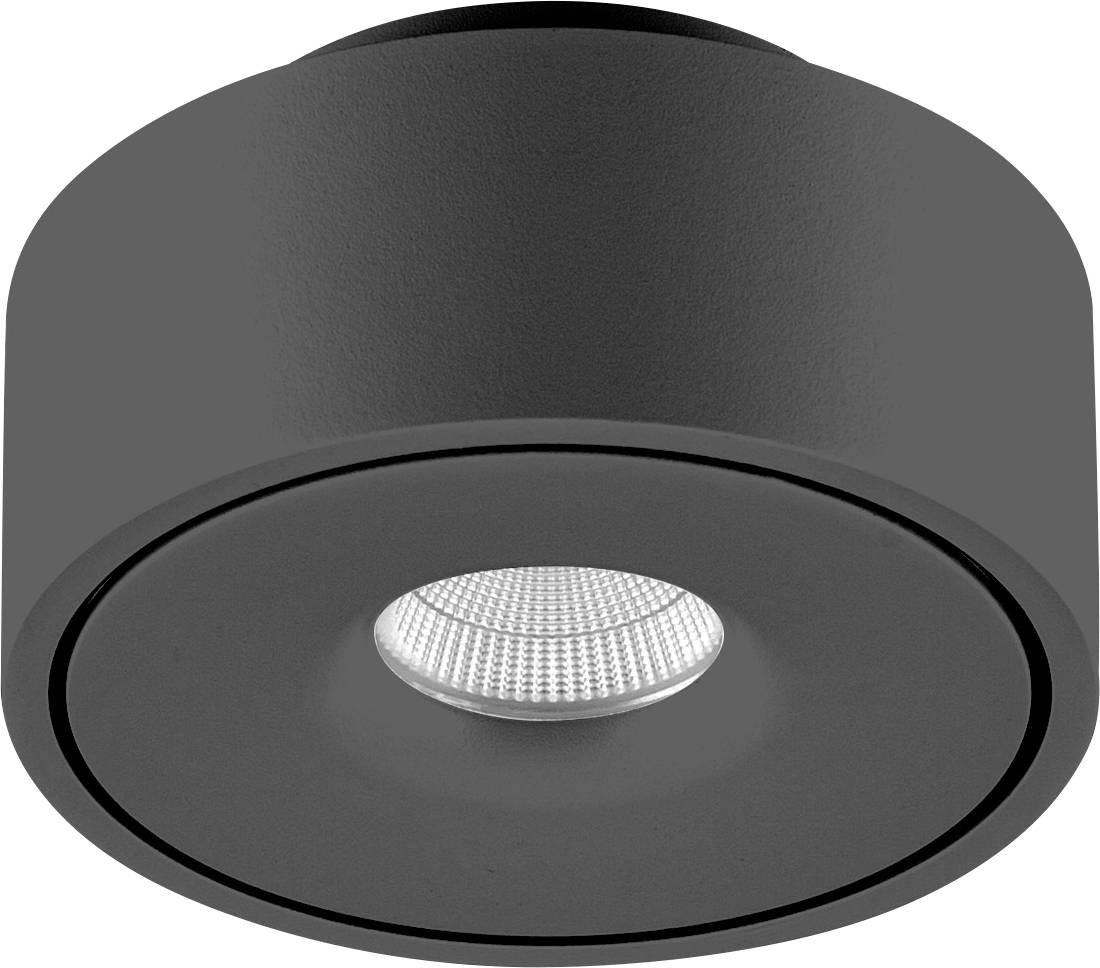

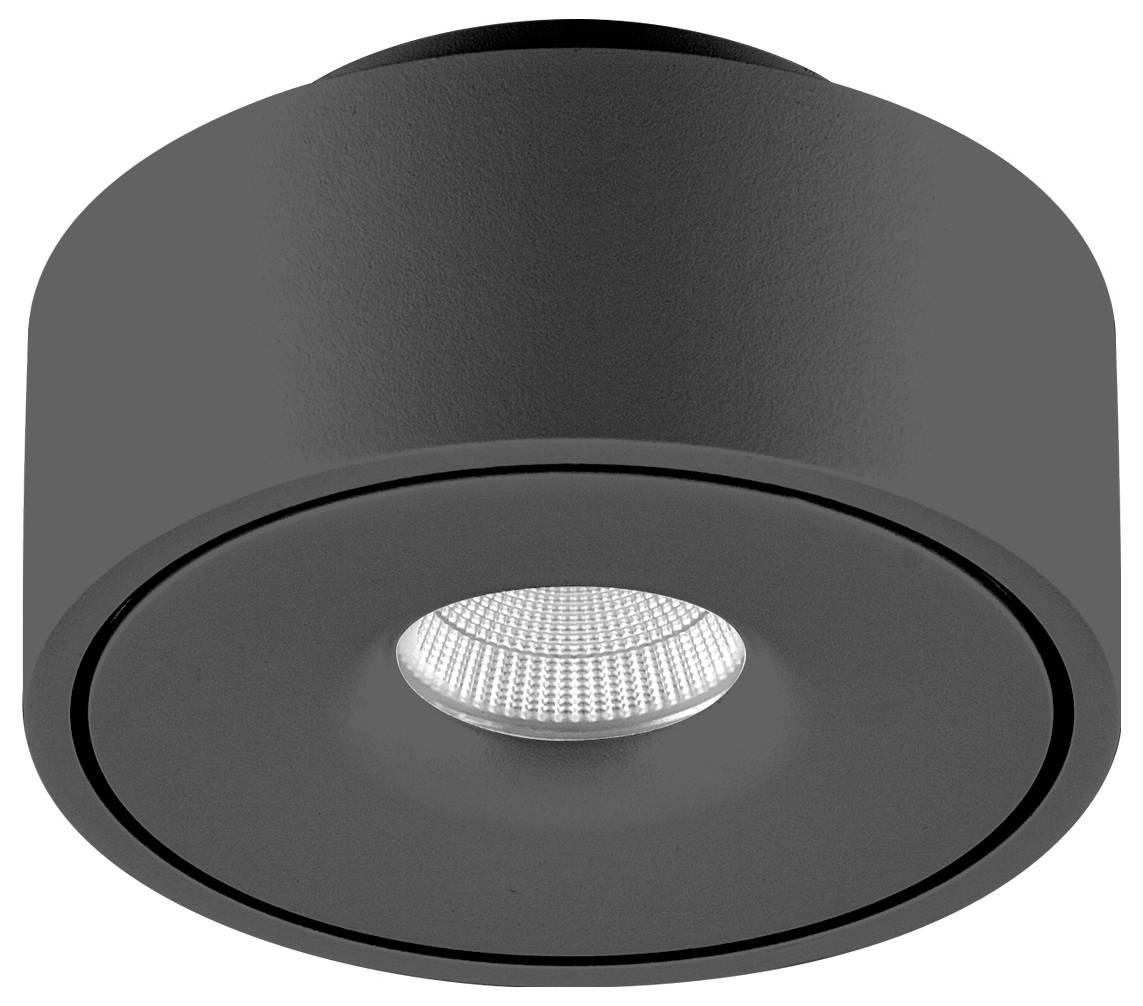

Black cylindrical ceiling light with a recessed central LED lens on a white background.

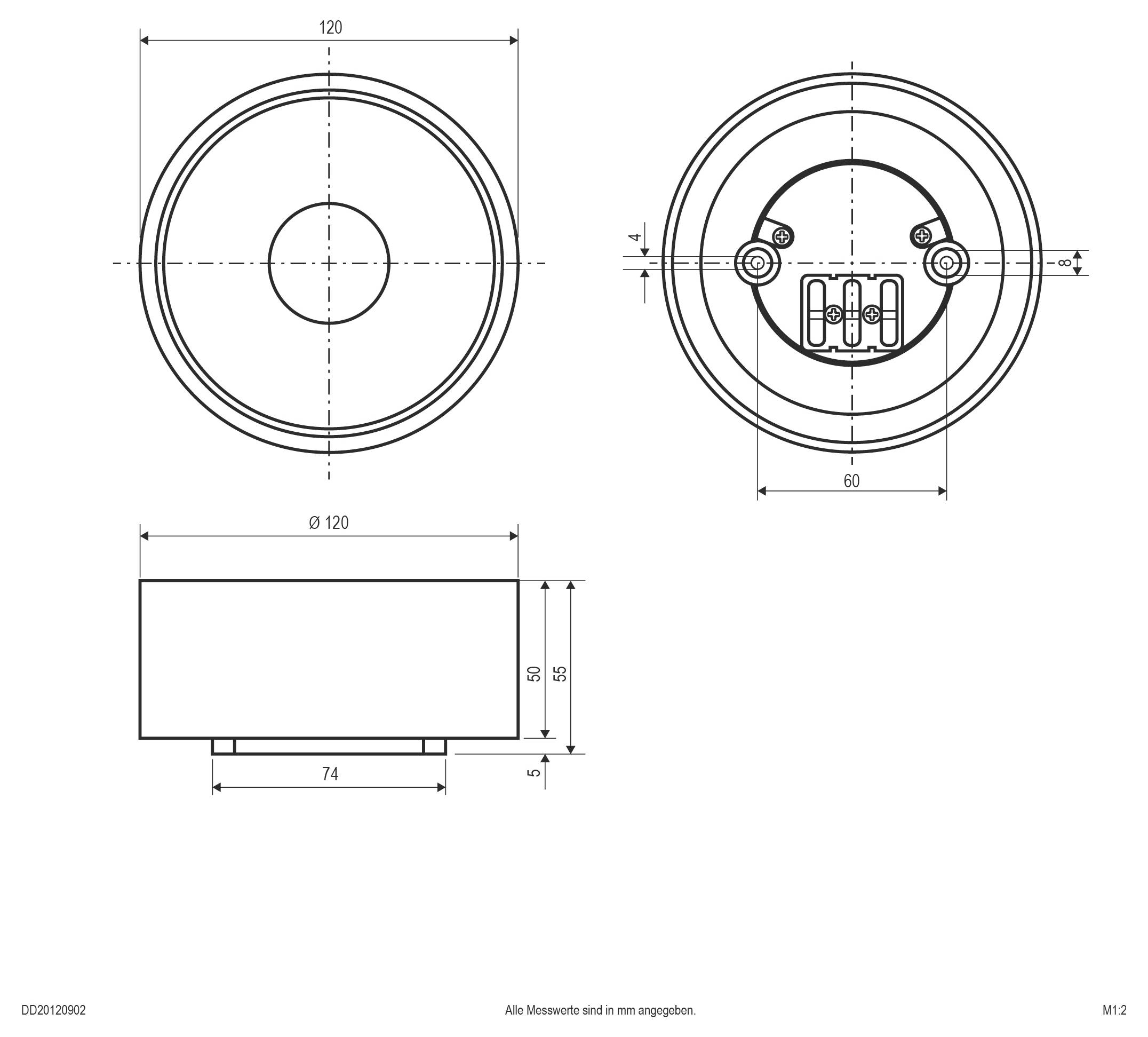

Technical drawing of a round device, showing top, front, and side views with dimensions like Ø120, 60, 74, 50, and 65 mm.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

EVN lighting technology LED ceiling light DD20120902

Power= 11.7 W
Total luminous flux= 1272 lm
Colour temperature= 3000 K
White

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for wall mounting: No.
Suitable for panel mounting: No.
Suitable for mounting on the panel: Yes
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: Yes
Suitable for traverse installation: No.
Suitable for pedestal-/floor mounting: No.
Suitable for rail mounting: No.
Suitable for clamp mounting: No.
Suitable for cable system: No.
Adjustable: Not adjustable
With motion detector: No.
With light sensor: No.
Bulb: LED not replaceable
With bulb: Yes
Material of housing: Aluminium
Surface protection: Powder-coated
Black enclosure
Cover material: Transparent glass
Surface brushed: No.
Voltage type AC
Nominal voltage 220..240 V
Rated LED current at constant current 500 mA
Operating device: LED operating device current-controlled
With operating device: Yes
Removable operating device: No.
Dimming depends on the operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: No.
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming of phase section: Yes
Dimming of leading edge: Yes
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimmer function: No.
Reflector: High-gloss
Light distributor: Reflector
Light distribution: Symmetric
Radiation angle: Medium radiation 21-40°
Light emission: Direct/indirect
Rated life L80/B10 at 25 °C: 50000 h
Constant luminous flux regulation: No.
Protection class (IP) IP20
Protection class: I
Max. System power 11.7 W
Light color: White
Colour temperature: 3000 K
Color Rendering Index CRI: 90-100
Luminous flux: 1272 lm
Light intensity 3310.34 cd
Adjustable color temperature: No.
Adjustable radiation angle: No.
Length: 55 mm
Outer diameter: 120 mm
Type of wiring: Suitable for through-wiring
Number of poles: 3
Connection type: Plug-in terminal
Lamp with limited surface temperature "D-sign": No.
Integrated emergency power supply: No.
Light output 108 lm/W
Suitable for screen workstations according to EN 12464-1: No.
Covering of the lamp with thermal insulation material is possible: No.
IFTTT support available: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.

Dim: (Ø x L) 120 mm x 55.00 mm

Type: Circular

Operating voltage: 230 V

Product type: LED ceiling light

Width: 120 mm

Bulb type: LED (monochrome)

: Built-in LED

Length: 55.00 mm

Rating per bulb: 11.7 W

Depth: 55 mm

: 11.7 W

(Ø): 120 mm

Light features: Dimmable

Protection class: I

: IP20

Factory colour: Black

Material: Aluminium

: n.rel.

Colour rendering index: 90-100

Colour: White

Light bulb included: Yes

: 3000 K

Colour temperature (max.): 3000 K

Colour temperature (min.): 3000 K

Colour temperature range: 3000 - 3000 K

Total luminous flux: 1272 lm

: 1272 lm

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3151998 EVN DD20120902 DD20120902 LED ceiling light LED (monochrome) Built-in LED 11.7 W Black

User & Safety Instructions

User & Safety Instructions 3151998 EVN DD20120902 DD20120902 LED ceiling light LED (monochrome) Built-in LED 11.7 W Black

Description

Ceiling-mounted light fixture with direct and indirect light output for various applications in the interior The light distribution is 80% down light (1018lm, 36° angle of radiation) and 20% uplight (254lm, 120° angle of radiation). This lamp provides effect lighting, room lighting, accent lighting and much more. The power supply unit is integrated in the light body, thus no additional space is required for this. The lamp can be dimmed via trailing and trailing edges.
