EVN DL17302 DL17302 LED recessed light LED (monochrome) Built-in LED 18 W White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

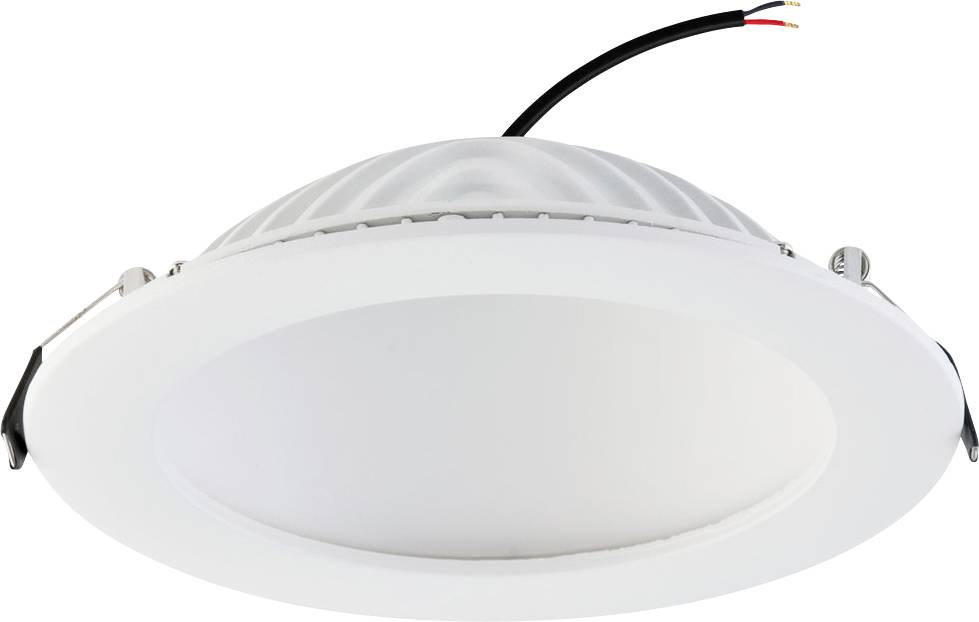

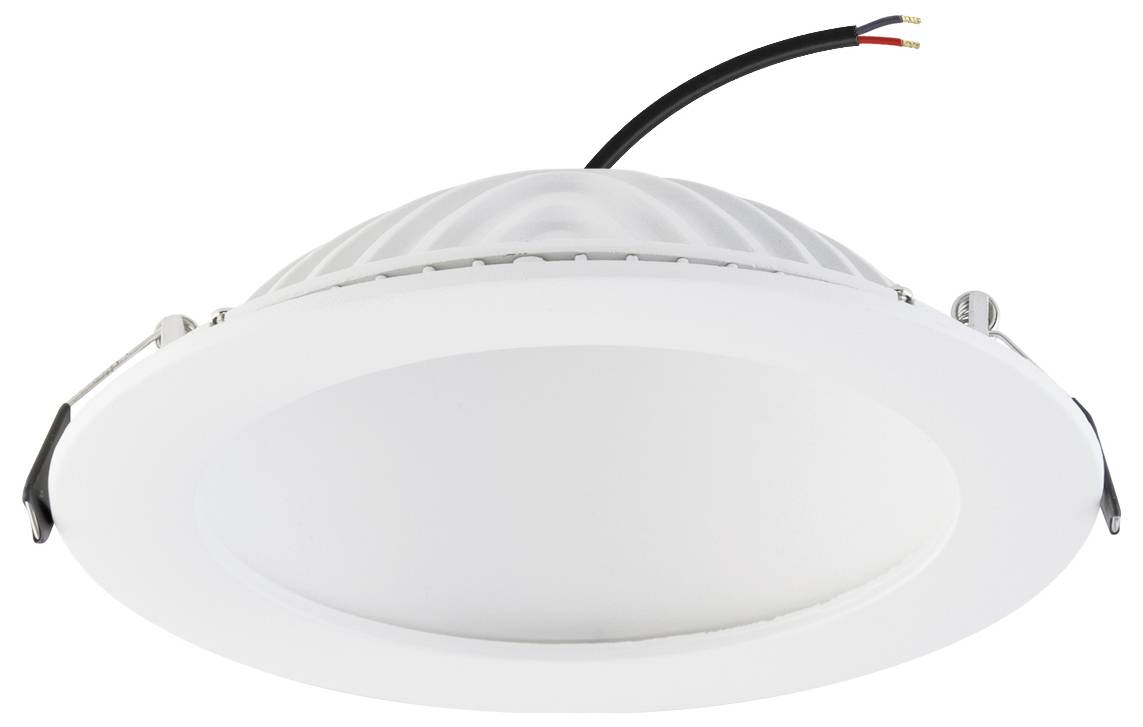

LED ceiling mounted dome light
- Power= 18 W Colour temperature= 3000 K Warm white
Technical specifications
- Product type
LED recessed light
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
18 W
18 W
3000 K
- Colour
Warm white
- Radiation angle
80°

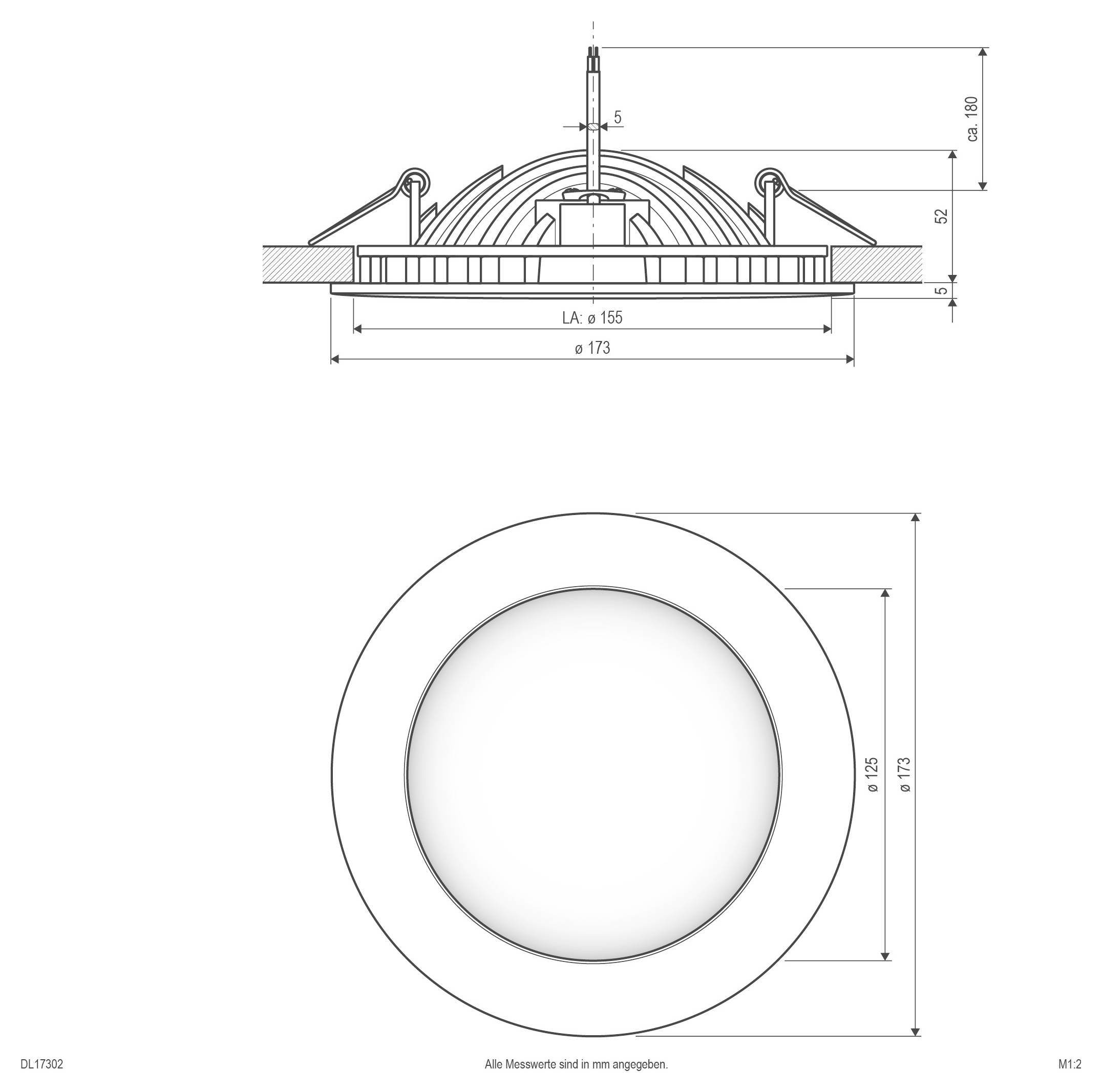

- Recess depth
57 mm
- Outside Ø
173 mm
IP20
- Factory colour
White
- Material
Aluminium
n.rel.
Yes
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 3000 K
- Height
57 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2483675 EVN DL17302 DL17302 LED recessed light LED (monochrome) Built-in LED 18 W White
User & Safety Instructions
User & Safety Instructions 2483675 EVN DL17302 DL17302 LED recessed light LED (monochrome) Built-in LED 18 W White
Description
The LED lights of the DL series are available in four different sizes and power ratings, as well as in two light colors. Thanks to the special design, the lamp of the series fits harmoniously and inconspicuously into the overall picture of a room, while on the other hand a very homogeneous illumination without blinding effect is ensured. This is made possible by the LED´s located at the lower edge, which indirectly illuminate the dome before the light finally illuminates the room through the lower opening. Since the lights are operated via constant current, several lights must be connected in series to a power supply unit. In addition, the lights can be dimmed, whereby the dimming type varies depending on the power supply used. The housing color corresponds to RAL9003.
