Name: EVN L11425W L11425W LED ceiling light LED (monochrome) Built-in LED 18 W
Brand: EVN
SKU: 3034949

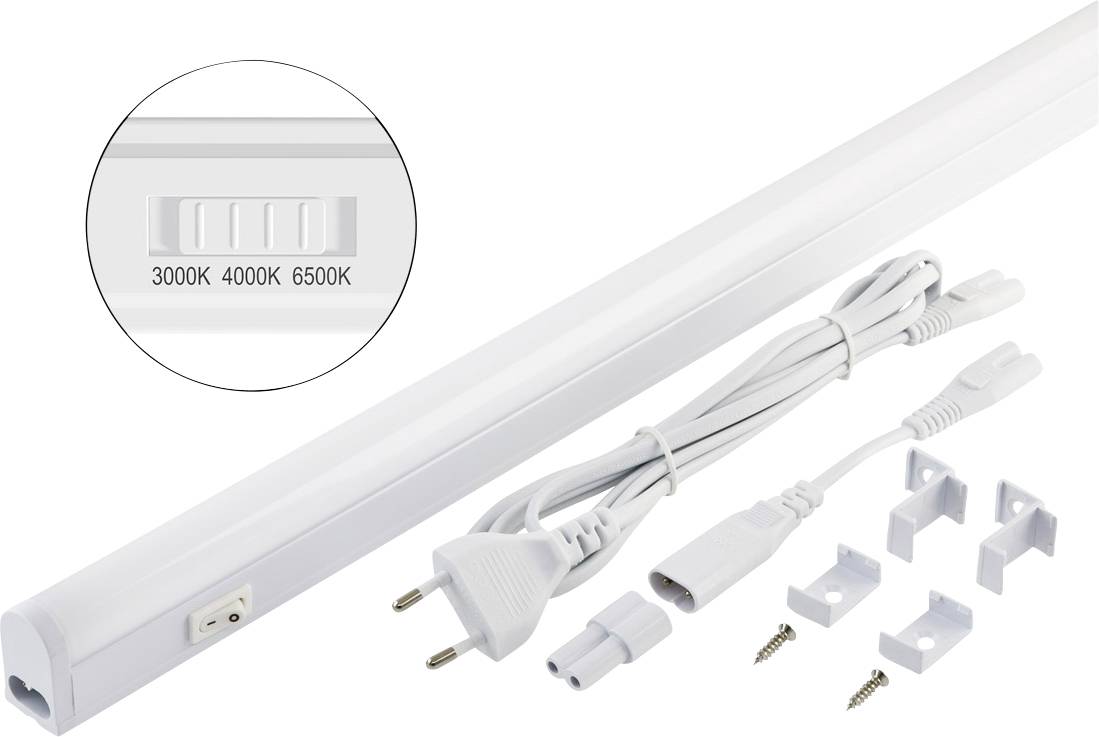

LED under-cabinet light bar with power cord, connector, mounting clips and screws; inset shows color temperature switch labeled 3000K, 4000K, 6500K.

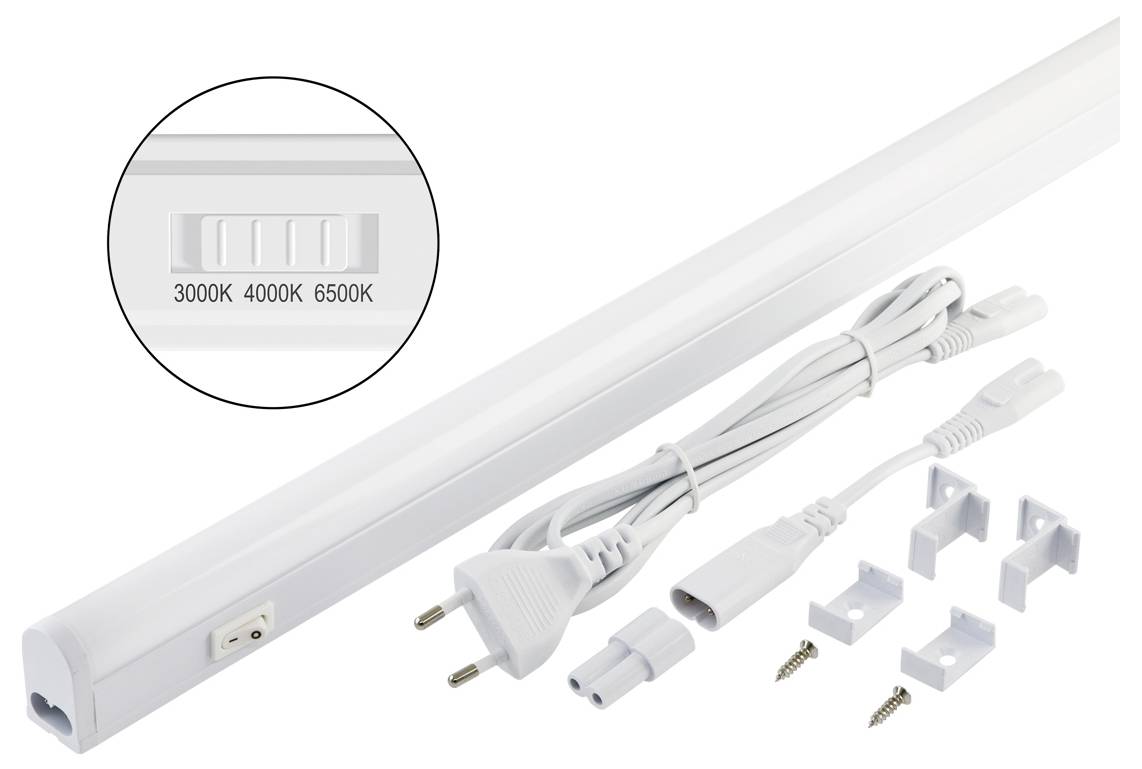

LED under-cabinet light bar kit with plug, connector, mounting clips and screws; switch offers 3000K, 4000K, and 6500K color temperatures.

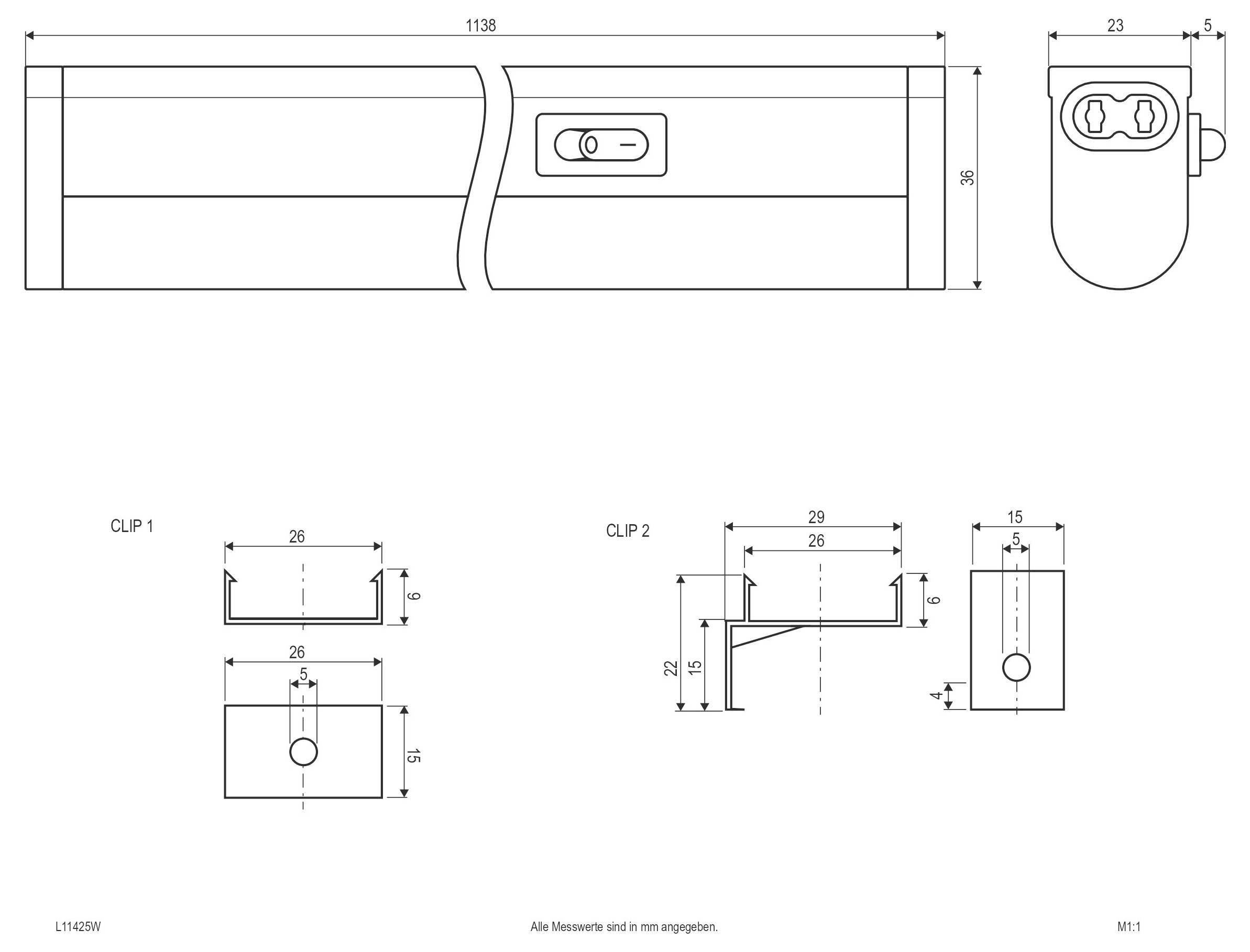

Technical drawing of a wall-mounted light fixture with front, side and clip detail views, showing dimensions and mounting parts.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

EVN LED Ceiling Light 220-240V 18W 1550/1784/1570lm L:1138mm

Power= 18 W
Total luminous flux= 1876 lm

Technical specifications

Dim: (L x W x H) 1138 x 28 x 36 mm

Product type: LED ceiling light

Width: 28 mm

Bulb type: LED (monochrome)

Height: 36 mm

: Built-in LED

Length: 1138 mm

Rating per bulb: 18 W

Depth: 36 mm

: 18 W

Light features: Incl. switch

Protection class: II

Weight: 0 kg

: n.rel.

Colour rendering index: 80-89

Light bulb included: Yes

Colour temperature (max.): 6500 K

Colour temperature (min.): 3000 K

Colour temperature range: 3000 - 6500 K

Total luminous flux: 1876 lm

: 1876 lm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3034949 EVN L11425W L11425W LED ceiling light LED (monochrome) Built-in LED 18 W

User & Safety Instructions

User & Safety Instructions 3034949 EVN L11425W L11425W LED ceiling light LED (monochrome) Built-in LED 18 W

Description

The lamp is perfectly suitable for use in kitchens as sub-lights on hanging cabinets, but can also be used as a ceiling or wall lamp. The connection is made via the supplied 180 cm long Euro supply cable. Several lights can be connected using provided direct connectors or connecting cable (15cm). One of three possible color temperatures can be set via the switch. The possible color temperatures and the resulting lumens are: 3000K (1550lm), 4000K (1784lm) and 6500K (1570lm). All necessary fixings for wall and ceiling mounting are included. Ta: 10°C - 30°C.

This text is machine translated.
