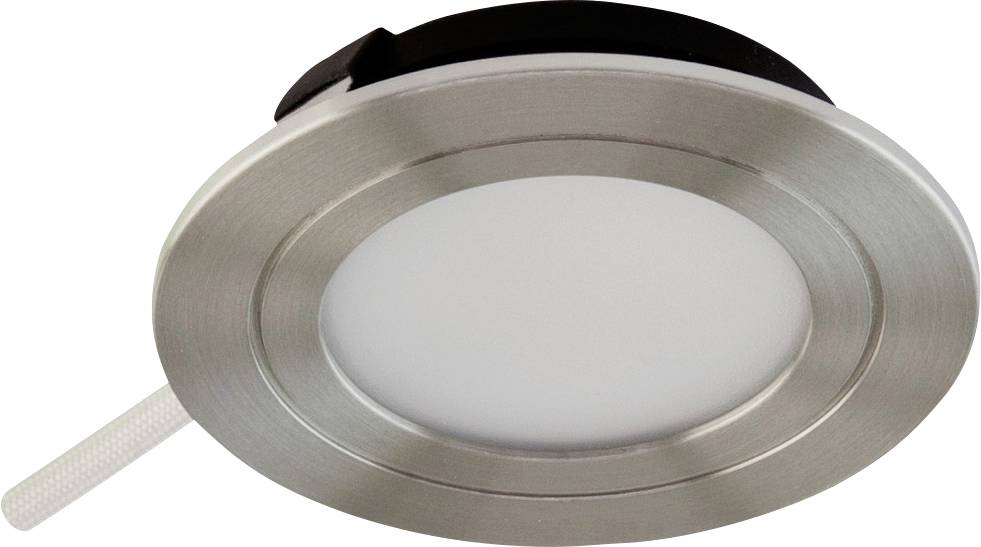

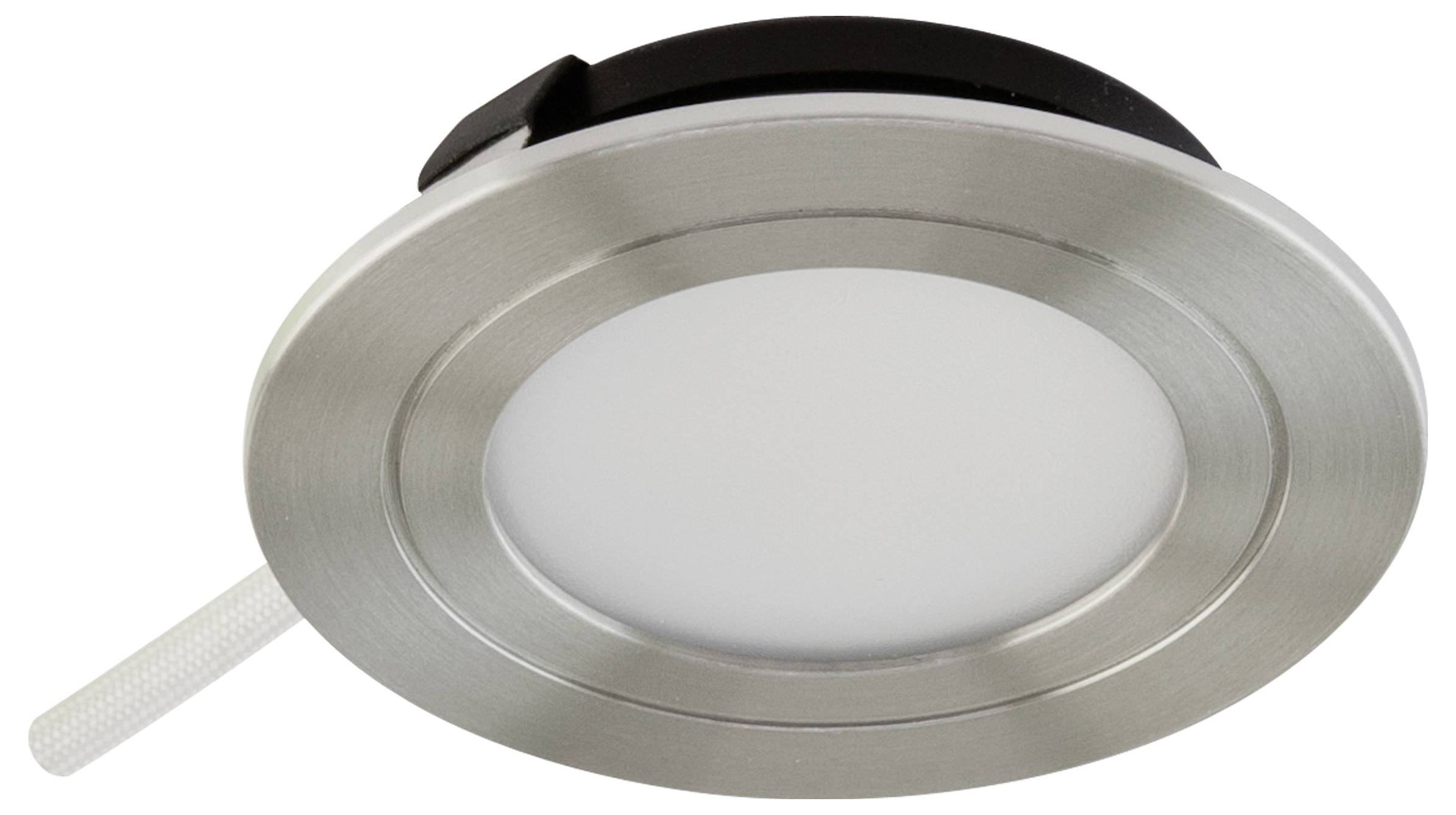

EVN L20301302 L20301302 LED recessed light LED (monochrome) Built-in LED 3 W Chrome
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LED ceiling mounted light fixture
- Power= 3 W Colour temperature= 3000 K Warm white
Technical specifications
- Product type
LED recessed light
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
3 W
3 W
3000 K
- Colour
Warm white
- Radiation angle
80°

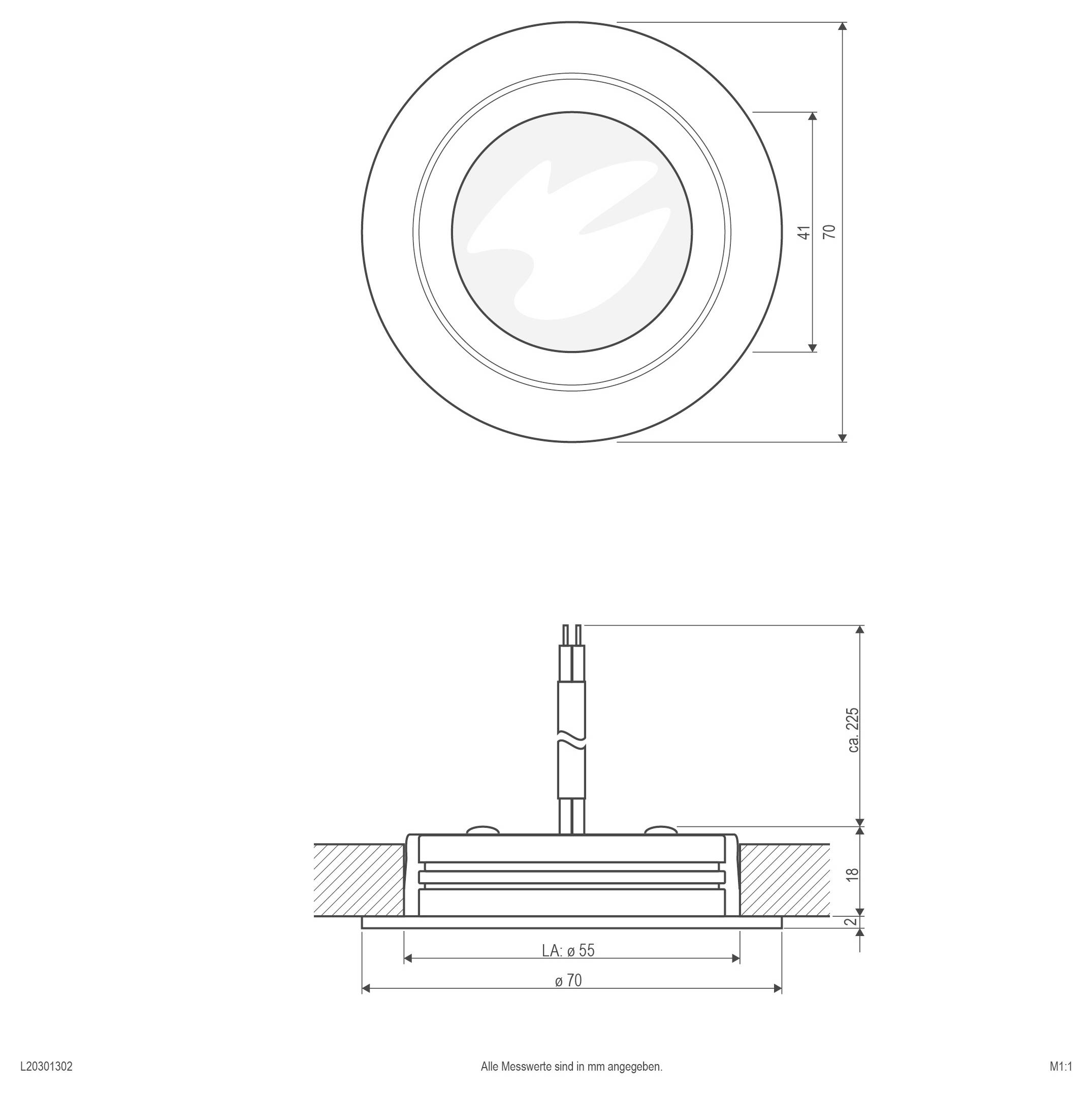

- Recess depth
18 mm
- Outside Ø
70 mm
IP20
- Factory colour
Chrome
- Material
Aluminium
n.rel.
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 3000 K
- Height
20 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2483810 EVN L20301302 L20301302 LED recessed light LED (monochrome) Built-in LED 3 W Chrome
User & Safety Instructions
User & Safety Instructions 2483810 EVN L20301302 L20301302 LED recessed light LED (monochrome) Built-in LED 3 W Chrome
Description
Ceiling mounted light fixture for various applications in the interior. Effect lighting, accentuated lighting and much more can be converted with this lamp. Thanks to the permanently installed LED chip, there is no additional cost for bulbs. Several lights can be operated via one operating device, which allows different light groups to be switched within a room. Since the lamp is operated via 350mA, the lights must be switched in series. The lamp has a 0.15m long connection cable. The color of the lamp corresponds to satin chrome finish.
