EVN L44N100125 L44N100125 LED recessed light LED (monochrome) Built-in LED 10 W White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LED downlight with adjustable color temperature
- Power= 10 W Total luminous flux= 998 lm Colour temperature= 5700 K Daylight white
Technical specifications
- Product type
LED recessed light
- Operating voltage
240 V AC
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
10 W
10 W
998 lm
- Total luminous flux
998 lm
5700 K
- Colour
Daylight white
- Radiation angle
80°
- Light features
Recess mount option

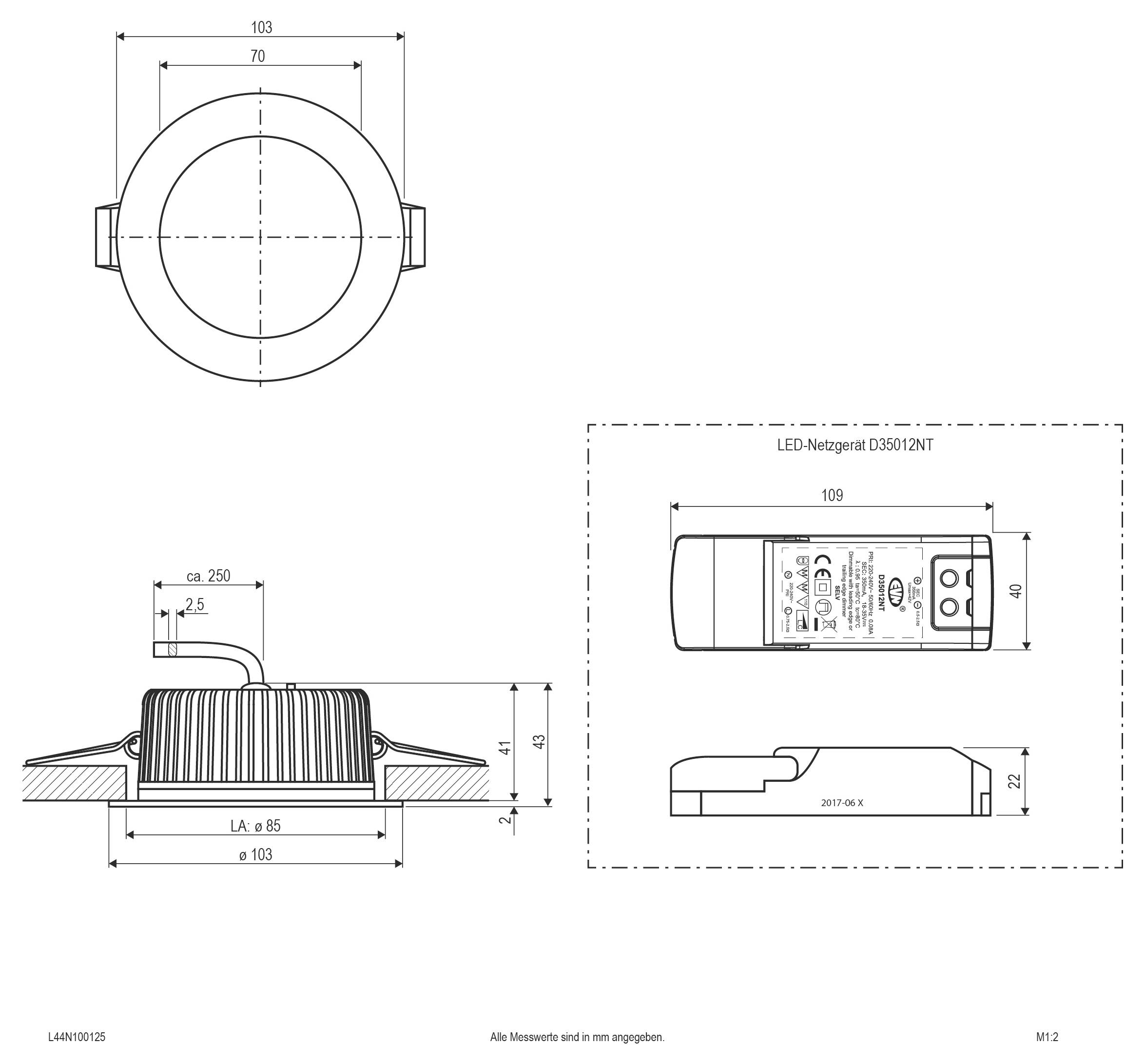

- Recess depth
45 mm
- Outside Ø
103 mm
IP44
- Factory colour
White
- Material
Aluminium
n.rel.
- Dim
(L x W x H) 109 x 40 x 43 mm
- Light bulb included
Yes
- Colour temperature (max.)
5700 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 5700 K
- Width
40 mm
- Height
43 mm
- Length
109 mm
- Depth
22 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483836 EVN L44N100125 L44N100125 LED recessed light LED (monochrome) Built-in LED 10 W White
User & Safety Instructions
User & Safety Instructions 2483836 EVN L44N100125 L44N100125 LED recessed light LED (monochrome) Built-in LED 10 W White
Description

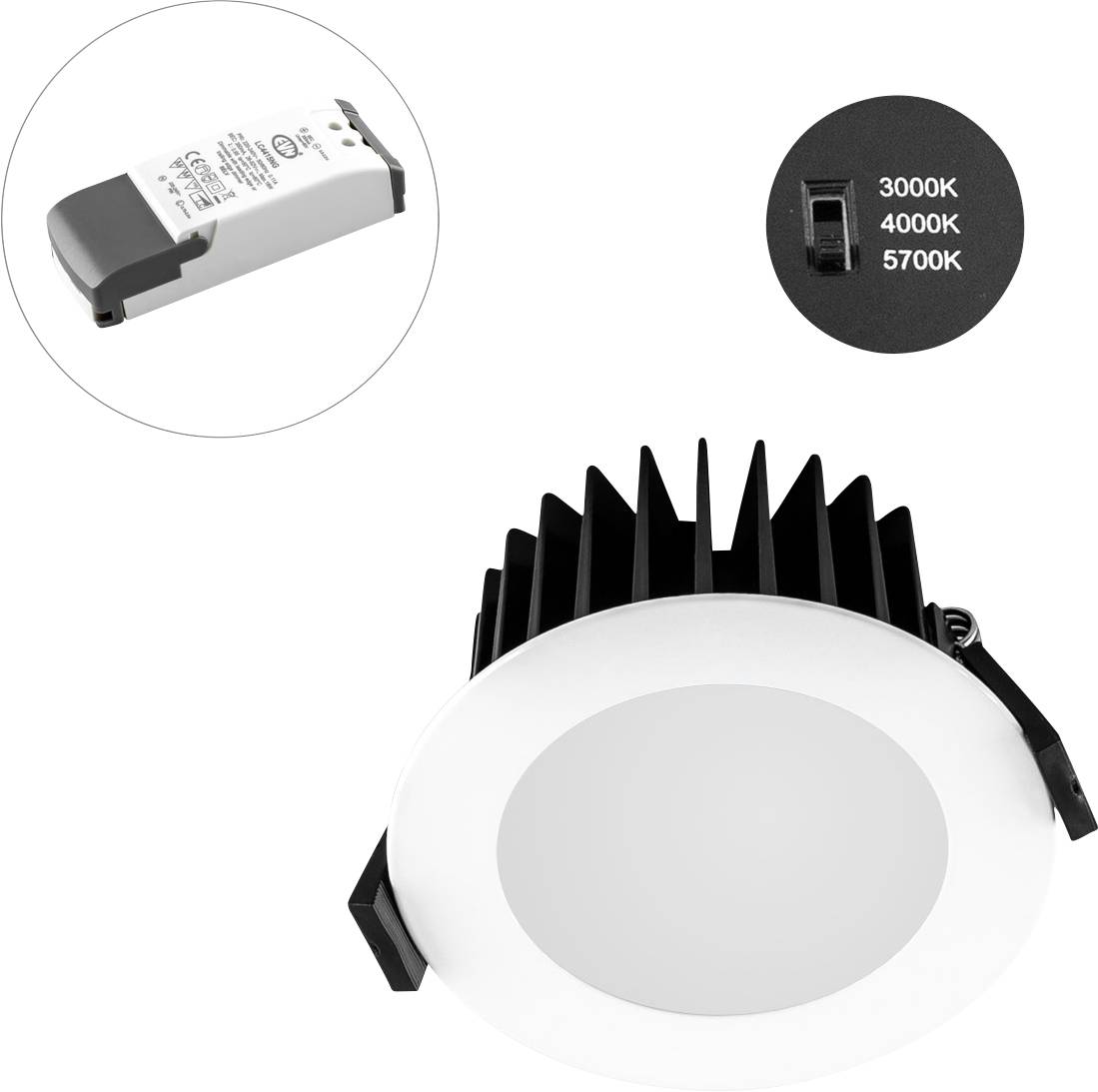

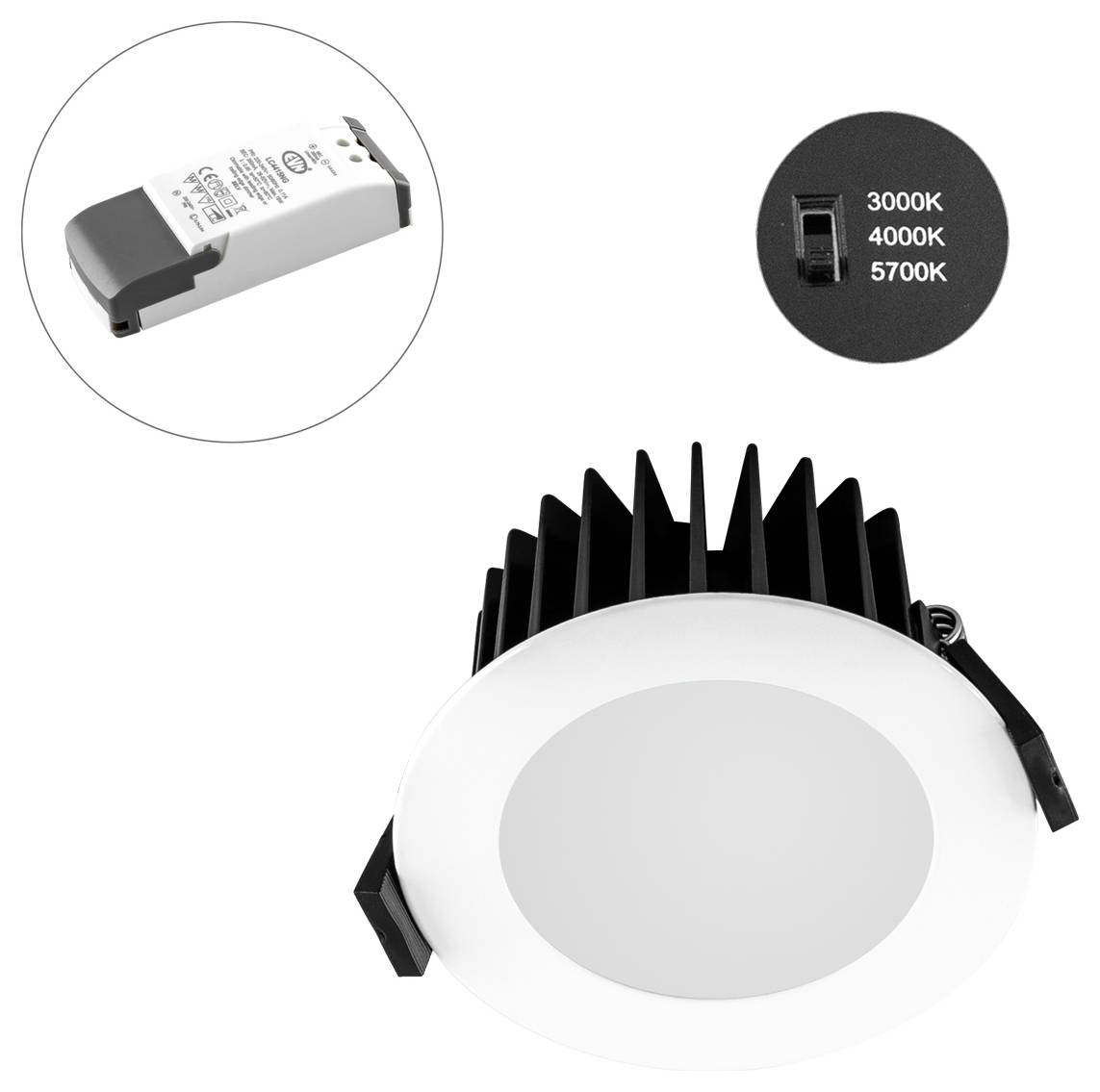

LED ceiling mounted light fixture for different application areas, such as covering area, but also effective lighting in hall, living room, office and much more. With the switch on the rear side, one of three possible color temperatures can be set. The possible color temperatures and resulting lumen are: 3000K (993lm), 4000K (1076lm) and 5700K (998lm). The connection cable between the power supply unit and the lamp has a length of 27cm. The power supply unit has the following dimensions: 109x40x22mm.
