1/3
EVN L54D101625 L54D101625 LED ceiling spotlight LED (monochrome) 10 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
EVN LED Recessed Ceiling Light 220-240V/AC 3000-5700K 706-1014lm
- Power= 10 W Total luminous flux= 1014 lm
Technical specifications
- Product type
LED ceiling spotlight
- Bulb type
LED (monochrome)
- Rating per bulb
10 W
10 W
1014 lm
- Total luminous flux
1014 lm
- Light features
Dimmable
n.rel.
Yes
- Light bulb included
Yes
- Colour temperature (max.)
5700 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 5700 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3032390 EVN L54D101625 L54D101625 LED ceiling spotlight LED (monochrome) 10 W
User & Safety Instructions
User & Safety Instructions 3032390 EVN L54D101625 L54D101625 LED ceiling spotlight LED (monochrome) 10 W
Description

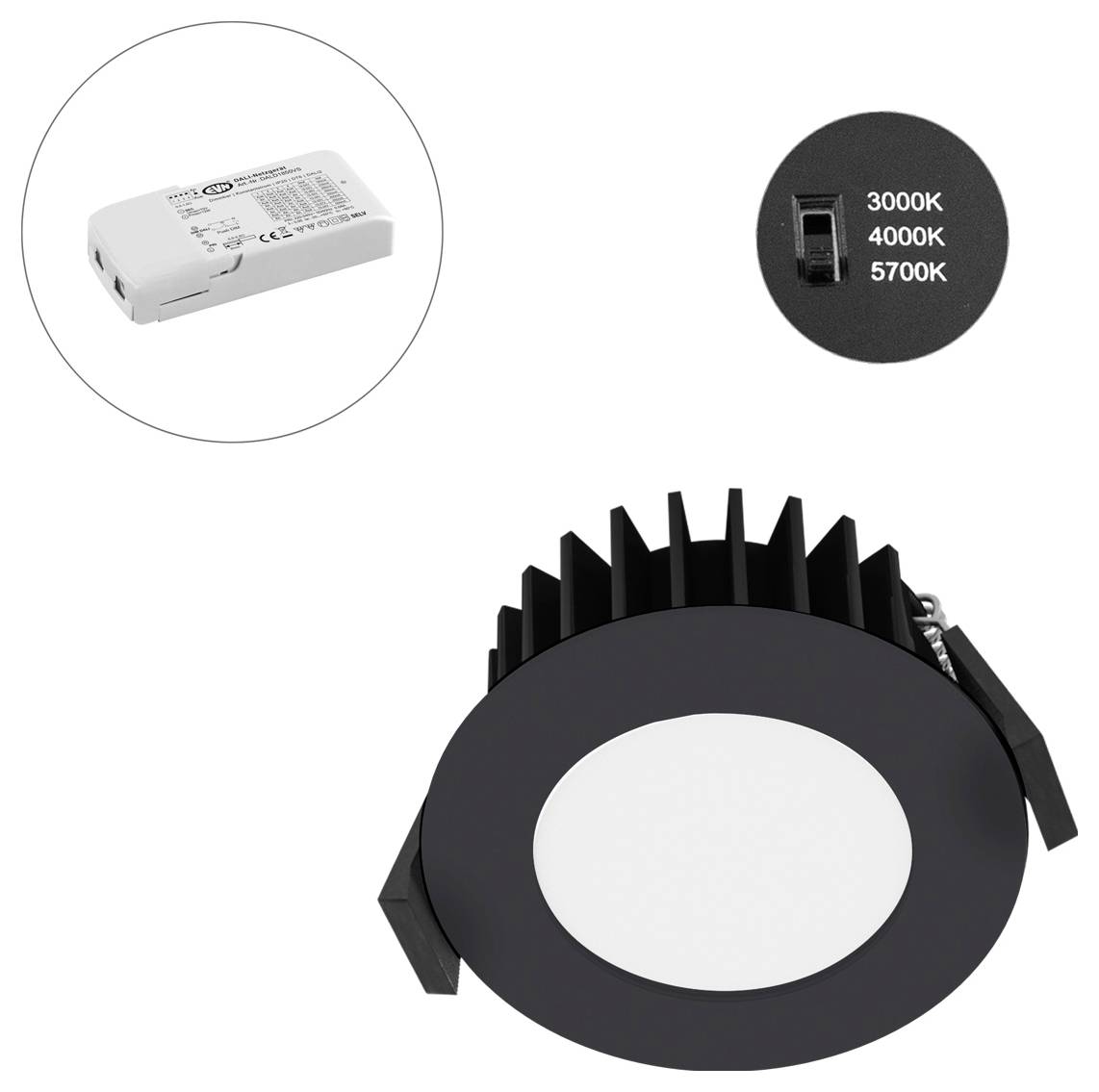

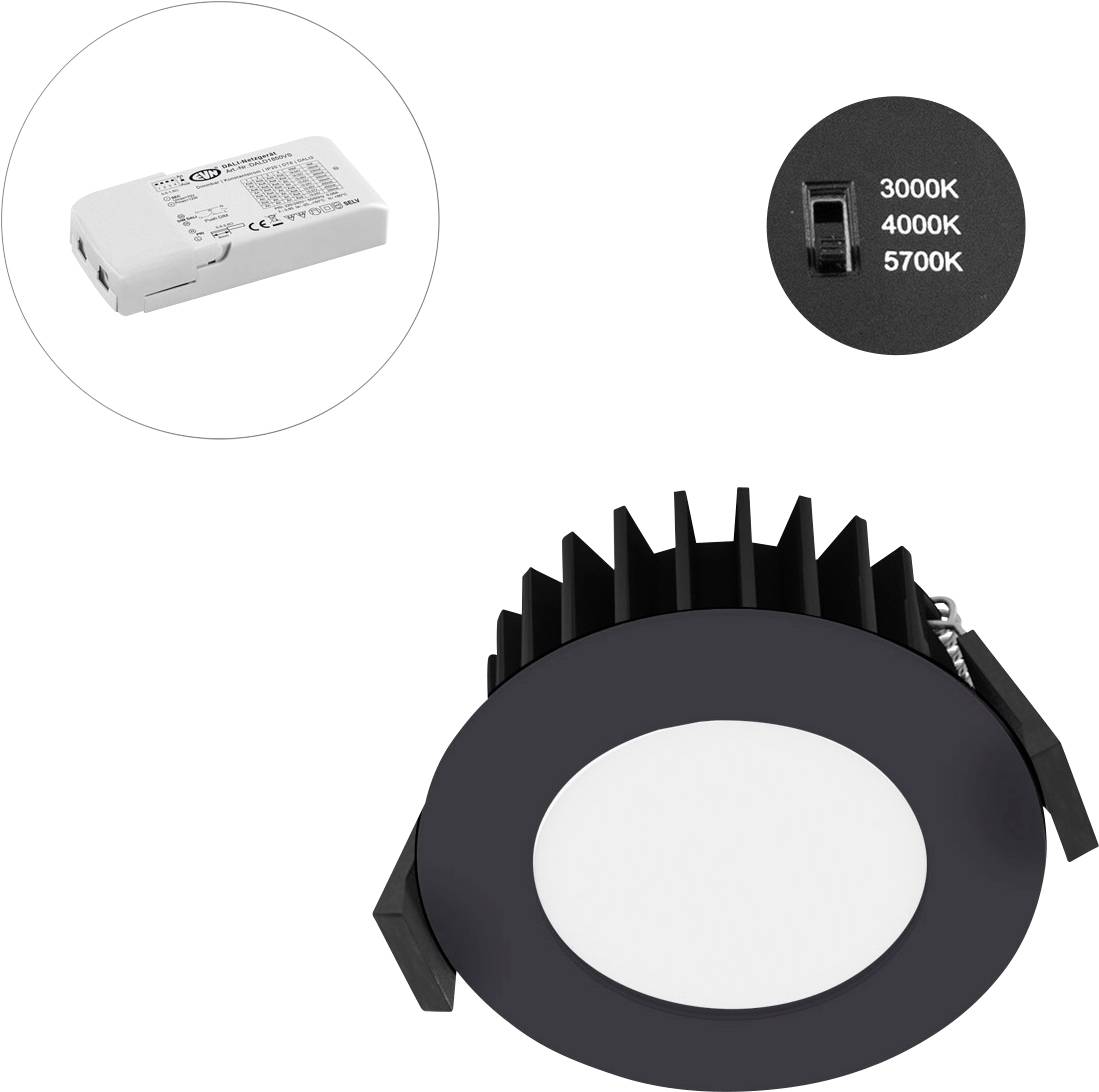

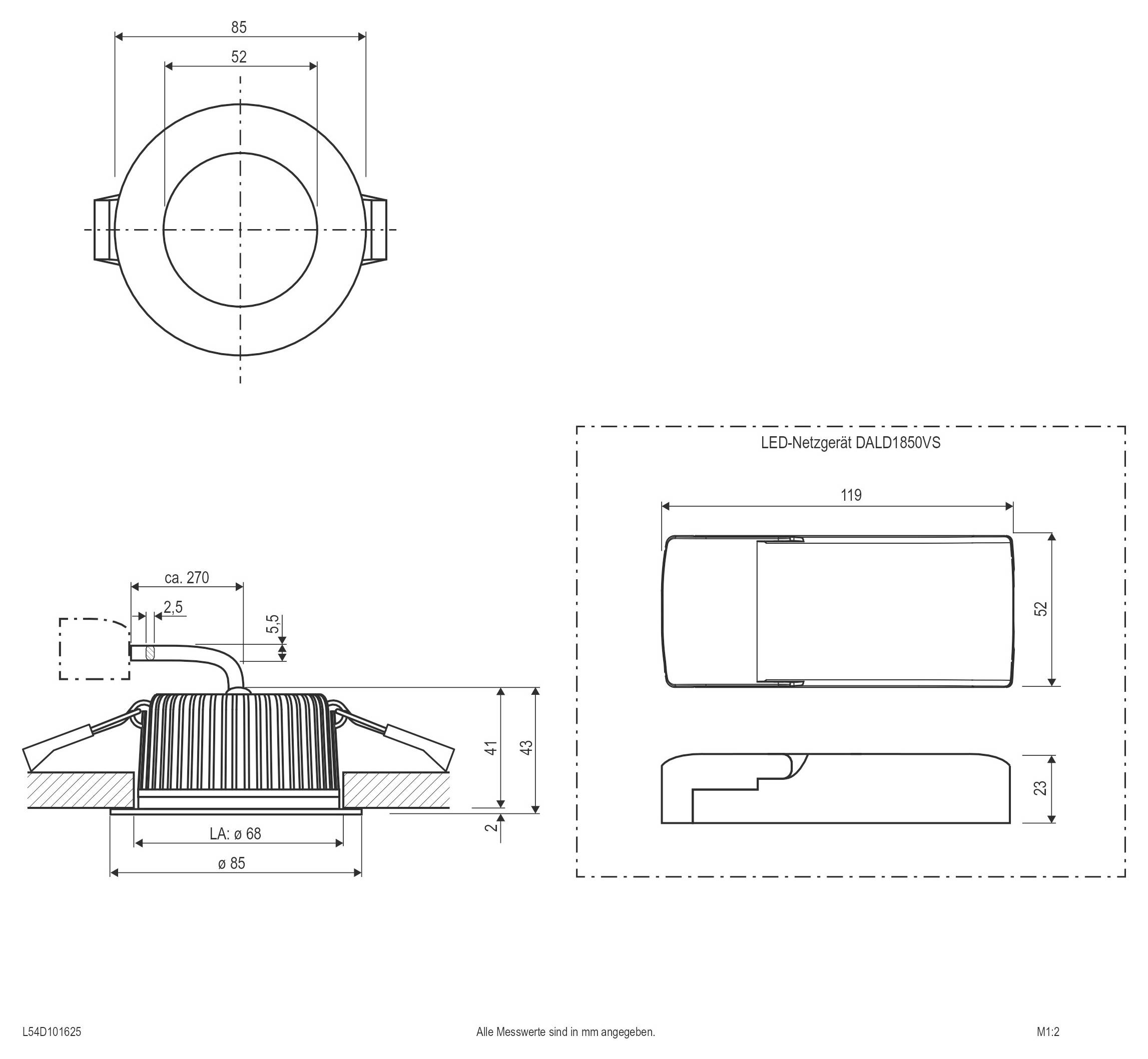

LED ceiling mounted light fixture for various applications, such as comprehensive, but also effective lighting in corridors, living room, office and much more. One of three possible color temperatures can be set with the switch on the back. The output current of the power supply unit can also be set via a dip switch. The possible color temperatures and the resulting lumens taking into account the adjustable output current are: 260mA (7W): 3000K (706lm), 4000K (764lm) and 5700K (747lm), 300mA (8.5W): 3000K (8333lm), 4000K (922lm) and 5700K (880lm), 350mA (10W): 3000K (915lm), and 970014lm. The connecting cable between the mains adapter and the lamp has a length of 27 cm. The power supply unit has the following dimensions: 119x52x23mm. Protocol: DT6, DALI2. The power supply can also be dimmed via Push-L. Max. Tc: 68°C. The color is similar to RAL7016.
This text is machine translated.
This text is machine translated.
What kind of Flush Mount Lighting are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
